Docker login/logout 命令：安全认证与镜像仓库管理

Docker login/logout 命令：安全认证与镜像仓库管理

• • 1. 命令概述
  • 2. 认证流程架构
  • 3. docker login 详解
  • • 3.1 命令语法
    • 3.2 参数解析
    • 3.3 认证流程图
  • 4. docker logout 详解
  • • 4.1 命令语法
    • 4.2 数据清除过程
  • 5. 安全实践指南
  • • 5.1 认证方式对比
    • 5.2 最佳安全实践
  • 6. 实战场景示例
  • • 6.1 企业级私有仓库认证
    • 6.2 CI/CD 流水线集成
    • 6.3 多仓库配置管理
  • 7. 配置文件深度解析
  • 8. 常见问题排查
  • • 8.1 认证失败分析
    • 8.2 典型错误处理
  • 9. 高级主题
  • • 9.1 凭证存储方案
    • 9.2 企业级SSO集成
  • 10. 总结与最佳实践
  • • 10.1 核心要点
    • 10.2 推荐工作流

1. 命令概述

docker login 和 docker logout 是 Docker 认证体系的核心命令，用于管理 Docker 客户端与镜像仓库的安全连接。这些命令不仅支持 Docker Hub，还适用于各类私有仓库（如 Harbor、Nexus 等）。

2. 认证流程架构

#mermaid-svg-7nJ79bMpQuPaLURI {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .error-icon{fill:#552222;}#mermaid-svg-7nJ79bMpQuPaLURI .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-7nJ79bMpQuPaLURI .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-7nJ79bMpQuPaLURI .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-7nJ79bMpQuPaLURI .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-7nJ79bMpQuPaLURI .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-7nJ79bMpQuPaLURI .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-7nJ79bMpQuPaLURI .marker{fill:#333333;stroke:#333333;}#mermaid-svg-7nJ79bMpQuPaLURI .marker.cross{stroke:#333333;}#mermaid-svg-7nJ79bMpQuPaLURI svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-7nJ79bMpQuPaLURI .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .cluster-label text{fill:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .cluster-label span{color:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .label text,#mermaid-svg-7nJ79bMpQuPaLURI span{fill:#333;color:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .node rect,#mermaid-svg-7nJ79bMpQuPaLURI .node circle,#mermaid-svg-7nJ79bMpQuPaLURI .node ellipse,#mermaid-svg-7nJ79bMpQuPaLURI .node polygon,#mermaid-svg-7nJ79bMpQuPaLURI .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-7nJ79bMpQuPaLURI .node .label{text-align:center;}#mermaid-svg-7nJ79bMpQuPaLURI .node.clickable{cursor:pointer;}#mermaid-svg-7nJ79bMpQuPaLURI .arrowheadPath{fill:#333333;}#mermaid-svg-7nJ79bMpQuPaLURI .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-7nJ79bMpQuPaLURI .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-7nJ79bMpQuPaLURI .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-7nJ79bMpQuPaLURI .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-7nJ79bMpQuPaLURI .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-7nJ79bMpQuPaLURI .cluster text{fill:#333;}#mermaid-svg-7nJ79bMpQuPaLURI .cluster span{color:#333;}#mermaid-svg-7nJ79bMpQuPaLURI div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-7nJ79bMpQuPaLURI :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

安全层

1. 认证请求

2. 令牌返回

3. 带权访问

加密

/.docker/config.json

凭据存储

Docker客户端

认证服务

镜像仓库

3. docker login 详解

3.1 命令语法

docker login [OPTIONS] [SERVER]

3.2 参数解析

3.3 认证流程图

#mermaid-svg-S9b4OLIWrKvibHe4 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 .error-icon{fill:#552222;}#mermaid-svg-S9b4OLIWrKvibHe4 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-S9b4OLIWrKvibHe4 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-S9b4OLIWrKvibHe4 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-S9b4OLIWrKvibHe4 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-S9b4OLIWrKvibHe4 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-S9b4OLIWrKvibHe4 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-S9b4OLIWrKvibHe4 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-S9b4OLIWrKvibHe4 .marker.cross{stroke:#333333;}#mermaid-svg-S9b4OLIWrKvibHe4 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-S9b4OLIWrKvibHe4 .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-S9b4OLIWrKvibHe4 text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-S9b4OLIWrKvibHe4 .actor-line{stroke:grey;}#mermaid-svg-S9b4OLIWrKvibHe4 .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 .sequenceNumber{fill:white;}#mermaid-svg-S9b4OLIWrKvibHe4 #sequencenumber{fill:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 .messageText{fill:#333;stroke:#333;}#mermaid-svg-S9b4OLIWrKvibHe4 .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-S9b4OLIWrKvibHe4 .labelText,#mermaid-svg-S9b4OLIWrKvibHe4 .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-S9b4OLIWrKvibHe4 .loopText,#mermaid-svg-S9b4OLIWrKvibHe4 .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-S9b4OLIWrKvibHe4 .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-S9b4OLIWrKvibHe4 .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-S9b4OLIWrKvibHe4 .noteText,#mermaid-svg-S9b4OLIWrKvibHe4 .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-S9b4OLIWrKvibHe4 .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-S9b4OLIWrKvibHe4 .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-S9b4OLIWrKvibHe4 .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-S9b4OLIWrKvibHe4 .actorPopupMenu{position:absolute;}#mermaid-svg-S9b4OLIWrKvibHe4 .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-S9b4OLIWrKvibHe4 .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-S9b4OLIWrKvibHe4 .actor-man circle,#mermaid-svg-S9b4OLIWrKvibHe4 line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-S9b4OLIWrKvibHe4 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

User

Docker_Client

Auth_Service

Registry

docker login -u user

发送凭据

返回认证令牌

带令牌请求

返回操作权限

Login Succeeded

User

Docker_Client

Auth_Service

Registry

4. docker logout 详解

4.1 命令语法

docker logout [SERVER]

4.2 数据清除过程

#mermaid-svg-caT3qFIFPKtuc0Rx {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .error-icon{fill:#552222;}#mermaid-svg-caT3qFIFPKtuc0Rx .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-caT3qFIFPKtuc0Rx .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-caT3qFIFPKtuc0Rx .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-caT3qFIFPKtuc0Rx .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-caT3qFIFPKtuc0Rx .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-caT3qFIFPKtuc0Rx .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-caT3qFIFPKtuc0Rx .marker{fill:#333333;stroke:#333333;}#mermaid-svg-caT3qFIFPKtuc0Rx .marker.cross{stroke:#333333;}#mermaid-svg-caT3qFIFPKtuc0Rx svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-caT3qFIFPKtuc0Rx .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .cluster-label text{fill:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .cluster-label span{color:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .label text,#mermaid-svg-caT3qFIFPKtuc0Rx span{fill:#333;color:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .node rect,#mermaid-svg-caT3qFIFPKtuc0Rx .node circle,#mermaid-svg-caT3qFIFPKtuc0Rx .node ellipse,#mermaid-svg-caT3qFIFPKtuc0Rx .node polygon,#mermaid-svg-caT3qFIFPKtuc0Rx .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-caT3qFIFPKtuc0Rx .node .label{text-align:center;}#mermaid-svg-caT3qFIFPKtuc0Rx .node.clickable{cursor:pointer;}#mermaid-svg-caT3qFIFPKtuc0Rx .arrowheadPath{fill:#333333;}#mermaid-svg-caT3qFIFPKtuc0Rx .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-caT3qFIFPKtuc0Rx .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-caT3qFIFPKtuc0Rx .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-caT3qFIFPKtuc0Rx .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-caT3qFIFPKtuc0Rx .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-caT3qFIFPKtuc0Rx .cluster text{fill:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx .cluster span{color:#333;}#mermaid-svg-caT3qFIFPKtuc0Rx div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-caT3qFIFPKtuc0Rx :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

执行logout

修改config.json

移除对应server配置

输出移除确认

5. 安全实践指南

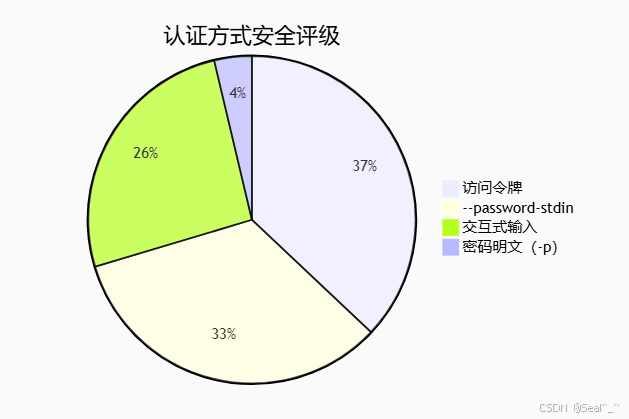

5.1 认证方式对比

5.2 最佳安全实践

6. 实战场景示例

6.1 企业级私有仓库认证

# 登录企业仓库
docker login registry.company.com -u employee_id

# 推送镜像
docker push registry.company.com/project/image:latest

# 退出登录
docker logout registry.company.com

6.2 CI/CD 流水线集成

#!/bin/bash
# 安全登录示例
echo $CI_DEPLOY_PASSWORD | docker login -u $CI_DEPLOY_USER –password-stdin registry.gitlab.com

# 构建并推送
docker build -t registry.gitlab.com/group/project:$CI_COMMIT_SHA .
docker push registry.gitlab.com/group/project:$CI_COMMIT_SHA

# 清理凭证
docker logout registry.gitlab.com

6.3 多仓库配置管理

# 同时管理多个仓库
docker login registry1.com -u user1
docker login registry2.com -u user2

# 查看配置
cat ~/.docker/config.json

7. 配置文件深度解析

~/.docker/config.json 示例：

{
"auths": {
"https://index.docker.io/v1/": {
"auth": "base64编码的user:pwd"
},
"registry.example.com": {
"auth": "another_base64_string"
}
},
"credsStore": "osxkeychain"
}

8. 常见问题排查

8.1 认证失败分析

#mermaid-svg-sI01pguIOWyfBRR0 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .error-icon{fill:#552222;}#mermaid-svg-sI01pguIOWyfBRR0 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-sI01pguIOWyfBRR0 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-sI01pguIOWyfBRR0 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-sI01pguIOWyfBRR0 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-sI01pguIOWyfBRR0 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-sI01pguIOWyfBRR0 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-sI01pguIOWyfBRR0 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-sI01pguIOWyfBRR0 .marker.cross{stroke:#333333;}#mermaid-svg-sI01pguIOWyfBRR0 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-sI01pguIOWyfBRR0 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .cluster-label text{fill:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .cluster-label span{color:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .label text,#mermaid-svg-sI01pguIOWyfBRR0 span{fill:#333;color:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .node rect,#mermaid-svg-sI01pguIOWyfBRR0 .node circle,#mermaid-svg-sI01pguIOWyfBRR0 .node ellipse,#mermaid-svg-sI01pguIOWyfBRR0 .node polygon,#mermaid-svg-sI01pguIOWyfBRR0 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-sI01pguIOWyfBRR0 .node .label{text-align:center;}#mermaid-svg-sI01pguIOWyfBRR0 .node.clickable{cursor:pointer;}#mermaid-svg-sI01pguIOWyfBRR0 .arrowheadPath{fill:#333333;}#mermaid-svg-sI01pguIOWyfBRR0 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-sI01pguIOWyfBRR0 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-sI01pguIOWyfBRR0 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-sI01pguIOWyfBRR0 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-sI01pguIOWyfBRR0 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-sI01pguIOWyfBRR0 .cluster text{fill:#333;}#mermaid-svg-sI01pguIOWyfBRR0 .cluster span{color:#333;}#mermaid-svg-sI01pguIOWyfBRR0 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-sI01pguIOWyfBRR0 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

登录失败

检查网络

验证凭据

检查仓库URL

查看docker info

检查TLS证书

8.2 典型错误处理

9. 高级主题

9.1 凭证存储方案

#mermaid-svg-eqzqmeSqznBnee3K {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-eqzqmeSqznBnee3K .error-icon{fill:#552222;}#mermaid-svg-eqzqmeSqznBnee3K .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-eqzqmeSqznBnee3K .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-eqzqmeSqznBnee3K .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-eqzqmeSqznBnee3K .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-eqzqmeSqznBnee3K .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-eqzqmeSqznBnee3K .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-eqzqmeSqznBnee3K .marker{fill:#333333;stroke:#333333;}#mermaid-svg-eqzqmeSqznBnee3K .marker.cross{stroke:#333333;}#mermaid-svg-eqzqmeSqznBnee3K svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-eqzqmeSqznBnee3K .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-eqzqmeSqznBnee3K .cluster-label text{fill:#333;}#mermaid-svg-eqzqmeSqznBnee3K .cluster-label span{color:#333;}#mermaid-svg-eqzqmeSqznBnee3K .label text,#mermaid-svg-eqzqmeSqznBnee3K span{fill:#333;color:#333;}#mermaid-svg-eqzqmeSqznBnee3K .node rect,#mermaid-svg-eqzqmeSqznBnee3K .node circle,#mermaid-svg-eqzqmeSqznBnee3K .node ellipse,#mermaid-svg-eqzqmeSqznBnee3K .node polygon,#mermaid-svg-eqzqmeSqznBnee3K .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-eqzqmeSqznBnee3K .node .label{text-align:center;}#mermaid-svg-eqzqmeSqznBnee3K .node.clickable{cursor:pointer;}#mermaid-svg-eqzqmeSqznBnee3K .arrowheadPath{fill:#333333;}#mermaid-svg-eqzqmeSqznBnee3K .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-eqzqmeSqznBnee3K .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-eqzqmeSqznBnee3K .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-eqzqmeSqznBnee3K .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-eqzqmeSqznBnee3K .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-eqzqmeSqznBnee3K .cluster text{fill:#333;}#mermaid-svg-eqzqmeSqznBnee3K .cluster span{color:#333;}#mermaid-svg-eqzqmeSqznBnee3K div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-eqzqmeSqznBnee3K :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

本地文件

密码管理器

WinCred

macOS钥匙串

Secret Service

启用凭证存储：

# 查看可用帮助程序
docker-credential-helpers list

# 配置使用
echo '{"credsStore":"osxkeychain"}' > ~/.docker/config.json

9.2 企业级SSO集成

# 使用令牌登录
docker login -u oauth2accesstoken -p $(gcloud auth print-access-token) https://gcr.io

10. 总结与最佳实践

10.1 核心要点

10.2 推荐工作流

#mermaid-svg-URuFLhc9E0TcU5UZ {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .error-icon{fill:#552222;}#mermaid-svg-URuFLhc9E0TcU5UZ .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-URuFLhc9E0TcU5UZ .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-URuFLhc9E0TcU5UZ .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-URuFLhc9E0TcU5UZ .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-URuFLhc9E0TcU5UZ .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-URuFLhc9E0TcU5UZ .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-URuFLhc9E0TcU5UZ .marker{fill:#333333;stroke:#333333;}#mermaid-svg-URuFLhc9E0TcU5UZ .marker.cross{stroke:#333333;}#mermaid-svg-URuFLhc9E0TcU5UZ svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-URuFLhc9E0TcU5UZ .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .cluster-label text{fill:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .cluster-label span{color:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .label text,#mermaid-svg-URuFLhc9E0TcU5UZ span{fill:#333;color:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .node rect,#mermaid-svg-URuFLhc9E0TcU5UZ .node circle,#mermaid-svg-URuFLhc9E0TcU5UZ .node ellipse,#mermaid-svg-URuFLhc9E0TcU5UZ .node polygon,#mermaid-svg-URuFLhc9E0TcU5UZ .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-URuFLhc9E0TcU5UZ .node .label{text-align:center;}#mermaid-svg-URuFLhc9E0TcU5UZ .node.clickable{cursor:pointer;}#mermaid-svg-URuFLhc9E0TcU5UZ .arrowheadPath{fill:#333333;}#mermaid-svg-URuFLhc9E0TcU5UZ .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-URuFLhc9E0TcU5UZ .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-URuFLhc9E0TcU5UZ .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-URuFLhc9E0TcU5UZ .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-URuFLhc9E0TcU5UZ .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-URuFLhc9E0TcU5UZ .cluster text{fill:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ .cluster span{color:#333;}#mermaid-svg-URuFLhc9E0TcU5UZ div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-URuFLhc9E0TcU5UZ :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

开始

安全登录

镜像操作

及时退出

记录日志

通过掌握 docker login/logout 的高级用法，您可以：

• 安全高效地管理企业镜像资产
• 实现CI/CD流水线的自动化认证
• 满足合规性要求的访问控制
• 构建可靠的容器化工作流程
