HTTP 状态码：客户端与服务器的通信语言——第五部分：服务器错误状态码（5xx）系统分析

第24章：500 Internal Server Error – 内部服务器错误

24.1 深度技术解析：500错误的本质

500 Internal Server Error 是HTTP协议中最通用、最令人困惑的服务器错误状态码。与客户端错误（4xx）不同，500错误明确表示问题出在服务器端，但服务器无法或不愿提供更具体的信息。

24.1.1 技术规格与协议定义

HTTP/1.1 RFC 7231定义：服务器遇到了意外情况，阻止其完成请求
状态码语义：通用错误响应，当没有更具体消息合适时使用
关键特征：
- 服务器端故障的"兜底"状态码
- 通常伴随服务器端异常堆栈或日志
- 客户端无法通过修改请求解决此问题

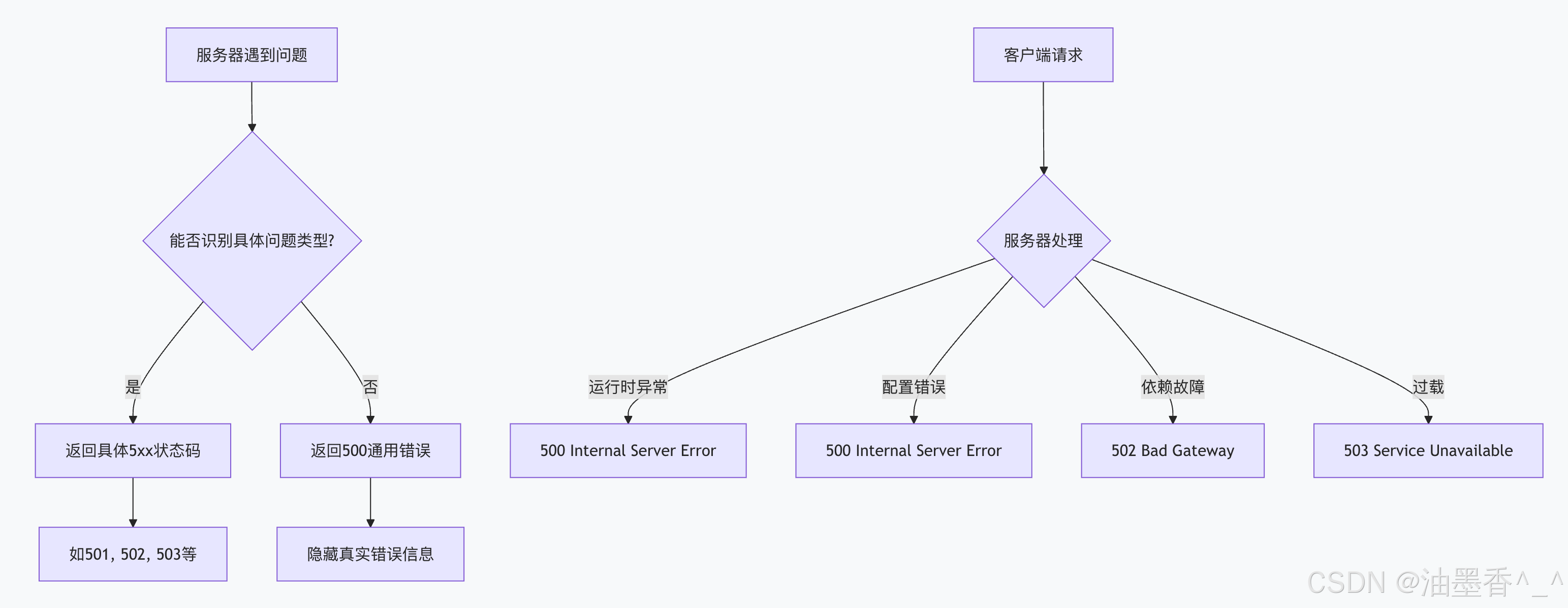

24.1.2 与相关状态码的区分

24.2 典型触发场景与案例分析

24.2.1 代码级异常（最常见场景）

案例一：未捕获的运行时异常

python

# 错误示例：缺乏异常处理的危险代码
@app.route('/process-data')
def process_data():
# 未验证输入可能导致各种异常
data = request.json['data'] # KeyError如果'data'不存在
result = complex_processing(data) # 可能抛出各种异常
return jsonify(result)

# 正确示例：防御性编程
@app.route('/process-data')
def process_data():
try:
data = request.json.get('data')
if not data:
return jsonify({'error': 'Missing data field'}), 400

# 输入验证
if not validate_input(data):
return jsonify({'error': 'Invalid input format'}), 422

result = safe_processing(data)
return jsonify(result)

except SpecificException as e:
logger.error(f"Processing failed: {str(e)}")
return jsonify({'error': 'Processing failed'}), 500

except Exception as e:
# 全局异常处理
logger.critical(f"Unexpected error: {str(e)}", exc_info=True)
# 可以考虑返回更友好的错误信息
return jsonify({'error': 'Internal server error'}), 500

案例二：资源泄漏导致的系统崩溃

java

// 数据库连接泄漏示例
public class UserService {
public User getUser(String userId) {
Connection conn = null;
try {
conn = dataSource.getConnection();
// 执行查询
return executeQuery(conn, userId);
} catch (SQLException e) {
// 错误：连接未在finally块中关闭
throw new RuntimeException("Query failed", e);
}
// 缺少finally块关闭连接
}
}

// 改进方案：使用try-with-resources
public User getUser(String userId) {
try (Connection conn = dataSource.getConnection();
PreparedStatement stmt = conn.prepareStatement("SELECT * FROM users WHERE id=?")) {

stmt.setString(1, userId);
try (ResultSet rs = stmt.executeQuery()) {
if (rs.next()) {
return mapToUser(rs);
}
}
} catch (SQLException e) {
logger.error("Database error", e);
throw new ServiceException("Failed to retrieve user", e);
}
return null;
}

24.2.2 配置错误场景

Nginx + PHP-FPM配置问题分析：

nginx

# 错误配置示例
server {
listen 80;
server_name example.com;

location ~ \\.php$ {
fastcgi_pass unix:/var/run/php/php7.4-fpm.sock;
# 错误的socket路径或权限问题
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
include fastcgi_params;
}
}

# 常见配置问题检查清单：
# 1. Socket文件权限：ls -l /var/run/php/php7.4-fpm.sock
# 2. PHP-FPM进程用户与Nginx用户是否匹配
# 3. SCRIPT_FILENAME参数是否正确设置
# 4. 文件系统权限问题

24.2.3 第三方依赖故障

python

# 外部API调用导致的级联故障
class PaymentService:
def __init__(self):
self.gateway_url = os.getenv('PAYMENT_GATEWAY_URL')
self.timeout = int(os.getenv('PAYMENT_TIMEOUT', 5))

def process_payment(self, order):
try:
response = requests.post(
f"{self.gateway_url}/charge",
json=order.to_dict(),
timeout=self.timeout
)
response.raise_for_status()
return response.json()

except requests.exceptions.Timeout:
# 超时处理策略
logger.error(f"Payment gateway timeout after {self.timeout}s")
raise PaymentGatewayTimeout("Payment service unavailable")

except requests.exceptions.ConnectionError:
# 连接失败处理
logger.error("Cannot connect to payment gateway")
raise PaymentGatewayError("Payment service connection failed")

except requests.exceptions.RequestException as e:
# 其他请求异常
logger.error(f"Payment gateway error: {str(e)}")
raise PaymentGatewayError("Payment processing failed")

24.3 系统化诊断方法论

24.3.1 分层诊断框架

诊断金字塔模型：

text

┌─────────────────────────────────────┐
│ 业务层面监控 │
│ • 用户投诉 │
│ • 业务指标异常 │
│ • 交易失败率上升 │
└──────────────┬──────────────────────┘
▼
┌─────────────────────────────────────┐
│ 应用层面诊断 │
│ • 错误日志分析 │
│ • 应用性能监控(APM) │
│ • 堆栈跟踪解析 │
└──────────────┬──────────────────────┘
▼
┌─────────────────────────────────────┐
│ 系统层面检查 │
│ • 系统日志(/var/log/) │
│ • 资源使用率(CPU/内存/磁盘) │
│ • 进程状态监控 │
└──────────────┬──────────────────────┘
▼
┌─────────────────────────────────────┐
│ 基础设施层 │
│ • 网络连通性 │
│ • 负载均衡状态 │
│ • 数据库连接池 │
└─────────────────────────────────────┘

24.3.2 诊断命令与工具集

实时诊断工具箱：

bash

#!/bin/bash
# 500错误诊断脚本示例

# 1. 检查Web服务器错误日志
tail -100 /var/log/nginx/error.log | grep -A5 -B5 "500"
tail -100 /var/log/apache2/error.log | grep -i "internal"

# 2. 检查应用日志
journalctl -u your-application.service –since "10 minutes ago" | tail -50

# 3. 系统资源检查
top -b -n 1 | head -20
free -h
df -h

# 4. 网络连接状态
netstat -tulpn | grep -E "(80|443)"
ss -tulpn | grep LISTEN

# 6. 数据库连接检查
# MySQL
mysqladmin -u root -p status
# PostgreSQL
pg_isready -h localhost

# 7. 磁盘I/O检查
iostat -x 1 5

# 8. 内存泄漏检查
cat /proc/meminfo | grep -E "(MemFree|Cached|Swap)"

# 9. 自动生成诊断报告
echo "=== 500错误诊断报告 ===" > /tmp/diagnosis_$(date +%s).txt
echo "时间: $(date)" >> /tmp/diagnosis.txt
dmesg | tail -20 >> /tmp/diagnosis.txt

24.4 高级解决方案与最佳实践

24.4.1 优雅降级与故障隔离

java

// 使用断路器模式的优雅降级
@Service
public class RecommendationService {

private final CircuitBreaker circuitBreaker;
private final CacheService cacheService;

public RecommendationService() {
// 配置断路器：10秒内50%失败触发打开状态
CircuitBreakerConfig config = CircuitBreakerConfig.custom()
.failureRateThreshold(50)
.waitDurationInOpenState(Duration.ofSeconds(30))
.slidingWindowSize(10)
.build();

this.circuitBreaker = CircuitBreaker.of("recommendation-service", config);
}

public List<Product> getRecommendations(String userId) {
return circuitBreaker.executeSupplier(() -> {
// 主逻辑：调用推荐引擎
return callRecommendationEngine(userId);
}, throwable -> {
// 降级逻辑：返回缓存或默认推荐
logger.warn("Recommendation engine failed, using fallback", throwable);
return getCachedRecommendations(userId);
});
}

private List<Product> getCachedRecommendations(String userId) {
// 从缓存获取或返回默认列表
List<Product> cached = cacheService.get("rec:" + userId);
return cached != null ? cached : getDefaultRecommendations();
}
}

24.4.2 全面监控与告警体系

Prometheus + Grafana监控配置示例：

yaml

# prometheus.yml – 500错误监控配置
scrape_configs:
– job_name: 'webapp'
static_configs:
– targets: ['localhost:8080']

# 自定义500错误指标
metric_relabel_configs:
– source_labels: [code]
regex: '5..'
action: keep

# 告警规则配置
groups:
– name: http_errors
rules:
– alert: High500ErrorRate
expr: |
rate(
http_requests_total{status="500"}[5m]
) / rate(
http_requests_total[5m]
) > 0.05 # 5%的500错误率
for: 2m
labels:
severity: critical
annotations:
summary: "High rate of 500 errors detected"
description: |
500错误率超过5%，当前值: {{ $value }}
影响服务: {{ $labels.service }}

24.4.3 自动化恢复机制

Kubernetes健康检查与自愈：

yaml

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: webapp-deployment
spec:
replicas: 3
selector:
matchLabels:
app: webapp
template:
metadata:
labels:
app: webapp
spec:
containers:
– name: webapp
image: your-webapp:latest
ports:
– containerPort: 8080

# 活性探针 – 检查容器是否存活
livenessProbe:
httpGet:
path: /health/live
port: 8080
initialDelaySeconds: 30
periodSeconds: 10
failureThreshold: 3 # 连续3次失败后重启容器

# 就绪探针 – 检查容器是否准备好接收流量
readinessProbe:
httpGet:
path: /health/ready
port: 8080
initialDelaySeconds: 5
periodSeconds: 5
failureThreshold: 2

# 资源限制防止OOM
resources:
limits:
memory: "512Mi"
cpu: "500m"
requests:
memory: "256Mi"
cpu: "250m"

24.5 预防性架构设计

24.5.1 容错架构模式

微服务架构中的错误传播控制：

python

# 使用异步消息队列解耦服务
import asyncio
from contextlib import asynccontextmanager
from typing import Optional

class ResilientService:
def __init__(self):
self.retry_policy = ExponentialBackoffRetry(
max_retries=3,
base_delay=1.0,
max_delay=10.0
)

async def process_with_retry(self, task, task_id: str):
"""带重试和死信队列的处理"""
for attempt in range(self.retry_policy.max_retries):
try:
return await task()

except TransientError as e:
if attempt == self.retry_policy.max_retries – 1:
# 最终失败，进入死信队列
await self.send_to_dead_letter_queue(task_id, str(e))
raise

delay = self.retry_policy.get_delay(attempt)
logger.warning(f"Attempt {attempt+1} failed, retrying in {delay}s")
await asyncio.sleep(delay)

except PermanentError as e:
# 永久性错误，不重试
logger.error(f"Permanent error: {str(e)}")
await self.send_to_dead_letter_queue(task_id, str(e))
raise

24.5.2 混沌工程与韧性测试

python

# 使用Chaos Toolkit进行故障注入测试
import chaos
from chaos import experiment

@experiment
def test_database_failure_resilience():
"""测试数据库故障时的服务行为"""

# 1. 建立健康基准
baseline = get_system_health()

# 2. 注入故障：模拟数据库连接失败
with chaos.inject_fault(
target="database",
fault_type="network_latency",
parameters={"latency": 5000, "duration": "30s"}
):
# 3. 监控系统响应
response = simulate_user_workflow()

# 4. 验证系统是否优雅降级
assert response.status_code != 500, "系统不应返回500错误"
assert has_fallback_content(response), "应显示降级内容"

# 5. 收集指标
metrics = collect_performance_metrics()

# 6. 恢复并验证
recovery_time = measure_recovery_time()
assert recovery_time < 60, "恢复时间应小于60秒"

return {
"baseline": baseline,
"under_fault": metrics,
"recovery_time": recovery_time
}

24.6 总结：从被动响应到主动预防

500 Internal Server Error 虽然是一个通用错误，但其背后的原因千差万别。有效的500错误管理需要：

多层防御体系：从代码级异常处理到架构级容错设计

全面可观测性：日志、指标、追踪三位一体的监控体系

自动化恢复：基于健康检查的自动重启和流量切换

预防性测试：混沌工程、负载测试、故障注入

持续改进：建立故障复盘文化，将每次500错误转化为系统加固的机会

通过系统化的方法处理500错误，可以显著提升系统的可用性和可靠性，将不可预知的服务器错误转化为可管理、可预防的系统行为。

第25章：501 Not Implemented – 未实现功能

25.1 协议规范深度解读

501 Not Implemented 是一个经常被误解或误用的HTTP状态码。它明确表示服务器不支持完成请求所需的功能。

25.1.1 RFC 7231 正式定义

原文："The server does not support the functionality required to fulfill the request."
关键解读：
- 服务器理解请求，但无法执行
- 通常与HTTP方法相关（如服务器不支持PATCH方法）
- 是永久性错误，除非服务器升级
- 必须包含适当的Allow头部（如果适用）

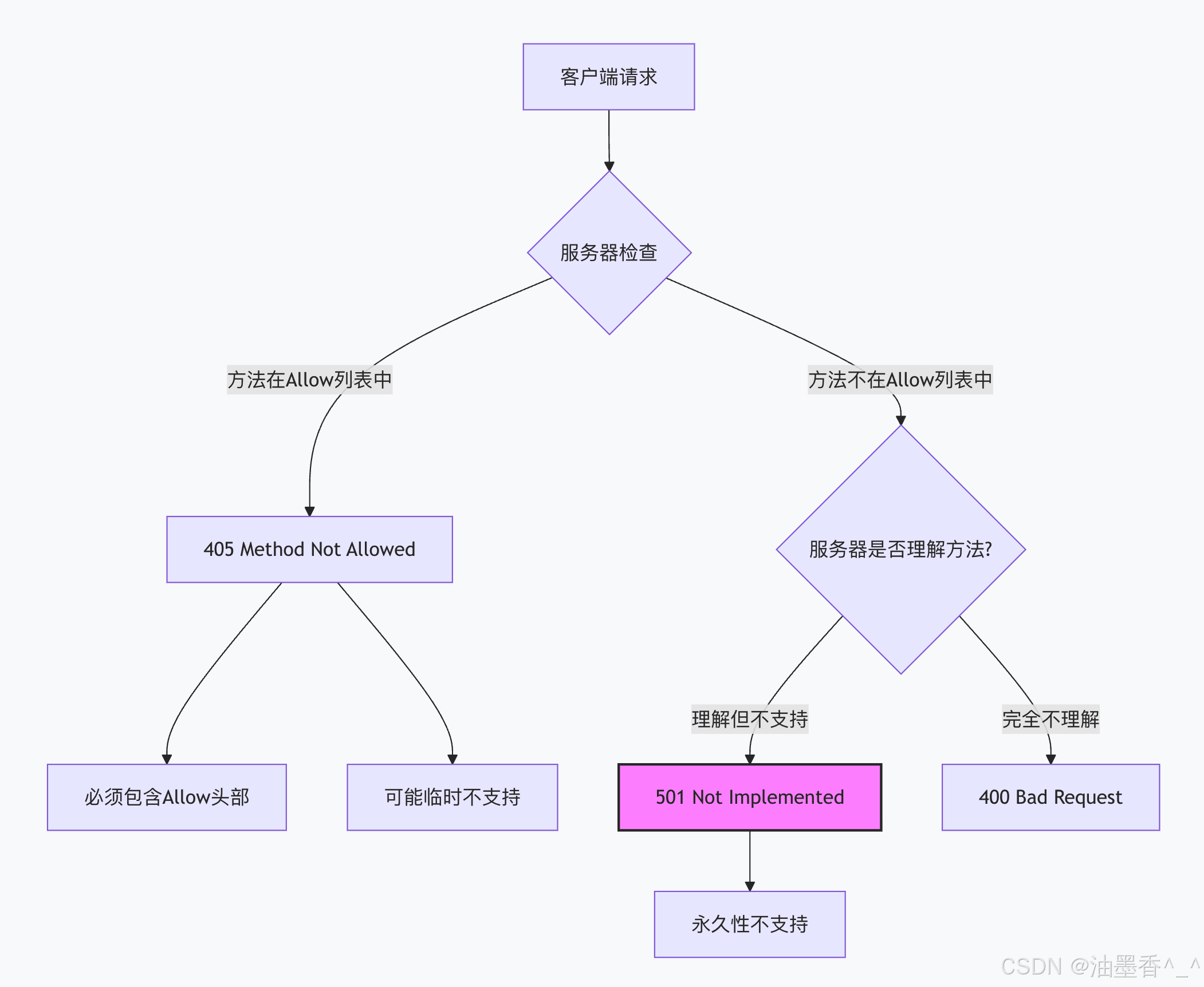

25.1.2 与405 Method Not Allowed的区别

25.2 实际应用场景分析

25.2.1 REST API设计中的正确使用

python

# Flask REST API示例 – 正确实现501响应
from flask import Flask, jsonify, request
from functools import wraps

app = Flask(__name__)

def require_feature(feature_name):
"""装饰器：检查功能是否已实现"""
def decorator(f):
@wraps(f)
def decorated_function(*args, **kwargs):
if not is_feature_enabled(feature_name):
# 返回501，表示功能未实现
return jsonify({
"error": "Feature not implemented",
"feature": feature_name,
"documentation": "https://api.example.com/docs/features"
}), 501
return f(*args, **kwargs)
return decorated_function
return decorator

@app.route('/api/v1/users/<user_id>', methods=['GET', 'PATCH', 'DELETE'])
def user_operations(user_id):
if request.method == 'PATCH':
# PATCH方法已计划但未实现
return jsonify({
"error": "PATCH method not yet implemented",
"message": "Use PUT for full updates or check roadmap",
"roadmap": "https://api.example.com/roadmap#patch-support",
"available_methods": ["GET", "PUT", "DELETE"]
}), 501

elif request.method == 'DELETE':
if not is_deletion_enabled():
return jsonify({
"error": "User deletion not implemented",
"message": "Contact admin for account deletion",
"contact": "support@example.com"
}), 501

# 正常处理GET和已实现的DELETE
return handle_user_request(user_id, request.method)

# 为OPTIONS请求正确返回Allow头部
@app.route('/api/v1/users/<user_id>', methods=['OPTIONS'])
def user_options(user_id):
response = jsonify({})
response.headers['Allow'] = 'GET, PUT, DELETE' # 不包括PATCH
response.headers['Accept-Patch'] = 'application/json-patch+json'
return response

25.2.2 WebDAV扩展协议场景

http

# WebDAV客户端请求示例
PROPFIND /remote.php/dav/files/user/documents/ HTTP/1.1
Host: cloud.example.com
Depth: 1
Content-Type: application/xml; charset=utf-8
Content-Length: 173

<?xml version="1.0" encoding="utf-8" ?>
<D:propfind xmlns:D="DAV:">
<D:prop>
<D:getlastmodified/>
<D:getcontentlength/>
<D:creationdate/>
<D:resourcetype/>
</D:prop>
</D:propfind>

# 服务器响应（如果PROPFIND未实现）
HTTP/1.1 501 Not Implemented
Allow: GET, HEAD, POST, PUT, DELETE, OPTIONS
Content-Type: application/json

{
"error": "PROPFIND method not supported",
"supported_methods": ["GET", "HEAD", "POST", "PUT", "DELETE", "OPTIONS"],
"webdav_support": false,
"alternative": "/api/v2/files/metadata"
}

25.3 企业级解决方案设计

25.3.1 API版本管理与功能标记

yaml

# OpenAPI 3.0规范中的功能标记
openapi: 3.0.3
info:
title: User Management API
version: 1.5.0
description: |
注意：某些功能可能处于beta状态或未完全实现。
使用`X-Feature-Flags`头部请求特定功能。

paths:
/users/{id}:
patch:
summary: Partially update a user
description: |
此功能当前为**实验性**。
需要设置`X-Feature-Flags: partial-update`。
完整实现计划在v2.0.0。
operationId: patchUser
parameters:
– name: X-Feature-Flags
in: header
required: true
schema:
type: string
enum: [partial-update]
responses:
'200':
description: Successfully updated
'501':
description: |
PATCH not fully implemented for this resource.
Current support limited to email field only.
Full PATCH support coming in v2.0.0.
content:
application/json:
schema:
$ref: '#/components/schemas/NotImplementedError'

25.3.2 渐进式功能发布策略

python

# 功能标记与渐进式发布系统
from typing import Dict, Optional
from enum import Enum
import redis

class FeatureStatus(Enum):
NOT_IMPLEMENTED = "not_implemented"
ALPHA = "alpha"
BETA = "beta"
GA = "general_availability"
DEPRECATED = "deprecated"

class FeatureManager:
def __init__(self):
self.redis = redis.Redis(host='localhost', port=6379, db=0)
self.feature_registry = self._load_feature_registry()

def _load_feature_registry(self) -> Dict:
"""加载功能定义"""
return {
"user_partial_update": {
"status": FeatureStatus.BETA,
"description": "PATCH support for user resources",
"since_version": "1.4.0",
"planned_ga": "2.0.0",
"required_headers": ["X-Feature-Flags"],
"documentation": "/docs/features/partial-update"
},
"bulk_operations": {
"status": FeatureStatus.NOT_IMPLEMENTED,
"description": "Bulk create/update/delete operations",
"planned_version": "2.1.0",
"roadmap_url": "/roadmap#bulk-operations"
}
}

def check_feature_access(self, feature_name: str,
user_id: Optional[str] = None) -> bool:
"""检查用户是否可以访问特定功能"""
feature = self.feature_registry.get(feature_name)

if not feature:
return False

status = feature["status"]

# 根据功能状态决定访问权限
if status == FeatureStatus.NOT_IMPLEMENTED:
return False
elif status == FeatureStatus.ALPHA:
# 仅限内部测试用户
return self._is_internal_user(user_id)
elif status == FeatureStatus.BETA:
# Beta测试用户或通过功能标记请求
return self._is_beta_user(user_id) or self._has_feature_flag(feature_name)
elif status == FeatureStatus.GA:
return True
elif status == FeatureStatus.DEPRECATED:
# 已弃用功能可能仍然可用
return self._has_legacy_access(user_id)

return False

def handle_not_implemented(self, feature_name: str, request) -> tuple:
"""生成标准化的501响应"""
feature = self.feature_registry.get(feature_name, {})

response_data = {
"error": "Feature not implemented",
"feature": feature_name,
"current_status": feature.get("status", "unknown"),
"message": feature.get("description", "")
}

# 添加有用的元数据
if "planned_version" in feature:
response_data["planned_release"] = feature["planned_version"]
if "documentation" in feature:
response_data["documentation_url"] = f"https://api.example.com{feature['documentation']}"
if "roadmap_url" in feature:
response_data["roadmap_url"] = f"https://api.example.com{feature['roadmap_url']}"

# 根据请求Accept头部返回不同格式
accept_header = request.headers.get('Accept', 'application/json')
if 'text/html' in accept_header:
return self._render_feature_roadmap_html(feature_name), 501
elif 'application/xml' in accept_header:
return self._render_feature_roadmap_xml(feature_name), 501
else:
return jsonify(response_data), 501

25.4 客户端处理策略

25.4.1 优雅的功能检测与降级

javascript

// 现代JavaScript客户端实现
class APIClient {
constructor(baseURL) {
this.baseURL = baseURL;
this.capabilities = new Map();
this.featureDetectionDone = false;
}

async detectCapabilities() {
try {
// 首先尝试OPTIONS请求获取支持的方法
const optionsResponse = await fetch(`${this.baseURL}/api/v1`, {
method: 'OPTIONS'
});

if (optionsResponse.headers.has('Allow')) {
const allowedMethods = optionsResponse.headers.get('Allow')
.split(',')
.map(m => m.trim());

this.capabilities.set('methods', allowedMethods);
}

// 检查特定功能
await this.checkFeature('partial-update');
await this.checkFeature('bulk-operations');

this.featureDetectionDone = true;
this.saveCapabilitiesToStorage();

} catch (error) {
console.warn('Capability detection failed, using defaults', error);
this.setDefaultCapabilities();
}
}

async checkFeature(featureName) {
const testEndpoint = `${this.baseURL}/api/v1/feature-check/${featureName}`;

try {
const response = await fetch(testEndpoint, {
method: 'HEAD',
headers: {
'X-Feature-Check': 'true'
}
});

if (response.status === 200) {
this.capabilities.set(featureName, true);

// 如果有功能版本信息
const version = response.headers.get('X-Feature-Version');
if (version) {
this.capabilities.set(`${featureName}.version`, version);
}
} else if (response.status === 501) {
this.capabilities.set(featureName, false);

// 解析响应获取更多信息
const errorData = await response.json();
this.capabilities.set(`${featureName}.info`, errorData);
}
} catch (error) {
// 网络错误，功能状态未知
this.capabilities.set(featureName, 'unknown');
}
}

async updateUser(userId, data, partial = false) {
// 根据功能支持情况选择方法
if (partial && this.capabilities.get('partial-update')) {
try {
return await this.patchUser(userId, data);
} catch (error) {
if (error.status === 501) {
// 功能检测可能过时，更新并降级
await this.detectCapabilities();
return await this.putUser(userId, data);
}
throw error;
}
} else {
// 使用完整的PUT更新
return await this.putUser(userId, data);
}
}

async patchUser(userId, data) {
const response = await fetch(`${this.baseURL}/api/v1/users/${userId}`, {
method: 'PATCH',
headers: {
'Content-Type': 'application/json-patch+json',
'X-Feature-Flags': 'partial-update'
},
body: JSON.stringify(data)
});

if (response.status === 501) {
const error = new Error('Partial update not implemented');
error.status = 501;
error.details = await response.json();
throw error;
}

return response.json();
}
}

25.4.2 用户界面的优雅处理

vue

<!– Vue.js组件：功能不可用的优雅UI处理 –>
<template>
<div class="feature-unavailable">
<div v-if="isLoading" class="loading">
<span class="spinner"></span>
检查功能可用性…
</div>

<div v-else-if="!isSupported" class="unsupported-feature">
<div class="feature-header">
<icon name="construction" size="48" />
<h2>{{ featureName }} 功能暂时不可用</h2>
</div>

<div class="feature-details">
<p v-if="featureInfo.message">{{ featureInfo.message }}</p>

<div v-if="featureInfo.planned_release" class="roadmap-info">
<h3>计划发布版本</h3>
<p>预计在 <strong>{{ featureInfo.planned_release }}</strong> 版本中提供</p>
<a :href="featureInfo.roadmap_url" target="_blank">查看详细路线图</a>
</div>

<div class="actions">
<button @click="retryDetection" class="btn-secondary">
重新检查功能
</button>
<a :href="featureInfo.documentation_url"
target="_blank"
class="btn-primary">
查看文档
</a>
</div>
</div>
</div>

data() {
return {
isLoading: true,
isSupported: false,
featureInfo: {},
alternatives: []
};
},

async created() {
await this.checkFeatureSupport();
},

methods: {
async checkFeatureSupport() {
this.isLoading = true;

try {
const response = await this.$api.checkFeature(this.featureName);

if (response.supported) {
this.isSupported = true;
} else {
this.featureInfo = response.details || {};
this.findAlternatives();
}
} catch (error) {
console.error('Feature check failed:', error);
// 默认降级处理
this.findAlternatives();
} finally {
this.isLoading = false;
}
},

findAlternatives() {
// 根据功能名查找替代方案
const alternativeMap = {
'partial-update': [
{ name: '完整更新', method: 'fullUpdate' },
{ name: '表单编辑', method: 'formEdit' }
],
'bulk-operations': [
{ name: '单个操作', method: 'singleOperation' },
{ name: '导入/导出', method: 'importExport' }
]
};

this.alternatives = alternativeMap[this.featureName] || [];
},

useAlternative(alternative) {
this.$emit('use-alternative', alternative.method);
},

async retryDetection() {
await this.checkFeatureSupport();
}
}
};
</script>

25.5 监控与演进管理

25.5.1 功能使用率追踪

python

# 功能使用率监控系统
from dataclasses import dataclass
from datetime import datetime
from collections import defaultdict
import statistics
from typing import Dict, List, Optional

@dataclass
class FeatureMetric:
"""功能使用指标"""
feature_name: str
requests_total: int = 0
requests_successful: int = 0
requests_failed: int = 0
requests_not_implemented: int = 0
average_response_time: float = 0.0
p95_response_time: float = 0.0

@property
def success_rate(self) -> float:
if self.requests_total == 0:
return 0.0
return self.requests_successful / self.requests_total

@property
def not_implemented_rate(self) -> float:
if self.requests_total == 0:
return 0.0
return self.requests_not_implemented / self.requests_total

class FeatureAnalytics:
def __init__(self):
self.metrics: Dict[str, FeatureMetric] = defaultdict(FeatureMetric)
self.response_times: Dict[str, List[float]] = defaultdict(list)
self.daily_requests: Dict[str, Dict[str, int]] = defaultdict(
lambda: defaultdict(int)
)

def track_request(self, feature_name: str, status_code: int,
response_time: float):
"""追踪功能请求"""
metric = self.metrics[feature_name]
metric.feature_name = feature_name
metric.requests_total += 1

if 200 <= status_code < 300:
metric.requests_successful += 1
elif status_code == 501:
metric.requests_not_implemented += 1
else:
metric.requests_failed += 1

# 记录响应时间
self.response_times[feature_name].append(response_time)

# 更新统计
times = self.response_times[feature_name]
if times:
metric.average_response_time = statistics.mean(times)
if len(times) >= 5:
metric.p95_response_time = statistics.quantiles(times, n=20)[18]

# 记录每日请求
today = datetime.now().strftime('%Y-%m-%d')
self.daily_requests[feature_name][today] += 1

def get_feature_priority_score(self, feature_name: str) -> float:
"""计算功能实现的优先级分数"""
metric = self.metrics.get(feature_name)
if not metric or metric.requests_total == 0:
return 0.0

# 基于请求量、失败率和业务重要性计算分数
request_volume_score = min(metric.requests_total / 1000, 1.0)
not_implemented_score = metric.not_implemented_rate

# 业务重要性权重（可从配置获取）
business_importance = self.get_business_importance(feature_name)

# 计算综合分数
priority_score = (
request_volume_score * 0.4 +
not_implemented_score * 0.4 +
business_importance * 0.2
)

return priority_score

def generate_roadmap_recommendations(self) -> List[Dict]:
"""生成路线图建议"""
recommendations = []

for feature_name, metric in self.metrics.items():
if metric.requests_not_implemented > 0:
score = self.get_feature_priority_score(feature_name)

recommendation = {
'feature': feature_name,
'priority_score': round(score, 2),
'total_requests': metric.requests_total,
'not_implemented_requests': metric.requests_not_implemented,
'not_implemented_rate': round(metric.not_implemented_rate, 3),
'recommendation': self.get_implementation_recommendation(score),
'estimated_effort': self.estimate_implementation_effort(feature_name)
}

recommendations.append(recommendation)

# 按优先级排序
recommendations.sort(key=lambda x: x['priority_score'], reverse=True)
return recommendations

25.6 最佳实践总结

25.6.1 Do's and Don'ts

应该做：

✅ 为所有未实现的功能返回一致的501响应
✅ 在OPTIONS响应中准确列出支持的方法
✅ 提供清晰的错误信息和文档链接
✅ 使用功能标记管理实验性功能
✅ 追踪501错误率以指导产品路线图

不应该做：

❌ 用501响应替代400、404或405
❌ 在未实现功能上不提供任何响应
❌ 混淆"未实现"和"暂时不可用"（应该用503）
❌ 忽略Allow头部的准确性
❌ 不提供功能演进的时间表

25.6.2 演进策略建议

透明沟通：向用户明确说明功能状态和计划

渐进式发布：使用功能标记控制功能曝光度

反馈循环：基于501请求量调整开发优先级

向后兼容：确保API演进不影响现有客户端

监控驱动：用数据指导功能实现决策

通过系统化地管理501状态码，API可以提供更好的开发者体验，同时为产品团队提供有价值的数据来指导功能开发优先级。

第26章：502 Bad Gateway – 网关错误

26.1 架构视角深度解析

502 Bad Gateway 是分布式系统中常见但复杂的错误，表明作为网关或代理的服务器从上游服务器接收到无效响应。

26.1.1 网关架构中的角色定位

text

┌─────────────────────────────────────────────────────────┐
│ 客户端请求流 │
├─────────────────────────────────────────────────────────┤
│ 1. 客户端 → 负载均衡器 → 反向代理(Nginx) → 应用服务器 │
│ ↑ ↑ ↑ ↑ │
│ │ │ │ │ │
│ 2. 响应 ← ← 502错误可能发生在任意 → 之间 → │
└─────────────────────────────────────────────────────────┘

常见502产生点：
• 负载均衡器 ↔ 反向代理通信失败
• 反向代理 ↔ 应用服务器连接问题
• 应用服务器 ↔ 微服务/API 调用超时
• 微服务 ↔ 数据库/缓存连接异常

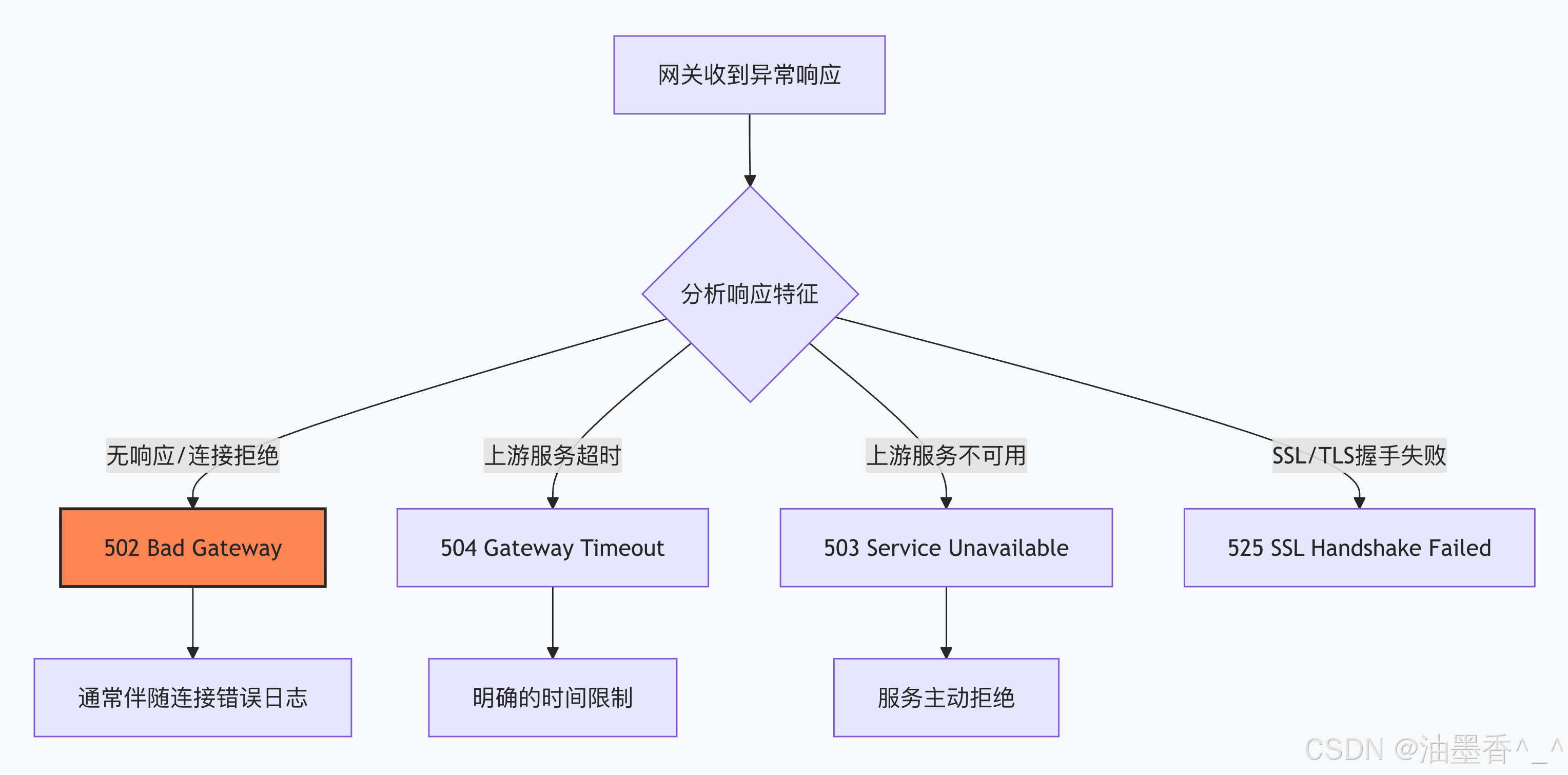

26.1.2 与相关错误的精确区分

26.2 生产环境故障诊断

26.2.1 Nginx作为反向代理的典型场景

nginx

# Nginx配置示例及潜在问题点
upstream backend {
# 问题1：不恰当的健康检查
server 10.0.1.1:8080 max_fails=3 fail_timeout=30s;
server 10.0.1.2:8080 max_fails=3 fail_timeout=30s;

# 建议配置：
# server 10.0.1.1:8080 max_fails=3 fail_timeout=30s slow_start=30s;
# server 10.0.1.2:8080 backup; # 备份服务器
}

server {
listen 80;
server_name api.example.com;

# 问题2：代理缓冲设置不当
proxy_buffering on;
proxy_buffer_size 4k;
proxy_buffers 8 4k;
proxy_busy_buffers_size 8k;

# 问题3：超时设置不合理
proxy_connect_timeout 5s; # 连接上游超时
proxy_send_timeout 60s; # 发送请求超时
proxy_read_timeout 60s; # 读取响应超时

# 关键改进：启用详细错误日志
error_log /var/log/nginx/502_errors.log debug;

location /api/ {
proxy_pass http://backend;

# 添加诊断头部
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Request-ID $request_id;

# 错误页面处理
error_page 502 =503 /maintenance.html;

# 重试机制
proxy_next_upstream error timeout invalid_header http_502;
proxy_next_upstream_tries 3;
proxy_next_upstream_timeout 10s;
}

# 自定义502错误页面
location = /maintenance.html {
internal;
root /usr/share/nginx/html;
}
}

26.2.2 系统化诊断脚本

bash

#!/bin/bash
# 502错误全方位诊断工具

echo "========== 502 Bad Gateway 诊断报告 =========="
echo "生成时间: $(date)"
echo "=============================================="

# 1. 系统级检查
echo -e "\\n1. 系统资源检查:"
echo "内存使用:"
free -h | grep -E "^(Mem|Swap)"

echo -e "\\nCPU负载:"
uptime
mpstat -P ALL 1 1 | tail -n +4

echo -e "\\n磁盘空间:"
df -h | grep -E "^/dev"

# 2. 网络连接检查
echo -e "\\n2. 网络连接状态:"
echo "连接数统计:"
ss -s | head -5

echo -e "\\nNginx连接状态:"
netstat -an | grep ':80' | awk '{print $6}' | sort | uniq -c | sort -rn

# 3. Nginx特定检查
echo -e "\\n3. Nginx状态检查:"
if systemctl is-active nginx >/dev/null 2>&1; then
echo "Nginx运行状态: ACTIVE"

# 检查Nginx错误日志中的502错误
echo -e "\\n最近502错误:"
tail -100 /var/log/nginx/error.log | grep -i "502" | head -10

# 检查上游服务器状态
echo -e "\\n上游服务器检查:"
upstream_servers=$(grep -r "server " /etc/nginx/conf.d/* | grep -v "#" | awk '{print $2}')
for server in $upstream_servers; do
echo -n "检查 $server … "
if timeout 2 nc -z ${server%:*} ${server#*:} 2>/dev/null; then
echo "✓ 可达"
else
echo "✗ 不可达"
fi
done

# Nginx活动连接
echo -e "\\nNginx活动连接统计:"
curl -s http://127.0.0.1/nginx_status 2>/dev/null || \\
echo "Nginx状态页面未启用"
else
echo "Nginx运行状态: INACTIVE"
fi

# 4. 应用服务器检查
echo -e "\\n4. 应用服务器检查:"
check_service() {
local service=$1
local port=$2

echo -n "检查 $service (端口 $port) … "
if systemctl is-active $service >/dev/null 2>&1; then
echo -n "服务活跃 "
if ss -tln | grep ":$port " >/dev/null; then
echo "✓ 监听中"
else
echo "✗ 未监听端口"
fi
else
echo "✗ 服务未运行"
fi
}

# 常见应用服务器检查
check_service "php-fpm" 9000
check_service "tomcat" 8080
check_service "node" 3000
check_service "gunicorn" 8000

# 6. DNS解析检查
echo -e "\\n6. DNS解析检查:"
upstream_hosts=$(grep -r "proxy_pass" /etc/nginx/conf.d/* | grep -v "#" | awk '{print $2}' | cut -d'/' -f3 | cut -d':' -f1 | sort -u)
for host in $upstream_hosts; do
if [[ $host =~ ^[0-9]+\\.[0-9]+\\.[0-9]+\\.[0-9]+$ ]]; then
continue
fi
echo -n "解析 $host … "
dig +short $host | head -1 | xargs echo
done

# 7. SSL/TLS检查（如果使用HTTPS）
echo -e "\\n7. SSL/TLS检查:"
if grep -r "ssl_certificate" /etc/nginx/conf.d/* >/dev/null 2>&1; then
echo "检测到SSL配置"
for cert in $(grep -r "ssl_certificate " /etc/nginx/conf.d/* | awk '{print $2}' | tr -d ';'); do
if [ -f "$cert" ]; then
echo "证书 $cert 有效期:"
openssl x509 -in "$cert" -noout -dates 2>/dev/null || echo "无效证书"
fi
done
fi

echo -e "\\n=============================================="
echo "诊断完成。检查以上输出寻找潜在问题。"

26.3 高可用架构解决方案

26.3.1 智能健康检查配置

yaml

# Kubernetes Ingress健康检查配置示例
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: api-ingress
annotations:
# Nginx Ingress控制器配置
nginx.ingress.kubernetes.io/upstream-hash-by: "$request_uri"
nginx.ingress.kubernetes.io/load-balance: "ewma"

# 健康检查配置
nginx.ingress.kubernetes.io/health-check: "true"
nginx.ingress.kubernetes.io/health-check-path: "/health"
nginx.ingress.kubernetes.io/health-check-interval: "30s"
nginx.ingress.kubernetes.io/health-check-timeout: "5s"
nginx.ingress.kubernetes.io/health-check-expected-statuses: "200,204"
nginx.ingress.kubernetes.io/health-check-max-fails: "3"
nginx.ingress.kubernetes.io/health-check-fail-timeout: "60s"

# 慢启动配置
nginx.ingress.kubernetes.io/upstream-slow-start: "30s"

# 连接管理
nginx.ingress.kubernetes.io/upstream-keepalive-connections: "100"
nginx.ingress.kubernetes.io/upstream-keepalive-timeout: "60s"
nginx.ingress.kubernetes.io/upstream-keepalive-requests: "1000"

spec:
ingressClassName: nginx
rules:
– host: api.example.com
http:
paths:
– path: /
pathType: Prefix
backend:
service:
name: api-service
port:
number: 8080

26.3.2 多级故障转移策略

python

# Python网关故障转移实现
import asyncio
import random
from typing import List, Optional
from dataclasses import dataclass
from enum import Enum
import aiohttp
from statsd import StatsClient
import redis

class ServerHealth(Enum):
HEALTHY = "healthy"
UNHEALTHY = "unhealthy"
DEGRADED = "degraded"
UNKNOWN = "unknown"

@dataclass
class UpstreamServer:
url: str
weight: int = 1
current_connections: int = 0
health: ServerHealth = ServerHealth.UNKNOWN
failure_count: int = 0
last_failure: Optional[float] = None
response_time_avg: float = 0.0
success_rate: float = 1.0

class IntelligentLoadBalancer:
def __init__(self, upstreams: List[UpstreamServer]):
self.upstreams = upstreams
self.statsd = StatsClient()
self.redis = redis.Redis(host='localhost', port=6379, db=0)
self.circuit_breaker_threshold = 5
self.recovery_time = 300 # 5分钟

async def health_check(self):
"""定期健康检查"""
for server in self.upstreams:
try:
async with aiohttp.ClientSession() as session:
start_time = asyncio.get_event_loop().time()

async with session.get(
f"{server.url}/health",
timeout=aiohttp.ClientTimeout(total=5)
) as response:
response_time = asyncio.get_event_loop().time() – start_time

if response.status == 200:
health_data = await response.json()

# 基于响应更新服务器状态
self.update_server_health(
server,
healthy=True,
response_time=response_time,
load=health_data.get('load', 0)
)
else:
self.record_failure(server)

except (aiohttp.ClientError, asyncio.TimeoutError):
self.record_failure(server)

def record_failure(self, server: UpstreamServer):
"""记录服务器故障"""
server.failure_count += 1
server.last_failure = asyncio.get_event_loop().time()

# 更新成功率
total_requests = self.redis.incr(f"server:{server.url}:total")
failures = self.redis.incr(f"server:{server.url}:failures")
server.success_rate = 1 – (failures / total_requests)

# 检查是否需要熔断
if server.failure_count >= self.circuit_breaker_threshold:
server.health = ServerHealth.UNHEALTHY
self.statsd.incr(f"servers.circuit_open.{server.url}")

# 设置恢复定时器
asyncio.create_task(self.attempt_recovery(server))

async def attempt_recovery(self, server: UpstreamServer):
"""尝试恢复故障服务器"""
await asyncio.sleep(self.recovery_time)

# 半开状态测试
try:
async with aiohttp.ClientSession() as session:
async with session.get(
f"{server.url}/health/light",
timeout=aiohttp.ClientTimeout(total=2)
) as response:
if response.status == 200:
server.failure_count = 0
server.health = ServerHealth.HEALTHY
self.statsd.incr(f"servers.circuit_closed.{server.url}")
except:
# 测试失败，保持熔断
pass

def select_server(self) -> Optional[UpstreamServer]:
"""智能选择服务器"""
candidates = []

for server in self.upstreams:
# 跳过不健康的服务器
if server.health == ServerHealth.UNHEALTHY:
continue

# 根据权重、负载和成功率计算选择概率
base_weight = server.weight

# 成功率调整（成功率低则降低权重）
success_adjustment = server.success_rate

# 连接数调整（连接数多则降低权重）
connection_adjustment = 1 / (1 + server.current_connections * 0.1)

# 响应时间调整（响应慢则降低权重）
response_adjustment = 1 / (1 + server.response_time_avg * 0.1)

effective_weight = (
base_weight *
success_adjustment *
connection_adjustment *
response_adjustment
)

if effective_weight > 0:
candidates.append((server, effective_weight))

if not candidates:
return None

# 加权随机选择
total_weight = sum(w for _, w in candidates)
r = random.uniform(0, total_weight)
cumulative = 0

for server, weight in candidates:
cumulative += weight
if r <= cumulative:
return server

return candidates[0][0]

async def proxy_request(self, request):
"""代理请求到选中的服务器"""
server = self.select_server()

if not server:
# 所有服务器都不可用
self.statsd.incr("proxy.all_servers_unavailable")
return self.create_502_response()

try:
server.current_connections += 1
self.statsd.incr(f"server.connections.active.{server.url}")

# 转发请求
response = await self.forward_request(server, request)

# 记录成功
self.record_success(server)
return response

except Exception as e:
# 记录失败
self.record_failure(server)
self.statsd.incr(f"proxy.errors.{type(e).__name__}")

# 尝试故障转移
return await self.failover_request(request, server)

finally:
server.current_connections -= 1

async def failover_request(self, request, failed_server):
"""故障转移逻辑"""
# 标记原始服务器为暂时不可用
failed_server.health = ServerHealth.DEGRADED

# 重试逻辑
for attempt in range(2): # 最多重试2次
server = self.select_server()

if server and server != failed_server:
try:
return await self.forward_request(server, request)
except Exception:
continue

# 所有重试失败
return self.create_502_response()

def create_502_response(self):
"""创建标准化的502响应"""
return {
"status": 502,
"headers": {
"Content-Type": "application/json",
"Retry-After": "30"
},
"body": {
"error": {
"code": "bad_gateway",
"message": "Unable to connect to upstream server",
"details": {
"timestamp": asyncio.get_event_loop().time(),
"healthy_servers": len([s for s in self.upstreams
if s.health == ServerHealth.HEALTHY]),
"suggested_actions": [
"Please try again in 30 seconds",
"Check service status at status.example.com"
]
}
}
}
}

26.4 监控与告警体系

26.4.1 全面的指标收集

yaml

# Prometheus监控配置
scrape_configs:
– job_name: 'nginx'
static_configs:
– targets: ['nginx:9113']

– job_name: 'upstream_servers'
static_configs:
– targets:
– 'app1:8080'
– 'app2:8080'
– 'app3:8080'
metrics_path: '/metrics'

– job_name: 'gateway'
static_configs:
– targets: ['gateway:9090']

# 告警规则
groups:
– name: gateway_alerts
rules:
– alert: High502ErrorRate
expr: |
rate(
nginx_http_requests_total{status="502"}[5m]
) / rate(
nginx_http_requests_total[5m]
) > 0.01
for: 2m
labels:
severity: critical
component: gateway
annotations:
summary: "High rate of 502 errors"
description: |
502错误率超过1%，当前值: {{ $value | humanizePercentage }}
受影响的upstream: {{ $labels.upstream }}

– alert: UpstreamServerDown
expr: |
up{job="upstream_servers"} == 0
for: 1m
labels:
severity: warning
component: upstream
annotations:
summary: "Upstream server is down"
description: "{{ $labels.instance }} is not responding"

– alert: HighUpstreamResponseTime
expr: |
histogram_quantile(0.95,
rate(upstream_response_time_seconds_bucket[5m])
) > 2
for: 5m
labels:
severity: warning
component: upstream
annotations:
summary: "High upstream response time"
description: |
95%的响应时间超过2秒
当前值: {{ $value }}秒

26.4.2 分布式追踪集成

python

# OpenTelemetry追踪集成
from opentelemetry import trace
from opentelemetry.exporter.jaeger.thrift import JaegerExporter
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.instrumentation.requests import RequestsInstrumentor

# 设置追踪
trace.set_tracer_provider(TracerProvider())
tracer = trace.get_tracer(__name__)

# Jaeger导出器
jaeger_exporter = JaegerExporter(
agent_host_name="jaeger",
agent_port=6831,
)
trace.get_tracer_provider().add_span_processor(
BatchSpanProcessor(jaeger_exporter)
)

# 自动instrument请求库
RequestsInstrumentor().instrument()

class TracedGateway:
def __init__(self):
self.tracer = trace.get_tracer("gateway.service")

async def handle_request(self, request):
# 创建分布式追踪span
with self.tracer.start_as_current_span("gateway.proxy") as span:
span.set_attribute("http.method", request.method)
span.set_attribute("http.url", request.url)
span.set_attribute("http.user_agent", request.headers.get('User-Agent'))

try:
# 添加追踪头部
headers = dict(request.headers)
trace.instrumentation.utils._add_header(
headers,
span.get_span_context()
)

# 转发请求
response = await self.proxy_request(request, headers)

span.set_attribute("http.status_code", response.status)
span.set_status(trace.Status(trace.StatusCode.OK))

return response

except Exception as e:
span.set_status(trace.Status(
trace.StatusCode.ERROR,
str(e)
))
span.record_exception(e)

# 记录502错误
span.set_attribute("error.type", "bad_gateway")
span.set_attribute("error.retryable", True)

raise

26.5 预防与优化策略

26.5.1 连接池优化配置

java

// Java连接池优化示例
@Configuration
public class ConnectionPoolConfig {

@Bean
public HttpClient httpClient() {
return HttpClient.create()
.option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 5000)
.option(ChannelOption.SO_KEEPALIVE, true)

// 连接池配置
.connectionProvider(
ConnectionProvider.builder("custom")
.maxConnections(500) // 最大连接数
.pendingAcquireTimeout(Duration.ofSeconds(60)) // 获取连接超时
.pendingAcquireMaxCount(-1) // 无限制等待队列
.maxIdleTime(Duration.ofSeconds(30)) // 最大空闲时间
.maxLifeTime(Duration.ofMinutes(5)) // 连接最大生存时间
.evictInBackground(Duration.ofSeconds(120)) // 后台清理间隔
.metrics(true) // 启用指标
.build()
)

// 响应超时
.responseTimeout(Duration.ofSeconds(30))

// 重试策略
.doOnConnected(conn ->
conn.addHandlerLast(new ReadTimeoutHandler(30))
);
}

@Bean
public WebClient webClient(HttpClient httpClient) {
return WebClient.builder()
.clientConnector(new ReactorClientHttpConnector(httpClient))

// 默认过滤器
.filter((request, next) -> {
long startTime = System.nanoTime();

return next.exchange(request)
.doOnSuccess(response -> {
long duration = System.nanoTime() – startTime;
logMetric(request, response, duration);
})
.doOnError(error -> {
long duration = System.nanoTime() – startTime;
logError(request, error, duration);
});
})
.build();
}
}

26.5.2 容量规划与自动扩展

python

# 基于预测的自动扩展策略
from sklearn.ensemble import RandomForestRegressor
import numpy as np
from datetime import datetime, timedelta

class PredictiveScaler:
def __init__(self):
self.model = RandomForestRegressor(n_estimators=100)
self.historical_data = []
self.retrain_interval = 3600 # 每小时重训练一次
self.last_retrain = 0

def collect_metrics(self, timestamp, metrics):
"""收集性能指标"""
data_point = {
'timestamp': timestamp,
'request_rate': metrics['requests_per_second'],
'avg_response_time': metrics['avg_response_time_ms'],
'error_rate': metrics['error_rate'],
'active_connections': metrics['active_connections'],
'cpu_usage': metrics['cpu_percent'],
'memory_usage': metrics['memory_percent']
}
self.historical_data.append(data_point)

# 保持最近24小时数据
cutoff = timestamp – timedelta(hours=24)
self.historical_data = [
d for d in self.historical_data
if d['timestamp'] > cutoff
]

def predict_load(self, lookahead_minutes=30):
"""预测未来负载"""
current_time = datetime.now()

# 准备训练数据
X = []
y = []

for i in range(len(self.historical_data) – 1):
current = self.historical_data[i]
next_point = self.historical_data[i + 1]

features = self.extract_features(current)
target = next_point['request_rate']

X.append(features)
y.append(target)

if len(X) < 100:
# 数据不足，使用简单预测
return self.simple_prediction()

# 定期重训练模型
if current_time.timestamp() – self.last_retrain > self.retrain_interval:
self.model.fit(X, y)
self.last_retrain = current_time.timestamp()

# 预测
current_features = self.extract_features(self.historical_data[-1])
predicted_load = self.model.predict([current_features])[0]

return max(0, predicted_load)

def calculate_desired_instances(self, current_instances):
"""计算所需实例数"""
predicted_load = self.predict_load()
current_capacity = current_instances * 1000 # 假设每个实例处理1000 RPS

if predicted_load > current_capacity * 0.8: # 80%阈值
# 需要扩容
desired_instances = int(np.ceil(predicted_load / 1000))
buffer = int(np.ceil(desired_instances * 0.2)) # 20%缓冲
return desired_instances + buffer

elif predicted_load < current_capacity * 0.3: # 30%阈值
# 可以缩容
desired_instances = int(np.ceil(predicted_load / 1000))
return max(1, desired_instances) # 至少保留1个实例

return current_instances

def extract_features(self, data_point):
"""从数据点提取特征"""
hour = data_point['timestamp'].hour
day_of_week = data_point['timestamp'].weekday()

return [
hour,
day_of_week,
data_point['request_rate'],
data_point['avg_response_time'],
data_point['error_rate'],
data_point['active_connections'],
data_point['cpu_usage'],
data_point['memory_usage']
]

26.6 最佳实践总结

26.6.1 配置检查清单

Nginx配置优化：

text

✅ proxy_connect_timeout: 5-10秒
✅ proxy_read_timeout: 根据业务调整（通常30-60秒）
✅ proxy_send_timeout: 30-60秒
✅ proxy_buffer_size: 4k或8k
✅ proxy_buffers: 8 4k或8k
✅ proxy_next_upstream: error timeout invalid_header http_502
✅ proxy_next_upstream_tries: 2-3次
✅ keepalive_connections: 32-64

应用服务器配置：

text

✅ 连接池大小：根据负载调整
✅ 线程池配置：避免资源耗尽
✅ 内存限制：防止OOM
✅ 健康检查端点：/health, /ready, /live
✅ 优雅关闭：处理SIGTERM信号

26.6.2 监控指标关键点

网关层指标：

502错误率（目标：< 0.1%）
平均响应时间（目标：< 200ms）
连接池使用率（目标：< 80%）

上游服务指标：

服务可用性（目标：> 99.9%）
错误率（目标：< 0.5%）
资源使用率（CPU、内存、连接）

网络指标：

延迟（目标：< 50ms）
丢包率（目标：< 0.1%）
带宽使用率（目标：< 70%）

通过实施这些策略，可以显著降低502错误的发生率，提高系统的整体可靠性。

第27章：503 Service Unavailable – 服务不可用

27.1 深入解析服务不可用状态

503 Service Unavailable 表示服务器暂时无法处理请求，通常是由于过载或维护。与502不同，503表示服务器本身知道它暂时无法提供服务。

27.1.1 协议规范与语义

RFC 7231定义：服务器当前无法处理请求，因为临时的过载或系统维护
关键特性：
- 临时性错误（对比501的永久性）
- 通常应包含Retry-After头部
- 可能由于计划维护、过载或依赖服务故障

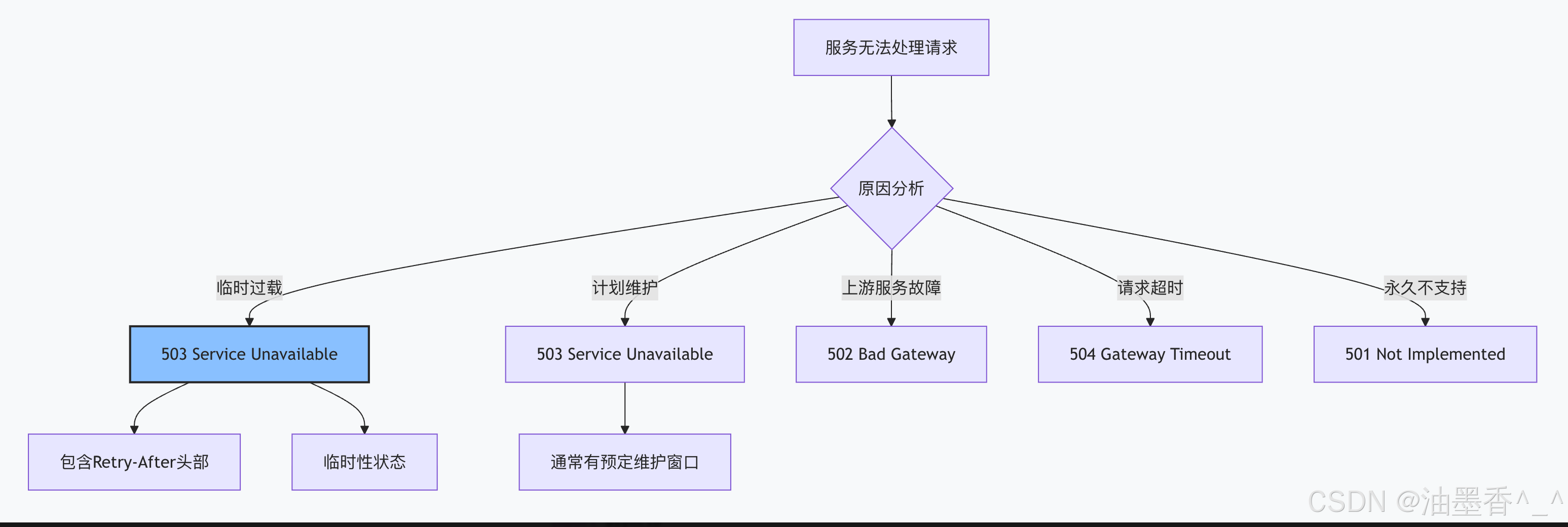

27.1.2 与相关状态码的精确区分

27.2 容量管理与过载保护

27.2.1 基于队列理论的容量模型

python

# 服务容量管理与过载保护系统
import asyncio
import time
from collections import deque
from dataclasses import dataclass
from typing import Optional, Deque
import statistics

@dataclass
class Request:
id: str
arrival_time: float
priority: int = 1
timeout: float = 30.0

@dataclass
class CapacityMetrics:
"""容量指标"""
arrival_rate: float = 0.0 # 请求到达率 (requests/second)
service_rate: float = 0.0 # 服务率 (requests/second)
queue_length: int = 0 # 队列长度
utilization: float = 0.0 # 利用率 (arrival_rate / service_rate)
response_time_95: float = 0.0 # 95%响应时间
error_rate: float = 0.0 # 错误率

class AdaptiveRateLimiter:
"""自适应速率限制器"""

def __init__(self, initial_capacity: int = 100):
self.max_capacity = initial_capacity
self.current_capacity = initial_capacity
self.queue: Deque[Request] = deque()
self.in_progress = 0
self.metrics_history = deque(maxlen=1000)

# 控制参数
self.target_response_time = 0.2 # 目标响应时间200ms
self.target_utilization = 0.7 # 目标利用率70%
self.min_capacity = 10 # 最小容量
self.adjustment_cooldown = 5.0 # 调整冷却时间

self.last_adjustment = 0.0
self.last_rejection = 0.0

def should_accept(self, request: Request) -> bool:
"""决定是否接受新请求"""
current_time = time.time()

# 计算当前指标
metrics = self._calculate_metrics(current_time)

# 检查是否过载
if self._is_overloaded(metrics, current_time):
return False

# 基于队列长度限制
if len(self.queue) >= self.current_capacity * 2:
return False

# 基于响应时间预测
predicted_response_time = self._predict_response_time(metrics)
if predicted_response_time > request.timeout * 0.8:
return False

return True

def _is_overloaded(self, metrics: CapacityMetrics, current_time: float) -> bool:
"""判断系统是否过载"""

# 标准1：响应时间超过阈值
if metrics.response_time_95 > self.target_response_time * 3:
return True

# 标准2：错误率过高
if metrics.error_rate > 0.1: # 10%错误率
return True

# 标准3：队列过长
if metrics.queue_length > self.current_capacity * 3:
return True

# 标准4：近期有太多拒绝
if (current_time – self.last_rejection < 1.0 and
metrics.arrival_rate > self.current_capacity * 2):
return True

return False

def _calculate_metrics(self, current_time: float) -> CapacityMetrics:
"""计算当前性能指标"""
metrics = CapacityMetrics()

# 计算到达率（基于最近10秒）
recent_arrivals = [
r for r in self.metrics_history
if current_time – r['timestamp'] < 10
]

if recent_arrivals:
arrival_times = [r['timestamp'] for r in recent_arrivals]
metrics.arrival_rate = len(recent_arrivals) / 10.0

# 计算服务率
completed = [r for r in recent_arrivals if r['completed']]
if completed:
service_times = [r['service_time'] for r in completed]
metrics.service_rate = 1.0 / statistics.mean(service_times)

# 队列长度
metrics.queue_length = len(self.queue)

# 利用率
if metrics.service_rate > 0:
metrics.utilization = metrics.arrival_rate / metrics.service_rate

# 响应时间百分位
response_times = [r['response_time'] for r in recent_arrivals
if 'response_time' in r]
if response_times:
metrics.response_time_95 = statistics.quantiles(
response_times, n=20
)[18] if len(response_times) >= 5 else response_times[-1]

# 错误率
errors = [r for r in recent_arrivals if r.get('error', False)]
if recent_arrivals:
metrics.error_rate = len(errors) / len(recent_arrivals)

return metrics

def _predict_response_time(self, metrics: CapacityMetrics) -> float:
"""预测响应时间（基于M/M/1队列模型）"""
if metrics.utilization >= 1.0:
# 系统饱和，响应时间趋于无限
return float('inf')

if metrics.service_rate == 0:
return 0.0

# M/M/1队列公式：响应时间 = 1/μ / (1 – ρ)
# 其中μ是服务率，ρ是利用率
if metrics.utilization < 0.95:
expected_service_time = 1.0 / metrics.service_rate
predicted = expected_service_time / (1 – metrics.utilization)
return predicted
else:
return float('inf')

async def adjust_capacity(self, current_time: float):
"""自适应调整容量"""
if current_time – self.last_adjustment < self.adjustment_cooldown:
return

metrics = self._calculate_metrics(current_time)

# 基于响应时间调整
if metrics.response_time_95 > self.target_response_time * 1.5:
# 响应时间过高，降低容量
reduction = self._calculate_reduction(metrics)
self.current_capacity = max(
self.min_capacity,
int(self.current_capacity * reduction)
)

elif (metrics.utilization < self.target_utilization * 0.8 and
metrics.response_time_95 < self.target_response_time * 0.8):
# 利用率低且响应时间好，可以增加容量
increase = self._calculate_increase(metrics)
self.current_capacity = min(
self.max_capacity,
int(self.current_capacity * increase)
)

self.last_adjustment = current_time

def _calculate_reduction(self, metrics: CapacityMetrics) -> float:
"""计算容量减少比例"""
# 响应时间超过目标的倍数
overshoot_ratio = metrics.response_time_95 / self.target_response_time

if overshoot_ratio > 3.0:
# 严重过载，大幅减少
return 0.5
elif overshoot_ratio > 2.0:
# 中度过载
return 0.7
else:
# 轻微过载
return 0.9

def create_503_response(self, request: Request,
metrics: CapacityMetrics) -> dict:
"""创建智能的503响应"""
current_time = time.time()

# 计算建议的重试时间
if self.queue:
avg_service_time = 1.0 / metrics.service_rate if metrics.service_rate > 0 else 1.0
queue_wait = len(self.queue) * avg_service_time
retry_after = min(30, max(1, int(queue_wait)))
else:
retry_after = 5 # 默认5秒

response = {
"status": 503,
"headers": {
"Content-Type": "application/json",
"Retry-After": str(retry_after)
},
"body": {
"error": {
"code": "service_unavailable",
"message": "Service is temporarily overloaded",
"details": {
"request_id": request.id,
"timestamp": current_time,
"queue_position": len(self.queue) if request in self.queue else None,
"estimated_wait_time": retry_after,
"current_metrics": {
"arrival_rate": round(metrics.arrival_rate, 2),
"utilization": round(metrics.utilization, 3),
"queue_length": metrics.queue_length,
"response_time_95": round(metrics.response_time_95, 3)
},
"suggestions": [
f"Please retry after {retry_after} seconds",
"Use exponential backoff for retries",
"Check service status at status.example.com"
]
}
}
}
}

# 记录拒绝
self.last_rejection = current_time
self.metrics_history.append({
"timestamp": current_time,
"request_id": request.id,
"rejected": True,
"queue_length": metrics.queue_length,
"arrival_rate": metrics.arrival_rate
})

return response

27.2.2 分布式限流与配额管理

java

// 基于Redis的分布式限流器
@Slf4j
@Component
public class DistributedRateLimiter {

private final RedisTemplate<String, String> redisTemplate;
private final ObjectMapper objectMapper;

// 限流配置
private final Map<String, RateLimitConfig> rateLimitConfigs;

@Data
@AllArgsConstructor
static class RateLimitConfig {
private int requestsPerSecond;
private int burstCapacity;
private Duration windowSize;
private boolean enabled;
}

public DistributedRateLimiter(RedisTemplate<String, String> redisTemplate,
ObjectMapper objectMapper) {
this.redisTemplate = redisTemplate;
this.objectMapper = objectMapper;
this.rateLimitConfigs = loadRateLimitConfigs();
}

/**
* 检查请求是否应该被限流
*/
public RateLimitResult checkRateLimit(String clientId, String endpoint) {
String key = String.format("rate_limit:%s:%s", clientId, endpoint);
RateLimitConfig config = rateLimitConfigs.getOrDefault(endpoint,
new RateLimitConfig(100, 200, Duration.ofSeconds(1), true));

if (!config.isEnabled()) {
return RateLimitResult.allowed();
}

long currentTime = System.currentTimeMillis();
long windowStart = currentTime – config.getWindowSize().toMillis();

// 使用Redis sorted set实现滑动窗口
String windowKey = key + ":window";

// 移除窗口外的请求
redisTemplate.opsForZSet().removeRangeByScore(
windowKey, 0, windowStart – 1
);

// 获取当前窗口内的请求数
Long requestCount = redisTemplate.opsForZSet().zCard(windowKey);

if (requestCount == null) {
requestCount = 0L;
}

// 检查是否超过限制
if (requestCount >= config.getRequestsPerSecond()) {
// 计算下一个可用时间
Double oldestScore = redisTemplate.opsForZSet()
.rangeWithScores(windowKey, 0, 0)
.stream()
.findFirst()
.map(TypedTuple::getScore)
.orElse((double) currentTime);

long retryAfter = (long) (oldestScore + 1000) – currentTime;
retryAfter = Math.max(1, retryAfter / 1000);

return RateLimitResult.rateLimited(retryAfter);
}

// 添加当前请求到窗口
redisTemplate.opsForZSet().add(
windowKey,
UUID.randomUUID().toString(),
currentTime
);

// 设置key的过期时间
redisTemplate.expire(windowKey, config.getWindowSize().plusSeconds(10));

// 计算剩余配额
long remaining = config.getRequestsPerSecond() – requestCount – 1;

return RateLimitResult.allowed(remaining);
}

/**
* 自适应调整限流配置
*/
public void adjustRateLimits(SystemMetrics metrics) {
for (Map.Entry<String, RateLimitConfig> entry : rateLimitConfigs.entrySet()) {
String endpoint = entry.getKey();
RateLimitConfig config = entry.getValue();

// 基于系统指标动态调整
if (metrics.getErrorRate() > 0.1) {
// 错误率高，降低限流阈值
int newLimit = (int) (config.getRequestsPerSecond() * 0.8);
config.setRequestsPerSecond(Math.max(10, newLimit));
log.info("Reduced rate limit for {} to {}", endpoint, newLimit);

} else if (metrics.getCpuUsage() > 0.8) {
// CPU使用率高，降低限流阈值
int newLimit = (int) (config.getRequestsPerSecond() * 0.9);
config.setRequestsPerSecond(Math.max(10, newLimit));
log.info("Reduced rate limit for {} due to high CPU", endpoint);

} else if (metrics.getErrorRate() < 0.01 &&
metrics.getCpuUsage() < 0.6 &&
metrics.getResponseTime95() < 200) {
// 系统健康，可以适当提高限流阈值
int newLimit = (int) (config.getRequestsPerSecond() * 1.1);
config.setRequestsPerSecond(Math.min(1000, newLimit));
log.info("Increased rate limit for {} to {}", endpoint, newLimit);
}
}
}

@Data
@AllArgsConstructor
static class RateLimitResult {
private boolean allowed;
private long remainingRequests;
private long retryAfterSeconds;
private String message;

public static RateLimitResult allowed() {
return new RateLimitResult(true, -1, 0, null);
}

public static RateLimitResult allowed(long remaining) {
return new RateLimitResult(true, remaining, 0, null);
}

public static RateLimitResult rateLimited(long retryAfter) {
return new RateLimitResult(false, 0, retryAfter,
"Rate limit exceeded. Please retry after " + retryAfter + " seconds.");
}
}
}

27.3 优雅的服务降级

27.3.1 多级降级策略实现

python

# 服务降级管理器
from enum import Enum
from typing import Dict, Any, Optional, Callable
import time
from dataclasses import dataclass
from functools import wraps

class DegradationLevel(Enum):
"""降级级别"""
NORMAL = "normal" # 正常模式
DEGRADED = "degraded" # 降级模式
MINIMAL = "minimal" # 最小功能模式
EMERGENCY = "emergency" # 紧急模式

@dataclass
class DegradationRule:
"""降级规则"""
metric_name: str # 指标名称
threshold: float # 阈值
duration: float # 持续时间（秒）
target_level: DegradationLevel # 目标降级级别
cooldown: float = 300 # 冷却时间（秒）

class ServiceDegrader:
"""服务降级管理器"""

def __init__(self):
self.current_level = DegradationLevel.NORMAL
self.rules: Dict[str, DegradationRule] = {}
self.metrics_history = {}
self.last_level_change = time.time()

# 默认降级规则
self._setup_default_rules()

# 降级处理器映射
self.degradation_handlers = {
DegradationLevel.NORMAL: self._handle_normal,
DegradationLevel.DEGRADED: self._handle_degraded,
DegradationLevel.MINIMAL: self._handle_minimal,
DegradationLevel.EMERGENCY: self._handle_emergency
}

def _setup_default_rules(self):
"""设置默认降级规则"""
self.rules = {
# CPU使用率规则
"high_cpu": DegradationRule(
metric_name="cpu_usage",
threshold=0.8, # 80%
duration=30, # 持续30秒
target_level=DegradationLevel.DEGRADED
),

# 内存使用率规则
"high_memory": DegradationRule(
metric_name="memory_usage",
threshold=0.9, # 90%
duration=10,
target_level=DegradationLevel.MINIMAL
),

# 错误率规则
"high_error_rate": DegradationRule(
metric_name="error_rate",
threshold=0.1, # 10%
duration=60,
target_level=DegradationLevel.DEGRADED
),

# 响应时间规则
"slow_response": DegradationRule(
metric_name="response_time_95",
threshold=2.0, # 2秒
duration=30,
target_level=DegradationLevel.DEGRADED
),

# 队列长度规则
"long_queue": DegradationRule(
metric_name="queue_length",
threshold=1000,
duration=10,
target_level=DegradationLevel.MINIMAL
)
}

def update_metrics(self, metrics: Dict[str, float]):
"""更新指标并检查是否需要降级"""
current_time = time.time()

# 更新指标历史
for name, value in metrics.items():
if name not in self.metrics_history:
self.metrics_history[name] = []

self.metrics_history[name].append({
"timestamp": current_time,
"value": value
})

# 保留最近5分钟数据
cutoff = current_time – 300
self.metrics_history[name] = [
m for m in self.metrics_history[name]
if m["timestamp"] > cutoff
]

# 检查降级规则
new_level = self._evaluate_rules(current_time)

# 如果检测到需要降级
if new_level != self.current_level:
# 检查冷却时间
if current_time – self.last_level_change < 60:
# 避免频繁切换
return

old_level = self.current_level
self.current_level = new_level
self.last_level_change = current_time

# 记录状态变化
self._log_degradation_change(old_level, new_level, metrics)

# 执行降级/恢复操作
self._execute_degradation_actions(old_level, new_level)

def _evaluate_rules(self, current_time: float) -> DegradationLevel:
"""评估所有降级规则"""
target_level = self.current_level

for rule_name, rule in self.rules.items():
metric_history = self.metrics_history.get(rule.metric_name, [])

if not metric_history:
continue

# 检查最近duration秒内的指标
recent_metrics = [
m for m in metric_history
if current_time – m["timestamp"] <= rule.duration
]

if not recent_metrics:
continue

# 检查是否超过阈值
values = [m["value"] for m in recent_metrics]
avg_value = sum(values) / len(values)

if avg_value >= rule.threshold:
# 需要降级
if rule.target_level.value > target_level.value:
target_level = rule.target_level

return target_level

def _handle_normal(self, request, **kwargs):
"""正常模式处理"""
return self._process_full_features(request, **kwargs)

def _handle_degraded(self, request, **kwargs):
"""降级模式处理"""
# 关闭非核心功能
features = kwargs.get('features', {})

# 禁用高成本功能
if features.get('enable_ai_analysis', False):
features['enable_ai_analysis'] = False

if features.get('enable_realtime_processing', False):
features['enable_realtime_processing'] = False

# 使用缓存而不是实时计算
use_cache = True

return self._process_basic_features(request,
use_cache=use_cache,
**kwargs)

def _handle_minimal(self, request, **kwargs):
"""最小功能模式"""
# 只提供核心功能
features = {
'enable_cache': True,
'enable_basic_processing': True,
'enable_advanced_features': False,
'enable_external_calls': False
}

# 设置超时时间
kwargs['timeout'] = min(kwargs.get('timeout', 30), 5)

return self._process_minimal_features(request, **kwargs)

def _handle_emergency(self, request, **kwargs):
"""紧急模式"""
# 返回静态响应或错误页面
return {
"status": 503,
"headers": {
"Content-Type": "application/json",
"Retry-After": "60"
},
"body": {
"error": {
"code": "service_emergency",
"message": "Service is in emergency mode",
"details": {
"mode": "emergency",
"minimal_features_only": True,
"estimated_recovery_time": "unknown",
"status_page": "https://status.example.com"
}
}
}
}

def process_request(self, request, **kwargs):
"""根据当前降级级别处理请求"""
handler = self.degradation_handlers[self.current_level]
return handler(request, **kwargs)

def degrade_method(self, feature_name: str):
"""方法装饰器：根据降级级别调整行为"""
def decorator(func):
@wraps(func)
def wrapper(*args, **kwargs):
# 检查功能在当前降级级别是否可用
if not self._is_feature_available(feature_name):
# 返回降级响应
return self._get_degraded_response(feature_name)

# 根据降级级别调整参数
if self.current_level == DegradationLevel.DEGRADED:
# 降级模式：增加超时，禁用某些选项
kwargs['timeout'] = min(kwargs.get('timeout', 30), 10)
kwargs['enable_optimizations'] = False

elif self.current_level == DegradationLevel.MINIMAL:
# 最小模式：使用简化版本
if hasattr(func, 'minimal_version'):
return func.minimal_version(*args, **kwargs)

return func(*args, **kwargs)

return wrapper
return decorator

def _is_feature_available(self, feature_name: str) -> bool:
"""检查功能在当前降级级别是否可用"""
feature_availability = {
DegradationLevel.NORMAL: ['all'],
DegradationLevel.DEGRADED: ['core', 'basic', 'cache'],
DegradationLevel.MINIMAL: ['core', 'cache'],
DegradationLevel.EMERGENCY: ['core']
}

available_features = feature_availability.get(
self.current_level, ['core']
)

return 'all' in available_features or feature_name in available_features

27.4 智能重试与客户端处理

27.4.1 客户端重试策略

javascript

// 智能重试客户端实现
class ResilientHttpClient {
constructor(options = {}) {
this.defaultOptions = {
maxRetries: 3,
baseDelay: 1000, // 1秒
maxDelay: 10000, // 10秒
retryOnStatus: [502, 503, 504],
retryOnNetworkError: true,
timeout: 30000,
…options
};

this.circuitBreakers = new Map();
this.metrics = {
totalRequests: 0,
successfulRequests: 0,
failedRequests: 0,
retriedRequests: 0,
circuitBreakerTrips: 0
};
}

async request(url, options = {}) {
const requestOptions = { …this.defaultOptions, …options };
const requestId = this._generateRequestId();

this.metrics.totalRequests++;

// 检查断路器
const circuitBreaker = this._getCircuitBreaker(url);
if (circuitBreaker.state === 'OPEN') {
this.metrics.circuitBreakerTrips++;
throw new CircuitBreakerOpenError(
`Circuit breaker open for ${url}`,
circuitBreaker.lastFailureTime
);
}

let lastError;
let attempt = 0;

while (attempt <= requestOptions.maxRetries) {
attempt++;

if (attempt > 1) {
this.metrics.retriedRequests++;

// 计算退避延迟
const delay = this._calculateBackoff(
attempt,
requestOptions.baseDelay,
requestOptions.maxDelay,
lastError
);

await this._delay(delay);
}

try {
const controller = new AbortController();
const timeoutId = setTimeout(
() => controller.abort(),
requestOptions.timeout
);

const response = await fetch(url, {
…requestOptions,
signal: controller.signal,
headers: {
…requestOptions.headers,
'X-Request-ID': requestId,
'X-Retry-Attempt': attempt.toString()
}
});

clearTimeout(timeoutId);

// 检查是否需要重试
if (this._shouldRetry(response, attempt, requestOptions)) {
lastError = new HttpError(
`HTTP ${response.status}`,
response.status,
response
);

// 从响应中获取Retry-After
const retryAfter = response.headers.get('Retry-After');
if (retryAfter) {
await this._delay(parseInt(retryAfter) * 1000);
}

continue;
}

// 成功响应
circuitBreaker.recordSuccess();
this.metrics.successfulRequests++;

return response;

} catch (error) {
clearTimeout(timeoutId);
lastError = error;

// 记录失败
circuitBreaker.recordFailure();

// 检查是否应该重试
if (!this._shouldRetryOnError(error, attempt, requestOptions)) {
break;
}
}
}

// 所有重试失败
this.metrics.failedRequests++;
throw new MaxRetriesExceededError(
`Max retries (${requestOptions.maxRetries}) exceeded`,
lastError,
attempt
);
}

_shouldRetry(response, attempt, options) {
if (attempt >= options.maxRetries) {
return false;
}

// 检查状态码
if (options.retryOnStatus.includes(response.status)) {
return true;
}

// 特殊处理503响应
if (response.status === 503) {
const retryAfter = response.headers.get('Retry-After');
if (retryAfter) {
// 服务器明确告诉我们应该何时重试
return true;
}

// 检查响应体是否表明临时故障
try {
// 可以解析响应体获取更多信息
return true;
} catch {
return false;
}
}

return false;
}

_calculateBackoff(attempt, baseDelay, maxDelay, error) {
// 指数退避
let delay = baseDelay * Math.pow(2, attempt – 1);

// 添加随机抖动
delay *= 0.8 + Math.random() * 0.4;

// 限制最大延迟
delay = Math.min(delay, maxDelay);

// 对于503响应，如果提供了Retry-After，使用它
if (error && error.status === 503) {
const retryAfter = error.response?.headers?.get('Retry-After');
if (retryAfter) {
const serverDelay = parseInt(retryAfter) * 1000;
if (!isNaN(serverDelay)) {
delay = Math.max(delay, serverDelay);
}
}
}

return Math.round(delay);
}

_getCircuitBreaker(url) {
const hostname = new URL(url).hostname;

if (!this.circuitBreakers.has(hostname)) {
this.circuitBreakers.set(hostname, new CircuitBreaker());
}

return this.circuitBreakers.get(hostname);
}
}

class CircuitBreaker {
constructor() {
this.state = 'CLOSED';
this.failureCount = 0;
this.successCount = 0;
this.lastFailureTime = null;
this.halfOpenTimer = null;

this.config = {
failureThreshold: 5,
successThreshold: 3,
timeout: 30000
};
}

recordSuccess() {
this.successCount++;
this.failureCount = 0;

if (this.state === 'HALF_OPEN' &&
this.successCount >= this.config.successThreshold) {
this.state = 'CLOSED';
this.successCount = 0;
clearTimeout(this.halfOpenTimer);
}
}

recordFailure() {
this.failureCount++;
this.successCount = 0;
this.lastFailureTime = Date.now();

if (this.state === 'CLOSED' &&
this.failureCount >= this.config.failureThreshold) {
this.state = 'OPEN';

// 设置半开状态定时器
this.halfOpenTimer = setTimeout(() => {
this.state = 'HALF_OPEN';
}, this.config.timeout);
}
}
}

27.5 维护窗口与计划停机管理

27.5.1 自动化维护协调系统

python

# 维护窗口管理器
from datetime import datetime, timedelta
from typing import List, Dict, Optional
from enum import Enum
import asyncio
from pydantic import BaseModel, validator

class MaintenanceType(Enum):
PLANNED = "planned"
EMERGENCY = "emergency"
ROLLING = "rolling"
DATABASE = "database"

class MaintenanceWindow(BaseModel):
id: str
type: MaintenanceType
start_time: datetime
end_time: datetime
duration_minutes: int
description: str
affected_services: List[str]
notification_channels: List[str]
status: str = "scheduled"

@validator('end_time')
def validate_duration(cls, end_time, values):
if 'start_time' in values:
if end_time <= values['start_time']:
raise ValueError('End time must be after start time')

duration = (end_time – values['start_time']).total_seconds() / 60
if duration > 240: # 4小时
raise ValueError('Maintenance window cannot exceed 4 hours')

return end_time

class MaintenanceCoordinator:
def __init__(self):
self.scheduled_windows: Dict[str, MaintenanceWindow] = {}
self.active_windows: Dict[str, MaintenanceWindow] = {}
self.service_dependencies = self._load_dependencies()

async def schedule_maintenance(self, window: MaintenanceWindow):
"""计划维护窗口"""

# 检查冲突
conflicts = self._find_conflicts(window)
if conflicts:
raise ValueError(f"Conflicts with existing windows: {conflicts}")

# 检查依赖服务
unavailable_services = self._check_dependencies(window)
if unavailable_services:
raise ValueError(f"Dependency services unavailable: {unavailable_services}")

# 安排维护
self.scheduled_windows[window.id] = window

# 发送通知
await self._send_notifications(window, "scheduled")

# 设置定时器
delay = (window.start_time – datetime.now()).total_seconds()
if delay > 0:
asyncio.create_task(self._start_maintenance(window.id, delay))

return window

async def _start_maintenance(self, window_id: str, delay: float):
"""开始维护窗口"""
await asyncio.sleep(delay)

window = self.scheduled_windows.get(window_id)
if not window:
return

# 更新状态
window.status = "in_progress"
self.active_windows[window_id] = window

# 开始服务降级
await self._initiate_service_degradation(window)

# 发送开始通知
await self._send_notifications(window, "started")

# 设置结束定时器
duration = (window.end_time – window.start_time).total_seconds()
asyncio.create_task(self._end_maintenance(window_id, duration))

async def _end_maintenance(self, window_id: str, delay: float):
"""结束维护窗口"""
await asyncio.sleep(delay)

window = self.active_windows.get(window_id)
if not window:
return

# 更新状态
window.status = "completed"

# 恢复服务
await self._restore_services(window)

# 清理
del self.active_windows[window_id]
del self.scheduled_windows[window_id]

# 发送完成通知
await self._send_notifications(window, "completed")

# 运行验证测试
await self._run_post_maintenance_tests(window)

async def _initiate_service_degradation(self, window: MaintenanceWindow):
"""启动服务降级流程"""

for service in window.affected_services:
# 发送优雅关闭信号
await self._graceful_shutdown(service)

# 设置健康检查为不健康
await self._update_health_check(service, False)

# 从负载均衡器中移除
await self._remove_from_load_balancer(service)

# 发送503响应
await self._enable_maintenance_mode(service, window)

async def _enable_maintenance_mode(self, service: str, window: MaintenanceWindow):
"""启用维护模式"""

maintenance_response = {
"status": 503,
"headers": {
"Content-Type": "application/json",
"Retry-After": self._calculate_retry_after(window),
"X-Maintenance-ID": window.id,
"X-Maintenance-End": window.end_time.isoformat()
},
"body": {
"error": {
"code": "maintenance_mode",
"message": "Service is undergoing maintenance",
"details": {
"maintenance_id": window.id,
"start_time": window.start_time.isoformat(),
"estimated_end_time": window.end_time.isoformat(),
"description": window.description,
"status_page": "https://status.example.com",
"updates_channel": "https://updates.example.com/maintenance"
}
}
}
}

# 应用维护模式响应
await self._apply_maintenance_response(service, maintenance_response)

def _calculate_retry_after(self, window: MaintenanceWindow) -> str:
"""计算Retry-After头部值"""
remaining = window.end_time – datetime.now()
minutes = max(1, int(remaining.total_seconds() / 60))
return str(min(minutes, 60)) # 最多60分钟

async def _send_notifications(self, window: MaintenanceWindow, event: str):
"""发送维护通知"""

notifications = {
"scheduled": {
"title": "🛠️ 计划维护通知",
"message": f"服务 {', '.join(window.affected_services)} 计划于 "
f"{window.start_time.strftime('%Y-%m-%d %H:%M')} 进行维护。",
"priority": "medium"
},
"started": {
"title": "🔧 维护已开始",
"message": f"维护已开始，预计持续 {window.duration_minutes} 分钟。",
"priority": "high"
},
"completed": {
"title": "✅ 维护已完成",
"message": "维护已完成，所有服务已恢复正常。",
"priority": "medium"
}
}

if event not in notifications:
return

notification = notifications[event]

# 发送到不同渠道
for channel in window.notification_channels:
if channel == "email":
await self._send_email_notification(window, notification)
elif channel == "slack":
await self._send_slack_notification(window, notification)
elif channel == "webhook":
await self._send_webhook_notification(window, notification)

def _find_conflicts(self, new_window: MaintenanceWindow) -> List[str]:
"""查找时间冲突的维护窗口"""
conflicts = []

for window_id, existing in self.scheduled_windows.items():
if (new_window.start_time < existing.end_time and
new_window.end_time > existing.start_time):

# 检查是否有服务重叠
overlapping_services = set(new_window.affected_services) & \\
set(existing.affected_services)

if overlapping_services:
conflicts.append(f"{window_id}: {', '.join(overlapping_services)}")

return conflicts

27.6 最佳实践总结

27.6.1 容量规划指南

基准测试：

bash

# 使用wrk进行负载测试
wrk -t12 -c400 -d30s –latency https://api.example.com

# 关键指标：
# – 最大QPS（每秒查询数）
# – 95%响应时间
# – 错误率

容量公式：

text

所需实例数 = (预期QPS × 平均响应时间) / 目标利用率

示例：
预期QPS = 1000
平均响应时间 = 0.1秒
目标利用率 = 0.7

所需实例数 = (1000 × 0.1) / 0.7 ≈ 143个连接

27.6.2 降级策略矩阵

降级级别功能可用性响应时间用户体验业务影响

正常	100%功能	<200ms	完整体验	无影响
降级	核心功能	<500ms	部分受限	低影响
最小	关键功能	<1000ms	基本可用	中影响
紧急	只读功能	N/A	静态页面	高影响

27.6.3 监控告警阈值

text

✅ 错误率告警：> 1% 持续5分钟
✅ 响应时间告警：P95 > 500ms 持续10分钟
✅ 队列长度告警：> 1000 持续2分钟
✅ CPU使用率告警：> 80% 持续5分钟
✅ 内存使用率告警：> 90% 持续2分钟

通过实施这些策略，可以有效地管理服务不可用情况，提供更好的用户体验，同时确保系统的稳定性和可靠性。

第28章：504 Gateway Timeout – 网关超时

28.1 深度解析网关超时机制

504 Gateway Timeout 表示网关或代理服务器未能及时从上游服务器收到响应。这是分布式系统中常见的超时错误，通常由网络延迟或上游服务处理缓慢引起。

28.1.1 协议规范与超时语义

RFC 7231定义：服务器作为网关或代理，未能及时从上游服务器收到响应
关键特征：
- 超时发生在网关层面
- 上游服务器可能仍在处理请求
- 与502 Bad Gateway的主要区别：502是连接失败，504是响应超时

28.1.2 分布式系统中的超时传播

28.2 超时配置与优化策略

28.2.1 多层超时配置模型

yaml

# 分布式超时配置管理
timeout_config:
# 全局默认配置
defaults:
connect_timeout: 5s
read_timeout: 30s
write_timeout: 30s
total_timeout: 60s

# 服务级配置
services:
user_service:
endpoint: "/api/v1/users"
timeouts:
connect: 2s
read: 10s
write: 10s
total: 15s
retry_policy:
max_attempts: 3
backoff_base: 1s
backoff_max: 10s

payment_service:
endpoint: "/api/v1/payments"
timeouts:
connect: 5s
read: 60s # 支付处理可能较长
write: 30s
total: 90s
circuit_breaker:
failure_threshold: 5
success_threshold: 3
timeout: 30s

search_service:
endpoint: "/api/v1/search"
timeouts:
connect: 1s
read: 5s # 搜索需要快速响应
write: 2s
total: 10s
fallback:
enabled: true
timeout: 2s
response: "cached_results"

# 依赖级配置
dependencies:
database:
primary:
connect_timeout: 3s
query_timeout: 10s
transaction_timeout: 30s
replica:
connect_timeout: 5s
query_timeout: 15s
read_only: true

cache:
redis:
connect_timeout: 1s
operation_timeout: 2s
pool_timeout: 5s

memcached:
connect_timeout: 1s
operation_timeout: 2s

external_apis:
payment_gateway:
timeout: 30s
retry_count: 2

email_service:
timeout: 10s
async: true # 可以异步处理

analytics:
timeout: 5s
fire_and_forget: true # 非关键路径

# 自适应超时配置
adaptive:
enabled: true
sampling_rate: 0.1 # 10%的请求用于学习
history_window: "5m"
percentiles:
– 95 # P95响应时间
– 99 # P99响应时间

adjustment:
min_timeout: "100ms"
max_timeout: "300s"
adjustment_factor: 1.5 # 基于P99的1.5倍
cooldown_period: "30s"

28.2.2 Nginx超时优化配置

nginx

# Nginx高级超时配置
http {
# 全局超时设置
keepalive_timeout 75s;
keepalive_requests 1000;

# 解析超时
resolver 8.8.8.8 8.8.4.4 valid=300s;
resolver_timeout 5s;

# 客户端超时
client_body_timeout 60s;
client_header_timeout 60s;
send_timeout 60s;

# 限制客户端请求大小
client_max_body_size 100m;

upstream backend {
server 10.0.1.1:8080;
server 10.0.1.2:8080;

# 连接池配置
keepalive 100;
keepalive_timeout 60s;
keepalive_requests 1000;
}

server {
listen 80;

location /api/ {
proxy_pass http://backend;

# 代理超时设置
proxy_connect_timeout 5s;
proxy_send_timeout 30s;
proxy_read_timeout 30s;

# 缓冲设置
proxy_buffering on;
proxy_buffer_size 8k;
proxy_buffers 16 8k;
proxy_busy_buffers_size 16k;
proxy_temp_file_write_size 16k;

# 重试配置
proxy_next_upstream error timeout invalid_header http_502 http_503 http_504;
proxy_next_upstream_tries 3;
proxy_next_upstream_timeout 10s;

# 超时错误处理
proxy_intercept_errors on;
error_page 504 = @gateway_timeout;
}

# 自定义504处理
location @gateway_timeout {
default_type application/json;

# 添加重试头部
add_header Retry-After 30;
add_header X-Request-ID $request_id;
add_header X-Upstream-Timeout "true";

# 返回JSON错误响应
return 504 '{
"error": {
"code": "gateway_timeout",
"message": "Upstream server did not respond in time",
"request_id": "$request_id",
"timestamp": "$time_iso8601",
"upstream": "$proxy_host",
"suggested_actions": [
"Please retry your request",
"Check service status at status.example.com",
"Contact support if the issue persists"
]
}
}';
}

# 慢请求日志记录
log_format slow_requests '$remote_addr – $remote_user [$time_local] '
'"$request" $status $body_bytes_sent '
'"$http_referer" "$http_user_agent" '
'$request_time $upstream_response_time '
'$upstream_addr $upstream_status';

access_log /var/log/nginx/slow_requests.log slow_requests
if=$slow_request;

# 定义慢请求（超过5秒）
map $request_time $slow_request {
default 0;
"~^[5-9]\\." 1; # 5-9秒
"~^[1-9][0-9]" 1; # 10秒以上
}
}
}

28.3 智能超时管理

28.3.1 自适应超时算法

python

# 自适应超时管理系统
import time
import statistics
from typing import List, Dict, Optional
from collections import deque
from dataclasses import dataclass
from datetime import datetime, timedelta
import numpy as np

@dataclass
class TimeoutMetrics:
"""超时指标"""
p50_response_time: float
p95_response_time: float
p99_response_time: float
success_rate: float
timeout_rate: float
total_requests: int
sample_size: int

class AdaptiveTimeoutManager:
"""自适应超时管理器"""

def __init__(self, service_name: str, initial_timeout: float = 30.0):
self.service_name = service_name
self.base_timeout = initial_timeout
self.current_timeout = initial_timeout
self.min_timeout = 0.1 # 100ms
self.max_timeout = 300.0 # 5分钟

# 历史数据存储
self.response_times: deque = deque(maxlen=10000)
self.timeout_history: deque = deque(maxlen=1000)
self.metrics_history: deque = deque(maxlen=100)

# 自适应参数
self.percentile_target = 99 # 基于P99调整
self.safety_factor = 1.5 # 安全系数
self.adjustment_cooldown = 30 # 调整冷却时间（秒）
self.last_adjustment = 0

# 统计周期
self.window_size = 300 # 5分钟窗口

def record_response(self, response_time: float, timed_out: bool = False):
"""记录响应时间"""
self.response_times.append({
'timestamp': time.time(),
'response_time': response_time,
'timed_out': timed_out
})

if timed_out:
self.timeout_history.append(time.time())

# 定期调整超时时间
if time.time() – self.last_adjustment > self.adjustment_cooldown:
self._adjust_timeout()

def _adjust_timeout(self):
"""调整超时时间"""
current_time = time.time()

# 获取窗口内的数据
window_start = current_time – self.window_size
recent_responses = [
r for r in self.response_times
if r['timestamp'] > window_start
]

if len(recent_responses) < 100: # 最少100个样本
return

# 计算统计指标
response_times = [r['response_time'] for r in recent_responses]
timeouts = sum(1 for r in recent_responses if r['timed_out'])

if not response_times:
return

# 计算百分位数
try:
p95 = np.percentile(response_times, 95)
p99 = np.percentile(response_times, 99)

# 计算成功率
success_rate = 1 – (timeouts / len(recent_responses))

# 基于P99和安全系数计算新超时时间
new_timeout = p99 * self.safety_factor

# 应用边界条件
new_timeout = max(self.min_timeout, min(new_timeout, self.max_timeout))

# 避免频繁调整（变化小于10%时不调整）
if abs(new_timeout – self.current_timeout) / self.current_timeout > 0.1:
old_timeout = self.current_timeout
self.current_timeout = new_timeout
self.last_adjustment = current_time

# 记录调整
self._log_adjustment(old_timeout, new_timeout, p95, p99, success_rate)

except Exception as e:
print(f"Error adjusting timeout: {e}")

def get_timeout_for_percentile(self, percentile: int = 95) -> float:
"""获取特定百分位的推荐超时时间"""
if not self.response_times:
return self.base_timeout

recent_responses = list(self.response_times)
if len(recent_responses) < 10:
return self.base_timeout

response_times = [r['response_time'] for r in recent_responses
if not r['timed_out']]

if not response_times:
return self.base_timeout

try:
target_percentile = np.percentile(response_times, percentile)
return target_percentile * self.safety_factor
except:
return self.base_timeout

def should_use_percentile_timeout(self, request_type: str) -> bool:
"""判断是否应该使用百分位超时"""
# 某些请求类型使用固定超时
fixed_timeout_types = ['login', 'health_check', 'metrics']

if request_type in fixed_timeout_types:
return False

# 检查是否有足够的历史数据
if len(self.response_times) < 100:
return False

# 检查数据质量（响应时间方差）
recent_responses = list(self.response_times)[-100:]
response_times = [r['response_time'] for r in recent_responses
if not r['timed_out']]

if len(response_times) < 20:
return False

# 计算变异系数（标准差/均值）
if statistics.mean(response_times) > 0:
coefficient_of_variation = statistics.stdev(response_times) / statistics.mean(response_times)
# 如果变异系数太高，使用保守超时
if coefficient_of_variation > 2.0:
return False

return True

def get_dynamic_timeout(self, request_context: Dict) -> float:
"""获取动态超时时间"""
request_type = request_context.get('type', 'default')

# 检查是否应该使用百分位超时
if self.should_use_percentile_timeout(request_type):
# 根据请求复杂度调整百分位
complexity = request_context.get('complexity', 1.0)
adjusted_percentile = min(99, 95 * complexity)

timeout = self.get_timeout_for_percentile(int(adjusted_percentile))
else:
# 使用预定义超时
timeout_config = {
'health_check': 5.0,
'login': 10.0,
'search': 5.0,
'report': 60.0,
'batch_processing': 300.0,
'default': self.current_timeout
}

timeout = timeout_config.get(request_type, self.current_timeout)

# 基于优先级调整
priority = request_context.get('priority', 'medium')
priority_factors = {
'high': 1.0,
'medium': 1.0,
'low': 0.5
}

timeout *= priority_factors.get(priority, 1.0)

# 确保在合理范围内
return max(self.min_timeout, min(timeout, self.max_timeout))

28.3.2 基于机器学习的超时预测

python

# 使用机器学习预测超时
import pandas as pd
from sklearn.ensemble import RandomForestRegressor
from sklearn.preprocessing import StandardScaler
from sklearn.pipeline import Pipeline
import joblib
from datetime import datetime

class TimeoutPredictor:
"""基于机器学习的超时预测器"""

def __init__(self, model_path: Optional[str] = None):
self.features = [
'request_size_kb',
'request_complexity',
'concurrent_requests',
'time_of_day',
'day_of_week',
'service_load',
'network_latency',
'cache_hit_rate',
'database_load',
'previous_response_time'
]

if model_path and os.path.exists(model_path):
self.model = joblib.load(model_path)
else:
self.model = self._build_model()

self.training_data = []
self.last_training = datetime.now()

def _build_model(self) -> Pipeline:
"""构建机器学习管道"""
pipeline = Pipeline([
('scaler', StandardScaler()),
('regressor', RandomForestRegressor(
n_estimators=100,
max_depth=10,
min_samples_split=5,
random_state=42
))
])
return pipeline

def extract_features(self, request_context: Dict) -> List[float]:
"""从请求上下文中提取特征"""
features = []

for feature_name in self.features:
value = request_context.get(feature_name, 0.0)

# 特征工程
if feature_name == 'time_of_day':
# 将时间转换为正弦/余弦特征
hour = value % 24
features.append(np.sin(2 * np.pi * hour / 24))
features.append(np.cos(2 * np.pi * hour / 24))
elif feature_name == 'day_of_week':
# 星期几的编码
features.append(value % 7)
features.append(1 if value >= 5 else 0) # 是否为周末
else:
features.append(float(value))

return features

def predict_timeout(self, request_context: Dict) -> float:
"""预测请求的超时时间"""
features = self.extract_features(request_context)

try:
# 转换为DataFrame
X = pd.DataFrame([features], columns=self.features[:len(features)])

# 预测
prediction = self.model.predict(X)[0]

# 应用安全边界
safety_margin = 1.3 # 30%的安全边界
predicted_timeout = max(0.1, prediction * safety_margin)

return min(predicted_timeout, 300.0) # 最大5分钟

except Exception as e:
# 如果预测失败，返回保守估计
print(f"Prediction failed: {e}")
return 30.0 # 默认30秒

def record_training_sample(self, request_context: Dict,
actual_response_time: float):
"""记录训练样本"""
features = self.extract_features(request_context)
self.training_data.append(features + [actual_response_time])

# 定期重新训练模型
if (datetime.now() – self.last_training).total_seconds() > 3600: # 每小时
self.retrain_model()

def retrain_model(self):
"""重新训练模型"""
if len(self.training_data) < 100:
return

df = pd.DataFrame(self.training_data,
columns=self.features + ['response_time'])

X = df[self.features]
y = df['response_time']

# 移除异常值
Q1 = y.quantile(0.25)
Q3 = y.quantile(0.75)
IQR = Q3 – Q1
mask = (y >= Q1 – 1.5 * IQR) & (y <= Q3 + 1.5 * IQR)

X_clean = X[mask]
y_clean = y[mask]

if len(X_clean) < 50:
return

# 训练模型
self.model.fit(X_clean, y_clean)
self.last_training = datetime.now()

# 保存模型
joblib.dump(self.model, f'timeout_model_{datetime.now().timestamp()}.joblib')

print(f"Model retrained with {len(X_clean)} samples")

28.4 分布式追踪与超时分析

28.4.1 集成分布式追踪

python

# 分布式追踪集成
from opentelemetry import trace
from opentelemetry.trace import Status, StatusCode
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.jaeger.thrift import JaegerExporter
import time

class TracedTimeoutManager:
"""集成分布式追踪的超时管理器"""

def __init__(self, service_name: str):
# 设置OpenTelemetry
trace.set_tracer_provider(TracerProvider())
self.tracer = trace.get_tracer(__name__)

# Jaeger导出器
jaeger_exporter = JaegerExporter(
agent_host_name="jaeger",
agent_port=6831,
)

span_processor = BatchSpanProcessor(jaeger_exporter)
trace.get_tracer_provider().add_span_processor(span_processor)

self.service_name = service_name
self.timeout_thresholds = {
'critical': 1.0, # 超过1秒为关键路径
'warning': 5.0, # 超过5秒为警告
'timeout': 30.0 # 超时阈值
}

def instrument_request(self, request_func):
"""装饰器：为请求添加追踪和超时监控"""
def wrapper(*args, **kwargs):
request_name = kwargs.get('request_name', 'unknown')

with self.tracer.start_as_current_span(f"{self.service_name}.{request_name}") as span:
# 添加请求属性
span.set_attributes({
"http.method": kwargs.get('method', 'GET'),
"http.url": kwargs.get('url', ''),
"http.request_size": kwargs.get('content_length', 0),
"timeout.threshold": kwargs.get('timeout', 30.0)
})

start_time = time.time()

try:
# 执行请求
result = request_func(*args, **kwargs)

# 计算响应时间
response_time = time.time() – start_time

# 记录性能指标
self._record_performance_metrics(span, response_time,
kwargs.get('timeout', 30.0))

# 添加响应属性
if hasattr(result, 'status_code'):
span.set_attribute("http.status_code", result.status_code)

span.set_status(Status(StatusCode.OK))

return result

except TimeoutError as e:
# 处理超时
response_time = time.time() – start_time

span.set_status(Status(
StatusCode.ERROR,
f"Timeout after {response_time:.2f}s"
))

span.set_attributes({
"error.type": "timeout",
"error.retryable": True,
"timeout.actual": response_time,
"timeout.configured": kwargs.get('timeout', 30.0)
})

span.record_exception(e)

# 记录超时指标
self._record_timeout_metrics(span, response_time,
kwargs.get('timeout', 30.0))

raise

except Exception as e:
# 处理其他错误
span.set_status(Status(StatusCode.ERROR, str(e)))
span.record_exception(e)
raise

return wrapper

def _record_performance_metrics(self, span, response_time: float,
timeout_threshold: float):
"""记录性能指标"""
span.set_attributes({
"performance.response_time": response_time,
"performance.timeout_ratio": response_time / timeout_threshold,
"performance.within_timeout": response_time <= timeout_threshold
})

# 根据响应时间设置严重程度
if response_time > self.timeout_thresholds['timeout']:
span.set_attribute("performance.severity", "timeout")
elif response_time > self.timeout_thresholds['warning']:
span.set_attribute("performance.severity", "warning")
elif response_time > self.timeout_thresholds['critical']:
span.set_attribute("performance.severity", "critical")
else:
span.set_attribute("performance.severity", "normal")

def _record_timeout_metrics(self, span, actual_time: float,
configured_timeout: float):
"""记录超时指标"""
timeout_exceeded_by = actual_time – configured_timeout

span.set_attributes({
"timeout.exceeded_by": timeout_exceeded_by,
"timeout.percentage_exceeded": (timeout_exceeded_by / configured_timeout) * 100,
"timeout.suggestion": self._generate_timeout_suggestion(
actual_time, configured_timeout
)
})

def _generate_timeout_suggestion(self, actual_time: float,
configured_timeout: float) -> str:
"""生成超时配置建议"""
if actual_time <= configured_timeout:
return "Timeout configuration is appropriate"

exceed_ratio = actual_time / configured_timeout

if exceed_ratio < 1.1:
return "Consider increasing timeout by 10%"
elif exceed_ratio < 1.5:
return "Consider increasing timeout by 50%"
elif exceed_ratio < 2.0:
return "Consider increasing timeout by 100%"
else:
return "Investigate upstream service performance or adjust timeout significantly"

def analyze_timeout_patterns(self, traces: List[Dict]) -> Dict:
"""分析超时模式"""
analysis = {
'total_requests': 0,
'timeout_requests': 0,
'timeout_rate': 0.0,
'avg_response_time': 0.0,
'p95_response_time': 0.0,
'timeout_causes': {},
'recommendations': []
}

response_times = []

for trace in traces:
analysis['total_requests'] += 1

if trace.get('status') == 'timeout':
analysis['timeout_requests'] += 1

# 分析超时原因
cause = self._determine_timeout_cause(trace)
analysis['timeout_causes'][cause] = \\
analysis['timeout_causes'].get(cause, 0) + 1

if 'response_time' in trace:
response_times.append(trace['response_time'])

# 计算统计指标
if response_times:
analysis['avg_response_time'] = statistics.mean(response_times)
if len(response_times) >= 5:
analysis['p95_response_time'] = np.percentile(response_times, 95)

if analysis['total_requests'] > 0:
analysis['timeout_rate'] = \\
analysis['timeout_requests'] / analysis['total_requests']

# 生成建议
analysis['recommendations'] = self._generate_recommendations(analysis)

return analysis

def _determine_timeout_cause(self, trace: Dict) -> str:
"""确定超时原因"""
# 基于追踪数据判断超时原因
spans = trace.get('spans', [])

# 检查网络延迟
if any(span.get('type') == 'network' for span in spans):
return 'network_latency'

# 检查数据库查询
if any(span.get('type') == 'database' for span in spans):
return 'database_query'

# 检查外部API调用
if any(span.get('type') == 'external_api' for span in spans):
return 'external_service'

# 检查业务逻辑
if any(span.get('type') == 'business_logic' for span in spans):
return 'business_logic'

return 'unknown'

28.5 客户端处理与用户体验优化

28.5.1 智能客户端重试策略

javascript

// 智能504处理客户端
class Smart504Handler {
constructor(options = {}) {
this.options = {
maxRetries: 3,
baseDelay: 1000,
maxDelay: 30000,
jitter: 0.3,
timeoutMultiplier: 1.5,
circuitBreaker: {
failureThreshold: 5,
resetTimeout: 60000
},
…options
};

this.serviceStats = new Map();
this.circuitBreakers = new Map();
}

async executeWithRetry(requestFn, context = {}) {
const requestId = this._generateId();
const serviceName = context.serviceName || 'default';

let lastError;
let attempt = 0;

// 获取或创建断路器
let circuitBreaker = this.circuitBreakers.get(serviceName);
if (!circuitBreaker) {
circuitBreaker = new CircuitBreaker(this.options.circuitBreaker);
this.circuitBreakers.set(serviceName, circuitBreaker);
}

// 检查断路器状态
if (circuitBreaker.state === 'OPEN') {
throw new CircuitBreakerOpenError(
`Circuit breaker open for ${serviceName}`,
circuitBreaker.lastFailureTime
);
}

while (attempt <= this.options.maxRetries) {
attempt++;

if (attempt > 1) {
// 计算退避延迟
const delay = this._calculateBackoff(
attempt,
lastError,
context
);

await this._sleep(delay);

// 更新上下文（例如添加重试标识）
context.retryAttempt = attempt;
context.previousErrors = context.previousErrors || [];
context.previousErrors.push(lastError);
}

try {
// 设置超时
const timeout = this._calculateTimeout(context, attempt);

// 执行请求
const result = await this._executeWithTimeout(
requestFn,
timeout,
context
);

// 记录成功
circuitBreaker.recordSuccess();
this._recordSuccess(serviceName, context);

return result;

} catch (error) {
lastError = error;

// 记录失败
circuitBreaker.recordFailure();
this._recordFailure(serviceName, error, context);

// 检查是否应该重试
if (!this._shouldRetry(error, attempt, context)) {
break;
}

// 如果是504错误，检查响应头部
if (error.status === 504) {
const retryAfter = error.headers?.get('Retry-After');
if (retryAfter) {
await this._sleep(parseInt(retryAfter) * 1000);
}
}
}
}

// 所有重试失败
throw new MaxRetriesExceededError(
`All retries failed for ${serviceName}`,
lastError,
attempt
);
}

_calculateBackoff(attempt, lastError, context) {
let delay = this.options.baseDelay * Math.pow(2, attempt – 1);

// 添加抖动
const jitter = 1 – this.options.jitter + Math.random() * this.options.jitter * 2;
delay *= jitter;

// 限制最大延迟
delay = Math.min(delay, this.options.maxDelay);

// 对于504错误，如果服务器提供了Retry-After，使用它
if (lastError && lastError.status === 504) {
const retryAfter = lastError.headers?.get('Retry-After');
if (retryAfter) {
const serverDelay = parseInt(retryAfter) * 1000;
if (!isNaN(serverDelay)) {
delay = Math.max(delay, serverDelay);
}
}
}

return Math.round(delay);
}

_calculateTimeout(context, attempt) {
// 基于重试次数增加超时时间
const baseTimeout = context.timeout || 30000;
const multiplier = Math.pow(this.options.timeoutMultiplier, attempt – 1);

return Math.min(baseTimeout * multiplier, 300000); // 最大5分钟
}

_shouldRetry(error, attempt, context) {
if (attempt >= this.options.maxRetries) {
return false;
}

// 重试504错误
if (error.status === 504) {
return true;
}

// 重试网络错误
if (error.name === 'NetworkError' ||
error.name === 'TimeoutError') {
return true;
}

// 不重试客户端错误（4xx）
if (error.status >= 400 && error.status < 500) {
return false;
}

// 默认重试服务器错误（5xx）
return error.status >= 500;
}

_executeWithTimeout(requestFn, timeout, context) {
return new Promise((resolve, reject) => {
const timeoutId = setTimeout(() => {
reject(new TimeoutError(`Request timeout after ${timeout}ms`));
}, timeout);

requestFn(context)
.then(resolve)
.catch(reject)
.finally(() => clearTimeout(timeoutId));
});
}

_recordSuccess(serviceName, context) {
const stats = this.serviceStats.get(serviceName) || {
successes: 0,
failures: 0,
totalResponseTime: 0,
lastSuccess: Date.now()
};

stats.successes++;
stats.lastSuccess = Date.now();

if (context.responseTime) {
stats.totalResponseTime += context.responseTime;
}

this.serviceStats.set(serviceName, stats);
}

_recordFailure(serviceName, error, context) {
const stats = this.serviceStats.get(serviceName) || {
successes: 0,
failures: 0,
totalResponseTime: 0,
lastFailure: Date.now()
};

stats.failures++;
stats.lastFailure = Date.now();

// 记录错误类型
stats.lastErrorType = error.status || error.name;

this.serviceStats.set(serviceName, stats);
}

getServiceHealth(serviceName) {
const stats = this.serviceStats.get(serviceName);
const circuitBreaker = this.circuitBreakers.get(serviceName);

if (!stats) {
return { status: 'unknown' };
}

const totalRequests = stats.successes + stats.failures;
const successRate = totalRequests > 0 ? stats.successes / totalRequests : 0;

const health = {
status: 'healthy',
successRate,
totalRequests,
circuitBreakerState: circuitBreaker?.state || 'unknown',
avgResponseTime: stats.successes > 0 ?
stats.totalResponseTime / stats.successes : 0
};

// 确定健康状态
if (circuitBreaker?.state === 'OPEN') {
health.status = 'circuit_open';
} else if (successRate < 0.8) {
health.status = 'degraded';
} else if (successRate < 0.95) {
health.status = 'warning';
}

return health;
}
}

28.6 最佳实践总结

28.6.1 超时配置检查清单

Nginx配置：

text

✅ proxy_connect_timeout: 2-5秒
✅ proxy_send_timeout: 30-60秒（根据业务调整）
✅ proxy_read_timeout: 30-60秒（根据业务调整）
✅ keepalive_timeout: 15-30秒
✅ resolver_timeout: 5秒

应用服务器配置：

text

✅ 数据库连接超时：5-10秒
✅ Redis超时：1-2秒
✅ HTTP客户端超时：分层配置
✅ 线程池等待超时：30-60秒

28.6.2 监控告警阈值

yaml

# Prometheus告警规则
groups:
– name: gateway_timeout_alerts
rules:
– alert: High504ErrorRate
expr: |
rate(
http_requests_total{status="504"}[5m]
) / rate(
http_requests_total[5m]
) > 0.01
for: 2m
labels:
severity: critical
annotations:
summary: "High rate of 504 gateway timeout errors"
description: |
504错误率超过1%，当前值: {{ $value | humanizePercentage }}
受影响的upstream: {{ $labels.upstream }}

– alert: SlowUpstreamResponse
expr: |
histogram_quantile(0.95,
rate(upstream_response_time_seconds_bucket[5m])
) > 10
for: 5m
labels:
severity: warning
annotations:
summary: "Slow upstream response times"
description: |
上游服务95%响应时间超过10秒
当前值: {{ $value }}秒

– alert: UpstreamTimeoutRatioHigh
expr: |
rate(
http_requests_total{status="504"}[5m]
) / rate(
http_requests_total{status!="504"}[5m]
) > 0.1
for: 1m
labels:
severity: warning
annotations:
summary: "High ratio of timeout errors"
description: |
超时错误占比超过10%，可能需要调整超时配置

28.6.3 容量规划公式

text

超时配置 = 基准响应时间 × 安全系数 × 业务重要性系数

其中：
– 基准响应时间：P99响应时间
– 安全系数：1.5-2.0（根据服务稳定性调整）
– 业务重要性系数：
• 关键业务：1.2
• 重要业务：1.0
• 非关键业务：0.8

示例：
订单服务 P99响应时间 = 2秒
安全系数 = 1.5
业务重要性系数 = 1.2

超时配置 = 2 × 1.5 × 1.2 = 3.6秒

通过实施这些策略，可以显著降低504错误的发生率，提高系统的可靠性和用户体验。

第29章：其他5xx状态码（505-511）

29.1 505 HTTP Version Not Supported

29.1.1 协议版本兼容性管理

505 HTTP Version Not Supported 表示服务器不支持请求中使用的HTTP协议版本。

python

# HTTP版本协商管理器
from typing import Dict, List, Optional
from enum import Enum

class HTTPVersion(Enum):
HTTP_0_9 = "HTTP/0.9"
HTTP_1_0 = "HTTP/1.0"
HTTP_1_1 = "HTTP/1.1"
HTTP_2_0 = "HTTP/2"
HTTP_3_0 = "HTTP/3"

class HTTPVersionManager:
"""HTTP版本管理器"""

def __init__(self):
# 支持的HTTP版本及其功能
self.supported_versions = {
HTTPVersion.HTTP_1_1: {
"supported": True,
"features": ["keep-alive", "pipelining", "chunked_encoding"],
"security_level": "moderate",
"performance_score": 7
},
HTTPVersion.HTTP_2_0: {
"supported": True,
"features": ["multiplexing", "header_compression", "server_push"],
"security_level": "high",
"performance_score": 9
},
HTTPVersion.HTTP_3_0: {
"supported": False, # 实验性支持
"features": ["QUIC", "improved_security", "better_performance"],
"security_level": "very_high",
"performance_score": 10,
"experimental": True
}
}

# 版本升级策略
self.upgrade_policies = {
"aggressive": {
"force_upgrade": True,
"legacy_support_days": 30,
"notify_clients": True
},
"gradual": {
"force_upgrade": False,
"legacy_support_days": 365,
"notify_clients": True
},
"compatible": {
"force_upgrade": False,
"legacy_support_days": float('inf'),
"notify_clients": False
}
}

self.current_policy = "gradual"

def handle_request(self, http_version: str, request_headers: Dict) -> Dict:
"""处理HTTP版本协商"""
requested_version = self._parse_http_version(http_version)

# 检查是否支持该版本
if requested_version not in self.supported_versions:
return self._create_505_response(requested_version)

version_info = self.supported_versions[requested_version]

# 检查是否已弃用
if not version_info["supported"]:
# 根据策略决定是否返回505
if self.upgrade_policies[self.current_policy]["force_upgrade"]:
return self._create_505_response(
requested_version,
suggest_upgrade=True
)

# 检查是否需要升级
if self._should_suggest_upgrade(requested_version, request_headers):
return self._create_upgrade_response(requested_version)

# 版本支持，正常处理
return {"status": "supported", "version": requested_version}

def _create_505_response(self, requested_version: HTTPVersion,
suggest_upgrade: bool = False) -> Dict:
"""创建505响应"""
response = {
"status": 505,
"headers": {
"Content-Type": "application/json"
},
"body": {
"error": {
"code": "http_version_not_supported",
"message": f"HTTP version {requested_version.value} is not supported",
"supported_versions": [
version.value for version, info in self.supported_versions.items()
if info["supported"]
]
}
}
}

if suggest_upgrade:
latest_version = self._get_latest_supported_version()
response["headers"]["Upgrade"] = latest_version.value
response["body"]["error"]["suggestion"] = {
"upgrade_to": latest_version.value,
"benefits": self.supported_versions[latest_version]["features"],
"migration_guide": "https://docs.example.com/http-upgrade"
}

return response

def _create_upgrade_response(self, current_version: HTTPVersion) -> Dict:
"""创建协议升级响应"""
latest_version = self._get_latest_supported_version()

return {
"status": 426, # Upgrade Required
"headers": {
"Content-Type": "application/json",
"Upgrade": latest_version.value,
"Connection": "Upgrade"
},
"body": {
"info": {
"message": "Please upgrade your HTTP protocol",
"current_version": current_version.value,
"recommended_version": latest_version.value,
"improvements": self._compare_versions(current_version, latest_version),
"documentation": "https://docs.example.com/http-upgrade"
}
}
}

def _get_latest_supported_version(self) -> HTTPVersion:
"""获取最新支持的HTTP版本"""
supported = [v for v, info in self.supported_versions.items()
if info["supported"]]
return max(supported, key=lambda x: x.value)

def _should_suggest_upgrade(self, current_version: HTTPVersion,
headers: Dict) -> bool:
"""检查是否应该建议升级"""
# 基于User-Agent判断客户端能力
user_agent = headers.get("User-Agent", "")

# 现代浏览器支持HTTP/2和HTTP/3
modern_browsers = ["Chrome/", "Firefox/", "Safari/", "Edge/"]

if any(browser in user_agent for browser in modern_browsers):
# 现代浏览器，可以建议升级到HTTP/2或HTTP/3
return current_version.value in ["HTTP/1.0", "HTTP/1.1"]

# API客户端
if "python-requests" in user_agent or "curl" in user_agent:
# 这些客户端通常支持HTTP/2
return current_version == HTTPVersion.HTTP_1_1

return False

29.1.2 Nginx配置示例

nginx

# Nginx HTTP版本配置
http {
# 支持的HTTP版本
http2 on; # 启用HTTP/2

# 实验性HTTP/3支持
# listen 443 quic reuseport;
# listen [::]:443 quic reuseport;

server {
listen 80;
listen 443 ssl http2; # 同时支持HTTP/1.1和HTTP/2

ssl_certificate /etc/nginx/ssl/cert.pem;
ssl_certificate_key /etc/nginx/ssl/key.pem;

# HTTP/2设置
http2_push_preload on;
http2_max_concurrent_streams 128;

# 处理不支持的HTTP版本
error_page 505 = @http_version_error;

location @http_version_error {
default_type application/json;

# 返回详细的错误信息
return 505 '{
"error": {
"code": "unsupported_http_version",
"message": "The HTTP protocol version used in the request is not supported",
"supported_versions": ["HTTP/1.1", "HTTP/2"],
"documentation": "https://developer.example.com/api/http-versions"
}
}';
}

# 强制HTTPS和HTTP/2升级
if ($server_protocol !~* "HTTP/2") {
add_header X-HTTP-Version-Upgrade "Consider upgrading to HTTP/2";
add_header Alt-Svc 'h3=":443"; ma=86400'; # 广告HTTP/3支持
}
}
}

29.2 506 Variant Also Negotiates

506 Variant Also Negotiates 是一个较少使用的状态码，表示服务器存在内部配置错误，导致透明内容协商出现循环。

29.2.1 内容协商循环检测

python

# 内容协商循环检测器
class ContentNegotiationManager:
"""内容协商管理器，防止506错误"""

def __init__(self):
self.negotiation_history = {}
self.max_negotiation_depth = 3

# 支持的内容类型
self.supported_content_types = {
'application/json': {
'quality': 1.0,
'charset': ['utf-8'],
'language': ['en', 'zh']
},
'application/xml': {
'quality': 0.9,
'charset': ['utf-8'],
'language': ['en']
},
'text/html': {
'quality': 0.8,
'charset': ['utf-8', 'iso-8859-1'],
'language': ['en', 'zh', 'ja']
}
}

def negotiate_content(self, request_headers: Dict,
available_variants: List[Dict]) -> Dict:
"""执行内容协商，防止循环"""
request_id = request_headers.get('X-Request-ID')

if request_id:
# 检查协商历史
history = self.negotiation_history.get(request_id, [])

if len(history) >= self.max_negotiation_depth:
# 检测到可能的协商循环
return self._create_506_response(history)

# 记录本次协商
history.append({
'timestamp': time.time(),
'accept_header': request_headers.get('Accept'),
'available_variants': available_variants
})
self.negotiation_history[request_id] = history

# 执行内容协商
selected_variant = self._select_best_variant(
request_headers,
available_variants
)

if not selected_variant:
# 没有可接受的变体
return self._create_406_response(available_variants)

return {
'status': 'success',
'selected_variant': selected_variant,
'vary_header': self._generate_vary_header(request_headers)
}

def _select_best_variant(self, headers: Dict,
variants: List[Dict]) -> Optional[Dict]:
"""选择最佳变体"""
accept_header = headers.get('Accept', '*/*')
accept_language = headers.get('Accept-Language', 'en')
accept_charset = headers.get('Accept-Charset', 'utf-8')

# 解析Accept头部
accepted_types = self._parse_accept_header(accept_header)

# 为每个变体评分
scored_variants = []

for variant in variants:
score = self._calculate_variant_score(
variant,
accepted_types,
accept_language,
accept_charset
)

if score > 0:
scored_variants.append((score, variant))

if not scored_variants:
return None

# 选择最高分的变体
scored_variants.sort(reverse=True)
return scored_variants[0][1]

def _create_506_response(self, negotiation_history: List) -> Dict:
"""创建506响应"""
return {
'status': 506,
'headers': {
'Content-Type': 'application/json',
'Vary': 'Accept, Accept-Language, Accept-Charset'
},
'body': {
'error': {
'code': 'variant_also_negotiates',
'message': 'Content negotiation resulted in a circular reference',
'details': {
'negotiation_depth': len(negotiation_history),
'negotiation_history': negotiation_history,
'max_allowed_depth': self.max_negotiation_depth
},
'suggestions': [
'Check server content negotiation configuration',
'Ensure variants have unique content types',
'Review Accept headers in client requests'
]
}
}
}

def _create_406_response(self, available_variants: List[Dict]) -> Dict:
"""创建406 Not Acceptable响应"""
return {
'status': 406,
'headers': {
'Content-Type': 'application/json',
'Vary': 'Accept, Accept-Language, Accept-Charset'
},
'body': {
'error': {
'code': 'not_acceptable',
'message': 'No acceptable variant found',
'available_variants': available_variants,
'supported_content_types': list(self.supported_content_types.keys())
}
}
}

29.3 507 Insufficient Storage

507 Insufficient Storage 表示服务器无法存储完成请求所需的内容，通常与WebDAV协议相关。

29.3.1 存储配额管理系统

python

# 存储配额管理器
class StorageQuotaManager:
"""存储配额管理器，防止507错误"""

def __init__(self):
self.user_quotas = {}
self.default_quota = {
'total': 100 * 1024 * 1024, # 100MB
'file_count': 1000,
'max_file_size': 10 * 1024 * 1024 # 10MB
}

# 存储使用情况缓存
self.usage_cache = {}
self.cache_ttl = 300 # 5分钟

async def check_quota(self, user_id: str,
operation: str,
size: int = 0) -> Dict:
"""检查存储配额"""

# 获取用户配额
quota = self._get_user_quota(user_id)

# 获取当前使用情况
usage = await self._get_storage_usage(user_id)

# 检查操作是否允许
check_result = self._check_operation(operation, size, quota, usage)

if not check_result['allowed']:
return self._create_507_response(user_id, quota, usage, check_result)

return {'allowed': True, 'quota': quota, 'usage': usage}

def _check_operation(self, operation: str, size: int,
quota: Dict, usage: Dict) -> Dict:
"""检查特定操作"""
result = {
'allowed': True,
'reasons': []
}

if operation == 'upload':
# 检查文件大小限制
if size > quota['max_file_size']:
result['allowed'] = False
result['reasons'].append(
f"File size ({size} bytes) exceeds maximum allowed "
f"({quota['max_file_size']} bytes)"
)

# 检查总存储空间
projected_total = usage['total_bytes'] + size
if projected_total > quota['total']:
result['allowed'] = False
result['reasons'].append(
f"Projected storage ({projected_total} bytes) exceeds "
f"quota ({quota['total']} bytes)"
)

# 检查文件数量限制
if usage['file_count'] >= quota['file_count']:
result['allowed'] = False
result['reasons'].append(
f"File count ({usage['file_count']}) exceeds limit "
f"({quota['file_count']})"
)

elif operation == 'update':
# 更新现有文件
# 这里可以根据需要添加特定检查
pass

return result

def _create_507_response(self, user_id: str, quota: Dict,
usage: Dict, check_result: Dict) -> Dict:
"""创建507响应"""
return {
'status': 507,
'headers': {
'Content-Type': 'application/json',
'X-Storage-Quota-Total': str(quota['total']),
'X-Storage-Quota-Used': str(usage['total_bytes']),
'X-Storage-Quota-Remaining': str(quota['total'] – usage['total_bytes'])
},
'body': {
'error': {
'code': 'insufficient_storage',
'message': 'Insufficient storage to complete the operation',
'details': {
'user_id': user_id,
'operation': check_result.get('operation'),
'reasons': check_result['reasons'],
'quota': {
'total_bytes': quota['total'],
'max_file_size': quota['max_file_size'],
'max_file_count': quota['file_count']
},
'usage': {
'total_bytes': usage['total_bytes'],
'file_count': usage['file_count'],
'percentage_used':
(usage['total_bytes'] / quota['total']) * 100
},
'suggestions': [
'Delete unused files to free up space',
'Consider upgrading your storage plan',
'Compress files before uploading'
],
'upgrade_url': f'https://example.com/upgrade/{user_id}'
}
}
}
}

async def _get_storage_usage(self, user_id: str) -> Dict:
"""获取存储使用情况"""
# 检查缓存
cache_key = f'usage:{user_id}'
if cache_key in self.usage_cache:
cached = self.usage_cache[cache_key]
if time.time() – cached['timestamp'] < self.cache_ttl:
return cached['usage']

# 从数据库获取使用情况
usage = await self._query_storage_usage(user_id)

# 更新缓存
self.usage_cache[cache_key] = {
'timestamp': time.time(),
'usage': usage
}

return usage

29.4 508 Loop Detected

508 Loop Detected (WebDAV扩展) 表示服务器在处理请求时检测到无限循环。

29.4.1 循环检测与防护

python

# 请求循环检测器
class LoopDetector:
"""检测和防止无限循环"""

def __init__(self, max_depth: int = 10, max_iterations: int = 100):
self.max_depth = max_depth
self.max_iterations = max_iterations
self.active_requests = {}

# 循环检测模式
self.detection_modes = {
'strict': {
'check_headers': True,
'check_params': True,
'check_body': False,
'threshold': 3
},
'moderate': {
'check_headers': True,
'check_params': True,
'check_body': False,
'threshold': 5
},
'lenient': {
'check_headers': False,
'check_params': True,
'check_body': False,
'threshold': 10
}
}

self.current_mode = 'moderate'

def track_request(self, request_id: str, request_data: Dict) -> bool:
"""追踪请求，检测循环"""
if request_id not in self.active_requests:
self.active_requests[request_id] = {
'count': 1,
'first_seen': time.time(),
'last_seen': time.time(),
'variants': [self._create_request_signature(request_data)]
}
return True

record = self.active_requests[request_id]
record['count'] += 1
record['last_seen'] = time.time()

# 检查请求计数
if record['count'] > self.max_iterations:
return False

# 检查时间窗口
time_window = record['last_seen'] – record['first_seen']
requests_per_second = record['count'] / max(time_window, 1)

if requests_per_second > 10: # 每秒10个请求
return False

# 检查请求变体（检测循环中的变化）
current_signature = self._create_request_signature(request_data)

if current_signature in record['variants']:
# 检测到相同的请求变体
variant_index = record['variants'].index(current_signature)
loop_size = len(record['variants']) – variant_index

if loop_size <= self.detection_modes[self.current_mode]['threshold']:
# 检测到小循环
return False
else:
record['variants'].append(current_signature)

# 检查变体数量
if len(record['variants']) > self.max_depth:
return False

return True

def _create_request_signature(self, request_data: Dict) -> str:
"""创建请求签名"""
mode = self.detection_modes[self.current_mode]

signature_parts = []

if mode['check_headers']:
headers = request_data.get('headers', {})
# 选择关键头部
key_headers = {k: v for k, v in headers.items()
if k.lower() in ['authorization', 'content-type', 'user-agent']}
signature_parts.append(f"headers:{hash(str(sorted(key_headers.items())))}")

if mode['check_params']:
params = request_data.get('params', {})
signature_parts.append(f"params:{hash(str(sorted(params.items())))}")

if mode['check_body'] and 'body' in request_data:
body = request_data['body']
# 对于大请求体，只使用哈希
if isinstance(body, str) and len(body) > 1000:
signature_parts.append(f"body_hash:{hash(body)}")
else:
signature_parts.append(f"body:{hash(str(body))}")

return '|'.join(signature_parts)

def create_508_response(self, request_id: str,
request_data: Dict) -> Dict:
"""创建508响应"""
record = self.active_requests.get(request_id, {})

return {
'status': 508,
'headers': {
'Content-Type': 'application/json',
'X-Loop-Detected': 'true',
'X-Max-Iterations': str(self.max_iterations)
},
'body': {
'error': {
'code': 'loop_detected',
'message': 'Infinite loop detected while processing the request',
'details': {
'request_id': request_id,
'iterations': record.get('count', 0),
'time_window': record.get('last_seen', 0) – record.get('first_seen', 0),
'variants_detected': len(record.get('variants', [])),
'detection_mode': self.current_mode,
'request_signature': self._create_request_signature(request_data)
},
'suggestions': [
'Check for recursive function calls',
'Verify loop termination conditions',
'Review request parameters for circular references',
'Implement proper caching to avoid redundant processing'
]
}
}
}

def cleanup_old_requests(self, max_age: int = 3600):
"""清理旧的请求记录"""
current_time = time.time()
to_remove = []

for request_id, record in self.active_requests.items():
if current_time – record['last_seen'] > max_age:
to_remove.append(request_id)

for request_id in to_remove:
del self.active_requests[request_id]

29.5 510 Not Extended

510 Not Extended 表示请求需要进一步扩展才能被服务器处理。

29.5.1 扩展需求协商

python

# 扩展需求协商管理器
class ExtensionNegotiator:
"""处理510 Not Extended响应"""

def __init__(self):
self.required_extensions = {
'security': {
'require_2fa': {
'description': 'Two-factor authentication required',
'priority': 'high',
'implementation': 'https://docs.example.com/2fa'
},
'require_ssl': {
'description': 'SSL/TLS encryption required',
'priority': 'critical',
'implementation': 'https://docs.example.com/ssl-setup'
}
},
'compliance': {
'require_gdpr_consent': {
'description': 'GDPR consent required for EU users',
'priority': 'medium',
'implementation': 'https://docs.example.com/gdpr-compliance'
}
},
'features': {
'require_api_key': {
'description': 'API key authentication required',
'priority': 'high',
'implementation': 'https://docs.example.com/api-authentication'
}
}
}

def check_requirements(self, request: Dict,
user_context: Dict) -> List[Dict]:
"""检查请求是否满足所有要求"""
missing_extensions = []

# 检查安全扩展
if not self._check_security_extensions(request, user_context):
missing_extensions.extend(
self._get_missing_security_extensions(user_context)
)

# 检查合规扩展
if not self._check_compliance_extensions(request, user_context):
missing_extensions.extend(
self._get_missing_compliance_extensions(user_context)
)

# 检查功能扩展
if not self._check_feature_extensions(request, user_context):
missing_extensions.extend(
self._get_missing_feature_extensions(user_context)
)

return missing_extensions

def create_510_response(self, missing_extensions: List[Dict],
request: Dict) -> Dict:
"""创建510响应"""
return {
'status': 510,
'headers': {
'Content-Type': 'application/json',
'X-Required-Extensions': ','.join(
[ext['code'] for ext in missing_extensions]
)
},
'body': {
'error': {
'code': 'not_extended',
'message': 'Further extensions are required to process this request',
'details': {
'missing_extensions': missing_extensions,
'request_summary': {
'method': request.get('method'),
'path': request.get('path'),
'user': request.get('user', {}).get('id')
},
'next_steps': [
'Implement the required extensions listed below',
'Review the implementation documentation',
'Test with the extension verification endpoint'
],
'verification_endpoint': '/api/v1/extensions/verify',
'documentation': 'https://docs.example.com/extensions'
}
}
}
}

def _check_security_extensions(self, request: Dict,
user_context: Dict) -> bool:
"""检查安全扩展"""
# 检查SSL
if request.get('protocol') != 'https':
return False

# 检查2FA（对于敏感操作）
if self._is_sensitive_operation(request):
if not user_context.get('two_factor_enabled', False):
return False

return True

def _get_missing_security_extensions(self, user_context: Dict) -> List[Dict]:
"""获取缺少的安全扩展"""
missing = []

# 检查2FA
if not user_context.get('two_factor_enabled', False):
missing.append({
'category': 'security',
'code': 'require_2fa',
**self.required_extensions['security']['require_2fa']
})

return missing

29.6 511 Network Authentication Required

511 Network Authentication Required 表示客户端需要进行网络认证才能访问资源。

29.6.1 网络认证门户实现

python

# 网络认证门户管理器
class NetworkAuthPortal:
"""管理511网络认证"""

def __init__(self):
self.captive_portal_url = "https://portal.example.com/auth"
self.auth_sessions = {}
self.session_timeout = 3600 # 1小时

# 认证方法
self.auth_methods = {
'social': {
'google': {
'name': 'Google',
'url': '/auth/google',
'icon': 'google.svg'
},
'facebook': {
'name': 'Facebook',
'url': '/auth/facebook',
'icon': 'facebook.svg'
}
},
'enterprise': {
'sso': {
'name': 'Single Sign-On',
'url': '/auth/sso',
'icon': 'sso.svg'
},
'ldap': {
'name': 'LDAP/Active Directory',
'url': '/auth/ldap',
'icon': 'ldap.svg'
}
},
'simple': {
'email': {
'name': 'Email',
'url': '/auth/email',
'icon': 'email.svg'
},
'sms': {
'name': 'SMS',
'url': '/auth/sms',
'icon': 'sms.svg'
}
}
}

def create_511_response(self, request: Dict,
network_info: Dict) -> Dict:
"""创建511响应"""
session_id = self._create_auth_session(request, network_info)

# 根据设备类型选择认证方法
user_agent = request.headers.get('User-Agent', '')
auth_methods = self._select_auth_methods(user_agent)

return {
'status': 511,
'headers': {
'Content-Type': 'text/html', # 通常返回HTML门户页面
'X-Network-Auth-Required': 'true',
'X-Auth-Session': session_id,
'X-Captive-Portal': self.captive_portal_url
},
'body': self._generate_portal_html(
session_id,
network_info,
auth_methods
)
}

def _generate_portal_html(self, session_id: str,
network_info: Dict,
auth_methods: List[Dict]) -> str:
"""生成认证门户HTML"""
return f"""
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Network Authentication Required</title>
<style>
body {{
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
min-height: 100vh;
display: flex;
align-items: center;
justify-content: center;
padding: 20px;
}}
.portal-container {{
background: white;
border-radius: 12px;
padding: 40px;
box-shadow: 0 20px 60px rgba(0,0,0,0.3);
max-width: 480px;
width: 100%;
}}
.network-info {{
background: #f7fafc;
padding: 15px;
border-radius: 8px;
margin-bottom: 30px;
}}
.auth-methods {{
display: grid;
gap: 15px;
margin-top: 20px;
}}
.auth-method {{
display: flex;
align-items: center;
padding: 15px;
border: 2px solid #e2e8f0;
border-radius: 8px;
text-decoration: none;
color: #2d3748;
transition: all 0.2s;
}}
.auth-method:hover {{
border-color: #667eea;
transform: translateY(-2px);
}}
.auth-method-icon {{
width: 24px;
height: 24px;
margin-right: 15px;
}}
</style>
</head>
<body>
<div class="portal-container">
<h1>Network Authentication Required</h1>
<p>You need to authenticate to access this network.</p>

<div class="network-info">
<h3>Network Information</h3>
<p><strong>SSID:</strong> {network_info.get('ssid', 'Unknown')}</p>
<p><strong>IP Address:</strong> {network_info.get('ip', 'Unknown')}</p>
<p><strong>Location:</strong> {network_info.get('location', 'Unknown')}</p>
</div>

<h2>Choose Authentication Method</h2>
<div class="auth-methods">
{' '.join([self._generate_auth_method_html(method) for method in auth_methods])}
</div>

<div style="margin-top: 30px; font-size: 0.9em; color: #718096;">
<p>By authenticating, you agree to our
<a href="/terms">Terms of Service</a> and
<a href="/privacy">Privacy Policy</a>.</p>
</div>
</div>
</body>
</html>
"""

def _generate_auth_method_html(self, method: Dict) -> str:
"""生成认证方法HTML"""
return f"""
<a href="{method['url']}" class="auth-method">
<img src="/icons/{method['icon']}" class="auth-method-icon"
alt="{method['name']}">
<span>Sign in with {method['name']}</span>
</a>
"""

def _select_auth_methods(self, user_agent: str) -> List[Dict]:
"""根据用户代理选择认证方法"""
methods = []

# 移动设备
if 'Mobile' in user_agent or 'Android' in user_agent or 'iPhone' in user_agent:
methods.append(self.auth_methods['simple']['sms'])
methods.append(self.auth_methods['social']['google'])

# 桌面设备
else:
methods.append(self.auth_methods['social']['google'])
methods.append(self.auth_methods['social']['facebook'])
methods.append(self.auth_methods['enterprise']['sso'])

# 总是包含邮箱认证
methods.append(self.auth_methods['simple']['email'])

return methods

def _create_auth_session(self, request: Dict,
network_info: Dict) -> str:
"""创建认证会话"""
session_id = self._generate_session_id()

self.auth_sessions[session_id] = {
'created_at': time.time(),
'ip_address': request.get('remote_addr'),
'user_agent': request.headers.get('User-Agent'),
'original_url': request.get('original_url'),
'network_info': network_info,
'status': 'pending'
}

return session_id

29.7 最佳实践总结

29.7.1 状态码使用指南

状态码名称使用场景最佳实践

505	HTTP Version Not Supported	不支持的HTTP协议版本	提供支持的版本列表和升级指南
506	Variant Also Negotiates	内容协商循环	实现循环检测和限制最大深度
507	Insufficient Storage	存储空间不足	实现配额管理和友好的错误信息
508	Loop Detected	检测到无限循环	添加循环检测和适当的超时
510	Not Extended	需要额外扩展	明确列出所需扩展和实现指南
511	Network Authentication Required	需要网络认证	提供用户友好的认证门户

29.7.2 监控和告警配置

yaml

# Prometheus监控配置
scrape_configs:
– job_name: 'extended_5xx'
static_configs:
– targets: ['app:9090']

# 监控不常见的5xx错误
relabel_configs:
– source_labels: [__meta_kubernetes_pod_label_app]
regex: .*
action: keep

# 告警规则
groups:
– name: extended_5xx_alerts
rules:
– alert: Unusual5xxError
expr: |
sum by (status) (
rate(http_requests_total{status=~"5[0-9]{2}"}[5m])
) > 0
for: 1m
labels:
severity: info
annotations:
summary: "Unusual 5xx status code detected"
description: |
检测到不常见的5xx状态码: {{ $labels.status }}
请求路径: {{ $labels.path }}

– alert: HTTPVersionNotSupported
expr: |
rate(http_requests_total{status="505"}[5m]) > 0.001
for: 2m
labels:
severity: warning
annotations:
summary: "HTTP version not supported errors"
description: |
505错误率超过0.1%
可能需要更新客户端或调整服务器配置

通过正确处理这些不常见的5xx状态码，可以提供更好的用户体验，同时帮助开发者和运维人员快速诊断和解决问题。

总结：5xx状态码系统化应对策略

综合监控与告警体系

yaml

# 完整的5xx错误监控仪表板配置
grafana_dashboard:
title: "5xx Server Errors – Comprehensive Monitoring"
panels:
– title: "5xx Error Rate Trend"
type: "graph"
targets:
– expr: |
sum by (status) (
rate(http_requests_total{status=~"5.."}[5m])
) /
sum(rate(http_requests_total[5m]))

– title: "Top 5xx Error Sources"
type: "table"
targets:
– expr: |
topk(10,
sum by (service, endpoint, status) (
rate(http_requests_total{status=~"5.."}[5m])
)
)

– title: "Response Time vs 5xx Errors"
type: "graph"
targets:
– expr: |
histogram_quantile(0.95,
rate(http_response_time_seconds_bucket[5m])
)
– expr: |
rate(http_requests_total{status=~"5.."}[5m])

– title: "Error Recovery Time"
type: "stat"
targets:
– expr: |
time() –
timestamp(
max_over_time(
http_requests_total{status=~"5.."}[1h]
)
)

alerts:
– name: "5xx Error SLO Violation"
condition: |
(
sum(rate(http_requests_total{status=~"5.."}[5m]))
/
sum(rate(http_requests_total[5m]))
) > 0.01 # 1%错误率
for: "5m"
severity: "critical"

– name: "Error Burst Detection"
condition: |
rate(http_requests_total{status=~"5.."}[1m])
>
10 * rate(http_requests_total{status=~"5.."}[5m])
for: "1m"
severity: "warning"

根因分析决策树

持续改进与知识管理

python

# 故障知识库管理系统
class IncidentKnowledgeBase:
"""5xx错误故障知识库"""

def __init__(self):
self.incidents = []
self.solutions = {}
self.patterns = {}

def record_incident(self, error_code: int, context: Dict,
resolution: Dict):
"""记录故障事件"""
incident = {
'id': self._generate_id(),
'timestamp': time.time(),
'error_code': error_code,
'context': context,
'resolution': resolution,
'root_cause': self._analyze_root_cause(context),
'prevention_measures': [],
'related_incidents': self._find_related_incidents(error_code, context)
}

self.incidents.append(incident)

# 更新解决方案库
self._update_solutions(error_code, resolution)

# 更新模式库
self._update_patterns(incident)

return incident

def suggest_solutions(self, error_code: int, context: Dict) -> List[Dict]:
"""根据错误代码和上下文建议解决方案"""
suggestions = []

# 基于错误代码的通用解决方案
generic_solutions = self.solutions.get(error_code, [])
suggestions.extend(generic_solutions)

# 基于模式的解决方案
matched_patterns = self._match_patterns(context)
for pattern in matched_patterns:
suggestions.extend(pattern.get('solutions', []))

# 基于相似历史事件的解决方案
similar_incidents = self._find_similar_incidents(context)
for incident in similar_incidents:
suggestions.append({
'type': 'historical',
'confidence': incident.get('similarity_score', 0),
'solution': incident['resolution'],
'reference': incident['id']
})

# 去重和排序
unique_suggestions = self._deduplicate_suggestions(suggestions)
sorted_suggestions = sorted(unique_suggestions,
key=lambda x: x.get('confidence', 0),
reverse=True)

return sorted_suggestions[:5] # 返回前5个建议

def generate_postmortem(self, incident_id: str) -> Dict:
"""生成故障复盘报告"""
incident = self._get_incident(incident_id)

if not incident:
return {}

report = {
'title': f"Postmortem: {incident['error_code']} Error",
'incident_id': incident_id,
'executive_summary': self._generate_summary(incident),
'timeline': self._build_timeline(incident),
'root_cause_analysis': incident['root_cause'],
'impact_assessment': self._assess_impact(incident),
'action_items': self._generate_action_items(incident),
'lessons_learned': self._extract_lessons(incident),
'preventive_measures': self._suggest_preventions(incident)
}

return report

通过系统化的方法处理5xx错误，从预防、检测、响应到复盘，可以构建一个健壮的、可观测的、可恢复的系统架构。记住，每个5xx错误都是一个改进系统的机会。
