前言

在上篇文章 斯坦福大学 | CS336 | 从零开始构建语言模型 | Spring 2025 | 笔记 | Assignment 3: Scaling Laws 中，我们已经了解了 Scaling Laws 的作业要求，下面我们就一起来看看这些作业该如何实现，本篇文章记录 CS336 作业 Assignment 3: Scaling 中的 Scaling Laws 实现，仅供自己参考😄

Note：博主并未遵循 from-scratch 的宗旨，所有代码几乎均由 ChatGPT 完成

Assignment 3：https://github.com/stanford-cs336/assignment3-scaling

reference：https://chatgpt.com/

1. Problem (chinchilla_isoflops): 5 points

请编写一个脚本，复现上文所描述的 IsoFLOPs 方法，用于根据多次训练运行的 最终训练损失 来拟合缩放定律（scaling laws）。

在本题中，请使用文件 data/isoflops_curves.json 中给出的（合成的）训练运行数据。该文件包含一个 JSON 数值，其中每个元素都是一个描述一次训练运行的对象。下面给出前两个示例，用于说明数据格式：

[
{
"parameters": 4999999,
"compute_budget": 6e+18,
"final_loss": 7.192784500319437
},
{
"parameters": 78730505,
"compute_budget": 6e+18,
"final_loss": 6.750171320661809
},
…
]

在拟合缩放定律时，可以使用 scipy 包（尤其是 scipy.optimize.curve_fit），当然你也可以使用任何你喜欢的曲线拟合方法。虽然 [Hoffmann+ 2022] 对每条 IsoFLOPs 曲线拟合的是一个二次函数来寻找最小值，但他们实际上建议的做法是：直接选取在给定计算预算下训练损失最低的那一次运行，作为最优点。

1. 模型规模的计算最优缩放定律

请展示你 外推得到的计算最优模型规模，并同时给出你获得的

(

C

i

,

N

opt

(

C

i

)

)

(C_i,N_{\\text{opt}}(C_i))

(Ci​,Nopt​(Ci​)) 数据点。

• 在计算预算为 $10^{23}$
• 在计算预算为 $10^{24}$

Deliverable：一张展示模型规模随计算预算变化的缩放定律图，标出用于拟合的原始数据点，并将曲线至少外推到

10

24

10^{24}

1024 FLOPs；一句话文字说明：给出你预测的最优模型规模。

2. 数据集规模的计算最优缩放定律

请展示你 外推得到的计算最优数据集规模，并同时给出你获得的

(

C

i

,

D

opt

(

C

i

)

)

(C_i,D_{\\text{opt}}(C_i))

(Ci​,Dopt​(Ci​)) 数据点（来自训练运行）。

• 在计算预算为 $10^{23}$
• 在计算预算为 $10^{24}$

Deliverable：一张展示数据集规模随计算预算变化的缩放定律图，标出用于拟合的原始数据点，并将曲线至少外推到

10

24

10^{24}

1024 FLOPs；一句话文字说明：给出你预测的最优数据集规模。

代码实现如下：

import argparse
import json
from dataclasses import dataclass
from pathlib import Path
from typing import Dict, List, Tuple

import numpy as np
import matplotlib.pyplot as plt

@dataclass(frozen=True)
class Run:
parameters: float # N
compute_budget: float # C
final_loss: float # L

def load_runs(path: Path) –> List[Run]:
data = json.loads(path.read_text())
runs: List[Run] = []
for r in data:
runs.append(
Run(
parameters=float(r["parameters"]),
compute_budget=float(r["compute_budget"]),
final_loss=float(r["final_loss"]),
)
)
return runs

def select_opt_points(runs: List[Run]) –> Dict[float, Run]:
"""For each compute budget C, pick the run with the lowest final_loss"""
best: Dict[float, Run] = {}
for r in runs:
C = r.compute_budget
if C not in best or r.final_loss < best[C].final_loss:
best[C] = r
return best

def fit_power_law(xs: np.ndarray, ys: np.ndarray) –> Tuple[float, float]:
"""
Fit y = k * x^a via log-log linear regression:
log(y) = log(k) + a * log(x)
Returns (k, a).
"""
if np.any(xs <= 0) or np.any(ys <= 0):
raise ValueError("x and y must be positive for log-log fit.")
lx = np.log(xs)
ly = np.log(ys)
a, logk = np.polyfit(lx, ly, deg=1) # slope=a, intercept=logk
k = float(np.exp(logk))
return k, float(a)

def predict_power_law(k: float, a: float, x: np.ndarray) –> np.ndarray:
return k * (x ** a)

def plot_scaling(
x_points: np.ndarray,
y_points: np.ndarray,
k: float,
a: float,
out_path: Path,
title: str,
y_label: str,
x_min: float,
x_max: float
):
xs = np.logspace(np.log10(x_min), np.log10(x_max), 300)
ys = predict_power_law(k, a, xs)

plt.figure()
plt.loglog(x_points, y_points, marker="o", linestyle="None", label="opt points")
plt.loglog(xs, ys, linestyle="-", label=f"fit: y = {k:.3g} * C^{a:.3f}")
plt.xlabel("Compute budget C (FLOPs)")
plt.ylabel(y_label)
plt.title(title)
plt.grid(True, which="both", linestyle="–", linewidth=0.5)
plt.legend()
plt.tight_layout()
plt.savefig(out_path, dpi=200)
plt.close()

def main():
ap = argparse.ArgumentParser()
ap.add_argument("–data", type=Path, default=Path("data/isoflops_curves.json"), help="Path to data/isoflops_curves.json",)
ap.add_argument("–outdir", type=Path, default=Path("runs/isoflops"), help="Directory to write plots/results")
args = ap.parse_args()

runs = load_runs(args.data)
best = select_opt_points(runs)

# Sort by compute budget
budgets = np.array(sorted(best.keys()), dtype=np.float64)
n_opt = np.array([best[C].parameters for C in budgets], dtype=np.float64)
d_opt = budgets / (6.0 * n_opt)

# Fit power laws
kN, aN = fit_power_law(budgets, n_opt)
kD, aD = fit_power_law(budgets, d_opt)

# Predictions required by the problem
targets = np.array([1e23, 1e24], dtype=np.float64)
pred_N = predict_power_law(kN, aN, targets)
pred_D = predict_power_law(kD, aD, targets)

# Print results
print("=== IsoFLOPs opt points (C, N_opt, D_opt, loss) ===")
for C in budgets:
r = best[C]
print(f"C={C:.3e} N_opt={r.parameters:.3e} D_opt={C/(6*r.parameters):.3e} loss={r.final_loss:.6f}")

print("\\n=== Power-law fits ===")
print(f"N_opt(C) = {kN:.6g} * C^{aN:.6f}")
print(f"D_opt(C) = {kD:.6g} * C^{aD:.6f}")

print("\\n=== Extrapolated predictions ===")
for C, Np, Dp in zip(targets, pred_N, pred_D):
print(f"C={C:.1e}: N_opt≈{Np:.3e} params, D_opt≈{Dp:.3e} tokens")

# Plot range: cover observed budgets and extrapolate to 1e24
x_min = float(min(budgets.min(), 1e16)) # just in case; won't hurt
x_max = 1e24

args.outdir.mkdir(parents=True, exist_ok=True)
plot_scaling(
x_points=budgets,
y_points=n_opt,
k=kN,
a=aN,
out_path=args.outdir / "n_opt_vs_compute.png",
title="Compute-optimal model size (IsoFLOPs)",
y_label="N_opt (parameters)",
x_min=x_min,
x_max=x_max,
)
plot_scaling(
x_points=budgets,
y_points=d_opt,
k=kD,
a=aD,
out_path=args.outdir / "d_opt_vs_compute.png",
title="Compute-optimal dataset size (IsoFLOPs)",
y_label="D_opt (tokens)",
x_min=x_min,
x_max=x_max,
)

# Save a small json for writeup convenience
result = {
"opt_points": [
{
"compute_budget": float(C),
"n_opt": float(best[C].parameters),
"d_opt": float(C / (6.0 * best[C].parameters)),
"loss": float(best[C].final_loss),
}
for C in budgets
],
"fit": {
"n_opt": {"k": kN, "a": aN},
"d_opt": {"k": kD, "a": aD},
},
"predictions": [
{"compute_budget": float(C), "n_opt": float(Np), "d_opt": float(Dp)}
for C, Np, Dp in zip(targets, pred_N, pred_D)
],
}
(args.outdir / "isoflops_fit.json").write_text(json.dumps(result, indent=2))
print(f"\\nWrote plots + json to: {args.outdir.resolve()}")

if __name__ == "__main__":
main()

运行指令如下：

python cs336_scaling/chinchilla_isoflops.py

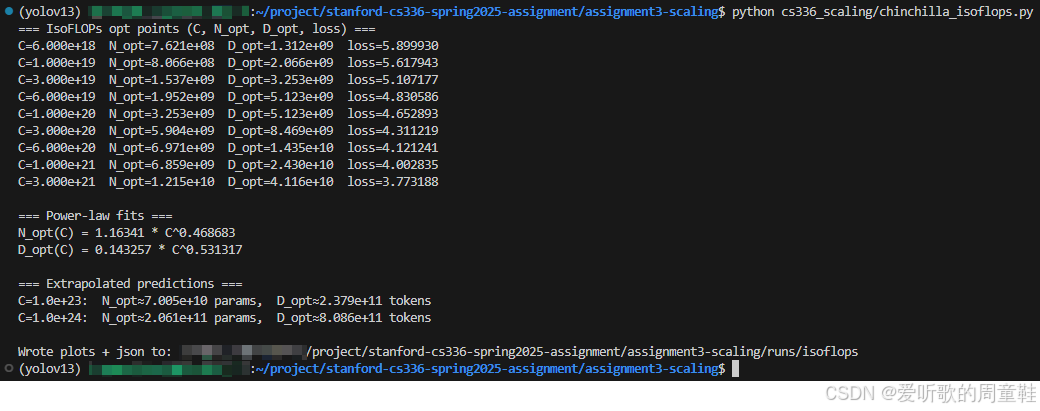

执行后输出如下：

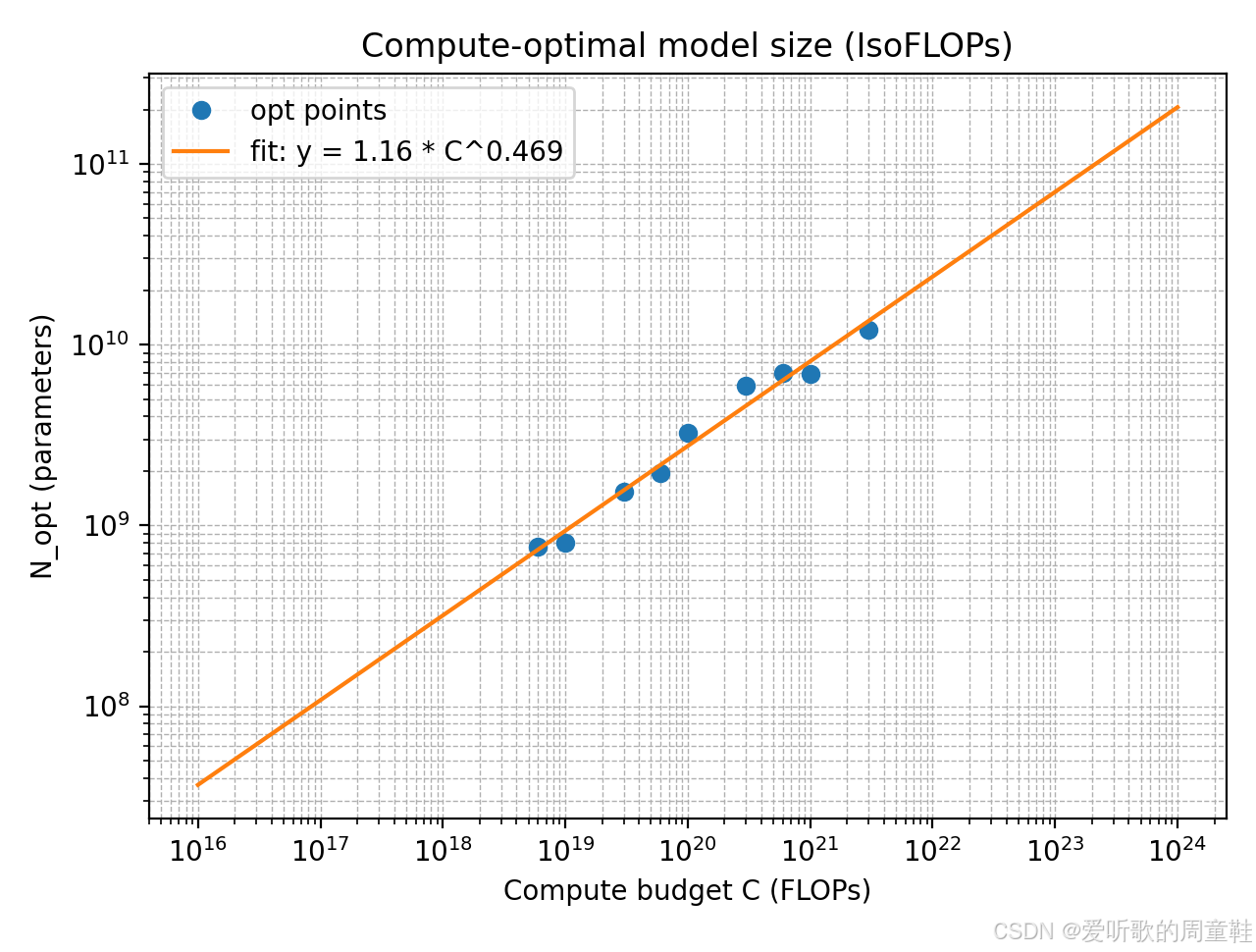

模型规模随计算预算变化的缩放定律图如下所示：

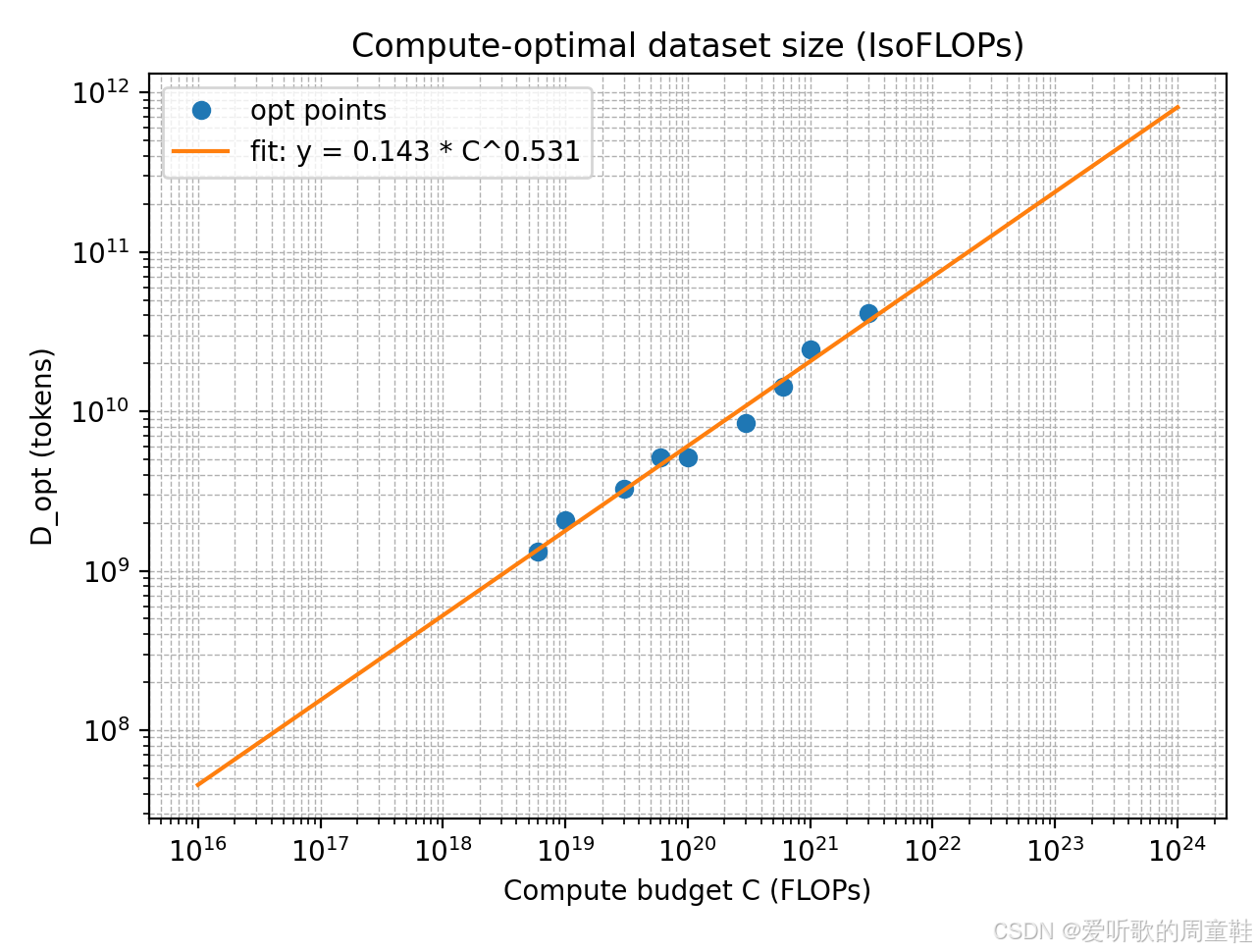

数据集规模随计算预算变化的缩放定律图如下所示：

我们使用给定的 IsoFLOPs 曲线数据，在每个计算预算

C

i

C_i

Ci​ 下，从不同模型规模的多次训练结果中选择 final loss 最小 的那条 run 作为该预算下的 compute-optimal 点，得到一组最优点

{

(

C

i

,

N

opt

(

C

i

)

)

}

\\{(C_i,N_{\\text{opt}}(C_i))\\}

{(Ci​,Nopt​(Ci​))}。随后利用 Chinchilla 常用近似计算公式

C

≈

6

N

D

C \\approx 6ND

C≈6ND

将每个最优点对应的数据规模恢复为

D

opt

(

C

i

)

=

C

i

6

N

opt

(

C

i

)

D_{\\text{opt}}(C_i) = \\frac{C_i}{6N_{\\text{opt}}}(C_i)

Dopt​(Ci​)=6Nopt​Ci​​(Ci​)

基于这些最优点，我们在 log-log 空间对

N

opt

(

C

)

N_{\\text{opt}}(C)

Nopt​(C) 与

D

opt

(

C

)

D_{\\text{opt}}(C)

Dopt​(C) 分别拟合幂律关系

y

=

k

C

a

y=kC^{a}

y=kCa，得到：

• Compute-optimal 模型参数规模 $$N_{\text{opt}}(C)\approx 1.16341\cdot C^{0.46868}$$
• Compute-optimal 数据 token 规模 $$D_{\text{opt}}(C)\approx 0.14326\cdot C^{0.53132}$$

拟合得到的指数满足

0.46868

+

0.53132

≈

1

0.46868 + 0.53132 \\approx 1

0.46868+0.53132≈1，与

C

≈

6

N

D

C \\approx 6 ND

C≈6ND 的乘法约束一致（即模型规模与数据规模在计算预算增长下分摊增长）。对应的最优点在两张 log-log 图中基本沿拟合直线分布，说明该幂律对给定预算范围内的数据具有良好解释力。

按题目要求将幂律外推到更大计算预算，得到：

• 当 $C=10^{23}$
• 当 $C=10^{24}$

最后我们来简单分析下代码的实现

上面这份脚本的核心目标是：从 data/isoflops_curves.json 中恢复出 compute budget → compute-optimal 模型规模/数据规模 的缩放规律，并对更大预算做外推。

1) 数据读取与统一字段

@dataclass(frozen=True)
class Run:
parameters: float # N
compute_budget: float # C
final_loss: float # L

def load_runs(path: Path) –> List[Run]:
data = json.loads(path.read_text())
runs: List[Run] = []
for r in data:
runs.append(
Run(
parameters=float(r["parameters"]),
compute_budget=float(r["compute_budget"]),
final_loss=float(r["final_loss"]),
)
)
return runs

脚本首先读取 isoflops_curves.json，并将每条实验记录解析为包含三项关键字段的结构：

• parameters：模型参数量 $N$
• compute_budget：计算预算 $C$
• final_loss：该实验的最终 loss

这样后续逻辑就可以直接围绕

(

C

,

N

,

loss

)

(C,N,\\text{loss})

(C,N,loss) 操作。

2) IsoFLOPs “最优点” 选择策略

def select_opt_points(runs: List[Run]) –> Dict[float, Run]:
"""For each compute budget C, pick the run with the lowest final_loss"""
best: Dict[float, Run] = {}
for r in runs:
C = r.compute_budget
if C not in best or r.final_loss < best[C].final_loss:
best[C] = r
return best

IsoFLOPs 的关键在于：对每个固定计算预算

C

i

C_i

Ci​，从多条不同模型规模的 run 中挑选最终 loss 最小的一条，作为该预算下的 compute-optimal 点。代码里就是按 compute_budget 分组维护一个 best[C]，遍历所有 run 时比较 final_loss 并更新最优项。

最终得到点集

{

(

C

i

,

N

opt

(

C

i

)

)

}

\\{(C_i,N_{\\text{opt}}(C_i))\\}

{(Ci​,Nopt​(Ci​))}，这一步相当于 “沿着每条 IsoFLOPs 曲线取最优点”，避免非最优 run 干扰拟合。

3) 由计算预算反推最优数据规模

def main():
...

# Sort by compute budget
budgets = np.array(sorted(best.keys()), dtype=np.float64)
n_opt = np.array([best[C].parameters for C in budgets], dtype=np.float64)
d_opt = budgets / (6.0 * n_opt)

得到

N

opt

(

C

i

)

N_{\\text{opt}}(C_i)

Nopt​(Ci​) 后，脚本用 Chinchilla 常用近似

C

≈

6

N

D

C \\approx 6ND

C≈6ND，直接计算

D

opt

(

C

i

)

=

C

i

6

N

opt

(

C

i

)

D_{\\text{opt}}(C_i) = \\frac{C_i}{6N_{\\text{opt}}(C_i)}

Dopt​(Ci​)=6Nopt​(Ci​)Ci​​ 从而把每个预算的 “最优模型规模” 同步转换成 “最优数据 token 规模”。

4) 幂律拟合：log-log 线性回归

def fit_power_law(xs: np.ndarray, ys: np.ndarray) –> Tuple[float, float]:
"""
Fit y = k * x^a via log-log linear regression:
log(y) = log(k) + a * log(x)
Returns (k, a).
"""
if np.any(xs <= 0) or np.any(ys <= 0):
raise ValueError("x and y must be positive for log-log fit.")
lx = np.log(xs)
ly = np.log(ys)
a, logk = np.polyfit(lx, ly, deg=1) # slope=a, intercept=logk
k = float(np.exp(logk))
return k, float(a)

为了得到缩放律，我们对

N

opt

(

C

)

N_{\\text{opt}}(C)

Nopt​(C) 和

D

opt

(

C

)

D_{\\text{opt}}(C)

Dopt​(C) 分别拟合幂律

y

=

k

C

a

y=kC^a

y=kCa，做法是将其转成线性形式

log

⁡

y

=

log

⁡

k

+

a

log

⁡

C

\\log y = \\log k + a \\log C

logy=logk+alogC，然后用 np.polyfit(logC, logy, 1) 求出斜率

a

a

a 和截距

log

⁡

k

\\log k

logk，最后再

exp

⁡

\\exp

exp 回去得到

k

k

k。

5) 可视化与外推预测

def predict_power_law(k: float, a: float, x: np.ndarray) –> np.ndarray:
return k * (x ** a)

def plot_scaling(
x_points: np.ndarray,
y_points: np.ndarray,
k: float,
a: float,
out_path: Path,
title: str,
y_label: str,
x_min: float,
x_max: float
):
xs = np.logspace(np.log10(x_min), np.log10(x_max), 300)
ys = predict_power_law(k, a, xs)

plt.figure()
plt.loglog(x_points, y_points, marker="o", linestyle="None", label="opt points")
plt.loglog(xs, ys, linestyle="-", label=f"fit: y = {k:.3g} * C^{a:.3f}")
plt.xlabel("Compute budget C (FLOPs)")
plt.ylabel(y_label)
plt.title(title)
plt.grid(True, which="both", linestyle="–", linewidth=0.5)
plt.legend()
plt.tight_layout()
plt.savefig(out_path, dpi=200)
plt.close()

def main():
...

# Predictions required by the problem
targets = np.array([1e23, 1e24], dtype=np.float64)
pred_N = predict_power_law(kN, aN, targets)
pred_D = predict_power_law(kD, aD, targets)

# Print results
print("=== IsoFLOPs opt points (C, N_opt, D_opt, loss) ===")
for C in budgets:
r = best[C]
print(f"C={C:.3e} N_opt={r.parameters:.3e} D_opt={C/(6*r.parameters):.3e} loss={r.final_loss:.6f}")

print("\\n=== Power-law fits ===")
print(f"N_opt(C) = {kN:.6g} * C^{aN:.6f}")
print(f"D_opt(C) = {kD:.6g} * C^{aD:.6f}")

print("\\n=== Extrapolated predictions ===")
for C, Np, Dp in zip(targets, pred_N, pred_D):
print(f"C={C:.1e}: N_opt≈{Np:.3e} params, D_opt≈{Dp:.3e} tokens")

最后我们用 logspace 生成从观测范围延伸到

10

24

10^{24}

1024 的

C

C

C 网格，并画两张 log-log 图：

• $C\to N_{\text{opt}}$
• $C\to D_{\text{opt}}$

同时用拟合的

k

,

a

k,a

k,a 在

10

23

,

10

24

10^{23},10^{24}

1023,1024 处直接计算预测值并打印出来。

2. Problem (scaling_laws): 50 points

构建一套 缩放定律（scaling law） 用于在 1e19 FLOPs 的计算预算下，准确预测最优模型规模、对应的超参数配置以及最终训练损失。为此，你需要使用我们提供的 training API 来查询不同实验配置下的最终训练损失（见 §3.1）。在拟合缩放定律的过程中，你最多只能查询 2e19 FLOPs 规模的实验数据，这是 API 强制执行的硬性上限。

Deliverable：请提交一份排版规范的书面报告，其中应完整、清晰地说明：

• 你用于拟合缩放定律的方法与整体思路；
• 你如何利用该缩放定律，在给定 FLOPs 预算下预测最优模型规模；
• 你最终给出的预测结果。

报告中应包含对关键设计决策的解释，并提供足够细节，使他人可以复现你的方法与结果。

关于 batch size 的说明（重要）

在 1e19 FLOPs 的预算下，你报告的超参数配置中，batch size 必须为 128 或 256。这一限制的目的是确保实验具备足够高的 FLOPs 利用率。如果在运行你所报告的配置时出现显存不足（OOM）问题，我们将通过 梯度累积（gradient accumulation） 或 增加数据并行 GPU 数量 的方式来维持你所指定的 batch size。

建议你在报告中重点回答的问题

为了帮助你顺利开始，我们建议你至少思考并在报告中讨论以下问题（你的 write-up 应对每一点给出额外说明，解释你的决策依据）：

• 在固定的 2e18 FLOPs 缩放定律拟合预算下，你是如何决定要查询哪些训练配置的？
• 你是如何拟合缩放定律的？请详细描述你所使用的具体方法或方法组合。特别的，我们建议你参考 [Kaplan+ 2020] 与 [Hoffmann+ 2022] 中采用的建模思路。
• 你的缩放定律对实验数据的拟合效果如何？
• 在 1e19 FLOPs 的预算下，你的缩放定律预测的最优模型规模是多少？对应的预测训练损失是多少？
• 如果你真的要训练一个具有该预测最优参数规模的模型，你会选择哪些超参数？Tips：对于一个给定模型，其 非 embedding 参数数量 可近似估计为 $12n_{\text{layer}}{d}_{\text{model}}^2$

额外提交要求

除书面报告外，你还需要额外提交以下内容：

1. 你预测的 最优模型规模；

2. 你选择的 训练超参数配置（包括 batch size，必须为 128 或 256）；

3. 你预测的 模型训练损失。

上述三项内容请提交至以下 Google 表单：https://forms.gle/sAUSLwCUETew2hYN6

最终评分中，一部分分数将取决于你所预测的最优模型在实际训练中的表现。

Note：由于缺乏官方 API 的访问权限，本次作业无法进行测试。未来官方可能会通过其他方式开放，请关注官方仓库的相关说明与讨论：stanford-cs336/assignment3-scaling#1

下面我们简单过下相关的测试脚本，最后分析下拟合 scaling laws 的方法与整体思路（注意❗所有脚本均未通过充分的测试，后续如果有数据软件包开放我们再来完成本次作业）

作业的核心目标是：在 1e19 FLOPs 的训练预算下，预测 compute-optimal 的模型规模 + 一套可训练的超参数 + 预测的最终训练损失；我们只能通过 training API 查询实验结果，并且用于 “拟合缩放定律” 的查询总 FLOPs 预算有硬上限（超过就会被拒绝）。

本次作业实现的脚本包括 3 类：

A. API 调用与缓存层

目的：统一调用 GET /loss、查询 GET /total_flops_used、拉取 GET /previous_runs，并把已跑过的配置缓存下来。

相关脚本：

• cs336_scaling/api_client.py
  • get_loss(config) -> loss, total_flops_used
  • get_total_flops_used()
  • get_previous_runs()
• cache.py
• query_api.py

B. 实验设计 / 搜索脚本

目的：在 “拟合预算” 内决定要查哪些点（哪些模型规模、哪些学习率/层数/宽度/heads/batch/train_flops），并尽量高效找到规律。

相关脚本：

• cs336_scaling/run_sweep.py：
  • 支持 grid / 分阶段搜索（先粗扫再细化）
  • 每次查询前先看 total_flops_used

C. 缩放定律拟合与预测脚本

目的：把我们查询到的数据拟合成一个可外推的模型，然后在 1e19 FLOPs 下输出：

• 预测最优模型规模（参数量）
• 对应超参数
• 预测训练损失

相关脚本：

• cs336_scaling/scaling_data.py
• cs336_scaling/fit_scaling_law.py
• cs336_scaling/predict_1e19.py

下面我们就来看看这些脚本是如何实现的，该如何运行

2.1 API 调用与缓存层脚本实现

assignment3-scaling/ 下包括：

cs336_scaling/
api_client.py # API 调用 + 参数校验 + 错误处理
cache.py # 本地缓存（jsonl / sqlite 都行，这里用 jsonl 最轻）
query_api.py # 一个小 CLI：单次/批量查询、导出结果
runs/
api_cache.jsonl # 自动生成：缓存与日志

首先来看 本地缓存层 cs336_scaling/cache.py 的实现：

import hashlib
import json
from dataclasses import dataclass
from pathlib import Path
from typing import Any, Dict, Optional

def _stable_json(obj: Any) –> str:
return json.dumps(obj, sort_keys=True, separators=(",", ":"), ensure_ascii=False)

def make_key(endpoint: str, params: Dict[str, Any]) –> str:
payload = {"endpoint": endpoint, "params": params}
h = hashlib.sha256(_stable_json(payload).encode("utf-8")).hexdigest()
return h

@dataclass
class CacheHit:
key: str
value: Dict[str, Any]

class JsonlCache:
"""
Append-only JSONL cache.
Each line: {"key":…, "endpoint":…, "params":…, "response":…}
"""

def __init__(self, path: str | Path):
self.path = Path(path)
self.path.parent.mkdir(parents=True, exist_ok=True)
self._index: Dict[str, Dict[str, Any]] = {}
if self.path.exists():
self._load()

def _load(self) –> None:
with self.path.open("r", encoding="utf-8") as f:
for line in f:
line = line.strip()
if not line:
continue
obj = json.loads(line)
key = obj.get("key")
if key:
self._index[key] = obj

def get(self, endpoint: str, params: Dict[str, Any]) –> Optional[CacheHit]:
key = make_key(endpoint, params)
obj = self._index.get(key)
if obj is None:
return None
return CacheHit(key=key, value=obj["response"])

def put(self, endpoint: str, params: Dict[str, Any], response: Dict[str, Any]) –> str:
key = make_key(endpoint, params)
record = {
"key": key,
"endpoint": endpoint,
"params": params,
"response": response,
}
with self.path.open("a", encoding="utf-8") as f:
f.write(_stable_json(record) + "\\n")
self._index[key] = record
return key

核心目标是 同一请求（endpoint + 参数）只打一次网络，并将结果写成 append-only 的 json，方便 grep / 画图 / 复现。

接着来看 API 调用层 cs336_scaling/api_client.py 的实现：

from dataclasses import dataclass
from typing import Any, Dict

import requests

from cache import JsonlCache

@dataclass(frozen=True)
class LossQuery:
d_model: int
num_layers: int
num_heads: int
batch_size: int
learning_rate: float
train_flops: int

class ScalingAPIError(RuntimeError):
pass

class ScalingAPIClient:
def __init__(
self,
api_key: str,
base_url: str = "http://hyperturing.stanford.edu:8000",
cache_path: str = "runs/api_cache.jsonl",
timeout_s: int = 60,
):
self.api_key = api_key
self.base_url = base_url.rstrip("/")
self.cache = JsonlCache(cache_path)
self.timeout_s = timeout_s

# ————————-
# Local validation (matches the handout)
# ————————-
def _validate_loss_query(self, q: LossQuery) –> None:
# Ranges from the handout: d_model[64,1024], layers[2,24], heads[2,16],
# batch_size[128,256], lr[1e-4,1e-3], train_flops in a fixed set. :contentReference[oaicite:5]{index=5}
if not (64 <= q.d_model <= 1024):
raise ValueError(f"d_model out of range: {q.d_model}")
if not (2 <= q.num_layers <= 24):
raise ValueError(f"num_layers out of range: {q.num_layers}")
if not (2 <= q.num_heads <= 16):
raise ValueError(f"num_heads out of range: {q.num_heads}")
if not (128 <= q.batch_size <= 256):
raise ValueError(f"batch_size out of range: {q.batch_size}")
if not (1e-4 <= q.learning_rate <= 1e-3):
raise ValueError(f"learning_rate out of range: {q.learning_rate}")

allowed = {
int(1e13), int(3e13), int(6e13),
int(1e14), int(3e14), int(6e14),
int(1e15), int(3e15), int(6e15),
int(1e16), int(3e16), int(6e16),
int(1e17), int(3e17), int(6e17),
int(1e18),
}
if int(q.train_flops) not in allowed:
raise ValueError(f"train_flops not allowed: {q.train_flops}")

def _get_json(self, path: str, params: Dict[str, Any]) –> Dict[str, Any]:
url = f"{self.base_url}/{path.lstrip('/')}"
r = requests.get(url, params=params, timeout=self.timeout_s)
# API error examples return {"message": "…"} :contentReference[oaicite:6]{index=6}:contentReference[oaicite:7]{index=7}
try:
payload = r.json()
except Exception as e:
raise ScalingAPIError(f"Non-JSON response: status={r.status_code}, text={r.text[:200]}") from e

if r.status_code != 200:
msg = payload.get("message", payload)
raise ScalingAPIError(f"API error {r.status_code} @ {url}: {msg}")
return payload

# ————————-
# Public endpoints
# ————————-
def total_flops_used(self) –> float:
endpoint = "/total_flops_used"
params = {"api_key": self.api_key}
hit = self.cache.get(endpoint, params)
if hit:
return float(hit.value)
out = self._get_json(endpoint, params)
# sample shows it returns a number (JSON scalar) :contentReference[oaicite:8]{index=8}
self.cache.put(endpoint, params, out)
return float(out)

def previous_runs(self) –> Dict[str, Any]:
endpoint = "/previous_runs"
params = {"api_key": self.api_key}
hit = self.cache.get(endpoint, params)
if hit:
return hit.value
out = self._get_json(endpoint, params)
self.cache.put(endpoint, params, out)
return out

def loss(self, q: LossQuery, use_cache: bool = True) –> Dict[str, Any]:
self._validate_loss_query(q)

endpoint = "/loss"
params = {
"d_model": q.d_model,
"num_layers": q.num_layers,
"num_heads": q.num_heads,
"batch_size": q.batch_size,
"learning_rate": q.learning_rate,
"train_flops": int(q.train_flops),
"api_key": self.api_key,
}

if use_cache:
hit = self.cache.get(endpoint, params)
if hit:
return hit.value

out = self._get_json(endpoint, params)
# example output: {"loss": …, "total_flops_used": …} :contentReference[oaicite:9]{index=9}
self.cache.put(endpoint, params, out)
return out

上述脚本把 三个端点 都封装了起来，并提供：

• 参数范围的本地校验（避免无意义 404 请求）
• 自动走缓存
• 错误信息更清晰

最后 一个最小 CLI cs336_scaling/query_api.py 的实现如下：

import argparse
import os
from pprint import pprint

from api_client import LossQuery, ScalingAPIClient

def main():
p = argparse.ArgumentParser()
p.add_argument("–api-key", default=os.environ.get("CS336_API_KEY", ""))
p.add_argument("–base-url", default="http://hyperturing.stanford.edu:8000")
p.add_argument("–cache", default="runs/api_cache.jsonl")

sub = p.add_subparsers(dest="cmd", required=True)

sub.add_parser("total_flops_used")
sub.add_parser("previous_runs")

q = sub.add_parser("loss")
q.add_argument("–d-model", type=int, required=True)
q.add_argument("–num-layers", type=int, required=True)
q.add_argument("–num-heads", type=int, required=True)
q.add_argument("–batch-size", type=int, required=True)
q.add_argument("–learning-rate", type=float, required=True)
q.add_argument("–train-flops", type=int, required=True)

args = p.parse_args()
if not args.api_key:
raise SystemExit("Missing –api-key or env CS336_API_KEY")

client = ScalingAPIClient(
api_key=args.api_key,
base_url=args.base_url,
cache_path=args.cache,
)

if args.cmd == "total_flops_used":
print(client.total_flops_used())
return

if args.cmd == "previous_runs":
pprint(client.previous_runs())
return

if args.cmd == "loss":
out = client.loss(
LossQuery(
d_model=args.d_model,
num_layers=args.num_layers,
num_heads=args.num_heads,
batch_size=args.batch_size,
learning_rate=args.learning_rate,
train_flops=args.train_flops,
)
)
pprint(out)
return

if __name__ == "__main__":
main()

该脚本能让我们快速验证：key 是否能用、缓存是否生效以及单条 loss 查询流程是否畅通。

执行指令如下：

# 建议用环境变量放 key（避免出现在 shell history）
export CS336_API_KEY="你的key(SSH公钥字符串，没换行)"

# 1) 先验证 key & 网络
uv run python cs336_scaling/query_api.py total_flops_used

# 2) 看看历史 runs（也会进缓存）
uv run python cs336_scaling/query_api.py previous_runs

# 3) 单条 loss 查询（参数范围见 handout）
uv run python cs336_scaling/query_api.py loss \\
–d-model 1024 –num-layers 24 –num-heads 16 \\
–batch-size 128 –learning-rate 0.001 –train-flops 10000000000000000

连续跑两次相同的 loss 命令时，第二次应直接命中 runs/api_cache.jsonl，不会再发请求。

2.2 实验设计 / 搜索脚本实现

cs336_scaling/run_sweep.py 实现如下：

import argparse
import json
import os
import time
from dataclasses import asdict
from pathlib import Path
from typing import Dict, Iterable, List

from api_client import LossQuery, ScalingAPIClient, ScalingAPIError

# —————————–
# Utilities
# —————————–
def now_ms() –> int:
return int(time.time() * 1000)

def jsonl_append(path: Path, obj: Dict) –> None:
path.parent.mkdir(parents=True, exist_ok=True)
with path.open("a", encoding="utf-8") as f:
f.write(json.dumps(obj, ensure_ascii=False) + "\\n")

def iter_unique(seq: Iterable[LossQuery]) –> List[LossQuery]:
seen = set()
out: List[LossQuery] = []
for q in seq:
key = (
q.d_model,
q.num_layers,
q.num_heads,
q.batch_size,
float(q.learning_rate),
int(q.train_flops),
)
if key in seen:
continue
seen.add(key)
out.append(q)
return out

def estimate_nonemb_params(d_model: int, num_layers: int) –> float:
# Handout tip: non-embedding params ≈ 12 * n_layer * d_model^2
return 12.0 * num_layers * (d_model ** 2)

# —————————–
# Grid generator (coarse -> refine)
# —————————–
def coarse_grid(
train_flops: List[int],
batch_sizes: List[int],
d_models: List[int],
num_layers: List[int],
num_heads: List[int],
learning_rates: List[float],
) –> List[LossQuery]:
"""
Coarse exploration:
– fewer shapes
– a couple lrs
– multiple compute levels
"""
qs: List[LossQuery] = []
for C in train_flops:
for bs in batch_sizes:
for d in d_models:
for nl in num_layers:
for nh in num_heads:
# require d_model divisible by num_heads (Transformer constraint)
if d % nh != 0:
continue
for lr in learning_rates:
qs.append(
LossQuery(
d_model=d,
num_layers=nl,
num_heads=nh,
batch_size=bs,
learning_rate=lr,
train_flops=int(C),
)
)
return iter_unique(qs)

def refine_grid_around_best(
best: LossQuery,
train_flops: List[int],
batch_sizes: List[int],
d_model_mults: List[float],
layer_deltas: List[int],
head_candidates: List[int],
lr_mults: List[float],
) –> List[LossQuery]:
"""
Local refinement around a "best" config (by loss at some compute).
"""
qs: List[LossQuery] = []
for C in train_flops:
for bs in batch_sizes:
for dm in d_model_mults:
d = int(round(best.d_model * dm))
d = max(64, min(1024, d)) # API range :contentReference[oaicite:9]{index=9}
for dl in layer_deltas:
nl = best.num_layers + dl
nl = max(2, min(24, nl)) # API range :contentReference[oaicite:10]{index=10}
for nh in head_candidates:
if d % nh != 0:
continue
for lm in lr_mults:
lr = float(best.learning_rate * lm)
# clamp to API range [1e-4, 1e-3] :contentReference[oaicite:11]{index=11}
lr = max(1e-4, min(1e-3, lr))
qs.append(
LossQuery(
d_model=d,
num_layers=nl,
num_heads=nh,
batch_size=bs,
learning_rate=lr,
train_flops=int(C),
)
)
return iter_unique(qs)

# —————————–
# Budget-aware runner
# —————————–
def would_consume_budget(client: ScalingAPIClient, q: LossQuery) –> bool:
"""
If cache already has this exact request, then it's free (no extra FLOPs):contentReference[oaicite:12]{index=12}.
We check client.cache directly via the endpoint+params mapping used in api_client.py.
"""
endpoint = "/loss"
params = {
"d_model": q.d_model,
"num_layers": q.num_layers,
"num_heads": q.num_heads,
"batch_size": q.batch_size,
"learning_rate": q.learning_rate,
"train_flops": int(q.train_flops),
"api_key": client.api_key,
}
hit = client.cache.get(endpoint, params)
return hit is None

def run_queries(
client: ScalingAPIClient,
queries: List[LossQuery],
max_fit_budget_flops: float = 2e18,
results_path: Path = Path("runs/sweep_results.jsonl"),
dry_run: bool = False,
sleep_s: float = 0.0,
) –> None:
"""
Executes queries until (estimated) budget would exceed max_fit_budget_flops.
Notes:
– total_flops_used is returned by API and can be fetched anytime:contentReference[oaicite:13]{index=13}.
– If we exceed the 2e18 scaling-law budget, API will refuse future requests:contentReference[oaicite:14]{index=14},
so we stop conservatively.
"""
# starting point from API
try:
used0 = float(client.total_flops_used())
except ScalingAPIError:
# If key has never queried, the endpoint may 422; but in that case used0=0 is safe.
used0 = 0.0

planned_new = 0.0
n_new = 0
n_cached = 0

# Pre-pass: compute how many are cached & estimated extra FLOPs
for q in queries:
if would_consume_budget(client, q):
planned_new += float(q.train_flops)
n_new += 1
else:
n_cached += 1

print("=== Sweep plan ===")
print(f"queries_total: {len(queries)}")
print(f"cached_free: {n_cached}")
print(f"new_queries: {n_new}")
print(f"api_used_now: {used0:.3e} FLOPs")
print(f"est_new_cost: {planned_new:.3e} FLOPs")
print(f"est_total: {(used0 + planned_new):.3e} FLOPs")
print(f"budget_limit: {max_fit_budget_flops:.3e} FLOPs")

if dry_run:
print("\\n[dry-run] not executing API calls.")
return

# Execute with conservative budget guard
used = used0
for i, q in enumerate(queries):
is_new = would_consume_budget(client, q)
est_after = used + (float(q.train_flops) if is_new else 0.0)

if est_after > max_fit_budget_flops:
print(
f"[STOP] Budget guard: would exceed limit if running next query. "
f"used={used:.3e}, next_cost={(q.train_flops if is_new else 0):.3e}, "
f"limit={max_fit_budget_flops:.3e}"
)
return

rec = {
"ts_ms": now_ms(),
"index": i,
"query": asdict(q),
"nonemb_params_est": estimate_nonemb_params(q.d_model, q.num_layers),
"was_cached": (not is_new),
}

try:
out = client.loss(q, use_cache=True)
rec["response"] = out
# Use authoritative used FLOPs if API returns it in /loss response:contentReference[oaicite:15]{index=15}
if isinstance(out, dict) and "total_flops_used" in out:
used = float(out["total_flops_used"])
else:
# fallback estimate
used = est_after
rec["api_used_after"] = used
rec["status"] = "ok"
print(
f"[{i+1}/{len(queries)}] ok "
f"C={q.train_flops:.1e} d={q.d_model} L={q.num_layers} H={q.num_heads} "
f"bs={q.batch_size} lr={q.learning_rate:g} "
f"loss={out.get('loss', None)} used={used:.3e}"
)
except Exception as e:
rec["status"] = "error"
rec["error"] = repr(e)
print(f"[{i+1}/{len(queries)}] error: {e!r}")

jsonl_append(results_path, rec)

if sleep_s > 0:
time.sleep(sleep_s)

# —————————–
# CLI
# —————————–
def main():
p = argparse.ArgumentParser()
p.add_argument("–api-key", default=os.environ.get("CS336_API_KEY", ""))
p.add_argument("–base-url", default="http://hyperturing.stanford.edu:8000")
p.add_argument("–cache", default="runs/api_cache.jsonl")
p.add_argument("–out", default="runs/sweep_results.jsonl")
p.add_argument("–budget", type=float, default=2e18, help="scaling-law fit budget cap (FLOPs)")
p.add_argument("–dry-run", action="store_true")
p.add_argument("–sleep", type=float, default=0.0)

sub = p.add_subparsers(dest="mode", required=True)

# coarse mode
c = sub.add_parser("coarse")
c.add_argument("–train-flops", nargs="+", type=float, default=[1e13, 1e14, 1e15, 1e16, 1e17, 1e18])
c.add_argument("–batch-sizes", nargs="+", type=int, default=[128])
c.add_argument("–d-models", nargs="+", type=int, default=[128, 256, 512, 768, 1024])
c.add_argument("–num-layers", nargs="+", type=int, default=[2, 4, 8, 12, 16, 24])
c.add_argument("–num-heads", nargs="+", type=int, default=[2, 4, 8, 16])
c.add_argument("–learning-rates", nargs="+", type=float, default=[1e-4, 3e-4, 1e-3])

# refine mode: requires a seed config
r = sub.add_parser("refine")
r.add_argument("–seed-d-model", type=int, required=True)
r.add_argument("–seed-num-layers", type=int, required=True)
r.add_argument("–seed-num-heads", type=int, required=True)
r.add_argument("–seed-batch-size", type=int, required=True)
r.add_argument("–seed-learning-rate", type=float, required=True)
r.add_argument("–train-flops", nargs="+", type=float, default=[1e16, 3e16, 1e17, 3e17, 1e18])
r.add_argument("–batch-sizes", nargs="+", type=int, default=[128, 256])
r.add_argument("–d-model-mults", nargs="+", type=float, default=[0.75, 1.0, 1.25])
r.add_argument("–layer-deltas", nargs="+", type=int, default=[–2, 0, 2])
r.add_argument("–head-candidates", nargs="+", type=int, default=[2, 4, 8, 16])
r.add_argument("–lr-mults", nargs="+", type=float, default=[0.5, 1.0, 2.0])

args = p.parse_args()
if not args.api_key:
raise SystemExit("Missing –api-key or env CS336_API_KEY")

client = ScalingAPIClient(
api_key=args.api_key,
base_url=args.base_url,
cache_path=args.cache,
)

out_path = Path(args.out)

if args.mode == "coarse":
queries = coarse_grid(
train_flops=[int(x) for x in args.train_flops],
batch_sizes=args.batch_sizes,
d_models=args.d_models,
num_layers=args.num_layers,
num_heads=args.num_heads,
learning_rates=args.learning_rates,
)

else:
seed = LossQuery(
d_model=args.seed_d_model,
num_layers=args.seed_num_layers,
num_heads=args.seed_num_heads,
batch_size=args.seed_batch_size,
learning_rate=args.seed_learning_rate,
train_flops=int(1e13), # placeholder; replaced by –train-flops below
)
queries = refine_grid_around_best(
best=seed,
train_flops=[int(x) for x in args.train_flops],
batch_sizes=args.batch_sizes,
d_model_mults=args.d_model_mults,
layer_deltas=args.layer_deltas,
head_candidates=args.head_candidates,
lr_mults=args.lr_mults,
)

run_queries(
client=client,
queries=queries,
max_fit_budget_flops=float(args.budget),
results_path=out_path,
dry_run=bool(args.dry_run),
sleep_s=float(args.sleep),
)

if __name__ == "__main__":
main()

上面这个脚本的目标是生成一批 LossQuery，在每次真正 query 前，先检查：

1. 这个配置是否已在本地 cache / API 历史中出现（出现则不计预算）

2. 若是新配置，估算新增消耗是否会让总 FLOPs 超过 2e18（超了就停）

执行流程如下：

0) 先 dry-run 看预算会不会爆

我们的预算上限是 2e18 FLOPs，超过会被拒绝后续请求，所以先 dry-run 让脚本算一遍预计消耗最稳

export CS336_API_KEY="你的key"

uv run python cs336_scaling/run_sweep.py –dry-run coarse \\
–train-flops 1e13 1e14 1e15 1e16 1e17 1e18 \\
–batch-sizes 128 \\
–d-models 128 256 512 1024 \\
–num-layers 2 4 8 16 24 \\
–num-heads 2 4 8 16 \\
–learning-rates 1e-4 3e-4 1e-3

脚本会输出：总 query 数、cache 命中数、新 query 数、预计新增 FLOPs、预计总 FLOPs。

1) 正式跑 coarse sweep（会写 jsonl 结果）

uv run python cs336_scaling/run_sweep.py coarse \\
–train-flops 1e13 1e14 1e15 1e16 1e17 1e18 \\
–batch-sizes 128 \\
–d-models 128 256 512 1024 \\
–num-layers 2 4 8 16 24 \\
–num-heads 2 4 8 16 \\
–learning-rates 1e-4 3e-4 1e-3

输出会放在：

• runs/api_cache.jsonl：缓存
• runs/sweep_results.jsonl：本次 sweep 的逐条记录：query、loss、used flops、是否 cache 命中等

2) 选一个 coarse 最优点作为 seed，然后 refin

uv run python cs336_scaling/run_sweep.py refine \\
–seed-d-model 512 –seed-num-layers 16 –seed-num-heads 8 \\
–seed-batch-size 128 –seed-learning-rate 0.0003 \\
–train-flops 1e16 3e16 1e17 3e17 1e18

我们再从 runs/sweep_results.jsonl 里找某个 compute（比如 train_flops=1e18）下 loss 最低的配置，当作 seed

2.3 缩放定律拟合与预测脚本实现

整体拟合和外推设计思路如下：

1. 从 sweep_results.jsonl 汇总数据：每条记录里有 query（d_model/layers/heads/batch/lr/train_flops） 和 response.loss

2. 把结构超参映射到模型规模 N：用作业建议的 tip 近似：

N

non-emb

≈

12

n

layer

d

model

2

N_{\\text{non-emb}} \\approx 12n_{\\text{layer}}d_{\\text{model}}^2

Nnon-emb​≈12nlayer​dmodel2​

3. IsoFLOPs-stype 的 “每个 compute 取最优点”：对每个 train_flops = C，选 loss 最小的配置作为

(

(

C

,

N

opt

(

C

)

,

L

opt

(

C

)

)

)

((C, N_\\text{opt}(C), L_\\text{opt}(C)))

((C,Nopt​(C),Lopt​(C)))

4. 在 log-log 空间拟合两条幂律：

• 最优模型规模：$N_{\text{opt}}(C)=k_N,C^{a_N}$
• 最优 loss：$L_{\text{opt}}(C)=L_{\infty }+k_L{C}^{-a_L}$

5. 外推到 1e19：得到

N

opt

(

1

e

19

)

N_\\text{opt}(1e19)

Nopt​(1e19) 和

L

opt

(

1

e

19

)

L_\\text{opt}(1e19)

Lopt​(1e19)

6. 给出 1e19 的 “可提交超参”：在允许范围内找一个结构

(

d

model

,

n

layer

,

n

head

)

(d_\\text{model}, n_\\text{layer}, n_\\text{head})

(dmodel​,nlayer​,nhead​) 使得估算参数量最接近

N

opt

(

1

e

19

)

N_\\text{opt}(1e19)

Nopt​(1e19)，batch 取 256（或 128），learning rate 取在最大 compute（1e18）附近表现最好的 lr（也可以按 lr 随 compute 的经验趋势做轻微外推）。

首先 数据汇总工具 cs336_scaling/scaling_data.py 的实现如下：

import json
from dataclasses import dataclass
from pathlib import Path
from typing import Dict, Iterable, List, Optional, Tuple

@dataclass(frozen=True)
class RunRow:
d_model: int
num_layers: int
num_heads: int
batch_size: int
learning_rate: float
train_flops: int
loss: float

def approx_nonemb_params(d_model: int, num_layers: int) –> float:
# Handout tip: non-embedding params ≈ 12 * n_layer * d_model^2
return 12.0 * num_layers * (d_model ** 2)

def load_sweep_jsonl(path: str | Path) –> List[RunRow]:
path = Path(path)
rows: List[RunRow] = []
if not path.exists():
raise FileNotFoundError(path)

with path.open("r", encoding="utf-8") as f:
for line in f:
line = line.strip()
if not line:
continue
obj = json.loads(line)
if obj.get("status") != "ok":
continue
q = obj.get("query", {})
resp = obj.get("response", {})
if "loss" not in resp:
continue
rows.append(
RunRow(
d_model=int(q["d_model"]),
num_layers=int(q["num_layers"]),
num_heads=int(q["num_heads"]),
batch_size=int(q["batch_size"]),
learning_rate=float(q["learning_rate"]),
train_flops=int(q["train_flops"]),
loss=float(resp["loss"]),
)
)

def group_best_by_compute(rows: Iterable[RunRow]) –> Dict[int, RunRow]:
best: Dict[int, RunRow] = {}
for r in rows:
C = r.train_flops
if (C not in best) or (r.loss < best[C].loss):
best[C] = r
return best

拟合脚本 cs336_scaling/fit_scaling_laws.py 的实现如下：

import argparse
import csv
import json
from pathlib import Path
from typing import Dict, Tuple

import numpy as np
import matplotlib.pyplot as plt

from scaling_data import approx_nonemb_params, group_best_by_compute, load_sweep_jsonl

def fit_powerlaw(x: np.ndarray, y: np.ndarray) –> Tuple[float, float]:
"""
Fit y = k * x^a using log-log linear regression.
Returns (k, a).
"""
lx = np.log(x)
ly = np.log(y)
a, logk = np.polyfit(lx, ly, 1)
return float(np.exp(logk)), float(a)

def fit_loss_with_floor(C: np.ndarray, L: np.ndarray) –> Dict[str, float]:
"""
Fit L(C) = L_inf + k * C^{-a}
via a simple grid search over L_inf and log-log fit on (L – L_inf).
This is robust and dependency-free.
"""
# L_inf must be below min(L)
Lmin = float(np.min(L))
# a conservative grid: from Lmin-2.0 down to Lmin-0.01
# (you can widen if needed)
candidates = np.linspace(Lmin – 2.0, Lmin – 0.01, 200)

best = {"L_inf": None, "k": None, "a": None, "mse": float("inf")}
for Linf in candidates:
y = L – Linf
if np.any(y <= 0):
continue
k, a = fit_powerlaw(C, y) # y = k * C^a, but we need y = k * C^{-aL}
# In our parameterization: y = k * C^{-aL} => log y = log k – aL log C
# So slope returned is a = -aL
aL = –a
pred = Linf + k * (C ** (–aL))
mse = float(np.mean((pred – L) ** 2))
if mse < best["mse"]:
best = {"L_inf": float(Linf), "k": float(k), "a": float(aL), "mse": mse}

if best["L_inf"] is None:
raise RuntimeError("Failed to fit L(C)=L_inf+k*C^{-a}: no valid Linf candidate.")
return best

def plot_loglog_points_and_fit(x, y, fit_fn, out_path: Path, title: str, ylab: str):
xs = np.logspace(np.log10(min(x)), np.log10(max(x)), 300)
ys = fit_fn(xs)
plt.figure()
plt.loglog(x, y, marker="o", linestyle="None", label="best points")
plt.loglog(xs, ys, linestyle="-", label="fit")
plt.xlabel("Compute budget C (FLOPs)")
plt.ylabel(ylab)
plt.title(title)
plt.grid(True, which="both", linestyle="–", linewidth=0.5)
plt.legend()
plt.tight_layout()
plt.savefig(out_path, dpi=200)
plt.close()

def main():
ap = argparse.ArgumentParser()
ap.add_argument("–sweep", type=Path, default=Path("runs/sweep_results.jsonl"))
ap.add_argument("–outdir", type=Path, default=Path("runs/scaling_fit"))
ap.add_argument("–make-plots", action="store_true")
args = ap.parse_args()

rows = load_sweep_jsonl(args.sweep)
best = group_best_by_compute(rows)

# Sort by compute
Cs = np.array(sorted(best.keys()), dtype=np.float64)
Ns = np.array([approx_nonemb_params(best[int(C)].d_model, best[int(C)].num_layers) for C in Cs], dtype=np.float64)
Ls = np.array([best[int(C)].loss for C in Cs], dtype=np.float64)

# Fit N_opt(C) = kN * C^aN
kN, aN = fit_powerlaw(Cs, Ns)

# Fit L_opt(C) = L_inf + kL * C^{-aL}
loss_fit = fit_loss_with_floor(Cs, Ls)

args.outdir.mkdir(parents=True, exist_ok=True)

# Save points (for writeup tables / plots)
csv_path = args.outdir / "scaling_fit_points.csv"
with csv_path.open("w", newline="", encoding="utf-8") as f:
w = csv.writer(f)
w.writerow(["train_flops", "loss_best", "d_model", "num_layers", "num_heads", "batch_size", "learning_rate", "n_nonemb_params_est"])
for C in Cs:
r = best[int(C)]
w.writerow([
int(C), r.loss, r.d_model, r.num_layers, r.num_heads, r.batch_size, r.learning_rate,
approx_nonemb_params(r.d_model, r.num_layers),
])

# Save fit params
out = {
"best_points": [
{
"train_flops": int(C),
"loss": float(best[int(C)].loss),
"d_model": int(best[int(C)].d_model),
"num_layers": int(best[int(C)].num_layers),
"num_heads": int(best[int(C)].num_heads),
"batch_size": int(best[int(C)].batch_size),
"learning_rate": float(best[int(C)].learning_rate),
"n_nonemb_params_est": float(approx_nonemb_params(best[int(C)].d_model, best[int(C)].num_layers)),
}
for C in Cs
],
"fit": {
"n_opt": {"k": kN, "a": aN, "form": "N_opt(C)=k*C^a"},
"l_opt": {
"L_inf": loss_fit["L_inf"],
"k": loss_fit["k"],
"a": loss_fit["a"],
"mse": loss_fit["mse"],
"form": "L_opt(C)=L_inf + k*C^{-a}",
},
},
}
(args.outdir / "scaling_fit.json").write_text(json.dumps(out, indent=2))

print("=== Fit results ===")
print(f"N_opt(C) = {kN:.6g} * C^{aN:.6f}")
print(f"L_opt(C) = {loss_fit['L_inf']:.6f} + {loss_fit['k']:.6g} * C^(-{loss_fit['a']:.6f})")
print(f"Saved: {args.outdir/'scaling_fit.json'}")
print(f"Saved: {csv_path}")

if args.make_plots:
plot_loglog_points_and_fit(
Cs, Ns,
lambda x: kN * (x ** aN),
args.outdir / "nopt_vs_c.png",
title="Compute-optimal model size (from best-per-C points)",
ylab="N_nonemb_params_est",
)
# For loss, loglog doesn't work with floor directly; plot (L-L_inf) for loglog visualization
Linf = loss_fit["L_inf"]
y = Ls – Linf
plot_loglog_points_and_fit(
Cs, y,
lambda x: loss_fit["k"] * (x ** (–loss_fit["a"])),
args.outdir / "lopt_minus_linf_vs_c.png",
title="Compute-optimal loss gap (L – L_inf)",
ylab="L_opt – L_inf",
)
print("Saved plots to outdir.")

if __name__ == "__main__":
main()

执行后的输出包括：

• runs/scaling_fit.json：拟合参数 + 每个 compute 的最优点
• runs/scaling_fit_points.csv：方便后续绘图
• 两张图

预测脚本 cs336_scaling/predict_1e19.py 的实现如下：

import argparse
import json
from dataclasses import asdict
from pathlib import Path
from typing import Dict, Tuple

import numpy as np

from api_client import LossQuery
from scaling_data import approx_nonemb_params

ALLOWED_D_MODEL = [64, 96, 128, 160, 192, 256, 320, 384, 512, 640, 768, 896, 1024]
ALLOWED_LAYERS = list(range(2, 25)) # 2..24
ALLOWED_HEADS = [2, 4, 8, 16]
ALLOWED_BATCH = [128, 256]

def find_closest_arch(target_N: float) –> Tuple[Dict, float]:
"""
brute-force search over allowed ranges to find (d_model, num_layers, num_heads)
that yields N_est closest to target_N, with d_model % num_heads == 0.
"""
best = None
best_err = float("inf")
best_N = None

for d in ALLOWED_D_MODEL:
for nl in ALLOWED_LAYERS:
for nh in ALLOWED_HEADS:
if d % nh != 0:
continue
N = approx_nonemb_params(d, nl)
err = abs(N – target_N) / target_N
if err < best_err:
best_err = err
best = {"d_model": d, "num_layers": nl, "num_heads": nh}
best_N = N
return best, float(best_N)
