超全面已封装，可直接替换算法！智能算法应用于57个工程应用，CEC2020中57个真实世界问题附完整代码

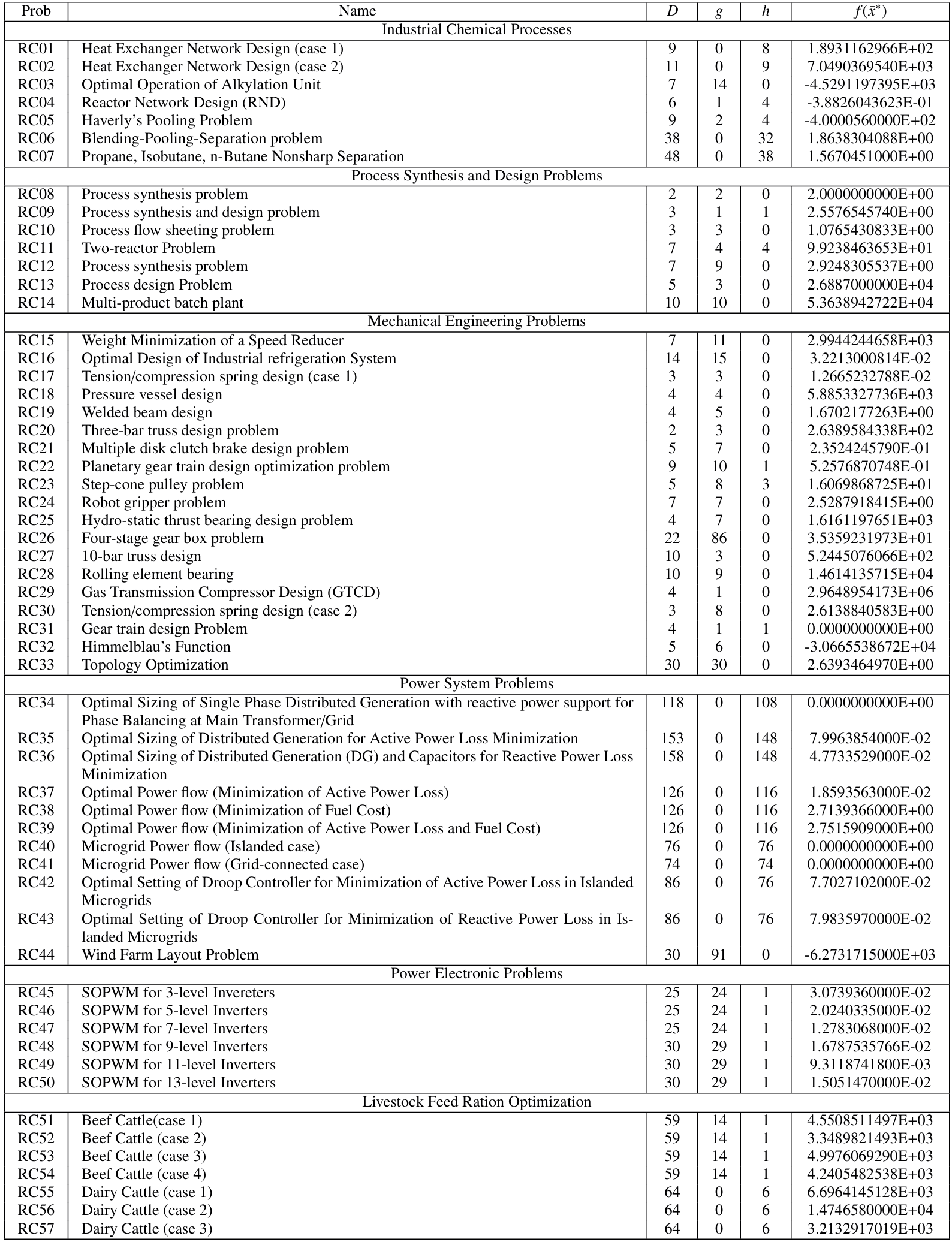

表1：57个现实世界中的COPs的详细信息。D是问题的决策变量总数，g是不等式约束的数量，h是等式约束的数量，$f(x^{\ast })$是已知的最佳可行目标函数值。

优化问题测试集

完整代码

clear all
close all
clc

format longG
T = 1000;
ProN = 3;
N = 50;

for i = 1:ProN
disp(['======= Problems: ',num2str(i)]);
[lb,ub,dim,fobj] = Problem_Define(i);
[SDECOA_fMin,SDECOA_bestX,SDECOA_curve] = SDECOA(N,T,lb,ub,dim,fobj);
figure(i);
plot(SDECOA_curve,'b–','LineWidth',1.5,'MarkerIndices',1:ceil(T/10):T);
end

function [par] = Cal_par(prob_k)
% CEC2020 Constrained Optimization Test Suite
% Abhishek Kumar (email: abhishek.kumar.eee13@iitbhu.ac.in, Indian Institute of Technology (BHU), Varanasi)

% prob_k -> Index of problem.
% par.n -> Dimension of the problem.
% par.g -> Number of inequility constraints.
% par.h -> Number of equality constraints.
% par.xmin -> lower bound of decision variables.
% par.xmax -> upper bound of decision variables.

D = [9117693848233775107143442595742210104345…
30118153158126126126767486863025252530303059595959646464];
par.n = D(prob_k);
gn = [0,0,14,1,2,0,0,2,1,3,4,9,3,10,11,15,3,4,5,3,7,10,8,7,7,86,3,9,1,8,1,6,30,0,0,0,0,0,0,0,0,0,0,105,24,24,24,29,29,29,14,14,14,14,0,0,0];
hn = [8,9,0,4,4,32,38,0,1,0,4,0,0,0,0,0,0,0,0,0,0,1,3,0,0,0,0,0,0,0,1,0,0,108,148,148,116,116,116,76,74,76,76,0,1,1,1,1,1,1,1,1,1,1,6,6,6];
par.gn = gn;
par.hn = hn;
par.g = gn(prob_k);
par.h = hn(prob_k);
%% range
% bound constraint definitions for all 18 test functions
xmin1 = [0,0,0,0,1000,0,100,100,100];
xmax1 = [10,200,100,200,2000000,600,600,600,900];
xmin2 = [10^4,10^4,10^4,0,0,0,100,100,100,100,100];
xmax2 = [0.819*10^6, 1.131*10^6, 2.05*10^6,0.05074,0.05074,0.05074,200,300,300,300,400];
xmin3 = [1000,0,2000,0,0,0,0];
xmax3 = [2000,100,4000,100,100,20,200];
xmin4 = [0,0,0,0,1e-5,1e-5];
xmax4 = [1,1,1,1,16,16];
xmin5 = –0*ones(1,par.n);
xmax5 = [100,200,100,100,100,100,200,100,200];
xmin6 = 0*ones(1,par.n);
xmax6 = [90,150,90,150,90,90,150,90,90,90,150,150,90,90,150,90,150,90,150,90,1,1.2,1,1,1,0.5,1,1,0.5,0.5,0.5,1.2,0.5,1.2,1.2,0.5,1.2,1.2];
xmin7 = –0*ones(1,par.n); xmin7([24,26,28,31]) = 0.849999;
xmax7 = 1*ones(1,par.n); xmax7(4) = 140; xmax7([25,27,32,35,37,29]) = 30;xmax7([2,3,5,13,14,15]) = 90; xmax7([1,6,7,8,9,10,11,12,16,17,18,19,20]) = 35;
xmin8 = [0,–0.51];
xmax8 = [1.6,1.49];
xmin9 = [0.5,0.5,–0.51];
xmax9 = [1.4,1.4,1.49];
xmin10 = [0.2, –2.22554, –0.51];
xmax10 = [1, –1, 1.49];
xmin11 = [0,0,0,0,–0.51,–0.51,0];
xmax11 = [20,20,10,10,1.49,1.49,40];
xmin12 = [0,0,0,–0.51,–0.51,–0.51,–0.51];
xmax12 = [100,100,100,1.49,1.49,1.49,1.49];
xmin13 = [27,27,27,77.51,32.51];
xmax13 = [45,45,45,102.49,45.49];
xmin14 = [ 0.51,0.51,0.51,250,250,250,6,4,40,10];
xmax14 = [3.49,3.49,3.49,2500,2500,2500,20,16,700,450];
xmin15 = [2.6, 0.7, 17, 7.3, 7.3, 2.9, 5];
xmax15 = [3.6, 0.8, 28, 8.3, 8.3, 3.9, 5.5];
xmin16 = 0.001*ones(1,par.n);
xmax16 = +5*ones(1,par.n);
xmin17 = [0.05,0.25,2.00];
xmax17 = [2,1.3,15.0];
xmin18 = [0.51,0.51,10,10];
xmax18 = [99.49,99.49,200,200];
xmin19 = [0.125,0.1,0.1,0.1];
xmax19 = [2,10,10,2];
xmin20 = 0*ones(1,par.n);
xmax20 = 1*ones(1,par.n);
xmin21 = [60,90,1,0,2];
xmax21 = [80,110,3,1000,9];
xmin22 = [16.51,13.51,13.51,16.51,13.51,47.51,0.51,0.51,0.51];
xmax22 = [96.49,54.49,51.49,46.49,51.49,124.49,3.49,6.49,6.49];
xmin23 = [0,0,0,0,0];
xmax23 = [60,60,90,90,90];
xmin24 = [10,10,100,0,10,100,1];
xmax24 = [150,150,200,50,150,300,3.14];
xmin25 = [ 1, 1, 1e-6,1];
xmax25 = [16, 16, 16*1e-6,16];
xmin26 = [ 6.51.*ones(1,8), 0.51.*ones(1,14)];
xmax26 = [ 76.49.*ones(1,8), 4.49.*ones(1,4), 9.49.*ones(1,10)];
xmin27 = 0.645e-4*ones(1,par.n);
xmax27 = 50e-4*ones(1,par.n);
xmin28 = [125,10.5,4,0.515,0.515,0.4,0.6,0.3,0.02,0.6];
xmax28 = [150,31.5,50,0.6,0.6,0.5,0.7,0.4,0.1,0.85];
xmin29 = [20,1,20,0.1];
xmax29 = [50,10,50,60];
xmin30 = [0.51,0.6,0.51];
xmax30 = [70.49,3,42.49];
xmin31 = 12.*ones(1,4);
xmax31 = 60.*ones(1,4);
xmin32 = [78,33,27,27,27];
xmax32 = [102,45,45,45,45];
xmin33 = 0.001.*ones(1,par.n);
xmax33 = ones(1,par.n);
xmin34 = –1*ones(1,par.n);
xmax34 = +1*ones(1,par.n);
xmin35 = –1*ones(1,par.n);
xmax35 = +1*ones(1,par.n);
xmin36 = –1*ones(1,par.n);
xmax36 = +1*ones(1,par.n);
xmin37 = –1*ones(1,par.n);xmin37(117:126) = 0;
xmax37 = +1*ones(1,par.n);
xmin38 = –1*ones(1,par.n);xmin38(117:126) = 0;
xmax38 = +1*ones(1,par.n);
xmin39 = –1*ones(1,par.n);xmin39(117:126) = 0;
xmax39 = +1*ones(1,par.n);
xmin40 = –1*ones(1,par.n);xmin40(75:76) = 0;
xmax40 = +1*ones(1,par.n);xmax40(75:76) = 2;
xmin41 = –1*ones(1,par.n);
xmax41 = +1*ones(1,par.n);
xmin42 = –1*ones(1,par.n);xmin42(75:76) = 0;xmin42(77:86) = 0;
xmax42 = +1*ones(1,par.n);xmax42(75:76) = 2;xmax42(77:86) = 500;
xmin43 = –1*ones(1,par.n);xmin43(75:76) = 0;xmin43(77:86) = 0;
xmax43 = +1*ones(1,par.n);xmax43(75:76) = 2;xmax43(77:86) = 500;
xmin44 = 40*ones(1,par.n);
xmax44 = 1960*ones(1,par.n);
xmin45 = –0*ones(1,par.n);
xmax45 = +90*ones(1,par.n);
xmin46 = –0*ones(1,par.n);
xmax46 = +90*ones(1,par.n);
xmin47 = –0*ones(1,par.n);
xmax47 = +90*ones(1,par.n);
xmin48 = –0*ones(1,par.n);
xmax48 = +90*ones(1,par.n);
xmin49 = –0*ones(1,par.n);
xmax49 = +90*ones(1,par.n);
xmin50 = –0*ones(1,par.n);
xmax50 = +90*ones(1,par.n);
xmin51 = 0.*ones(1,par.n);
xmax51 = 10.*ones(1,par.n);
xmin52 = 0.*ones(1,par.n);
xmax52 = 10.*ones(1,par.n);
xmin53 = 0.*ones(1,par.n);
xmax53 = 10.*ones(1,par.n);
xmin54 = 0.*ones(1,par.n);
xmax54 = 10.*ones(1,par.n);
xmin55 = 0.*ones(1,par.n);
xmax55 = 10.*ones(1,par.n);
xmin56 = 0.*ones(1,par.n);
xmax56 = 10.*ones(1,par.n);
xmin57 = 0.*ones(1,par.n);
xmax57 = 10.*ones(1,par.n);

eval(['par.xmin=xmin' int2str(prob_k) ';']);
eval(['par.xmax=xmax' int2str(prob_k) ';' ]);
end
