MCP——基于HTTP流式传输的MCP服务器创建流程

基于HTTP流式传输的MCP服务器创建流程

• • 8、基于HTTP流式传输的MCP服务器创建流程
  • • 1、HTTP流式传输MCP服务器与客户端通信流程
    • 2、HTTP流式传输MCP服务器开发流程
    • 3、HTTP流式传输MCP服务器开启与测试
    • 4、自定义MCP客户端Client接入HTTP流式传输MCP服务器
    • 5、借助自定义client接入流式HTTP MCP服务器

8、基于HTTP流式传输的MCP服务器创建流程

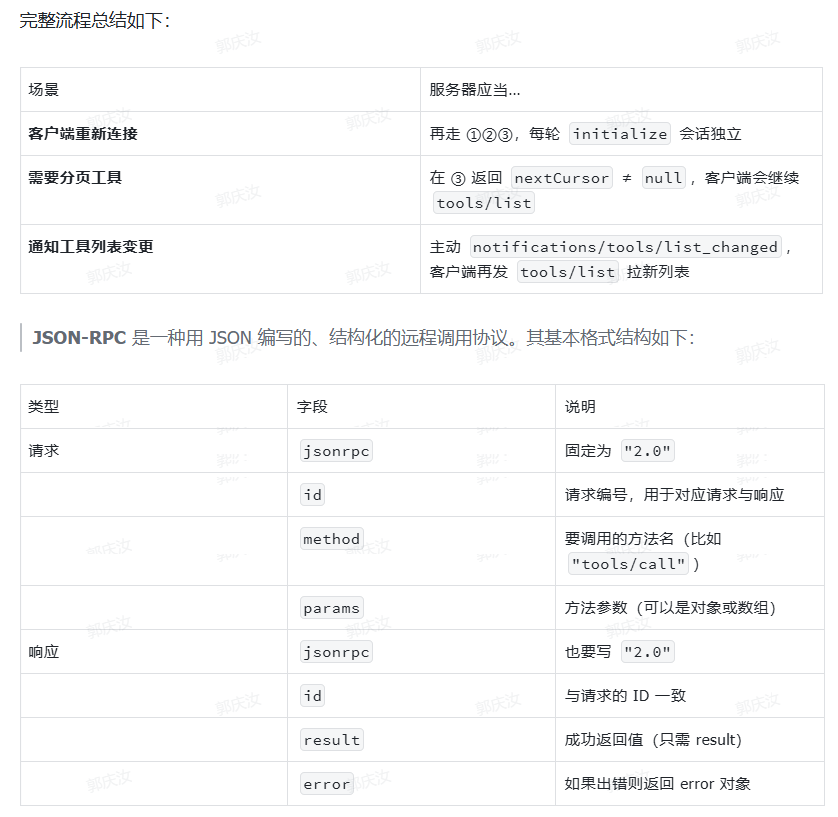

1、HTTP流式传输MCP服务器与客户端通信流程

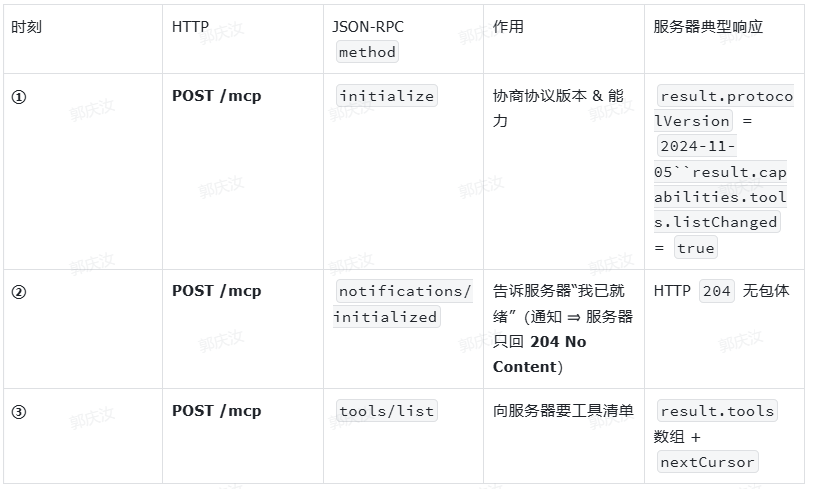

• 启动时： 3 步握手（无用户输入）

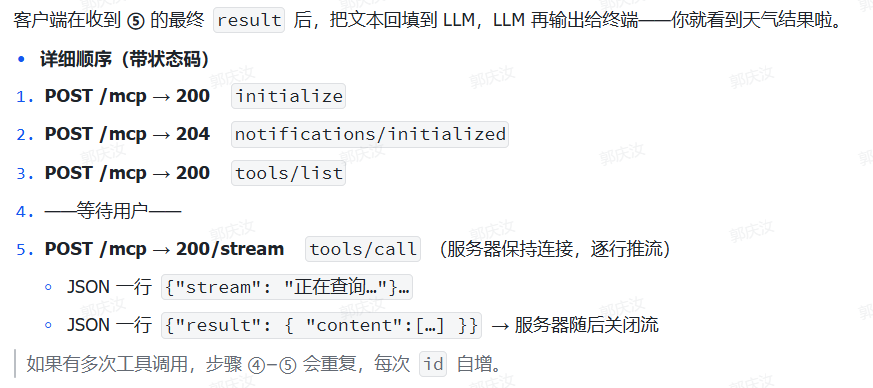

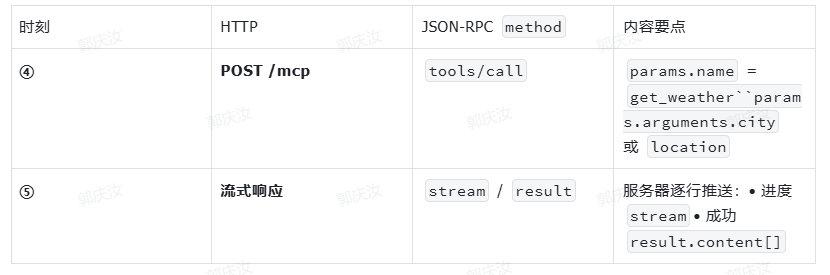

• 当用户第一次提问时（模型判断要用工具）

2、HTTP流式传输MCP服务器开发流程

• 创建项目文件：

cd /root/autodl–tmp/MCP/MCP–sse–test
uv init mcp–weather–http
cd mcp–weather–http

# 创建虚拟环境
uv venv

# 激活虚拟环境
source .venv/bin/activate

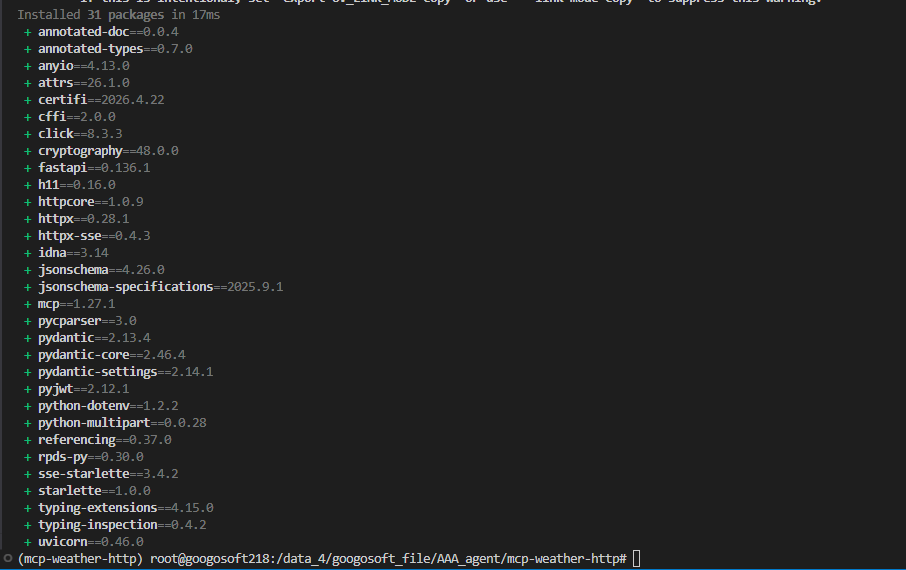

uv add mcp httpx fastapi

mkdir –p ./src/mcp_weather_http
cd ./src/mcp_weather_http

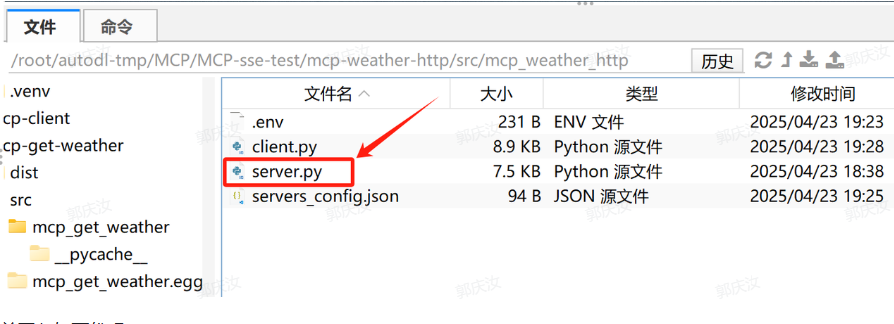

然后创建server.py： 并写入如下代码：

"""weather_http_server_v8.py – MCP Streamable HTTP (Cherry‑Studio verified)
==========================================================================
• initialize → protocolVersion + capabilities(streaming + tools.listChanged)
+ friendly instructions
• notifications/initialized → ignored (204)
• tools/list → single-page tool registry (get_weather)
• tools/call → execute get_weather, stream JSON (content[])
• GET → 405 (no SSE stream implemented)
"""

from __future__ import annotations

import argparse
import asyncio
import json
from typing import Any, AsyncIterator

import httpx
from fastapi import FastAPI, Request, Response, status
from fastapi.responses import StreamingResponse

# —————————————————————————
# Server constants
# —————————————————————————
SERVER_NAME = "WeatherServer"
SERVER_VERSION = "1.0.0"
PROTOCOL_VERSION = "2024-11-05" # Cherry Studio current

# —————————————————————————
# Weather helpers
# —————————————————————————
OPENWEATHER_URL = "https://api.openweathermap.org/data/2.5/weather"
API_KEY: str | None = None
USER_AGENT = "weather-app/1.0"

async def fetch_weather(city: str) –> dict[str, Any]:
if not API_KEY:
return {"error": "API_KEY 未设置，请提供有效的 OpenWeather API Key。"}
params = {"q": city, "appid": API_KEY, "units": "metric", "lang": "zh_cn"}
headers = {"User-Agent": USER_AGENT}
async with httpx.AsyncClient(timeout=30.0) as client:
try:
r = await client.get(OPENWEATHER_URL, params=params, headers=headers)
r.raise_for_status()
return r.json()
except httpx.HTTPStatusError as exc:
return {"error": f"HTTP 错误: {exc.response.status_code}"}
except Exception as exc: # noqa: BLE001
return {"error": f"请求失败: {exc}"}

def format_weather(data: dict[str, Any]) –> str:
if "error" in data:
return data["error"]
city = data.get("name", "未知")
country = data.get("sys", {}).get("country", "未知")
temp = data.get("main", {}).get("temp", "N/A")
humidity = data.get("main", {}).get("humidity", "N/A")
wind = data.get("wind", {}).get("speed", "N/A")
desc = data.get("weather", [{}])[0].get("description", "未知")
return (
f"🌍 {city}, {country}\\n"
f"🌡 温度: {temp}°C\\n"
f"💧 湿度: {humidity}%\\n"
f"🌬 风速: {wind} m/s\\n"
f"🌤 天气: {desc}"
)

async def stream_weather(city: str, req_id: int | str) –> AsyncIterator[bytes]:
# progress chunk
yield json.dumps({"jsonrpc": "2.0", "id": req_id, "stream": f"查询 {city} 天气中…"}).encode() + b"\\n"

await asyncio.sleep(0.3)
data = await fetch_weather(city)

if "error" in data:
yield json.dumps({"jsonrpc": "2.0", "id": req_id, "error": {"code": –32000, "message": data["error"]}}).encode() + b"\\n"
return

yield json.dumps({
"jsonrpc": "2.0", "id": req_id,
"result": {
"content": [
{"type": "text", "text": format_weather(data)}
],
"isError": False
}
}).encode() + b"\\n"

# —————————————————————————
# FastAPI app
# —————————————————————————
app = FastAPI(title="WeatherServer HTTP-Stream v8")

TOOLS_REGISTRY = {
"tools": [
{
"name": "get_weather",
"description": "用于进行天气信息查询的函数，输入城市英文名称，即可获得当前城市天气信息。",
"inputSchema": {
"type": "object",
"properties": {
"city": {
"type": "string",
"description": "City name, e.g. 'Hangzhou'"
}
},
"required": ["city"]
}
}
],
"nextCursor": None
}

@app.get("/mcp")
async def mcp_initialize_via_get():
# GET 请求也执行了 initialize 方法
return {
"jsonrpc": "2.0",
"id": 0,
"result": {
"protocolVersion": PROTOCOL_VERSION,
"capabilities": {
"streaming": True,
"tools": {"listChanged": True}
},
"serverInfo": {
"name": SERVER_NAME,
"version": SERVER_VERSION
},
"instructions": "Use the get_weather tool to fetch weather by city name."
}
}

@app.post("/mcp")
async def mcp_endpoint(request: Request):
try:
body = await request.json()
# ✅ 打印客户端请求内容
print("💡 收到请求:", json.dumps(body, ensure_ascii=False, indent=2))
except Exception:
return {"jsonrpc": "2.0", "id": None, "error": {"code": –32700, "message": "Parse error"}}

req_id = body.get("id", 1)
method = body.get("method")

# ✅ 打印当前方法类型
print(f"🔧 方法: {method}")

# 0) Ignore initialized notification (no response required)
if method == "notifications/initialized":
return Response(status_code=status.HTTP_204_NO_CONTENT)

# 1) Activation probe (no method)
if method is None:
return {"jsonrpc": "2.0", "id": req_id, "result": {"status": "MCP server online."}}

# 2) initialize
if method == "initialize":
return {
"jsonrpc": "2.0", "id": req_id,
"result": {
"protocolVersion": PROTOCOL_VERSION,
"capabilities": {
"streaming": True,
"tools": {"listChanged": True}
},
"serverInfo": {"name": SERVER_NAME, "version": SERVER_VERSION},
"instructions": "Use the get_weather tool to fetch weather by city name."
}
}

# 3) tools/list
if method == "tools/list":
print(json.dumps(TOOLS_REGISTRY, indent=2, ensure_ascii=False))
return {"jsonrpc": "2.0", "id": req_id, "result": TOOLS_REGISTRY}

# 4) tools/call
if method == "tools/call":
params = body.get("params", {})
tool_name = params.get("name")
args = params.get("arguments", {})

if tool_name != "get_weather":
return {"jsonrpc": "2.0", "id": req_id, "error": {"code": –32602, "message": "Unknown tool"}}

city = args.get("city")
if not city:
return {"jsonrpc": "2.0", "id": req_id, "error": {"code": –32602, "message": "Missing city"}}

return StreamingResponse(stream_weather(city, req_id), media_type="application/json")

# 5) unknown method
return {"jsonrpc": "2.0", "id": req_id, "error": {"code": –32601, "message": "Method not found"}}

# —————————————————————————
# Runner
# —————————————————————————

def main() –> None:
parser = argparse.ArgumentParser(description="Weather MCP HTTP-Stream v8")
parser.add_argument("–api_key", required=True)
parser.add_argument("–host", default="127.0.0.1")
parser.add_argument("–port", type=int, default=8000)
args = parser.parse_args()

global API_KEY
API_KEY = args.api_key

import uvicorn
uvicorn.run(app, host=args.host, port=args.port, log_level="info")

if __name__ == "__main__":
main()

代码解释如下：总体结构说明

📦 weather_http_server_v8.py
├── 常量定义（协议版本 + OpenWeather 配置）
├── 工具方法（fetch_weather、format_weather、stream_weather）
├── FastAPI 路由
│ ├── GET /mcp → 可选支持
│ └── POST /mcp → 支持所有 JSON–RPC 调用
└── main() → 启动 uvicorn 服务器

1️⃣ 头部信息（元数据 + 模块引入）

"""weather_http_server_v8.py – MCP Streamable HTTP (Cherry‑Studio verified)
• initialize → 声明 streaming + tools.listChanged 能力
• tools/list → 提供 get_weather 工具
• tools/call → 调用后 stream JSON 数据
• GET → 405 或简单返回信息（支持 Cherry 探测）
"""

✔ 简洁明了地说明这个服务符合 Cherry Studio 所支持的 MCP HTTP 协议子集。

2️⃣ 常量定义

SERVER_NAME = "WeatherServer"
SERVER_VERSION = "1.0.0"
PROTOCOL_VERSION = "2024-11-05" # MCP 规定版本号

OPENWEATHER_URL = "https://api.openweathermap.org/data/2.5/weather"
API_KEY: str | None = None # 启动时注入
USER_AGENT = "weather-app/1.0"

✔ 提前定义版本号、天气接口、全局变量等。

3️⃣ 天气处理逻辑

async def fetch_weather(city: str) –> dict[str, Any]:

• 向 OpenWeather API 请求天气数据
• 自动处理错误（比如 key 不对、超时）

def format_weather(data: dict[str, Any]) –> str:

• 把原始 JSON 格式化成可读文本 🌤️

async def stream_weather(city: str, req_id: int | str) –> AsyncIterator[bytes]:

• 生成器流式返回天气内容（符合 MCP 协议的逐行 JSON） 示例输出：

{"jsonrpc": "2.0", "id": 1, "stream": "查询 Hangzhou 天气中…"}
{"jsonrpc": "2.0", "id": 1, "result": { "content": [{"type":"text","text":"🌡 温度: 22°C"}] }}

4️⃣ MCP 工具注册表

TOOLS_REGISTRY = {
"tools": [
{
"name": "get_weather",
"description": "…",
"inputSchema": {
"type": "object",
"properties": {
"city": {
"type": "string",
"description": "City name, e.g. 'Hangzhou'"
}
},
"required": ["city"]
}
}
],
"nextCursor": None
}

✔ 符合 MCP 2025-03-26 文档对 tools/list 的格式要求。

5️⃣ 核心路由逻辑（FastAPI）

✔ /mcp [GET]

@app.get("/mcp")

• Cherry Studio 在探测时会发 GET 请求
• 我们这里返回一个 initialize 风格的响应

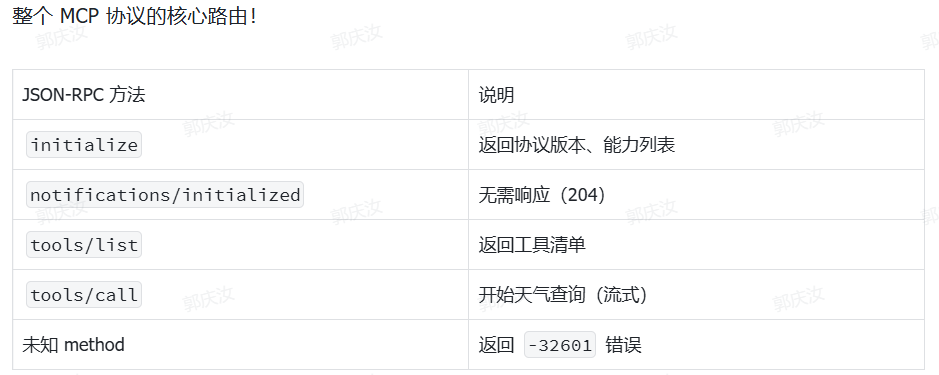

✔ /mcp [POST]

@app.post("/mcp")
async def mcp_endpoint(request: Request):

6️⃣main() 启动逻辑

def main():
parser.add_argument("–api_key", required=True)
uvicorn.run(app, host=..., port=...)

✔ 从命令行传入 OpenWeather 的 API Key 并启动服务。

uv run ./server.py ––api_key 你的key

3、HTTP流式传输MCP服务器开启与测试

在创建完server.py后，我们可以开启服务并进行测试。需要注意的是，Inspector并不支持流式传输的MCP服务器测试，我们只能基于对HTTP流式传输的协议理解，创建一个测试流程。

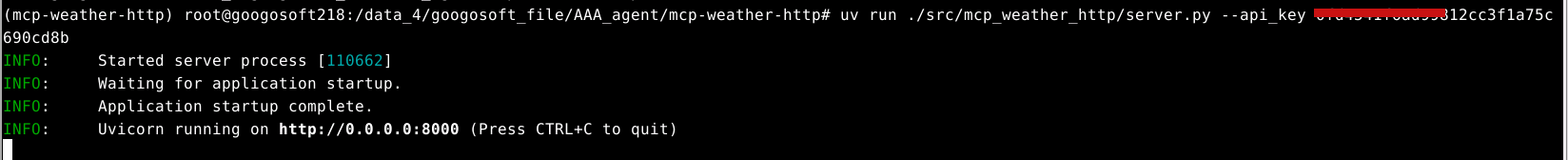

• 开启HTTP流式传输服务器

# 回到项目主目录
# cd /root/autodl-tmp/MCP/MCP-sse-test/mcp-weather-http
uv run ./src/mcp_weather_http/server.py ––api_key YOUR_API_KEY

接下来我们通过 4 个 curl 命令来模拟 MCP 客户端与服务器的标准通信流程。

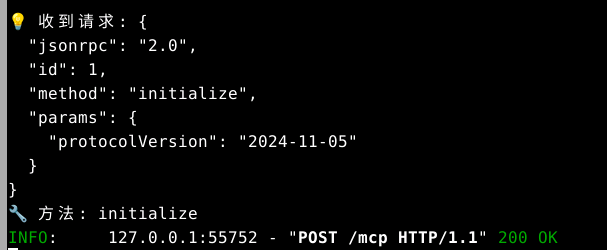

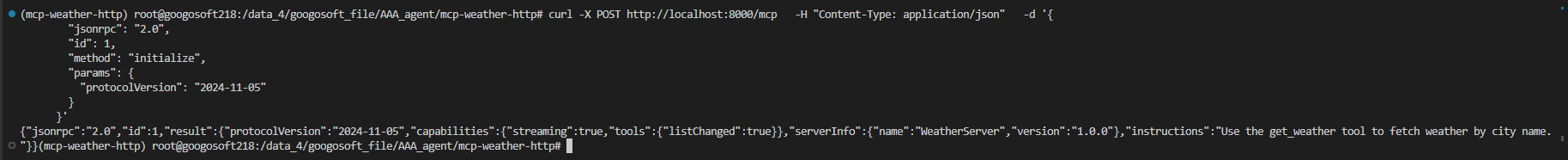

• ① initialize 请求（能力协商）

curl –X POST http://localhost:8000/mcp \\
–H "Content-Type: application/json" \\
–d '{
"jsonrpc": "2.0",
"id": 1,
"method": "initialize",
"params": {
"protocolVersion": "2024-11-05"
}
}'

服务端： 客户端： 期望响应：返回服务器支持的协议版本、功能：

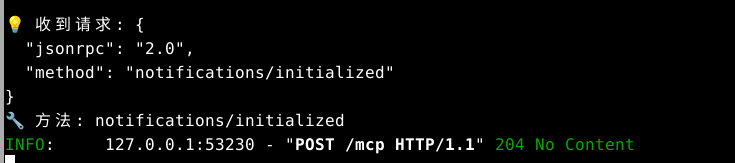

• ② notifications/initialized 通知（确认上线）

curl –X POST http://localhost:8000/mcp \\
–H "Content-Type: application/json" \\
–d '{
"jsonrpc": "2.0",
"method": "notifications/initialized"
}'

服务端： 📥 期望响应：204 No Content（因为是通知类型）：

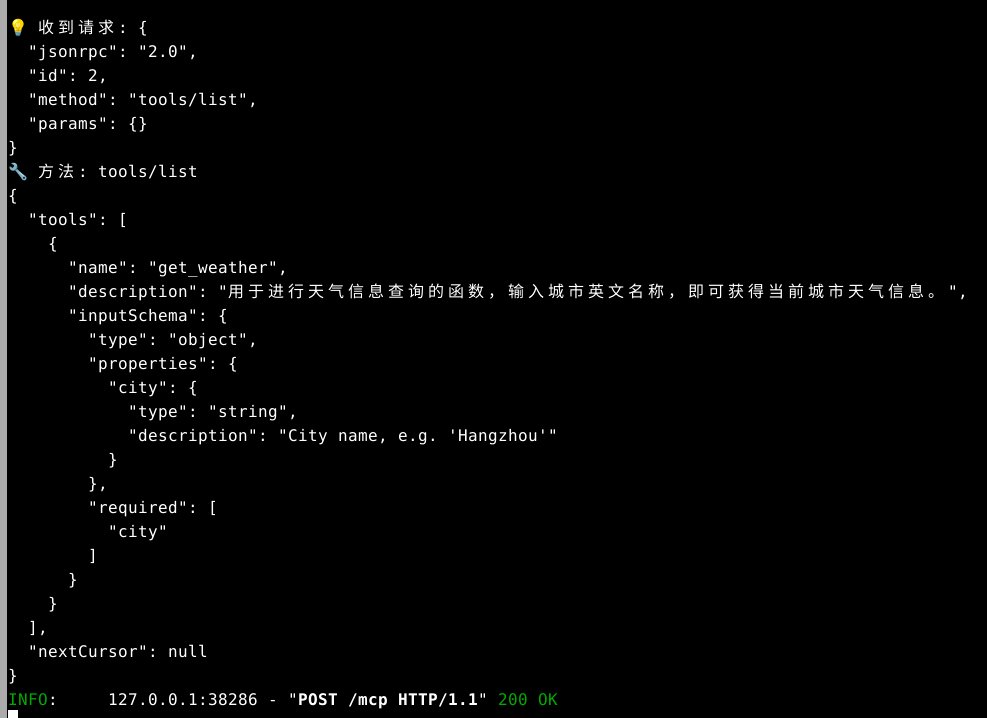

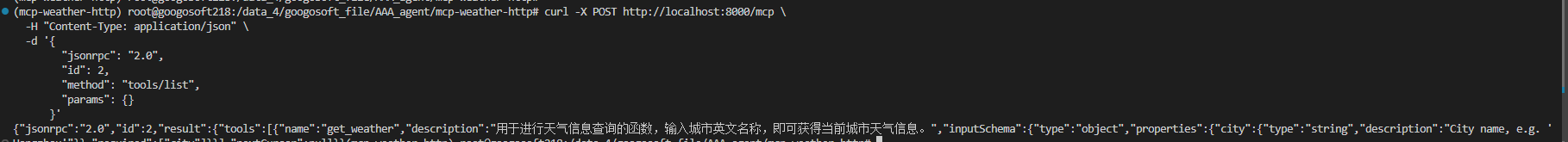

• ③ tools/list 请求（获取工具注册表）

curl –X POST http://localhost:8000/mcp \\
–H "Content-Type: application/json" \\
–d '{
"jsonrpc": "2.0",
"id": 2,
"method": "tools/list",
"params": {}
}'

📥 期望响应：返回工具清单， get_weather 工具的结构体和 schema：

服务端：

客户端：

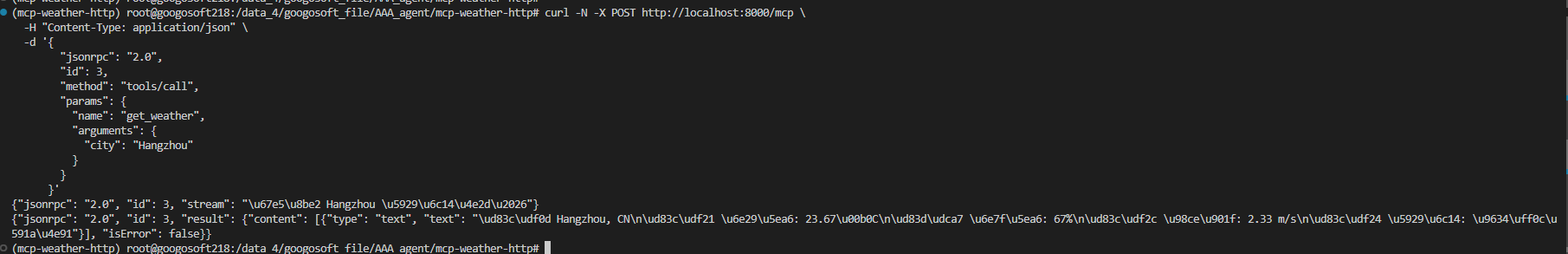

• ④ tools/call 请求（调用实际工具，流式返回）

curl –N –X POST http://localhost:8000/mcp \\
–H "Content-Type: application/json" \\
–d '{
"jsonrpc": "2.0",
"id": 3,
"method": "tools/call",
"params": {
"name": "get_weather",
"arguments": {
"city": "Hangzhou"
}
}
}'

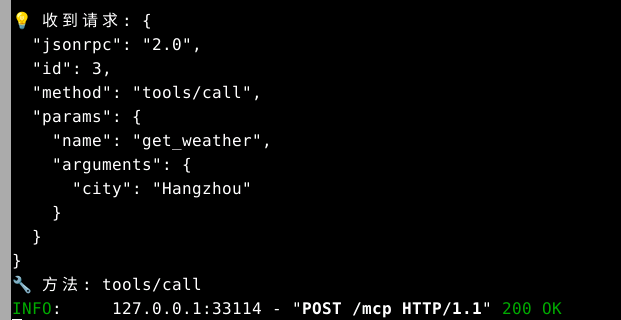

服务端：

客户端：

4、自定义MCP客户端Client接入HTTP流式传输MCP服务器

截止目前，主流的MCP客户端都无法很好的完成HTTP流式MCP服务器的接入，因此这里为大家介绍如何从零编写MCP客户端，并按照标准流程接入HTTP流式MCP服务器。

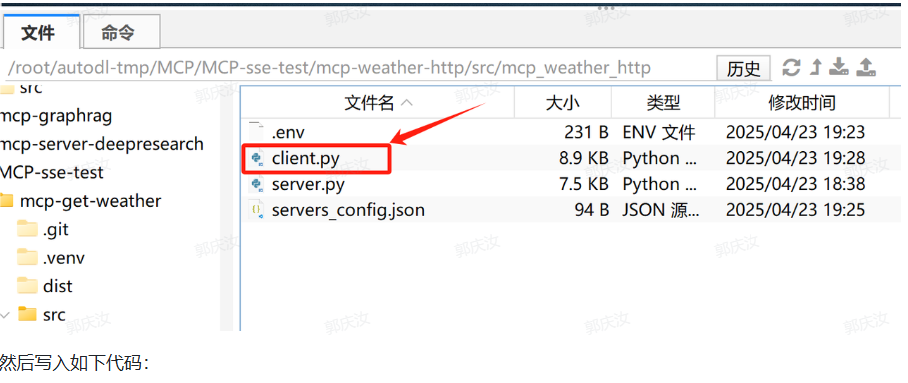

• 编写client.py脚本

# 回到代码文件夹
cd /root/autodl–tmp/MCP/MCP–sse–test/mcp–weather–http/src/mcp_weather_http

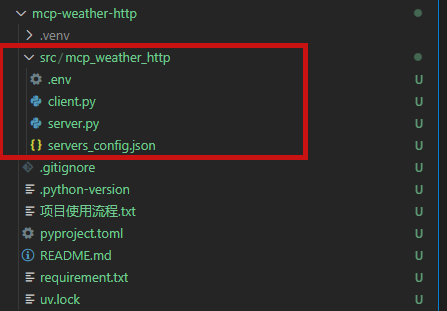

创建client.py： 然后写入如下代码：

"""mcp_http_client.py – Async MCP client (Streamable HTTP)
===========================================================
• 完全移除 stdio 传输，改用 Streamable HTTP (POST + optional SSE)
• 支持 initialize → notifications/initialized → tools/list → tools/call
• 自动处理 line‑delimited JSON stream (application/json 或 text/event-stream)
• 保留交互式 chat_loop，兼容 OpenAI Function Calling
"""

from __future__ import annotations

import asyncio
import json
import logging
import os
from contextlib import AsyncExitStack
from typing import Any, Dict, List, Optional

import httpx
from dotenv import load_dotenv
from openai import OpenAI

################################################################################

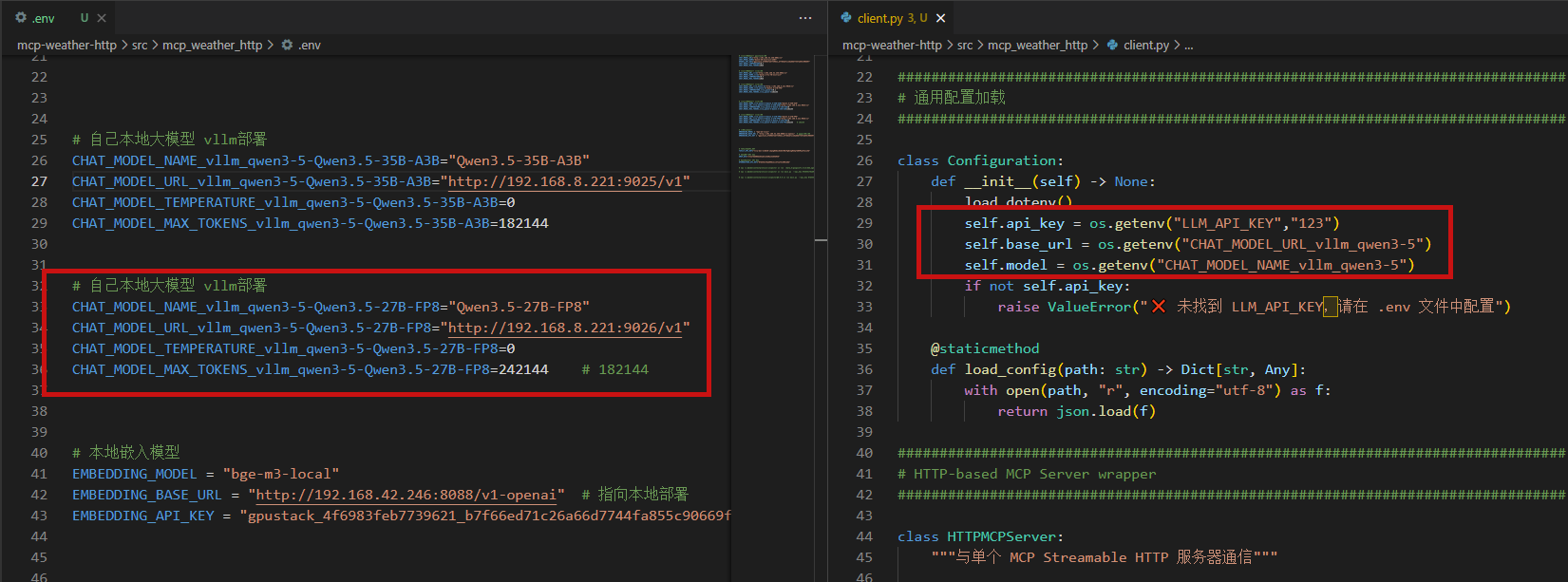

# 通用配置加载
################################################################################

class Configuration:
def __init__(self) –> None:
load_dotenv()
self.api_key = os.getenv("LLM_API_KEY")
self.base_url = os.getenv("BASE_URL")
self.model = os.getenv("MODEL", "gpt-4o")
if not self.api_key:
raise ValueError("❌ 未找到 LLM_API_KEY，请在 .env 文件中配置")

@staticmethod
def load_config(path: str) –> Dict[str, Any]:
with open(path, "r", encoding="utf-8") as f:
return json.load(f)

################################################################################
# HTTP‑based MCP Server wrapper
################################################################################

class HTTPMCPServer:
"""与单个 MCP Streamable HTTP 服务器通信"""

def __init__(self, name: str, endpoint: str) –> None:
self.name = name
self.endpoint = endpoint.rstrip("/") # e.g. http://localhost:8000/mcp
self.session: Optional[httpx.AsyncClient] = None
self.protocol_version: str = "2024-11-05"

async def initialize(self) –> None:
self.session = httpx.AsyncClient(timeout=httpx.Timeout(30.0))
# 1) initialize
init_req = {
"jsonrpc": "2.0",
"id": 0,
"method": "initialize",
"params": {
"protocolVersion": self.protocol_version,
"capabilities": {},
"clientInfo": {"name": "HTTP-MCP-Demo", "version": "0.1"},
},
}
r = await self._post_json(init_req)
if "error" in r:
raise RuntimeError(f"Initialize error: {r['error']}")
# 2) send initialized notification (no response expected)
await self._post_json({"jsonrpc": "2.0", "method": "notifications/initialized"})

async def list_tools(self) –> List[Dict[str, Any]]:
req = {"jsonrpc": "2.0", "id": 1, "method": "tools/list", "params": {}}
res = await self._post_json(req)
return res["result"]["tools"]

async def call_tool_stream(self, tool_name: str, arguments: Dict[str, Any]) –> str:
"""调用工具并将流式结果拼接为完整文本"""
req = {
"jsonrpc": "2.0",
"id": 3,
"method": "tools/call",
"params": {"name": tool_name, "arguments": arguments},
}
assert self.session is not None
async with self.session.stream(
"POST", self.endpoint, json=req, headers={"Accept": "application/json"}
) as resp:
if resp.status_code != 200:
raise RuntimeError(f"HTTP {resp.status_code}")
collected_text: List[str] = []
async for line in resp.aiter_lines():
if not line:
continue
chunk = json.loads(line)
if "stream" in chunk:
continue # 中间进度
if "error" in chunk:
raise RuntimeError(chunk["error"]["message"])
if "result" in chunk:
# 根据协议，文本在 result.content[0].text
for item in chunk["result"]["content"]:
if item["type"] == "text":
collected_text.append(item["text"])
return "\\n".join(collected_text)

async def _post_json(self, payload: Dict[str, Any]) –> Dict[str, Any]:
assert self.session is not None
r = await self.session.post(self.endpoint, json=payload, headers={"Accept": "application/json"})
if r.status_code == 204 or not r.content:
return {} # ← 通知无响应体
r.raise_for_status()
return r.json()

async def close(self) –> None:
if self.session:
await self.session.aclose()
self.session = None

################################################################################
# LLM 封装（OpenAI Function‑Calling）
################################################################################

class LLMClient:
def __init__(self, api_key: str, base_url: Optional[str], model: str) –> None:
self.client = OpenAI(api_key=api_key, base_url=base_url)
self.model = model

def chat(self, messages: List[Dict[str, Any]], tools: Optional[List[Dict[str, Any]]]):
return self.client.chat.completions.create(model=self.model, messages=messages, tools=tools)

################################################################################
# 多服务器 MCP + LLM Function Calling
################################################################################

class MultiHTTPMCPClient:
def __init__(self, servers_conf: Dict[str, Any], api_key: str, base_url: Optional[str], model: str) –> None:
self.servers: Dict[str, HTTPMCPServer] = {
name: HTTPMCPServer(name, cfg["endpoint"]) for name, cfg in servers_conf.items()
}
self.llm = LLMClient(api_key, base_url, model)
self.all_tools: List[Dict[str, Any]] = [] # 转为 OAI FC 的 tools 数组

async def start(self):
for srv in self.servers.values():
await srv.initialize()
tools = await srv.list_tools()
for t in tools:
# 重命名以区分不同服务器
full_name = f"{srv.name}_{t['name']}"
self.all_tools.append({
"type": "function",
"function": {
"name": full_name,
"description": t["description"],
"parameters": t["inputSchema"],
},
})
logging.info("已连接服务器并汇总工具：%s", [t["function"]["name"] for t in self.all_tools])

async def call_local_tool(self, full_name: str, args: Dict[str, Any]) –> str:
srv_name, tool_name = full_name.split("_", 1)
srv = self.servers[srv_name]
# 兼容 city/location
city = args.get("city") or args.get("location")
if not city:
raise ValueError("Missing city/location")
return await srv.call_tool_stream(tool_name, {"city": city})

async def chat_loop(self):
print("🤖 HTTP MCP + Function Calling 客户端已启动，输入 quit 退出")
messages: List[Dict[str, Any]] = []
while True:
user = input("你: ").strip()
if user.lower() == "quit":
break
messages.append({"role": "user", "content": user})
# 1st LLM call
resp = self.llm.chat(messages, self.all_tools)
choice = resp.choices[0]
if choice.finish_reason == "tool_calls":
tc = choice.message.tool_calls[0]
tool_name = tc.function.name
tool_args = json.loads(tc.function.arguments)
print(f"[调用工具] {tool_name} → {tool_args}")
tool_resp = await self.call_local_tool(tool_name, tool_args)
messages.append(choice.message.model_dump())
messages.append({"role": "tool", "content": tool_resp, "tool_call_id": tc.id})
resp2 = self.llm.chat(messages, self.all_tools)
print("AI:", resp2.choices[0].message.content)
messages.append(resp2.choices[0].message.model_dump())
else:
print("AI:", choice.message.content)
messages.append(choice.message.model_dump())

async def close(self):
for s in self.servers.values():
await s.close()

################################################################################
# main entry
################################################################################

async def main():
logging.basicConfig(level=logging.INFO, format="%(asctime)s – %(levelname)s – %(message)s")
conf = Configuration()
servers_conf = conf.load_config("./src/mcp_weather_http/servers_config.json").get("mcpServers", {})
client = MultiHTTPMCPClient(servers_conf, conf.api_key, conf.base_url, conf.model)
try:
await client.start()
await client.chat_loop()
finally:
await client.close()

if __name__ == "__main__":
asyncio.run(main())

• 创建.env和servers_config.json文件

然后在src文件夹内创建.env文件，并写入如下内容：

# 自己本地大模型 vllm部署
CHAT_MODEL_NAME_vllm_qwen3–5–Qwen3.5–27B–FP8="Qwen3.5-27B-FP8"
CHAT_MODEL_URL_vllm_qwen3–5–Qwen3.5–27B–FP8="http://192.168.8.221:9026/v1"
CHAT_MODEL_TEMPERATURE_vllm_qwen3–5–Qwen3.5–27B–FP8=0
CHAT_MODEL_MAX_TOKENS_vllm_qwen3–5–Qwen3.5–27B–FP8=242144 # 182144

然后创建servers_config.json，用于记录HTTP流式传输服务器地址，例如：

{
"mcpServers": {
"weather": {
"endpoint": "http://127.0.0.1:8000/mcp"
}
}
}

文件结构：

5、借助自定义client接入流式HTTP MCP服务器

• 开启流式HTTP MCP服务器 在项目主目录下： 服务端启动

uv run ./src/mcp_weather_http/server.py ––api_key YOUR_API_KRI

客户端启动

# 回到项目主目录
# cd /root/autodl-tmp/MCP/MCP-sse-test/mcp-weather-http

uv run ./src/mcp_weather_http/client.py

• 观察HTTP流式传输服务器端运行效果
