统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_内存

文章目录

一、背景
二、说明
三、页面
四、代码

前端

MonitorServiceProcessPage.vue
MonitorServiceProcessTable.vue
MonitorServiceProcessTableButton.vue
addMonitorTask.vue
productOperation.vue
showMonitorTask.vue
MonitorSystemLog.vue
MonitorTask.vue
MonitorTaskLog.vue
RealtimeCpuMonitor.vue
RealtimeDiskMonitor.vue
RealtimeMemoryMonitor.vue
RealtimeMonitor.vue

后端

en_US.js
zh_CN.js
MonitorTaskController
IMonitorTaskService
MonitorTaskServiceImpl
MonitorTaskMapper

一、背景

二、说明

三、页面

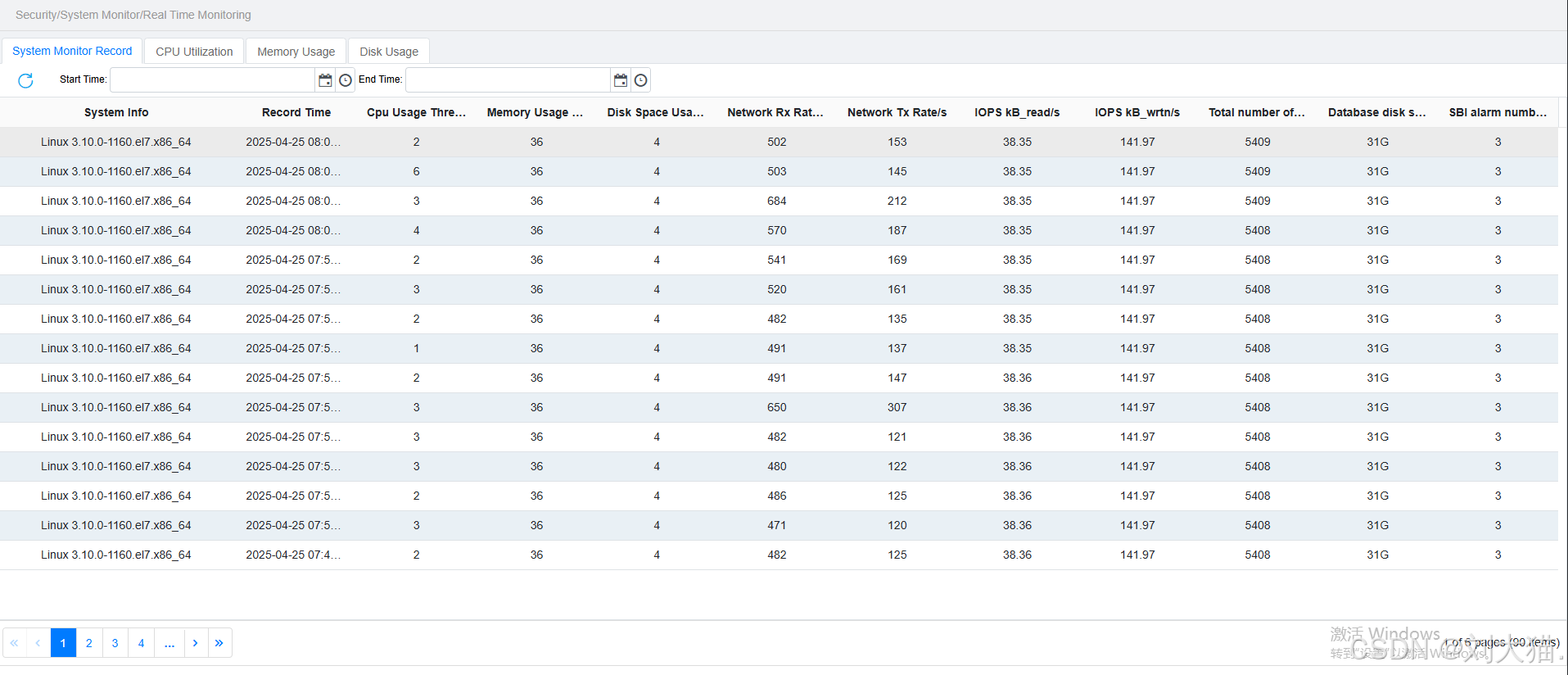

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_磁盘_02

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_网络_03

字段介绍

System Info：系统信息
Record Time：记录时间
Cpu Usage Threshold(%)：Cpu使用率阈值(%)
Memory Usage Threshold(%)：内存使用率阈值(%)
Disk Space Usage Threshold(%)：磁盘空间使用率阈值(%)
Network Rx Rate/s：网络接收数据包速率/s
Network Tx Rate/s：网络发送数据包速率/s
IOPS kB_read/s：IOPS读取数据量/s
IOPS kB_wrtn/s：IOPS写入数据量/s
Total number of stored queue operations/s：存储队列操作总数/s
Database disk space used in the file system：文件系统中数据库磁盘空间占用大小
SBI alarm number/s：南向告警数量/s

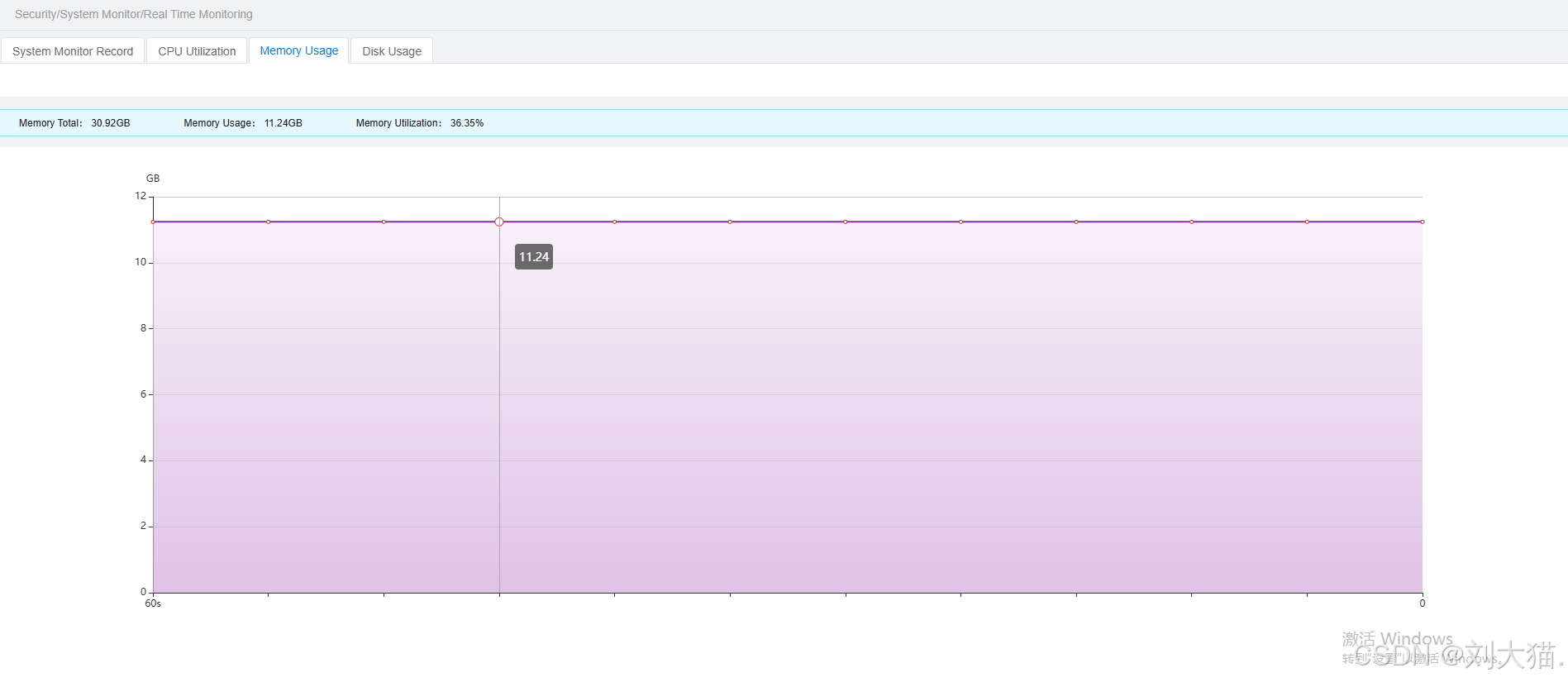

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_内存_04

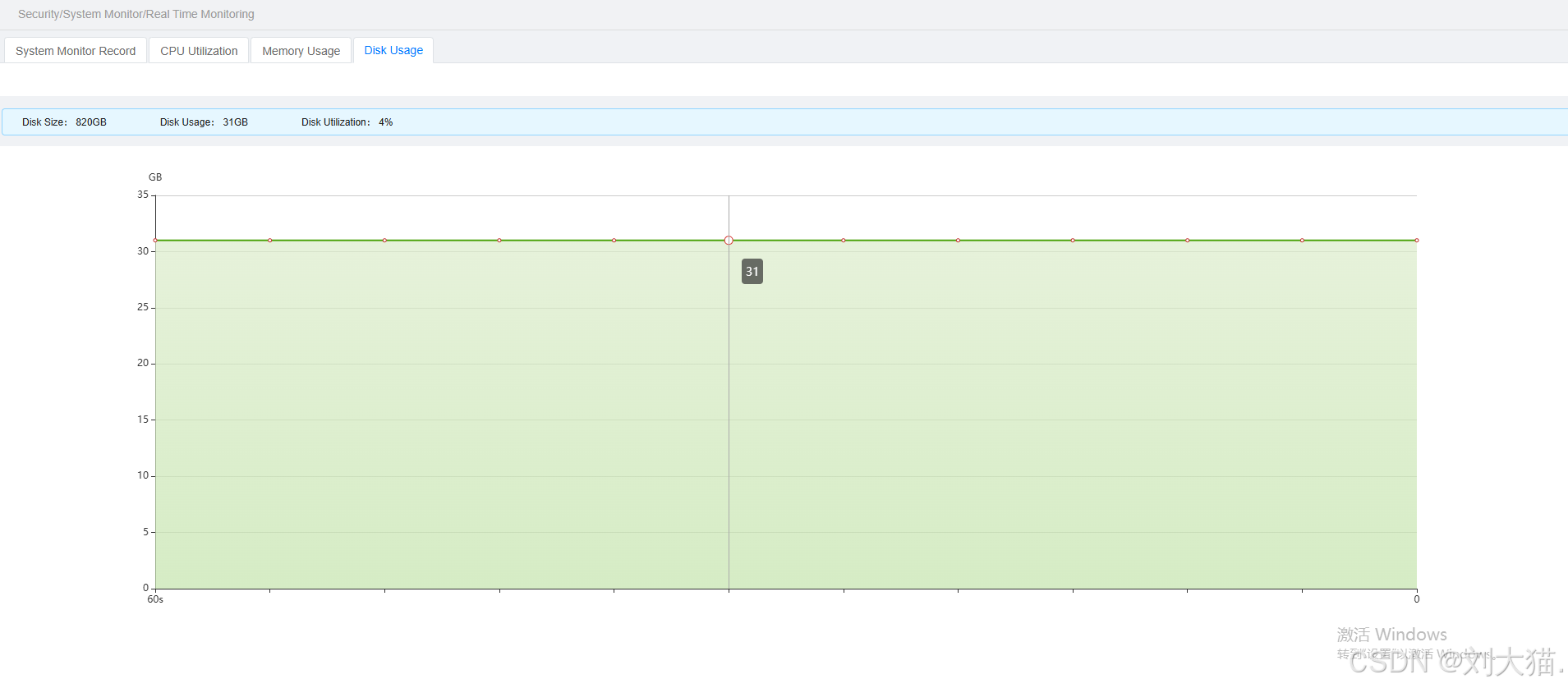

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_磁盘_05

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_内存_06

四、代码

前端

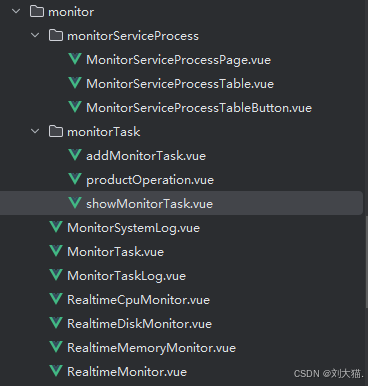

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息_内存_07

MonitorServiceProcessPage.vue

登录后复制

export default {
name: "monitorServiceProcessPage",
components:{
BasicLayout,
MonitorServiceProcessTableButton,
MonitorServiceProcessTable
},
data() {
return {
left: {
show: false,
name: ''
},
middle: {
show: false,
name: ''
},
right: {
show: true,
crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.task.monitoringServiceProcess')}`
}
};
},
methods: {
notice(type) {
switch (type) {
case 'refresh':
this.$refs.monitorServiceProcess.getMonitorServiceProcessListData();
break;
case 'doActiveTask':
this.$refs.monitorServiceProcess.doActiveTask();
break;
case 'doUnactiveTask':
this.$refs.monitorServiceProcess.doUnactiveTask();
break;
default:
}
}
}
}
</script>

</style>

MonitorServiceProcessTable.vue

登录后复制

export default {
name: "monitorServiceProcessTable",
data() {
return {
selectionOptions: { type: 'Multiple' },
dateFormatOptions: { type: 'date', format: 'yyyy-MM-dd HH:mm:ss' },
contextMenuItems: [{
text: `${this.$t('Alarm.refresh')}`
}, {
text: `${this.$t('Monitor.systemLog.startup')}`
}, {
text: `${this.$t('Monitor.systemLog.shutdown')}`
}],
page: {
pageNo: 1,
pageSize: 15,
totalCount: 3,
pageCount: 1
},
monitorServiceProcessData: [],
}
},
methods: {
formatActiveState(grids, data) {
let color = '';
switch (data.state) {
case 'down':
color = 'red';
break;
case 'up':
color = 'green';
break;
case 'exception':
color = 'orange';
break;
default:
break;
}
return `<span style='background-color:${color};font-size: 12px;display: inline-block;width: 55px;height: 22px;color: #fff;line-height: 22px;' >${data.state}</span>`;
},
getCheckedData(selectOnly) {
// false: 不支持多选 true: 支持多选
const selectedRecords = this.$refs.grid.getSelectedRecords();
if (selectedRecords.length < 1) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Alarm.no_checked')});
return false;
}
if (selectedRecords.length > 1 && !selectOnly) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});
return false;
}
return selectedRecords;
},
getCheckedVals() {
const ids = [];
const checkedData = this.getCheckedData(true);
for (let i = 0; i < checkedData.length; i++) {
ids.push(checkedData[i].id);
}
return ids;
},
//批量查询
getMonitorServiceProcessListData() {
console.log("******getMonitorServiceProcessListData()")
//获取表格数据
const This = this;
This.$axios.get('/lte/ems/oss/component/state', {
}).then((response) => {
if (response && response.data.errorCode === 'SUCCESS') {
const result = response.data.resultVal;
let getResult = result
getResult.forEach(item => {
if (item.description != "" || item.description != null || item.description != undefined) {
item.description = this.$t(item.description);
}
})
This.monitorServiceProcessData = getResult;
}
});
},
//启动服务
doActiveTask() {
console.log("******doActiveTask()")
const This = this;
const checkedData = This.getCheckedData(true);
const list = [];
for (let i = 0; i < checkedData.length; i++) {
list.push({state: 1, id: checkedData[i].id, activeTime: new Date()});
}
let str = This.$t('Track.activation');
if (checkedData) {
This.$layer.confirm({
title: this.$t('System.tip'),
msg: `${str}?`,
btn1: {
msg: this.$t('Alarm.cancel')
},
btn2: {
msg: this.$t('Alarm.confirm'),
func: () => {
This.$axios.post('/lte/ems/oss/component/updateMonitorServiceProcess', {list: list}).then((response) => {
if (response && response.data.errorCode === 'SUCCESS') {
EventBus.$emit('toast', {type: 'success', content: this.$t('Alarm.success')});
} else if (response && response.data.errorCode === '1001') {
EventBus.$emit('toast', {type: 'error', content: this.$t(response.data.errorString)});
} else if (response && response.data.errorCode === '16002') {
EventBus.$emit('toast', {type: 'error', content: this.$t('ErrorCode.16002')});
} else {
EventBus.$emit('toast', {type: 'error', content: this.$t('Alarm.error')});
}
This.getMonitorServiceProcessListData();
});
}
}
});
}
},
//挂起服务
doUnactiveTask() {
console.log("******doUnactiveTask()")
const This = this;
const checkedData = This.getCheckedData(true);
const list = [];
for (let i = 0; i < checkedData.length; i++) {
list.push({state: 0, id: checkedData[i].id, unactiveTime: new Date()});
}
let str = This.$t('Track.hangup');
if (checkedData) {
This.$layer.confirm({
title: this.$t('System.tip'),
msg: `${str}?`,
btn1: {
msg: this.$t('Alarm.cancel')
},
btn2: {
msg: this.$t('Alarm.confirm'),
func: () => {
This.$axios.post('/lte/ems/oss/component/updateMonitorServiceProcess', {list: list}).then((response) => {
if (response && response.data.errorCode === 'SUCCESS') {
EventBus.$emit('toast', {type: 'success', content: this.$t('Alarm.success')});
} else if (response && response.data.errorCode === '1002') {
EventBus.$emit('toast', {type: 'error', content: this.$t(response.data.errorString)});
} else if (response && response.data.errorCode === '16001') {
EventBus.$emit('toast', {type: 'error', content: this.$t('ErrorCode.16001')});
} else {
EventBus.$emit('toast', {type: 'error', content: this.$t('Alarm.error')});
}
This.getMonitorServiceProcessListData();
});
}
}
});
}
},
menuBeforeOpenFunc(menuArgs) { // 屏蔽表头的右键事件
if (!menuArgs.rowInfo.rowIndex && menuArgs.rowInfo.rowIndex !== 0) {
menuArgs.cancel = true;
}
const childList = menuArgs.element.querySelectorAll('li.e-menu-item');
if (this.getCheckedData(true).length > 1) {
childList[2].style.display = 'none';
} else {
childList[2].style.display = 'block';
}
},
menuClickFunc(menuArgs) { // 为右键分配事件
console.log("******menuArgs:", menuArgs)
switch (menuArgs.element.innerText) {
case `${this.$t('Alarm.refresh')}`:
this.getMonitorServiceProcessListData();
break;
case `${this.$t('Monitor.systemLog.startup')}`:
this.doActiveTask();
break;
case `${this.$t('Monitor.systemLog.shutdown')}`:
this.doUnactiveTask();
break;
default:
}
}
},
mounted() {
this.getMonitorServiceProcessListData();
}
}
</script>

</style>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.

MonitorServiceProcessTableButton.vue

登录后复制

</style>

addMonitorTask.vue

登录后复制

<template>
<div id="addReportTaskContainer">
<form id="monitorTaskForm">
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.taskName')}}:</div>
<input name="taskName" :placeholder="$t('Monitor.task.taskName')" v-model="monitorTask.taskName"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox" style="display: none">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.product')}}:</div>
<ejs-dropdownlist :dataSource="productList" v-model="monitorTask.product" name="product"
:fields="fieldsFormat" @change="productChange" ></ejs-dropdownlist>
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.diskSpaceThreshold')}}:</div>
<input name="spaceThreshold" :placeholder="$t('Monitor.record.diskSpaceThreshold')" v-model="monitorThresholdPo.spaceThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
</div>
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.cpuThreshold')}}:</div>
<input name="cpuThreshold" :placeholder="$t('Monitor.record.cpuThreshold')" v-model="monitorThresholdPo.cpuThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.memoryThreshold')}}:</div>
<input name="memoryThreshold" :placeholder="$t('Monitor.record.memoryThreshold')" v-model="monitorThresholdPo.memoryThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
</div>
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleStart')}}:</div>
<ejs-datetimepicker :format="dateFormat" v-model="monitorTask.sampleStart" ref="startTime" name="sampleStart"
class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datetimepicker>
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleEnd')}}:</div>
<ejs-datetimepicker :format="dateFormat" v-model="monitorTask.sampleEnd" ref="endTime" name="sampleEnd"
class="e-input" :allowEdit="false" :min="monitorTask.sampleStart" @keydown.native="stopEvent" :locale="locale"></ejs-datetimepicker>
<div class="error"></div>
</div>
</div>
</div>
</div>
</form>
</div>
</template>

export default {
name: 'AddReportTask',
mixins: [mixin],
displayFlag : 'none',
props: {
baseType: Number,
},
components: {
},
data() {
return {
formValidator: '',
dateFormat: "yyyy-MM-dd HH:mm:ss",
locale: localStorage.getItem('locale'),
currentDay: new Date(),
productList: [],
monitorTask: {
taskName: '',
product: 'PLATFORM',
sampleStart: '',
sampleEnd: '',
},
monitorThresholdPo: {
cpuThreshold: '',
memoryThreshold: '',
spaceThreshold: '',
},
fieldsFormat: {
text: "text",
value: "value"
},
formatList: [
{ text: "csv", value: "csv" },
{ text: "excel", value: "excel" },
],
validateOptions: {
customPlacement: function(inputElement, errorElement) {
console.log("******validateOptions-inputElement:", inputElement)
console.log("******validateOptions-errorElement:", errorElement)

inputElement = inputElement.closest('.form-group').querySelector('.error');
inputElement.parentElement.appendChild(errorElement);
},
rules: {
'taskName': {
required: [true, `${this.$t('Monitor.placeholder.taskName')}`],
},
// 'product': {
// required: [true, `${this.$t('Monitor.placeholder.product')}`],
// },
'cpuThreshold': {
number: [true, this.$t('MCS.insertNum')],
max: [100, this.$t('System.input1t100')],
},
'spaceThreshold': {
number: [true, this.$t('MCS.insertNum')],
max: [100, this.$t('System.input1t100')],
},
'memoryThreshold': {
number: [true, this.$t('MCS.insertNum')],
max: [100, this.$t('System.input1t100')],
},
'sampleStart': {
required: [true, `${this.$t('Monitor.placeholder.sampleStart')}`],
},
'sampleEnd': {
required: [true, `${this.$t('Monitor.placeholder.sampleEnd')}`],
},
}
}
}
},
methods: {
init(){
this.getProductList();
this.formValidator = new FormValidator('#monitorTaskForm', this.validateOptions);
},
getProductList() {
this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {
let resultVal = response.data.resultVal;
resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));
for (let i = 0; i < resultVal.length; i++) {
this.productList.push({
text: resultVal[i],
value: resultVal[i],
});
}
});
},
productChange() {
this.monitorTask.product = msg.value;
},
getMonitorTask() {
return {
monitorTask: {
taskName: this.monitorTask.taskName,
product: this.monitorTask.product,
sampleStart: (new Date(this.monitorTask.sampleStart)).getTime(),
sampleEnd: (new Date(this.monitorTask.sampleEnd)).getTime(),
},
monitorThresholdPo: {
cpuThreshold: this.monitorThresholdPo.cpuThreshold,
memoryThreshold: this.monitorThresholdPo.memoryThreshold,
spaceThreshold: this.monitorThresholdPo.spaceThreshold,
},
}
},
validation() {
let status = this.formValidator.validate();
return status;
},
stopEvent(event) {
if (event.keyCode == 13) {
event.cancelBubble = true;
event.returnValue = false;
return false;
}
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.

productOperation.vue

登录后复制

<template>
<div>
<div class="h-toolbarBg">
<ejs-toolbar :items="toolbarItems"></ejs-toolbar>
</div>
<div class="h100-80 h-scroll">
<ejs-grid :dataSource="monitorTaskLogData" :allowPaging="true" ref="grid" :allowExcelExport='true' >
<e-columns>
<!– <e-column type="checkbox" width="50" textAlign="center"></e-column> –>
<e-column field="code" :visible="false"></e-column>
<e-column field="name" :headerText="$t('Monitor.record.product')" width="120" textAlign="Center"></e-column>
</e-columns>
</ejs-grid>
</div>
</div>
</template>
<script>
import BasicLayout from '../../../layouts/BasicLayout';
import { EventBus } from '../../../plugins/eventBus';

export default {
name: 'monitorSystemLog',
components: {
BasicLayout,
},
data() {
return {
toolbarItems: [
{ prefixIcon: 'icon hero-icon hero-icon-confirm', tooltipText: this.$t('Monitor.systemLog.startup'), click: this.startup },
{ prefixIcon: 'icon hero-icon hero-icon-disable', tooltipText: this.$t('Monitor.systemLog.shutdown'), click: this.shutdown },
],
monitorTaskLogData: [],
product: '',
productList: [],
};
},
mounted() {
let That = this;
},
methods: {
getproductList() {
const url = '/lte/ems/sys/monitor/log/getProducts';
const That = this;
this.axios.get(url).then(response => {
let productList = response.data.filter(item => !item.name.includes('ems_5gc') && !item.name.includes('ems_gnb') && !item.name.includes('ems_tr069'));
That.monitorTaskLogData = productList;
});
},
startup() {
const record = this.getRecord();
debugger
if (record.length === 0) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.selectOne')});
return null;
}
if (record.length !== 1) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});
return null;
}
const url = '/lte/ems/sys/monitor/log/startShell?code=' + record[0].code;
this.axios.get(url).then(response => {
const result = response.data;
if(result) {
EventBus.$emit('toast', {type: 'success', content: this.$t('Monitor.systemLog.startupSuccess')});
} else {
EventBus.$emit('toast', {type: 'error', content: this.$t('Monitor.systemLog.startupFail')});
}
});
},
shutdown() {
const record = this.getRecord();
debugger
if (record.length === 0) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.selectOne')});
return null;
}
if (record.length !== 1) {
EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});
return null;
}
const url = '/lte/ems/sys/monitor/log/shutdownShell?code=' + record[0].code;
this.axios.get(url).then(response => {
const result = response.data;
if(result) {
EventBus.$emit('toast', {type: 'success', content: this.$t('Monitor.systemLog.shutdownSuccess')});
} else {
EventBus.$emit('toast', {type: 'error', content: this.$t('Monitor.systemLog.shutdownFail')});
}
});
},
getRecord() {
const result = this.$refs.grid.getSelectedRecords();
if (result === null || result === '') {
this.$parent.showToast('warning',`${this.$t('Common.tips.noSelect')}`);
return null;
}
return result;
},
},
watch: {
screenHeight(val) {
this.screenHeight = val;
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.

showMonitorTask.vue

登录后复制

<template>
<div id="addReportTaskContainer">
<form id="reportTaskForm">
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.taskName')}}:</div>
<input name="taskName" v-model="monitorTask.taskName"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox" style="display: none">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.product')}}:</div>
<input name="product" v-model="monitorTask.product" readonly="readonly"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.diskSpaceThreshold')}}:</div>
<input name="spaceThreshold" :placeholder="$t('Monitor.record.diskSpaceThreshold')" v-model="monitorThresholdPo.spaceThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
</div>
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.cpuThreshold')}}:</div>
<input name="cpuThreshold" v-model="monitorThresholdPo.cpuThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.record.memoryThreshold')}}:</div>
<input name="memoryThreshold" v-model="monitorThresholdPo.memoryThreshold"
class="e-input e-input-group" maxlength="20" />
<div class="error"></div>
</div>
</div>
</div>
</div>
<div class="row h-row-inputBox">
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleStart')}}:</div>
<ejs-datepicker :format="dateFormat" v-model="monitorTask.sampleStart" ref="startTime" name="sampleStart" readonly="readonly"
class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datepicker>
</div>
</div>
</div>
<div class="col-sm-6 h-col-inputBox">
<div class="form-group">
<div class="e-float-input">
<div class="h-inputLit"><span class="h-red-code">* </span>{{$t('Monitor.task.sampleEnd')}}:</div>
<ejs-datepicker :format="dateFormat" v-model="monitorTask.sampleEnd" ref="endTime" name="sampleEnd" readonly="readonly"
class="e-input" :allowEdit="false" @keydown.native="stopEvent" :locale="locale"></ejs-datepicker>
</div>
</div>
</div>
</div>
</form>
</div>
</template>
<script>
import { CheckBoxSelection } from '@syncfusion/ej2-vue-dropdowns';
import { FormValidator } from "@syncfusion/ej2-vue-inputs";
import mixin from '../../../mixin/mixin';

export default {
name: 'AddReportTask',
mixins: [mixin],
displayFlag : 'none',
props: {
baseType: Number,
},
components: {
},
data() {
return {
formValidator: '',
dateFormat: "yyyy-MM-dd HH:mm:ss",
locale: localStorage.getItem('locale'),
currentDay: new Date(),
monitorTask: {
taskId:'',
taskName: '',
product: '',
sampleStart: '',
sampleEnd: '',
},
monitorThresholdPo: {
cpuThreshold: '',
memoryThreshold: '',
spaceThreshold: '',
},
productList: [],
fieldsFormat: {
text: "text",
value: "value"
},
formatList: [
{ text: "csv", value: "csv" },
{ text: "excel", value: "excel" },
],
validateOptions: {
customPlacement: function(inputElement, errorElement) {
console.log("******validateOptions-inputElement:", inputElement)
console.log("******validateOptions-errorElement:", errorElement)

}
},
methods: {
init(editId){
this.monitorTask.taskId = editId
const baseUrl = '/lte/ems/sys/monitor/task/queryId';
const params = { params: {
id: editId
} };
const That = this;
this.axios.get(baseUrl, params).then(response => {
const result = response.data;
var monitorTask = result.monitorTask;
this.monitorTask.taskName = monitorTask.taskName;
this.monitorTask.product = monitorTask.product;
if(monitorTask.sampleStart != null && monitorTask.sampleStart != ''){
this.monitorTask.sampleStart = new Date(monitorTask.sampleStart).Format("yyyy-MM-dd HH:mm:ss");
}
if(monitorTask.sampleEnd != null && monitorTask.sampleEnd != ''){
this.monitorTask.sampleEnd = new Date(monitorTask.sampleEnd).Format("yyyy-MM-dd HH:mm:ss");
}
var monitorThresholdPo = result.monitorThresholdPo;
this.monitorThresholdPo.cpuThreshold = monitorThresholdPo.cpuThreshold;
this.monitorThresholdPo.memoryThreshold = monitorThresholdPo.memoryThreshold;
this.monitorThresholdPo.spaceThreshold = monitorThresholdPo.spaceThreshold;
});
this.formValidator = new FormValidator('#reportTaskForm', this.validateOptions);
},
getMonitorTask() {
return {
monitorTask: {
id:this.monitorTask.taskId,
taskName: this.monitorTask.taskName,
product: this.monitorTask.product,
sampleStart: (new Date(this.monitorTask.sampleStart)).getTime(),
sampleEnd: (new Date(this.monitorTask.sampleEnd)).getTime(),
},
monitorThresholdPo: {
cpuThreshold: this.monitorThresholdPo.cpuThreshold,
memoryThreshold: this.monitorThresholdPo.memoryThreshold,
spaceThreshold: this.monitorThresholdPo.spaceThreshold,
},
}
},
validation() {
let status = this.formValidator.validate();
return status;
},
stopEvent(event) {
if (event.keyCode == 13) {
event.cancelBubble = true;
event.returnValue = false;
return false;
}
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.
211.
212.
213.
214.
215.

MonitorSystemLog.vue

登录后复制

<div class='h-inputBox'>
{{$t('Monitor.systemLog.logType')}}:
<ejs-dropdownlist :dataSource="logTypeList" v-model="logType"
:fields="fieldsType" name="logTypeCheck" @change="logTypeChange" ></ejs-dropdownlist>
</div>
</div>
<div class="h100-80 h-scroll">
<ejs-grid :dataSource="monitorSystemLogData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' >
<e-columns>
<!– <e-column type="checkbox" width="50" textAlign="center"></e-column> –>
<e-column field="id" :visible="false"></e-column>
<e-column field="product" :headerText="$t('Monitor.systemLog.product')" width="120" textAlign="Center"></e-column>
<e-column field="systemInfo" :headerText="$t('Monitor.systemLog.systemInfo')" width="120" textAlign="Center"></e-column>
<!– <e-column field="processInfo" :headerText="$t('Monitor.systemLog.processInfo')" width="120" textAlign="Center"></e-column> –>
<e-column field="logType" :headerText="$t('Monitor.systemLog.logType')" :formatter='logTypeFormat' width="120" textAlign="Center"></e-column>
<e-column field="recordTime" :headerText="$t('Monitor.systemLog.recordTime')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="productStart" :headerText="$t('Monitor.systemLog.productStart')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="productEnd" :headerText="$t('Monitor.systemLog.productEnd')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="message" :headerText="$t('Monitor.systemLog.message')" width="120" textAlign="Center"></e-column>
</e-columns>
</ejs-grid>
<ejs-pager
ref="pager"
:pageSize="pageSettings.pageSize"
:pageCount="page.pageCount"
:currentPage="page.pageNo"
:totalRecordsCount="page.totalRecordsCount"
@click="getMonitorTaskList"
></ejs-pager>
</div>
<CustomDialog ref="productOperationDialog" v-bind:element="operatDialog.element" v-bind:styles="operatDialog.styles" >
<template v-slot:dialog-content>
<ProductOperation ref="productOperationPage"></ProductOperation>
</template>
</CustomDialog>
</template>
</BasicLayout>
</template>
<script>
import CustomDialog from "../../components/common/CustomDialog";
import BasicLayout from '../../layouts/BasicLayout';
import {ExcelExport} from '@syncfusion/ej2-vue-grids';
import ProductOperation from './monitorTask/productOperation';

export default {
name: 'monitorSystemLog',
provide: {
grid: [ExcelExport]
},
components: {
CustomDialog,
BasicLayout,
ProductOperation,
},
data() {
return {
isShow_Operation: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Operation,
isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Refresh,
monitorSystemLogData: [],
left: { show: false, name: '' },
middle: { show: false, name: '' },
right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.systemLog.titleName')}` },
toolbarItems: [
{ prefixIcon: 'icon hero-icon hero-icon-business-operation', tooltipText: this.$t('Monitor.systemLog.operation'), click: this.operationShow },
{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },
],
product: '',
logType: '',
productList: [],
logTypeList: [
{ text: `${this.$t('MCS.all')}`, value: "" },
{ text: `${this.$t('Monitor.systemLog.run')}`, value: "run" },
{ text: `${this.$t('Monitor.systemLog.start')}`, value: "start" },
],
pageSettings: { pageSize: 15 },
page: {
pageCount: 4,
totalRecordsCount: 0,
pageNo: 1,
},
dateFormat: {
type: 'date', format: 'yyyy-MM-dd HH:mm:ss'
},
fieldsType: {
text: "text",
value: "value"
},
addStatus: true,
operatDialog: {
element: {
target: '#app',
isClose: true,
refName: 'productOperationDialog',
buttonGroup: [
{
click: this.dialogHide,
buttonModel: { content: `${this.$t('Common.close')}` }
},
],
title: `${this.$t('Monitor.systemLog.operation')}`
},
styles: {
width: '500px',
height: '500px',
model: true,
visible: false
}
},
screenHeight: document.body.clientHeight – 240
};
},
mounted() {
this.getMonitorTaskList();
this.getProductList();
let That = this;
},
methods: {
logTypeFormat(grids, data) {
if(data.logType == 'run'){
return `${this.$t('Monitor.systemLog.run')}`;
}else if(data.logType == 'start'){
return `${this.$t('Monitor.systemLog.start')}`;
}
},
getMonitorTaskList() {
const url = '/lte/ems/sys/monitor/log/queryMonitorSysLog';
this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;
const params = { params: {
product: this.product,
logType: this.logType,
pageNo: this.page.pageNo,
pageSize: this.pageSettings.pageSize
} };
const That = this;
this.axios.get(url, params).then(response => {
const result = response.data.result;
result.forEach((v) => {
if (!!v.recordTime) {
let date = new Date();
date.setTime(v.recordTime);
v.recordTime = date;
}
if (!!v.productStart) {
let date = new Date();
date.setTime(v.productStart);
v.productStart = date;
}
if (!!v.productEnd) {
let date = new Date();
date.setTime(v.productEnd);
v.productEnd = date;
}
// if (v.logType =='start' && v.status == '0') {
// v.productEnd = null;
// }
});
That.monitorSystemLogData = result;
That.page.totalRecordsCount = response.data.totalCount;
});
},
productChange(msg){
this.product = msg.value;
this.getMonitorTaskList();
},
operationShow() {
this.$refs.productOperationPage.getproductList();
this.$refs.productOperationDialog.show();
},
logTypeChange(msg){
this.logType = msg.value;
this.getMonitorTaskList();
},
getProductList() {
this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {
let resultVal = response.data.resultVal;
resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));
this.productList.push({ text: `${this.$t('MCS.all')}`, value: "" });
for (let i = 0; i < resultVal.length; i++) {
this.productList.push({
text: resultVal[i],
value: resultVal[i],
});
}
});
},

dialogHide() {
this.$refs.productOperationDialog.clear();
this.$refs.productOperationDialog.close();
},
filterMonitorTask() {
this.getMonitorTaskList();
},
refreshGrid() {
this.product='';
this.logType='';
this.getMonitorTaskList();
},
},
watch: {
screenHeight(val) {
this.screenHeight = val;
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.
211.
212.
213.
214.
215.
216.
217.
218.
219.
220.
221.
222.
223.
224.
225.

MonitorTask.vue

登录后复制

<template>
<BasicLayout :left="left" :middle="middle" :right="right">
<template v-slot:right_view>
<div class="h-toolbarBg">
<!– <ejs-toolbar :items="toolbarItems"> –>
<ejs-toolbar>
<e-items>
<e-item v-if='isShow_Add' prefixIcon='icon hero-icon hero-icon-add' :tooltipText="$t('Security.add')" :click="showAddDialog"></e-item>
<e-item v-if='isShow_Start' prefixIcon='icon hero-icon hero-icon-start-up' :tooltipText="$t('Pm.startUp')" :click="activeMonitorTask"></e-item>
<e-item v-if='isShow_Pause' prefixIcon='icon hero-icon hero-icon-disable' :tooltipText="$t('System.deactiveTask')" :click="deactiveMonitorTask"></e-item>
<e-item v-if='isShow_Modify' prefixIcon='icon hero-icon hero-icon-edit' :tooltipText="$t('Track.detail')" :click="showEditDialog"></e-item>
<e-item v-if='isShow_Delete' prefixIcon='icon hero-icon hero-icon-remove' :tooltipText="$t('Security.delete')" :click="deleteMonitorTask"></e-item>
<e-item v-if='isShow_Refresh' prefixIcon='icon hero-icon hero-icon-refresh' :tooltipText="$t('Alarm.refresh')" :click="refreshGrid"></e-item>
</e-items>
</ejs-toolbar>
<div class='h-inputBox'>
<ejs-textbox v-model='keyword' :placeholder='$t("Monitor.task.taskName")' @keyup.enter.native="filterMonitorTask" maxLength='20'></ejs-textbox>
</div>
</div>
<div class="h100-80 h-scroll">
<ejs-grid :dataSource="monitorTaskData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' >
<e-columns>
<e-column type="checkbox" width="50" textAlign="center"></e-column>
<e-column field="id" :visible="false"></e-column>
<e-column field="taskName" :headerText="$t('Monitor.task.taskName')" width="120" textAlign="Center"></e-column>
<!–<e-column field="product" :headerText="$t('Monitor.task.product')" width="120" textAlign="Center"></e-column>–>
<e-column field="sampleStart" :headerText="$t('Monitor.task.sampleStart')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="sampleEnd" :headerText="$t('Monitor.task.sampleEnd')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="exeState" :headerText="$t('Monitor.task.exeState')" :formatter='exeStateFormat' width="120" textAlign="Center"></e-column>
</e-columns>
</ejs-grid>
<ejs-pager
ref="pager"
:pageSize="pageSettings.pageSize"
:pageCount="page.pageCount"
:currentPage="page.pageNo"
:totalRecordsCount="page.totalRecordsCount"
@click="getMonitorTaskList"
></ejs-pager>
</div>
<CustomDialog ref="addMonitorTaskDialog" v-bind:element="addDialog.element" v-bind:styles="addDialog.styles" >
<template v-slot:dialog-content>
<AddMonitorTask ref="addMonitorTaskPage"></AddMonitorTask>
</template>
</CustomDialog>
<CustomDialog ref="showMonitorTaskDialog" v-bind:element="editDialog.element" v-bind:styles="editDialog.styles" >
<template v-slot:dialog-content>
<ShowMonitorTask ref="showMonitorTaskPage"></ShowMonitorTask>
</template>
</CustomDialog>
</template>
</BasicLayout>
</template>
<script>
import CustomDialog from "../../components/common/CustomDialog";
import BasicLayout from '../../layouts/BasicLayout';
import AddMonitorTask from './monitorTask/addMonitorTask';
import ShowMonitorTask from './monitorTask/showMonitorTask';
import {ExcelExport} from '@syncfusion/ej2-vue-grids';
import {EventBus} from "../../plugins/eventBus";

export default {
name: 'monitorTask',
provide: {
grid: [ExcelExport]
},
components: {
CustomDialog,
BasicLayout,
AddMonitorTask,
ShowMonitorTask,
},
data() {
return {
isShow_Add: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Add,
isShow_Start: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Start,
isShow_Pause: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Pause,
isShow_Modify: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Modify,
isShow_Delete: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Delete,
isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_task.Refresh,
monitorTaskData: [],
left: { show: false, name: '' },
middle: { show: false, name: '' },
right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.task.titleName')}` },
toolbarItems: [
{ prefixIcon: 'icon hero-icon hero-icon-add', tooltipText: this.$t('Security.add'), click: this.showAddDialog },
{ prefixIcon: 'icon hero-icon hero-icon-start-up', tooltipText: this.$t('Pm.startUp'), click: this.activeMonitorTask },
{ prefixIcon: 'icon hero-icon hero-icon-disable', tooltipText: this.$t('System.deactiveTask'), click: this.deactiveMonitorTask },
{ prefixIcon: 'icon hero-icon hero-icon-edit', tooltipText: this.$t('Track.detail'), click: this.showEditDialog },
{ prefixIcon: 'icon hero-icon hero-icon-remove', tooltipText: this.$t('Security.delete'), click: this.deleteMonitorTask },
{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },
],
keyword: '',
pageSettings: { pageSize: 15 },
page: {
pageCount: 4,
totalRecordsCount: 0,
pageNo: 1,
},
dateFormat: {
type: 'date', format: 'yyyy-MM-dd HH:mm:ss'
},
addStatus: true,
addDialog: {
element: {
target: '#app',
isClose: true,
refName: 'addMonitorTaskDialog',
buttonGroup: [
{
click: this.dialogHide,
buttonModel: { content: `${this.$t('Common.cancel')}` }
},
{
click: this.addMonitorTask,
buttonModel: { content: `${this.$t('Common.ok')}`, cssClass: 'primary-btn' }
}
],
title: `${this.$t('Pm.addMonitorTask')}`
},
styles: {
width: '860px',
height: '700px',
model: true,
visible: false
}
},
editDialog: {
element: {
target: '#app',
isClose: true,
refName: 'showMonitorTaskDialog',
buttonGroup: [
{
click: this.modiyMonitorTask,
buttonModel: {content: `${this.$t('Common.ok')}`, cssClass: 'primary-btn' }
},

{
click: this.dialogHide,
buttonModel: { content: `${this.$t('Common.close')}` }
},
],
title: `${this.$t('Pm.updateMonitorTask')}`
},
styles: {
width: '860px',
height: '700px',
model: true,
visible: false
}
},
screenHeight: document.body.clientHeight – 240
};
},
mounted() {
this.getMonitorTaskList();
let That = this;
},
methods: {
exeStateFormat(grids, data) {
if(data.exeState == 0){
return `${this.$t('Monitor.task.notStarted')}`;
}else if(data.exeState == 1){
return `${this.$t('Monitor.task.inUse')}`;
}else if(data.exeState == 2){
return `${this.$t('Monitor.task.exeFinish')}`;
}else if(data.exeState == 3){
return `${this.$t('System.deactiveTask')}`;
}
},
getMonitorTaskList() {
const url = '/lte/ems/sys/monitor/task/query';
this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;
const params = { params: {
taskName: this.keyword,
pageNo: this.page.pageNo,
pageSize: this.pageSettings.pageSize
} };
const That = this;
this.axios.get(url, params).then(response => {
const result = response.data.result;
result.forEach((v) => {
if (!!v.sampleStart) {
let date = new Date();
date.setTime(v.sampleStart);
v.sampleStart = date;
}
if (!!v.sampleEnd) {
let date = new Date();
date.setTime(v.sampleEnd);
v.sampleEnd = date;
}
});
That.monitorTaskData = result;
That.page.totalRecordsCount = response.data.totalCount;
});
},
filterMonitorTask() {
this.getMonitorTaskList();
},
getRecord() {
const result = this.$refs.grid.getSelectedRecords();
if (result === null || result === '') {
this.$parent.showToast('warning',`${this.$t('Common.tips.noSelect')}`);
return null;
}
return result;
},
showAddDialog() {
this.$refs.addMonitorTaskPage.init();
this.$refs.addMonitorTaskDialog.show();
},
showEditDialog() {
const record = this.getRecord();
if (record.length === 0) {
this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);
return null;
}
if (record.length !== 1) {
this.$parent.showToast('warning',`${this.$t('Common.tips.onlyOneSelect')}`);
return null;
}
for(let i=0; i<record.length; i++){
if(1== record[i].exeState){
this.$parent.showToast('warning',`${this.$t('Monitor.task.activeMonitor')}`);
return null;
}
}
this.editId = record[0].id;
this.$refs.showMonitorTaskPage.init(this.editId);
this.$refs.showMonitorTaskDialog.show();
},
activeMonitorTask() {
const url = "/lte/ems/sys/monitor/task/active";
let record = this.getRecord();
if (record == null) {
return null;
}
if (record.length === 0) {
this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);
return null;
} else if (record.length > 1) {
EventBus.$emit('toast', { type: 'warning', content: this.$t('DeployManagement.pleaseSelectOneData') });
return false;
}
for(let i=0; i<record.length; i++){
if(3 !== record[i].exeState){
this.$parent.showToast('warning',`${this.$t('Monitor.task.activeMonitor')}`);
return null;
}
}

for(let i=0; i<this.monitorTaskData.length; i++){
if(1 == this.monitorTaskData[i].exeState){
this.$parent.showToast('warning',`${this.$t('Monitor.task.oneActiveMonitor')}`);
return null;
}
}
let That = this;
const params = [];
record.forEach((r, i) => {
params.push(r.id);
});
var currentDate = new Date();
if (currentDate > record[0].sampleEnd) {
That.$parent.showToast('error', `${this.$t('Common.tips.taskExpired')}`);
return null;
}
this.axios.post(url, params).then(response => {
const result = response.data;
if(result){
That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);
That.getMonitorTaskList();
}else{
That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);
}
});
},
deactiveMonitorTask() {
const url = "/lte/ems/sys/monitor/task/deactive";
let record = this.getRecord();
if (record == null) {
return null;
}
if (record.length === 0) {
this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);
return null;
}
for(let i=0; i<record.length; i++){
if(1 !== record[i].exeState){
this.$parent.showToast('warning',`${this.$t('Monitor.task.deactiveMonitor')}`);
return null;
}
}
let That = this;
const params = [];
record.forEach((r, i) => {
params.push(r.id);
});
this.axios.post(url, params).then(response => {
const result = response.data;
if(result){
That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);
That.getMonitorTaskList();
}else{
That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);
}
});
},
deleteMonitorTask() {
const record = this.getRecord();
if (record.length === 0) {
this.$parent.showToast('warning',`${this.$t('Common.tips.selectOne')}`);
return null;
}
for(let i=0; i<record.length; i++){
if(1 === record[i].exeState){
this.$parent.showToast('warning',`${this.$t('Monitor.task.deleteMonitor')}`);
return null;
}
}
const url = '/lte/ems/sys/monitor/task/delete';
const params = [];
record.forEach((r, i) => {
params.push(r.id);
});
let That = this;
this.$layer.confirm({
msg: `${this.$t('Common.tips.confirmTip')}`,
btn1: {
msg: `${this.$t('Common.cancel')}`
},
btn2: {
msg: `${this.$t('Common.ok')}`,
func: () => {
That.axios.post(url, params).then(response => {
if (response.data) {
That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);
That.getMonitorTaskList();
} else {
That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);
}
});
}
}
});
},
addMonitorTask() {
let status = this.$refs.addMonitorTaskPage.validation();
if(!status){
return;
}
const url = '/lte/ems/sys/monitor/task/add';
const monitorTaskPo = this.$refs.addMonitorTaskPage.getMonitorTask();
console.log("******addMonitorTask-monitorTaskPo:", monitorTaskPo)

if(monitorTaskPo == null) {
return;
}
let That = this;
this.axios.post(url, monitorTaskPo).then(response => {
const result = response.data;
if(result==true) {
That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);
That.getMonitorTaskList();
That.$refs.addMonitorTaskDialog.clear();
That.$refs.addMonitorTaskDialog.close();
} else if (result==false){
That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);
}else {
That.$parent.showToast('error', `${this.$t('Security.failureMessage')}`);
}
});
},
modiyMonitorTask() {
let status = this.$refs.showMonitorTaskPage.validation();
if(!status){
return;
}
const url = '/lte/ems/sys/monitor/task/modify';
const monitorTaskPo = this.$refs.showMonitorTaskPage.getMonitorTask();
console.log("******modiyMonitorTask-monitorTaskPo:", monitorTaskPo)

if(monitorTaskPo == null) {
return;
}
let That = this;
this.axios.post(url, monitorTaskPo).then(response => {
const result = response.data;
if(result) {
That.$parent.showToast('success', `${this.$t('Common.tips.success')}`);
That.getMonitorTaskList();
That.$refs.showMonitorTaskDialog.clear();
That.$refs.showMonitorTaskDialog.close();
} else {
That.$parent.showToast('error', `${this.$t('Common.tips.failure')}`);
}
});
},
dialogHide() {
this.$refs.addMonitorTaskDialog.clear();
this.$refs.addMonitorTaskDialog.close();
this.$refs.showMonitorTaskDialog.clear();
this.$refs.showMonitorTaskDialog.clear();
},
refreshGrid() {
this.keyword='';
this.getMonitorTaskList();
},
getCheckedData(selectOnly) {
// false: 不支持多选 true: 支持多选
const selectedRecords = this.$refs.grid.getSelectedRecords();
if (selectedRecords.length < 1) {
// EventBus.$emit('toast', {type: 'warning', content: this.$t('Alarm.no_checked')});
this.$parent.showToast('warning',`${this.$t('Alarm.no_checked')}`);

return false;
}
if (selectedRecords.length > 1 && !selectOnly) {
// EventBus.$emit('toast', {type: 'warning', content: this.$t('Common.tips.onlyOneSelect')});
this.$parent.showToast('warning',`${this.$t('Common.tips.onlyOneSelect')}`);
return false;
}
return selectedRecords;
},
},
watch: {
screenHeight(val) {
this.screenHeight = val;
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.
211.
212.
213.
214.
215.
216.
217.
218.
219.
220.
221.
222.
223.
224.
225.
226.
227.
228.
229.
230.
231.
232.
233.
234.
235.
236.
237.
238.
239.
240.
241.
242.
243.
244.
245.
246.
247.
248.
249.
250.
251.
252.
253.
254.
255.
256.
257.
258.
259.
260.
261.
262.
263.
264.
265.
266.
267.
268.
269.
270.
271.
272.
273.
274.
275.
276.
277.
278.
279.
280.
281.
282.
283.
284.
285.
286.
287.
288.
289.
290.
291.
292.
293.
294.
295.
296.
297.
298.
299.
300.
301.
302.
303.
304.
305.
306.
307.
308.
309.
310.
311.
312.
313.
314.
315.
316.
317.
318.
319.
320.
321.
322.
323.
324.
325.
326.
327.
328.
329.
330.
331.
332.
333.
334.
335.
336.
337.
338.
339.
340.
341.
342.
343.
344.
345.
346.
347.
348.
349.
350.
351.
352.
353.
354.
355.
356.
357.
358.
359.
360.
361.
362.
363.
364.
365.
366.
367.
368.
369.
370.
371.
372.
373.
374.
375.
376.
377.
378.
379.
380.
381.
382.
383.
384.
385.
386.
387.
388.
389.
390.
391.
392.
393.
394.
395.
396.
397.
398.
399.
400.
401.
402.
403.
404.
405.
406.
407.
408.
409.
410.
411.
412.
413.
414.
415.
416.
417.
418.
419.
420.
421.
422.
423.
424.
425.
426.
427.
428.
429.
430.
431.
432.
433.
434.

MonitorTaskLog.vue

登录后复制

<template>
<div class="h100vh-140">
<div class="h-toolbarBg">
<ejs-toolbar :items="toolbarItems">
<!– <ejs-toolbar>
<e-items>
<e-item prefixIcon='icon hero-icon hero-icon-refresh' tooltipText="$t('Alarm.refresh')" :click="refreshGrid"></e-item>
</e-items> –>
</ejs-toolbar>
<!–<div class='h-inputBox'>–>
<!– <ejs-dropdownlist :dataSource="productList" v-model="product"–>
<!– :fields="fieldsType" name="productCheck" @change="productChange" ></ejs-dropdownlist>–>
<!–</div>–>
<div class="h-inputBox">
{{$t('Monitor.task.sampleStart')}}:
<ejs-datetimepicker ref="dataStart" class="e-input e-disabled e-input-group" name="StartDate"
:format="dateFormat.format" v-model="monitorTask.sampleStart" :locale="locale" @change="getMonitorTaskList" ></ejs-datetimepicker>

{{$t('Monitor.task.sampleEnd')}}:
<ejs-datetimepicker ref="dataEnd" class="e-input e-disabled e-input-group" name="EndDate"
:format="dateFormat.format" v-model="monitorTask.sampleEnd" :locale="locale" @change="getMonitorTaskList"></ejs-datetimepicker>
</div>
</div>
<div class="h100-80 h-scroll">
<ejs-grid :dataSource="monitorTaskLogData" :allowPaging="true" ref="grid" :pageSettings="pageSettings" :height="screenHeight" :allowExcelExport='true' >
<e-columns>
<!– <e-column type="checkbox" width="50" textAlign="center"></e-column> –>
<e-column field="id" :visible="false"></e-column>
<!–<e-column field="product" :headerText="$t('Monitor.record.product')" width="120" textAlign="Center"></e-column>–>
<e-column field="systemInfo" :headerText="$t('Monitor.record.systemInfo')" width="240" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<!– <e-column field="taskId" :headerText="$t('Monitor.record.taskId')" width="120" textAlign="Center"></e-column> –>
<e-column field="recoreTime" :headerText="$t('Monitor.record.recoreTime')" :format="dateFormat" width="120" textAlign="Center" clipMode="EllipsisWithTooltip"></e-column>
<e-column field="cpu" :headerText="$t('Monitor.record.cpu')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="cpuThreshold" :visible="false" :headerText="$t('Monitor.record.cpuThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="memory" :headerText="$t('Monitor.record.memory')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="memoryThreshold" :visible="false" :headerText="$t('Monitor.record.memoryThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="space" :headerText="$t('Monitor.record.diskSpace')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="spaceThreshold" :visible="false" :headerText="$t('Monitor.record.diskSpaceThreshold')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="networkRxRate" :headerText="$t('Monitor.record.networkRxRate')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="networkTxRate" :headerText="$t('Monitor.record.networkTxRate')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="iopsKbRead" :headerText="$t('Monitor.record.IOPSKbRead')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="iopsKbWrite" :headerText="$t('Monitor.record.IOPSKbWrite')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="queueOperands" :headerText="$t('Monitor.record.queueOperands')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="databaseDiskSpaceIsUsed" :headerText="$t('Monitor.record.databaseDiskSpaceIsUsed')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
<e-column field="snmpAlarmDataSize" :headerText="$t('Monitor.record.snmpAlarmDataSize')" width="120" textAlign="Center" clipMode='EllipsisWithTooltip'></e-column>
</e-columns>
</ejs-grid>
<ejs-pager
ref="pager"
:pageSize="pageSettings.pageSize"
:pageCount="page.pageCount"
:currentPage="page.pageNo"
:totalRecordsCount="page.totalRecordsCount"
@click="getMonitorTaskList"
></ejs-pager>
</div>
</div>
</template>
<script>
import {ExcelExport} from '@syncfusion/ej2-vue-grids';

export default {
name: 'monitorSystemLog',
provide: {
grid: [ExcelExport]
},
components: {
},
data() {
return {
isShow_Refresh: JSON.parse(sessionStorage.getItem('authMap')).monitor_system_log.Refresh,
monitorTaskLogData: [],
left: { show: false, name: '' },
middle: { show: false, name: '' },
right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.record.titleName')}` },
toolbarItems: [
{ prefixIcon: 'icon hero-icon hero-icon-refresh', tooltipText: this.$t('Alarm.refresh'), click: this.refreshGrid },
],
locale: localStorage.getItem('locale'),
product: '',
productList: [],
pageSettings: { pageSize: 15 },
page: {
pageCount: 4,
totalRecordsCount: 0,
pageNo: 1,
},
monitorTask: {
taskName: '',
product: 'PLATFORM',
sampleStart: '',
sampleEnd: '',
},
dateFormat: {
type: 'date', format: 'yyyy-MM-dd HH:mm:ss'
},
fieldsType: {
text: "text",
value: "value"
},
addStatus: true,
screenHeight: document.body.clientHeight – 240
};
},
mounted() {
this.getMonitorTaskList();
this.getProductList();
let That = this;
},
methods: {
typeFormat(grids, data) {
if(data.exeCycle == 'run'){
return `${this.$t('Monitor.record.run')}`;
}else if(data.exeCycle == 'start'){
return `${this.$t('Monitor.record.start')}`;
}
},
getMonitorTaskList() {
const url = '/lte/ems/sys/monitor/log/queryMonitorTaskLog';
this.page.pageNo = this.$refs.pager.ej2Instances.currentPage;
const params = { params: {
product: this.product,
pageNo: this.page.pageNo,
pageSize: this.pageSettings.pageSize,
startTime:this.monitorTask.sampleStart=='' ? '' : Date.parse(this.monitorTask.sampleStart),
endTime:this.monitorTask.sampleEnd=='' ? '' : Date.parse(this.monitorTask.sampleEnd)
} };
const That = this;
this.axios.get(url, params).then(response => {
const result = response.data.result;
result.forEach((v) => {
if (!!v.recoreTime) {
let date = new Date();
date.setTime(v.recoreTime);
v.recoreTime = date;
}
});
That.monitorTaskLogData = result;
That.page.totalRecordsCount = response.data.totalCount;
});
},
productChange(msg){
this.product = msg.value;
this.getMonitorTaskList();
},
getProductList() {
this.$axios.get("/lte/ems/sys/monitor/log/findProducts").then(response => {
let resultVal = response.data.resultVal;
resultVal = resultVal.filter(item => !item.includes('ems_5gc') && !item.includes('ems_gnb') && !item.includes('ems_tr069'));
this.productList.push({ text: "All", value: "" });
for (let i = 0; i < resultVal.length; i++) {
this.productList.push({
text: resultVal[i],
value: resultVal[i],
});
}
});
},
filterMonitorTask() {
this.getMonitorTaskList();
},
refreshGrid() {
this.product='';
this.getMonitorTaskList();
},
},
watch: {
screenHeight(val) {
this.screenHeight = val;
}
}
};
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.

RealtimeCpuMonitor.vue

登录后复制

<template>
<div class='h100vh-150 h-normalBg'>
<div class='h-ainfoBg'>
<div class='h-ainfo'>
<span class='icon hero-icon hero-icon-detailcode'></span>
<span>{{$t('Monitor.realTimeMonitoring.CPUUtilization')}}： {{ CPUUtilization }}%</span>
</div>
</div>
<div class='h-normalContainter'>
<div class='row h-nomargin h-full-container width-100vw h100-80'>
<div id='cpuMonitor' class='width-100vw h100' style="height:599px"></div>
</div>
</div>
</div>
</template>
<script>
import echarts from 'echarts';

export default{
name: "realtimeCpuMonitor",
data() {
return {
data: [],
charts: "",
app: {},
myChart: null,
xData: [],
CPUUtilization: 0
};
},
methods: {
initData() {
this.myChart = echarts.init(document.getElementById('cpuMonitor'));
for (var i=0;i<12;i++){
if(i==11){
this.xData.push('0');
}else if (i==0){
this.xData.push('60s')
}else{
this.xData.push('');
}
this.data.push('-');
}
let option = this.getChartOption();
if (option && typeof option === 'object') {
this.myChart.setOption(option);
}
},
random(min,max){
return Math.floor(Math.random()*(max-min))+min;
},
randomData() {
return this.random(20,60);
},
getMonitorData(CPUUtilization) {
this.CPUUtilization=CPUUtilization;
if(this.data.length>=12){
this.data.shift();
}
this.data.push(CPUUtilization);
this.myChart.clear();
this.myChart.setOption(this.getChartOption(),true);
this.myChart.resize();
},
getChartOption() {
const option = {
title: {
text: ''
},
tooltip: {
trigger: 'axis',
formatter: function (params) {
return params[0].value;
},
axisPointer: {
animation: false
}
},
xAxis: {
type: 'category',
data: this.xData,
boundaryGap: false
},
yAxis: {
name: "%",
type: 'value',
min: 0,
max: 100,
axisLabel: {
formatter: '{value}'
}
},
series: [
{
type: 'line',
areaStyle: {
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: 'rgb(232,248,252)'
},
{
offset: 1,
color: 'rgb(203,227,243)'
}
],
global: false
}
},
data: this.data,
lineStyle: {
color: '#4097c9'
}
}
]
};
return option;
}
},
mounted() {
this.initData();
}
}
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.

RealtimeDiskMonitor.vue

登录后复制

<template>
<div class='h100vh-150 h-normalBg'>
<div class='h-ainfoBg'>
<div class='h-ainfo'>
<span class='icon hero-icon hero-icon-detailcode'></span>
<span>{{$t('Monitor.realTimeMonitoring.diskSize')}}： {{ diskSize }}GB</span>
<span>{{$t('Monitor.realTimeMonitoring.diskUsage')}}： {{ diskUsage }}GB</span>
<span>{{$t('Monitor.realTimeMonitoring.diskUtilization')}}： {{ diskUtilization }}%</span>
</div>
</div>
<div class='h-normalContainter'>
<div class='row h-nomargin h-full-container width-100vw h100-80'>
<div id='diskMonitor' class='width-100vw h100' style="height:599px"></div>
</div>
</div>
</div>
</template>
<script>
import echarts from 'echarts';

export default{
name: "realtimeMemoryMonitor",
data() {
return {
data: [],
charts: "",
app: {},
myChart: null,
xData: [],
diskSize: 0,
diskUsage: 0,
diskUtilization: 0,
};
},
methods: {
initData() {
this.myChart = echarts.init(document.getElementById('diskMonitor'));
for (var i=0;i<12;i++){
if(i==11){
this.xData.push('0');
}else if (i==0){
this.xData.push('60s')
}else{
this.xData.push('');
}
this.data.push('-');
}
let option = this.getChartOption();
if (option && typeof option === 'object') {
this.myChart.setOption(option);
}
this.getMonitorData();
},
random(min,max){
return Math.floor(Math.random()*(max-min))+min;
},
randomData() {
return this.random(5600,7000);
},
getMonitorData(diskSize, diskUsage, diskUtilization) {
this.diskSize = diskSize;
this.diskUsage = diskUsage;
this.diskUtilization = diskUtilization;
if(this.data.length >= 12){
this.data.shift();
}
this.data.push(diskUsage);
this.myChart.clear();
this.myChart.setOption(this.getChartOption(),true);
this.myChart.resize();
},
getChartOption() {
const option = {
title: {
text: ''
},
tooltip: {
trigger: 'axis',
formatter: function (params) {
return params[0].value;
},
axisPointer: {
animation: false
}
},
xAxis: {
type: 'category',
data: this.xData,
boundaryGap: false
},
yAxis: {
name: "GB",
type: 'value',
axisLabel: {
formatter: '{value}'
}
},
series: [
{
type: 'line',
areaStyle: {
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: 'rgb(220,236,203)'
},
{
offset: 1,
color: 'rgb(196,228,172)'
}
],
global: false
}
},
data: this.data,
lineStyle: {
color: '#4da40d'
}
}
]
};
return option;
}
},
mounted() {
this.initData();
},
beforeDestroy() {
try {
clearInterval(this.clock);
} catch (e) {
console.log(e);
}
}
}
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.

RealtimeMemoryMonitor.vue

登录后复制

<template>
<div class='h100vh-150 h-normalBg'>
<div class='h-ainfoBg'>
<div class='h-ainfo'>
<span class='icon hero-icon hero-icon-detailcode'></span>
<span>{{$t('Monitor.realTimeMonitoring.memoryTotal')}}： {{ memoryTotal }}GB</span>
<span>{{$t('Monitor.realTimeMonitoring.memoryUsage')}}： {{ memoryUsage }}GB</span>
<span>{{$t('Monitor.realTimeMonitoring.memoryUtilization')}}： {{ memoryUsageRatio }}%</span>
</div>
</div>
<div class='h-normalContainter'>
<div class='row h-nomargin h-full-container width-100vw h100-80'>
<div id='memoryMonitor' class='width-100vw h100' style="height:599px"></div>
</div>
</div>
</div>
</template>
<script>
import echarts from 'echarts';

export default{
name: "realtimeMemoryMonitor",
data() {
return {
data: [],
charts: "",
app: {},
myChart: null,
xData: [],
memoryUsage: 0,
memoryTotal: 0,
memoryUsageRatio: 0,
};
},
methods: {
initData() {
this.myChart = echarts.init(document.getElementById('memoryMonitor'));
for (var i=0;i<12;i++){
if(i==11){
this.xData.push('0');
}else if (i==0){
this.xData.push('60s')
}else{
this.xData.push('');
}
this.data.push('-');
}
let option = this.getChartOption();
if (option && typeof option === 'object') {
this.myChart.setOption(option);
}
},
random(min,max){
return Math.floor(Math.random()*(max-min))+min;
},
randomData() {
return this.random(5600,7000);
},
getMonitorData(memoryTotal, memoryUsage, memoryUsageRatio) {
this.memoryTotal = memoryTotal;
this.memoryUsage = memoryUsage;
this.memoryUsageRatio = memoryUsageRatio;
if(this.data.length>=12){
this.data.shift();
}
this.data.push(memoryUsage);
this.myChart.clear();
this.myChart.setOption(this.getChartOption(),true);
this.myChart.resize();
},
getChartOption() {
const option = {
title: {
text: ''
},
tooltip: {
trigger: 'axis',
formatter: function (params) {
return params[0].value;
},
axisPointer: {
animation: false
}
},
xAxis: {
type: 'category',
data: this.xData,
boundaryGap: false
},
yAxis: {
name: "GB",
type: 'value',
axisLabel: {
formatter: '{value}'
}
},
series: [
{
type: 'line',
areaStyle: {
color: {
type: 'linear',
x: 0,
y: 0,
x2: 0,
y2: 1,
colorStops: [
{
offset: 0,
color: 'rgb(244,234,246)'
},
{
offset: 1,
color: 'rgb(209,169,220)'
}
],
global: false
}
},
data: this.data,
lineStyle: {
color: '#8d29a8'
}
}
]
};
return option;
}
},
mounted() {
this.initData();
}
}
</script>

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.

RealtimeMonitor.vue

登录后复制

<template>
<BasicLayout :left="left" :middle="middle" :right="right">
<template v-slot:right_view>
<div class="h-outTabs">
<ejs-tab ref="tabObj" id="tab_orientation" heightAdjustMode="Auto" :selected='selected' :selectedItem="0">
<e-tabitems>
<e-tabitem :header="headerText1" content="#idv1"></e-tabitem>
<e-tabitem :header="headerText2" content="#idv2"></e-tabitem>
<e-tabitem :header="headerText3" content="#idv3"></e-tabitem>
<e-tabitem :header="headerText4" content="#idv4"></e-tabitem>
</e-tabitems>
</ejs-tab>
</div>
<div id="idv1" style="display: none">
<MonitorTaskLog></MonitorTaskLog>
</div>
<div id="idv2" style="display: none">
<RealtimeCpuMonitor ref='realtimeCpuMonitor'></RealtimeCpuMonitor>
</div>
<div id="idv3" style="display: none">
<RealtimeMemoryMonitor ref='realtimeMemoryMonitor'></RealtimeMemoryMonitor>
</div>
<div id="idv4" style="display: none">
<RealtimeDiskMonitor ref='realtimeDiskMonitor'></RealtimeDiskMonitor>
</div>
</template>
</BasicLayout>
</template>
<script>
import BasicLayout from '../../layouts/BasicLayout';
import RealtimeCpuMonitor from './RealtimeCpuMonitor';
import RealtimeMemoryMonitor from './RealtimeMemoryMonitor';
import RealtimeDiskMonitor from './RealtimeDiskMonitor';
import socketInstance from '../../plugins/stompSock';
import MonitorTaskLog from '../../views/monitor/MonitorTaskLog';

export default{
name: "realtimeMonitor",
components: {
MonitorTaskLog,
BasicLayout,
RealtimeCpuMonitor,
RealtimeMemoryMonitor,
RealtimeDiskMonitor
},
data() {
return {
left: { show: false, name: '' },
middle: { show: false, name: '' },
right: { show: true, crumb: `${this.$t('Security.securityManage')}`+'/' + `${this.$t('Monitor.monitor')}` + '/' + `${this.$t('Monitor.realTimeMonitoring.crumb')}` },
headerText1: { text: `${this.$t('Monitor.record.titleName')}` },
headerText2: { text: `${this.$t('Monitor.realTimeMonitoring.CPUUtilization')}` },
headerText3: { text: `${this.$t('Monitor.realTimeMonitoring.memoryUsage')}` },
headerText4: { text: `${this.$t('Monitor.realTimeMonitoring.diskUsage')}`},
websocketSetting: [
{ topic: '/user/#/realTimeMonitoring', clientId: 'monitoring', callback: this.websocketCallback }
],
};
},
methods: {
selected(args){
const index = args.selectedIndex;
if (index === 0) {
} else {
}
},
websocketInit() {
socketInstance.init(this.websocketSetting);
},
websocketCallback(msg) {
const data = JSON.parse(msg.body);
const CPUUtilization = data.CPUUsage;
this.$refs.realtimeCpuMonitor.getMonitorData(CPUUtilization);
const memoryTotal = data.memoryTotal;
const memoryUsage = data.memoryUsage;
const memoryUsageRatio = data.memoryUsageRatio;
this.$refs.realtimeMemoryMonitor.getMonitorData(memoryTotal, memoryUsage, memoryUsageRatio);
const diskTotal = data.diskTotal;
const diskUsage = data.diskUsage;
const diskUtilization = data.diskUsageRatio;
this.$refs.realtimeDiskMonitor.getMonitorData(diskTotal, diskUsage, diskUtilization);
}
},
mounted() {
this.websocketInit();
},
beforeDestroy() {
for (let i = 0; i < this.websocketSetting.length; i++) {
socketInstance.stopReceiveTopicMsg(this.websocketSetting[i].clientId, this.websocketSetting[i].topic);
}
}
}
</script>

后端

en_US.js

登录后复制

"record": {
"systemInfo": "System Info",
"product": "Product",
"memory": "Memory Usage Threshold(%)",
"titleName": "System Monitor Record",
"recoreTime": "Record Time",
"memoryThreshold": "Memory Usage Threshold(%)",
"cpuThreshold": "Cpu Usage Threshold(%)",
"diskSpaceThreshold": "Disk Space Usage Threshold(%)",
"diskSpace": "Disk Space Usage Threshold(%)",
"cpu": "Cpu Usage Threshold(%)",
"taskId": "Task ID",
"networkRxRate": "Network Rx Rate/s",
"networkTxRate": "Network Tx Rate/s",
"IOPSKbRead": "IOPS kB_read/s",
"IOPSKbWrite": "IOPS kB_wrtn/s",
"queueOperands": "Total number of stored queue operations/s",
"databaseDiskSpaceIsUsed": "Database disk space used in the file system",
"snmpAlarmDataSize": "SBI alarm number/s",
},

zh_CN.js

登录后复制

"record": {
"systemInfo": "系统信息",
"product": "产品",
"memory": "内存使用率阈值(%)",
"titleName": "系统监控记录",
"recoreTime": "记录时间",
"memoryThreshold": "内存使用率阈值(%)",
"cpuThreshold": "Cpu使用率阈值(%)",
"diskSpaceThreshold": "磁盘空间使用率阈值(%)",
"diskSpace": "磁盘空间使用率阈值(%)",
"cpu": "Cpu使用率阈值(%)",
"taskId": "任务id",
"networkRxRate": "网络接收数据包速率/s",
"networkTxRate": "网络发送数据包速率/s",
"IOPSKbRead": "IOPS读取数据量/s",
"IOPSKbWrite": "IOPS写入数据量/s",
"queueOperands": "存储队列操作总数/s",
"databaseDiskSpaceIsUsed": "文件系统中数据库磁盘空间占用大小",
"snmpAlarmDataSize": "南向告警数量/s",
},

MonitorTaskController

登录后复制

package com.hero.lte.ems.monitor.controller;

import com.alibaba.fastjson.JSONObject;
import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.entity.po.MonitorTaskPo;
import com.hero.lte.ems.monitor.entity.po.MonitorThresholdPo;
import com.hero.lte.ems.monitor.eunm.MonitorTaskStateEnum;
import com.hero.lte.ems.monitor.service.IMonitorTaskService;
import com.hero.lte.ems.monitor.take.MonitorTaskExe;
import com.hero.lte.ems.monitor.util.UUIDGennerator;
import com.hero.lte.ems.security.entity.Account;
import com.hero.lte.ems.security.entity.Log;
import com.hero.lte.ems.security.service.ILogService;
import io.swagger.annotations.Api;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.subject.Subject;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import java.io.BufferedReader;
import java.io.File;
import java.io.FileReader;
import java.io.IOException;
import java.nio.file.Files;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
* @author l22898
*/
@Api(value = "MonitorTaskController",tags={"系统监控任务"})
@RestController
@RequestMapping("/lte/ems/sys/monitor/task/")
public class MonitorTaskController {

private static final Logger logger = LoggerFactory.getLogger(MonitorTaskController.class);

@Autowired
private IMonitorTaskService monitorTaskService;

@Autowired
private ILogService logService;

private String monitorFilePath = "/home/ems/ems_eam/conf/monitorFiles.properties";
private String checkoutFilePath = "/home/ems/ems_eam/conf/checkout.properties";

@ResponseBody
@RequestMapping(value = "query", method = RequestMethod.GET)
public Page<MonitorTask> getPmGnbReportTaskList(MonitorTask monitorTask, Page<MonitorTask> page){
Long currentTimeMillis = System.currentTimeMillis();
boolean expired = false;
Page<MonitorTask> pageReturn = new Page<>();
try{
page.setParam(monitorTask);
pageReturn = monitorTaskService.getMonitorTaskList(page);
for (MonitorTask task : pageReturn.getResult()) {
if (task.getExeState() != 3 && currentTimeMillis > task.getSampleEnd()) {
expired = true;
task.setExeState(3);
monitorTaskService.updateMonitorTask(task);
}
}
if (expired) {
pageReturn = monitorTaskService.getMonitorTaskList(page);
}

}catch (Exception e){
logger.error("系统监控任务查询失败" ,e);
}
return pageReturn;
}

@ResponseBody
@RequestMapping(value = "queryId", method = RequestMethod.GET)
public MonitorTaskPo getPmGnbReportTask(String id){
MonitorTaskPo monitorTaskPo = new MonitorTaskPo();
try{
//查询任务
MonitorTask monitorTask = monitorTaskService.getMonitorTask(id);
JSONObject jsonObject = JSONObject.parseObject(monitorTask.getThreshold());
MonitorThresholdPo monitorThresholdPo = JSONObject.toJavaObject(jsonObject, MonitorThresholdPo.class);
monitorTaskPo.setMonitorTask(monitorTask);
monitorTaskPo.setMonitorThresholdPo(monitorThresholdPo);
}catch (Exception e){
logger.error("系统监控任务查询失败" ,e);
}
return monitorTaskPo;
}

/**
* 新增
* @param monitorTaskPo
* @returnwq
*/
@ResponseBody
@RequestMapping(value = "add", method = RequestMethod.POST)
public String insertMonitorTask(@RequestBody MonitorTaskPo monitorTaskPo) {
String result = "true";
try {
if(monitorTaskPo == null){
return "false";
}
MonitorTask monitorTask = monitorTaskPo.getMonitorTask();
String taskName = monitorTask.getTaskName();
//根据任务名称查询是否存在
List<MonitorTask> monitorTasks = monitorTaskService.queryDataByTaskName(taskName);
if(monitorTasks.size() > 0){
logger.error("任务名称重复");
return "Duplicate task name.";
}
monitorTask.setId(UUIDGennerator.generator());
monitorTask.setExeState(MonitorTaskStateEnum.IN_SUSPEND.getCode());
monitorTask.setThreshold(JSONObject.toJSONString(monitorTaskPo.getMonitorThresholdPo()));
monitorTaskService.insertMonitorTask(monitorTask);
MonitorTaskExe.setMonitorTaskMap(monitorTask);
} catch (Exception e) {
logger.error("系统监控任务新增失败" ,e);
result = "false";
}finally {
Subject subject = SecurityUtils.getSubject();
Account account;
if (subject != null) {
account = (Account) subject.getPrincipal();
String username = account.getUsername();
String userId = account.getUserId();
String ip = account.getIp();
int status;
if(result.equals("true")){
status = 1;
}else {
status = 2;
}
this.addOperateLog(userId,username,status,"res.create_monitor_task",ip,"Create a system monitoring task.");
}

}
return result;
}

@ResponseBody
@RequestMapping(value = "modify", method = RequestMethod.POST)
public boolean updateMonitorTask(@RequestBody MonitorTaskPo monitorTaskPo) {
boolean result = true;
try {
if(monitorTaskPo == null){
return false;
}
MonitorTask monitorTask = monitorTaskPo.getMonitorTask();
MonitorTask modifyResult = monitorTaskService.getMonitorTask(monitorTask.getId());
monitorTask.setExeState(modifyResult.getExeState());
monitorTask.setThreshold(JSONObject.toJSONString(monitorTaskPo.getMonitorThresholdPo()));
monitorTaskService.updateMonitorTask(monitorTask);
MonitorTaskExe.setMonitorTaskMap(monitorTask);
} catch (Exception e) {
logger.error("系统监控任务修改失败" ,e);
result = false;
}finally {
Subject subject = SecurityUtils.getSubject();
Account account;
if (subject != null) {
account = (Account) subject.getPrincipal();
String username = account.getUsername();
String userId = account.getUserId();
String ip = account.getIp();
int status;
if(result){
status = 1;
}else {
status = 2;
}
this.addOperateLog(userId,username,status,"res.modify_monitor_task",ip,"Modify a system monitoring task.");
}
}

return result;
}

/**
* 暂停
* @param idList
* @return
*/
@ResponseBody
@RequestMapping(value = "deactive", method = RequestMethod.POST)
public boolean deactiveMonitorTask(@RequestBody List<String> idList) {
boolean result = true;
try {
if(idList != null && idList.size() > 0){
monitorTaskService.deactiveMonitorTask(idList);
}
MonitorTaskExe.deactiveMonitorTaskMap(idList);
} catch (Exception e) {
logger.error("系统监控任务暂停失败" ,e);
result = false;
}
return result;
}

/**
* 启动
* @param idList
* @return
*/
@ResponseBody
@RequestMapping(value = "active", method = RequestMethod.POST)
public boolean activeMonitorTask(@RequestBody List<String> idList) {
boolean result = true;
try {
if(idList != null && idList.size() > 0){
monitorTaskService.activeMonitorTask(idList);
}
MonitorTaskExe.activeMonitorTaskMap(idList);
} catch (Exception e) {
logger.error("系统监控任务启动失败" ,e);
result = false;
}
return result;
}

/**
* 删除
* @param idList
* @id
*/
@ResponseBody
@RequestMapping(value = "delete", method = RequestMethod.POST)
public boolean delete(@RequestBody List<String> idList) {
boolean result = true;
try {
if(idList != null && idList.size() > 0){
monitorTaskService.deleteMonitorTask(idList);
}
MonitorTaskExe.deleteMonitorTaskMap(idList);
} catch (Exception e) {
logger.error("系统监控任务删除失败" ,e);
result = false;
}finally {
Subject subject = SecurityUtils.getSubject();
Account account;
if (subject != null) {
account = (Account) subject.getPrincipal();
String username = account.getUsername();
String userId = account.getUserId();
String ip = account.getIp();
int status;
if(result){
status = 1;
}else {
status = 2;
}
this.addOperateLog(userId,username,status,"res.delete_monitor_task",ip,"Delete a system monitoring task.");
}
}
return result;
}

@Scheduled(cron = "0 1 0 * * ?")
public void modifyExpiredTaskStatus() {
logger.info("-modifyExpiredTaskStatus-begin");
Long currentTimeMillis = System.currentTimeMillis();
List<MonitorTask> list = monitorTaskService.getMonitorTaskAll();
for (MonitorTask task : list) {
if (task.getExeState() != 3 && currentTimeMillis > task.getSampleEnd()) {
task.setExeState(3);
monitorTaskService.updateMonitorTask(task);
}
}
}

public void addOperateLog(String userId,String userName,int updateStatus,String featureId,String ip,String ExecData){
Log log = new Log();
log.setAccountId(userId);
log.setAccountName(userName);
log.setModuleId("res.security#res.system_monitor#res.monitor_task");
log.setFeatureId(featureId);
log.setExecTime(System.currentTimeMillis());
log.setExecType(2);
log.setResult(updateStatus);
// Create a system monitoring task
// Modify a system monitoring task
// Delete a system monitoring task
log.setExecData(ExecData);
log.setIp(ip);
logService.addOperateLog(log);
}

@Scheduled(cron = "0 0 0/1 * * ?")
public void monitorWhetherFilesAreTamperedWith() {
logger.info("Monitor whether files are tampered begin!");
// 读取 checkout.properties 文件
Map<String, String> expectedMD5Map = readExpectedMD5(checkoutFilePath);
if (expectedMD5Map == null) return;

// 读取 monitorFiles.properties 文件并进行 MD5 校验
try (BufferedReader reader = new BufferedReader(new FileReader(monitorFilePath))) {
String filePath;
while ((filePath = reader.readLine()) != null) {
filePath = filePath.trim(); // 去掉前后空格
if (expectedMD5Map.containsKey(filePath)) {
String expectedMD5 = expectedMD5Map.get(filePath);
String calculatedMD5 = calculateMD5(new File(filePath));

if (calculatedMD5 == null) {
logger.error("Monitor whether files are tampered, Error calculating MD5 for file:{}", filePath);
continue;
}

// 比较 MD5 值
if (!calculatedMD5.equalsIgnoreCase(expectedMD5)) {
logger.error("Monitor whether files are tampered, Error: MD5 mismatch for:{}, Expected:{}, but got:{}, The conclusion document has been tampered with!", filePath, expectedMD5, calculatedMD5);
}
} else {
logger.warn("Monitor whether files are tampered, Warning: No expected MD5 found for:{}", filePath);
}
}
} catch (IOException e) {
logger.error("Monitor whether files are tampered, Exception:{}", e.getMessage());
}
}

private static Map<String, String> readExpectedMD5(String checkoutFilePath) {
Map<String, String> md5Map = new HashMap<>();
try (BufferedReader reader = new BufferedReader(new FileReader(checkoutFilePath))) {
String line;
while ((line = reader.readLine()) != null) {
String[] parts = line.split("=");
if (parts.length == 2) {
String filePath = parts[0].trim();
String md5Value = parts[1].trim();
md5Map.put(filePath, md5Value);
} else {
logger.error("Skipping invalid line in checkout.properties:{}", line);
}
}
} catch (IOException e) {
logger.error("readExpectedMD5-Exception:{}", e.getMessage());
}
return md5Map;
}

private static String calculateMD5(File file) {
try {
MessageDigest md = MessageDigest.getInstance("MD5");
byte[] bytes = Files.readAllBytes(file.toPath());
byte[] digest = md.digest(bytes);

StringBuilder sb = new StringBuilder();
for (byte b : digest) {
sb.append(String.format("%02x", b));
}
return sb.toString();
} catch (IOException | NoSuchAlgorithmException e) {
logger.error("calculateMD5-Exception:{}", e.getMessage());
return null;
}
}
}

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.
211.
212.
213.
214.
215.
216.
217.
218.
219.
220.
221.
222.
223.
224.
225.
226.
227.
228.
229.
230.
231.
232.
233.
234.
235.
236.
237.
238.
239.
240.
241.
242.
243.
244.
245.
246.
247.
248.
249.
250.
251.
252.
253.
254.
255.
256.
257.
258.
259.
260.
261.
262.
263.
264.
265.
266.
267.
268.
269.
270.
271.
272.
273.
274.
275.
276.
277.
278.
279.
280.
281.
282.
283.
284.
285.
286.
287.
288.
289.
290.
291.
292.
293.
294.
295.
296.
297.
298.
299.
300.
301.
302.
303.
304.
305.
306.
307.
308.
309.
310.
311.
312.
313.
314.
315.
316.
317.
318.
319.
320.
321.
322.
323.
324.
325.
326.
327.
328.
329.
330.
331.
332.
333.
334.
335.
336.
337.
338.
339.
340.
341.
342.
343.
344.
345.
346.
347.
348.
349.
350.
351.
352.
353.
354.
355.
356.
357.
358.
359.
360.
361.
362.
363.
364.
365.
366.
367.
368.
369.

IMonitorTaskService

登录后复制

package com.hero.lte.ems.monitor.service;

import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.framework.exception.LteException;
import com.hero.lte.ems.monitor.entity.MonitorTask;

import java.util.List;
import java.util.Map;

public interface IMonitorTaskService {

Page<MonitorTask> getMonitorTaskList(Page<MonitorTask> pager);

List<MonitorTask> getMonitorTaskAll();

MonitorTask getMonitorTask(String id) throws LteException ;

int insertMonitorTask(MonitorTask monitorTask);

int updateMonitorTask(Map<String, Object> map);

int deleteMonitorTask(List<String> idList);

int deactiveMonitorTask(List<String> idList);

int activeMonitorTask(List<String> idList);

int updateMonitorTask(MonitorTask monitorTask);

List<MonitorTask> queryDataByTaskName(String taskName);
}

MonitorTaskServiceImpl

登录后复制

package com.hero.lte.ems.monitor.service.impl;

import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.framework.exception.LteException;
import com.hero.lte.ems.monitor.dao.MonitorTaskMapper;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.service.IMonitorTaskService;
import com.hero.lte.ems.security.config.aop.LogAnnotation;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;
import java.util.Map;

/**
* @author l22898
*/
@Service
public class MonitorTaskServiceImpl implements IMonitorTaskService {

private static final Logger LOGGER = LoggerFactory.getLogger(MonitorTaskServiceImpl.class);

@Resource
private MonitorTaskMapper monitorTaskMapper;

@Override
public Page<MonitorTask> getMonitorTaskList(Page<MonitorTask> pager){
List<MonitorTask> monitorTaskList = monitorTaskMapper.findMonitorTaskPage(pager, pager.getParam());
return pager;
}

@Override
public List<MonitorTask> getMonitorTaskAll(){
List<MonitorTask> monitorTaskList = monitorTaskMapper.findMonitorTaskAll();
return monitorTaskList;
}

@Override
public MonitorTask getMonitorTask(String id) throws LteException {
return monitorTaskMapper.findById(id);
}

@Override
public int insertMonitorTask(MonitorTask monitorTask){
return monitorTaskMapper.insertMonitorTask(monitorTask);
}

@Override
public int updateMonitorTask(MonitorTask monitorTask){
return monitorTaskMapper.modMonitorTask(monitorTask);
}

@Override
public List<MonitorTask> queryDataByTaskName(String taskName) {

return monitorTaskMapper.queryDataByTaskName(taskName);
}

@Override
public int updateMonitorTask(Map<String, Object> map){
return monitorTaskMapper.updateMonitorTask(map);
}

@Override
public int deleteMonitorTask(List<String> idList){
return monitorTaskMapper.deleteMonitorTask(idList);
}

@Override
@LogAnnotation(module = "res.security#res.system_monitor", feature = "res.alarm_mod", type = 2)
public int deactiveMonitorTask(List<String> idList) {
return monitorTaskMapper.deactiveMonitorTask(idList);
}

@Override
@LogAnnotation(module = "res.security#res.system_monitor", feature = "res.alarm_mod", type = 2)
public int activeMonitorTask(List<String> idList) {
return monitorTaskMapper.activeMonitorTask(idList);
}
}

MonitorTaskMapper

登录后复制

package com.hero.lte.ems.monitor.dao;

import com.hero.lte.ems.db.orm.mybatis.Page;
import com.hero.lte.ems.monitor.entity.MonitorTask;
import com.hero.lte.ems.monitor.entity.MonitorTaskLog;
import org.apache.ibatis.annotations.Param;

import java.util.List;
import java.util.Map;

public interface MonitorTaskMapper {

MonitorTask findById(String id);

List<MonitorTask> findMonitorTaskPage(@Param("page") Page pager, @Param("monitorTask") MonitorTask monitorTask);

List<MonitorTask> findMonitorTaskAll();

int insertMonitorTask(MonitorTask monitorTask);

int updateMonitorTask(Map<String, Object> map);

int deleteMonitorTask(@Param("idList")List<String> idList);

int deactiveMonitorTask(@Param("idList")List<String> idList);

int activeMonitorTask(@Param("idList")List<String> idList);

int modMonitorTask(MonitorTask monitorTask);

List<MonitorTask> queryDataByTaskName(@Param("taskName") String taskName);
}

统计服务器CPU、内存、磁盘、网络IO、队列、数据库占用空间等等信息

文章目录

一、背景

二、说明

三、页面

四、代码

前端

MonitorServiceProcessPage.vue

MonitorServiceProcessTable.vue

MonitorServiceProcessTableButton.vue

addMonitorTask.vue

productOperation.vue

showMonitorTask.vue

MonitorSystemLog.vue

MonitorTask.vue

MonitorTaskLog.vue

RealtimeCpuMonitor.vue

RealtimeDiskMonitor.vue

RealtimeMemoryMonitor.vue

RealtimeMonitor.vue

后端

en_US.js

zh_CN.js

MonitorTaskController

IMonitorTaskService

MonitorTaskServiceImpl

MonitorTaskMapper

相关推荐

评论抢沙发

评论前必须登录！

热门标签

置顶推荐

热门文章

最新文章

文章目录

一、背景

二、说明

三、页面

四、代码

前端

MonitorServiceProcessPage.vue

MonitorServiceProcessTable.vue

MonitorServiceProcessTableButton.vue

addMonitorTask.vue

productOperation.vue

showMonitorTask.vue

MonitorSystemLog.vue

MonitorTask.vue

MonitorTaskLog.vue

RealtimeCpuMonitor.vue

RealtimeDiskMonitor.vue

RealtimeMemoryMonitor.vue

RealtimeMonitor.vue

后端

en_US.js

zh_CN.js

MonitorTaskController

IMonitorTaskService

MonitorTaskServiceImpl

MonitorTaskMapper

相关推荐

评论 抢沙发

评论前必须登录！

热门标签

置顶推荐

热门文章

最新文章

评论抢沙发
