SecureCRT使用技巧

下载

官网 https://www.vandyke.com/cgi-bin/releases.php?product=securecrt

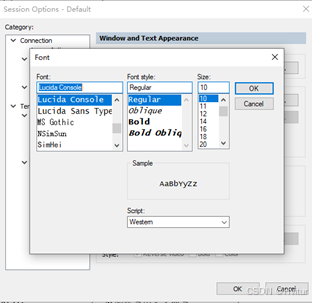

设置字体和颜色

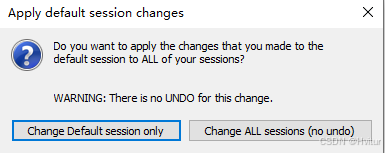

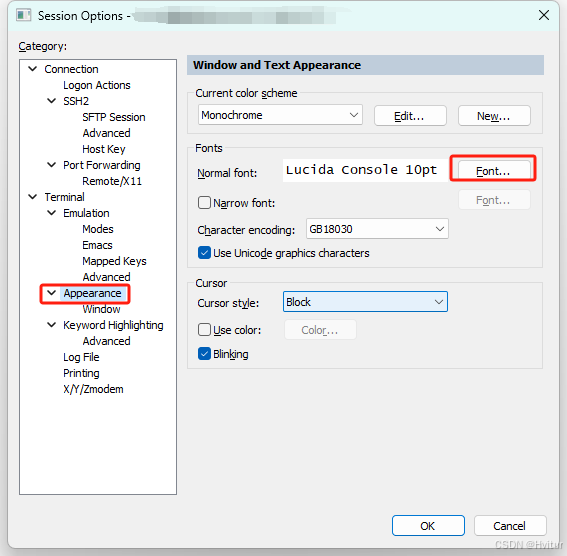

Options->Session Options 设置之后也会要求选择适用的范围

Change default session only：仅更改默认会话 Change ALL sessions（no undo）：更改所有会话（不撤销）会一次性更改所有的连接，在重启之后生效

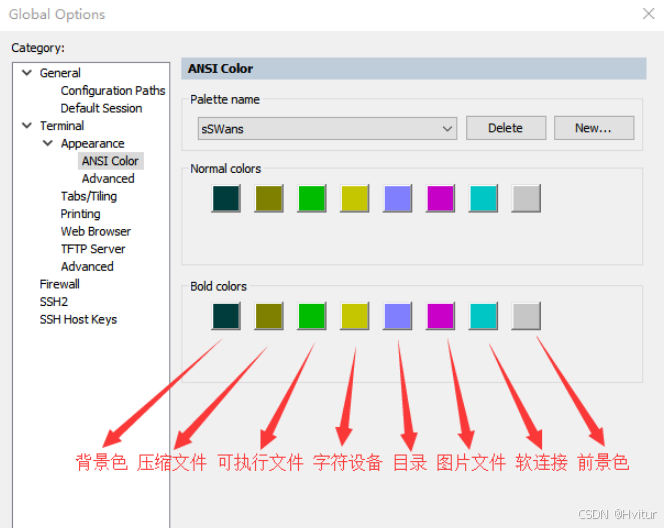

配色方案

设置关键字高亮

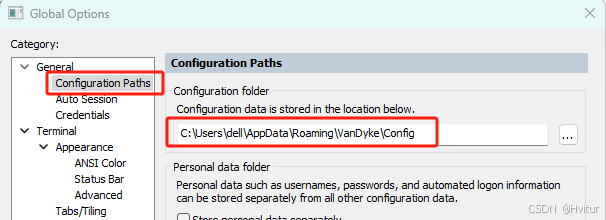

1、查看文件存放路径 打开CRT左上角：【Options】-【Global Options】-【General】-【Configuration Paths】 2、新建文件夹 例如我这里是：C:\\Users\\dell\\AppData\\Roaming\\VanDyke\\Config\\Keywords 如果没有，就新建个Keywords文件夹

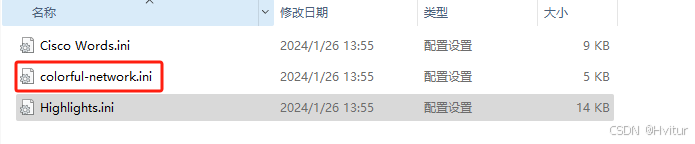

3、把配色文件放到Keywords文件夹中

可以参考下面的示例，改成.ini文件

D:"Match Case"=00000000
Z:"Keyword List V2"=00000016
"(no(t)?(connect)?)|((shut)?(down)?)",000000ff,00000001
"(dis((able(d)?)|(connect(ed)?)|(allow(ed)?)|(card(ed)?))|(error(s)?))|(fail((ure)|(ed))?)|((city)?[w]{2}m)|(den((y)|(ied)){1})",000000ff,00000001
"red|administratively|undo|unknown|fault|block|refused|problem|warnings|alerts|critical|delete|inactive|unassigned",000000ff,00000001
"(([7–9]\\d)|(100))(\\.\\d{0,2})?\\%",000000ff,00000001
"green|up|forward|full|active",0000ff00,00000001
"(connect(ed)?)|(permit(ed)?)|(estab(lish)?(ed)?)|(enable(d)?|(allow(ed)?))",0000ff00,00000001
"(([0-3](\\d)?)|\\d{1})(\\.\\d{0,2})?\\%",0000ff00,00000001
"(bgp|(ospf(v3)?)|(rip(ng)?)|eigrp|static|odr|unr|(is(\\-)?is)|pim|direct)(\\-\\d*)?",00ff8000,00000001
"cyan|ipv6|tcp|udp|(i(c|g)mp)|gre|esp|ah|isakmp|(arp(a)?)|dhcp|(http(s)?)|dns|((t)?ftp)|telnet|ssh|www|ntp|radius|tacacs|pop\\d|smtp|ppp|fr(ame(\\-)?relay)?|hdlc",00ff8000,00000001
"standby|vrrp|glbp|(mst(p)?)|((r)?stp)|spanning\\-tree|dot1q|802\\.1q",00ff8000,00000001
"ldp|tdp|mpls|aaa|(account(ing)?)|(auth((entication)|(orization)))|nat|bfd|nqa|sla|rtr|vrf|vpn(\\-instance)?",00ff8000,00000001
"(((passive\\–)|(silent\\–))?interface)|(in|out)((bound)|(put))?",00ff00ff,00000001
"magenta|router|redistribute|(import(\\-route)?)|export|network|neighbor|peer|area|acl|(class((ifier)|(\\–map)))|behavior|policy(\\-map)?",00ff00ff,00000001
"access\\-((list)|(class)|(group))|ip\\-prefix|prefix\\-list|(route(\\-.*)?)|(traffic.*)",00ff00ff,00000001
"[4-6]\\d((\\.\\d{0,2})?)\\%",00ff00ff,00000001
"((fast)?|(gigabit)?)ethernet((\\d)?\\d\\/)*(\\d)+(\\.\\d{1,4})?",000080ff,00000001
"\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}(\\/(\\d){0,2})?",000080ff,00000001
"([A-Fa-f0-9]{1,4}::?){1,7}[A-Fa-f0-9]{1,4}(\\/(\\d){0,3})?",000080ff,00000001
"([0-9a-fa-f]{4}[.|-][0-9a-fa-f]{4}[.|-][0-9a-fa-f]{4})|([0-9a-fa-f]{2}[.|-]){5}[0-9a-fa-f]{2}",000080ff,00000001
"\\d{1,2}\\.([0-9a-fA-F]{2,4}.){1,11}\\d{1,2}",000080ff,00000001
"(orange|ge|fa|fe|(eth((\\–)?(trunk)?))|null|loopback|tunnel|dialer|bri|serial|atm|pos|(vlan(if)?))(((\\d)?\\d\\/)*(\\d)+)?",000080ff,00000001
"((virtual\\–(template|ppp|access))|(channel\\-group)|(port\\-channel)|(ether(\\-)?channel))(((\\d)?\\d\\/)*(\\d)+)?",000080ff,00000001

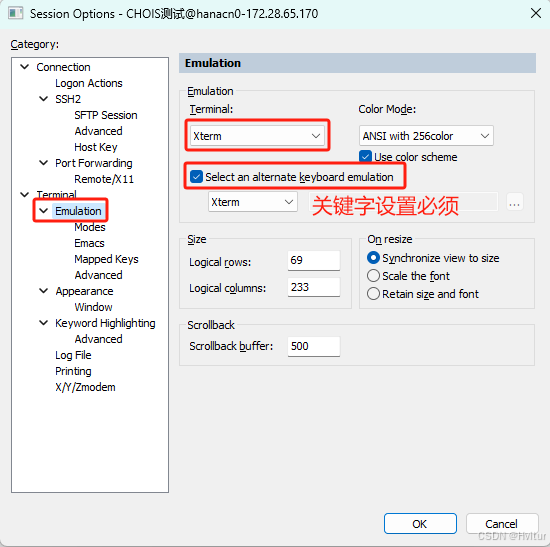

4、更改会话配置

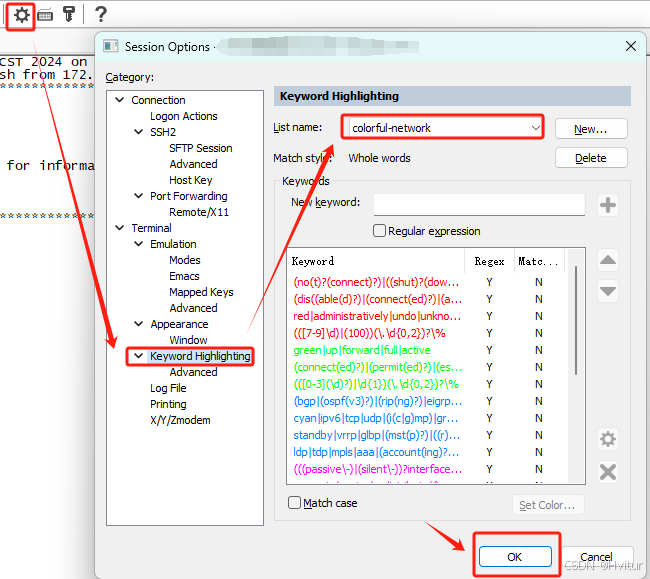

5、当前会话选择关键字配置文件 选择之后打开新的会话才会生效

通过代理连接服务器

选择上方Options->Global Options

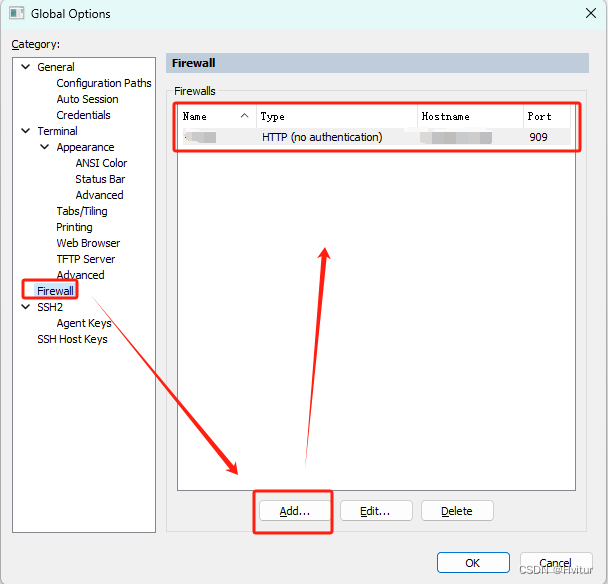

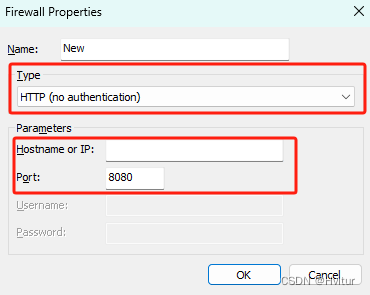

选择Firewall，点击add添加 选择代理的类型，一般为HTTP，设置IP和端口号

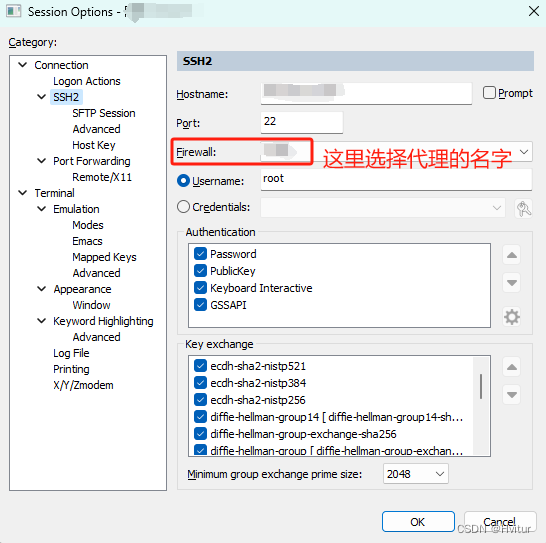

选择连接，进行连接配置 在连接中调用代理 经过上述步骤，就能使SecureCRT使用代理方式SSH远程机器了
