如何设计一个服务器文件实时监测系统：架构设计合集(四)

📚 文章目录

引言：为什么需要文件安全监测

在这个数字化时代，服务器就像是我们的"数字金库"，里面存放着各种珍贵的数据资产。但是，你有没有想过，如果有"小偷"悄悄潜入这个金库，偷偷修改或删除文件，我们能第一时间发现吗？

传统的安全防护往往是"亡羊补牢"式的，等发现问题时，损失已经造成。而一个优秀的文件安全异常实时监测系统，就像是给我们的服务器安装了一双"火眼金睛"，能够实时感知任何风吹草动。

系统需要解决的核心问题：

• 🔍 实时监控文件的增删改操作
• 🚨 快速识别异常行为模式
• 📊 提供可视化的安全态势感知
• 🔔 及时告警和响应机制

系统整体架构设计

让我们先来看看整个系统的"全景图"：

#mermaid-svg-CXA4mzQ39vTsBuoR {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .error-icon{fill:#552222;}#mermaid-svg-CXA4mzQ39vTsBuoR .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-CXA4mzQ39vTsBuoR .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-CXA4mzQ39vTsBuoR .marker{fill:#333333;stroke:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR .marker.cross{stroke:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-CXA4mzQ39vTsBuoR .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster-label text{fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster-label span{color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .label text,#mermaid-svg-CXA4mzQ39vTsBuoR span{fill:#333;color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .node rect,#mermaid-svg-CXA4mzQ39vTsBuoR .node circle,#mermaid-svg-CXA4mzQ39vTsBuoR .node ellipse,#mermaid-svg-CXA4mzQ39vTsBuoR .node polygon,#mermaid-svg-CXA4mzQ39vTsBuoR .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-CXA4mzQ39vTsBuoR .node .label{text-align:center;}#mermaid-svg-CXA4mzQ39vTsBuoR .node.clickable{cursor:pointer;}#mermaid-svg-CXA4mzQ39vTsBuoR .arrowheadPath{fill:#333333;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-CXA4mzQ39vTsBuoR .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-CXA4mzQ39vTsBuoR .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster text{fill:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR .cluster span{color:#333;}#mermaid-svg-CXA4mzQ39vTsBuoR div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-CXA4mzQ39vTsBuoR :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

应用层

存储层

数据处理层

数据采集层

实时告警

可视化大屏

报表分析

API接口

时序数据库

关系数据库

日志存储

异常检测引擎

数据预处理

规则匹配引擎

机器学习模型

系统调用拦截

文件系统监控

网络访问监控

进程行为监控

这个架构采用了经典的分层设计，每一层都有明确的职责：

📊 数据采集层：就像是我们的"眼睛和耳朵"，负责收集各种文件操作信息。

⚙️ 数据处理层：相当于"大脑"，对收集到的信息进行分析和判断。

💾 存储层：就是我们的"记忆"，保存所有的历史数据和分析结果。

🎯 应用层：最终的"输出口"，将分析结果以各种形式展现给用户。

核心功能模块详解

1. 数据采集层详细实现

1.1 文件系统监控Agent

这是整个系统的"神经末梢"，负责实时捕获文件操作事件：

#mermaid-svg-kNHXLCBgBt02Y1rc {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .error-icon{fill:#552222;}#mermaid-svg-kNHXLCBgBt02Y1rc .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-kNHXLCBgBt02Y1rc .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-kNHXLCBgBt02Y1rc .marker{fill:#333333;stroke:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc .marker.cross{stroke:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-kNHXLCBgBt02Y1rc .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster-label text{fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster-label span{color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .label text,#mermaid-svg-kNHXLCBgBt02Y1rc span{fill:#333;color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .node rect,#mermaid-svg-kNHXLCBgBt02Y1rc .node circle,#mermaid-svg-kNHXLCBgBt02Y1rc .node ellipse,#mermaid-svg-kNHXLCBgBt02Y1rc .node polygon,#mermaid-svg-kNHXLCBgBt02Y1rc .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-kNHXLCBgBt02Y1rc .node .label{text-align:center;}#mermaid-svg-kNHXLCBgBt02Y1rc .node.clickable{cursor:pointer;}#mermaid-svg-kNHXLCBgBt02Y1rc .arrowheadPath{fill:#333333;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-kNHXLCBgBt02Y1rc .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-kNHXLCBgBt02Y1rc .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster text{fill:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc .cluster span{color:#333;}#mermaid-svg-kNHXLCBgBt02Y1rc div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-kNHXLCBgBt02Y1rc :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

监控范围

Agent架构

系统目录

应用目录

数据目录

日志目录

事件过滤器

inotify监听器

auditd集成

进程监控

事件标准化

本地缓存

批量发送

Agent核心代码示例（Python实现）：

import asyncio
import json
from watchdog.observers import Observer
from watchdog.events import FileSystemEventHandler

class SecurityMonitorHandler(FileSystemEventHandler):
def __init__(self, event_queue):
self.event_queue = event_queue
self.process_info = ProcessMonitor()

def on_any_event(self, event):
# 获取进程信息
process_info = self.process_info.get_current_process()

event_data = {
'timestamp': int(time.time() * 1000),
'event_type': event.event_type,
'src_path': event.src_path,
'dest_path': getattr(event, 'dest_path', None),
'is_directory': event.is_directory,
'process_id': process_info.pid,
'process_name': process_info.name,
'user_id': process_info.uid,
'file_hash': self._calculate_file_hash(event.src_path),
'file_size': self._get_file_size(event.src_path)
}

# 异步发送到消息队列
asyncio.create_task(self.event_queue.put(event_data))

1.2 系统调用拦截模块

使用eBPF技术实现更深层次的监控：

// eBPF程序示例：监控open系统调用
#include <linux/bpf.h>
#include <linux/ptrace.h>

struct event_data {
u32 pid;
u32 uid;
char filename[256];
u32 flags;
u64 timestamp;
};

BPF_PERF_OUTPUT(events);

int trace_open(struct pt_regs *ctx) {
struct event_data data = {};

data.pid = bpf_get_current_pid_tgid() >> 32;
data.uid = bpf_get_current_uid_gid() & 0xffffffff;
data.timestamp = bpf_ktime_get_ns();

// 获取文件名参数
const char __user *filename = (char *)PT_REGS_PARM1(ctx);
bpf_probe_read_user_str(data.filename, sizeof(data.filename), filename);

// 获取打开标志
data.flags = (u32)PT_REGS_PARM2(ctx);

events.perf_submit(ctx, &data, sizeof(data));
return 0;
}

2. 数据处理层详细实现

2.1 事件预处理引擎

#mermaid-svg-65f2P5j7aeiajPfY {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .error-icon{fill:#552222;}#mermaid-svg-65f2P5j7aeiajPfY .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-65f2P5j7aeiajPfY .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-65f2P5j7aeiajPfY .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-65f2P5j7aeiajPfY .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-65f2P5j7aeiajPfY .marker{fill:#333333;stroke:#333333;}#mermaid-svg-65f2P5j7aeiajPfY .marker.cross{stroke:#333333;}#mermaid-svg-65f2P5j7aeiajPfY svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-65f2P5j7aeiajPfY .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster-label text{fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster-label span{color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .label text,#mermaid-svg-65f2P5j7aeiajPfY span{fill:#333;color:#333;}#mermaid-svg-65f2P5j7aeiajPfY .node rect,#mermaid-svg-65f2P5j7aeiajPfY .node circle,#mermaid-svg-65f2P5j7aeiajPfY .node ellipse,#mermaid-svg-65f2P5j7aeiajPfY .node polygon,#mermaid-svg-65f2P5j7aeiajPfY .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-65f2P5j7aeiajPfY .node .label{text-align:center;}#mermaid-svg-65f2P5j7aeiajPfY .node.clickable{cursor:pointer;}#mermaid-svg-65f2P5j7aeiajPfY .arrowheadPath{fill:#333333;}#mermaid-svg-65f2P5j7aeiajPfY .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-65f2P5j7aeiajPfY .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-65f2P5j7aeiajPfY .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-65f2P5j7aeiajPfY .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-65f2P5j7aeiajPfY .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-65f2P5j7aeiajPfY .cluster text{fill:#333;}#mermaid-svg-65f2P5j7aeiajPfY .cluster span{color:#333;}#mermaid-svg-65f2P5j7aeiajPfY div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-65f2P5j7aeiajPfY :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

原始事件

数据清洗

格式标准化

重复检测

事件聚合

特征提取

输出到处理队列

预处理逻辑实现：

package preprocessor

type EventProcessor struct {
rules []ProcessingRule
aggregator *EventAggregator
deduplicator *EventDeduplicator
}

func (ep *EventProcessor) ProcessEvent(event *RawEvent) (*ProcessedEvent, error) {
// 1. 数据清洗
cleanedEvent := ep.cleanEvent(event)

// 2. 重复检测
if ep.deduplicator.IsDuplicate(cleanedEvent) {
return nil, nil // 跳过重复事件
}

// 3. 特征提取
features := ep.extractFeatures(cleanedEvent)

// 4. 风险评分
riskScore := ep.calculateRiskScore(features)

processedEvent := &ProcessedEvent{
ID: generateEventID(),
Timestamp: cleanedEvent.Timestamp,
Features: features,
RiskScore: riskScore,
OriginalEvent: cleanedEvent,
}

return processedEvent, nil
}

2.2 异常检测引擎架构

#mermaid-svg-DQuoQWRNyugnR8I2 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .error-icon{fill:#552222;}#mermaid-svg-DQuoQWRNyugnR8I2 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-DQuoQWRNyugnR8I2 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-DQuoQWRNyugnR8I2 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 .marker.cross{stroke:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-DQuoQWRNyugnR8I2 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster-label text{fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster-label span{color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .label text,#mermaid-svg-DQuoQWRNyugnR8I2 span{fill:#333;color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .node rect,#mermaid-svg-DQuoQWRNyugnR8I2 .node circle,#mermaid-svg-DQuoQWRNyugnR8I2 .node ellipse,#mermaid-svg-DQuoQWRNyugnR8I2 .node polygon,#mermaid-svg-DQuoQWRNyugnR8I2 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-DQuoQWRNyugnR8I2 .node .label{text-align:center;}#mermaid-svg-DQuoQWRNyugnR8I2 .node.clickable{cursor:pointer;}#mermaid-svg-DQuoQWRNyugnR8I2 .arrowheadPath{fill:#333333;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-DQuoQWRNyugnR8I2 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-DQuoQWRNyugnR8I2 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster text{fill:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 .cluster span{color:#333;}#mermaid-svg-DQuoQWRNyugnR8I2 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-DQuoQWRNyugnR8I2 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

机器学习引擎

统计引擎

规则引擎

异常检测模型

特征工程

模型训练

在线学习

异常检测算法

时间序列分析

频率分析

模式识别

规则匹配器

静态规则库

动态规则生成

预处理事件

威胁评分

告警决策

异常检测算法实现：

import numpy as np
from sklearn.ensemble import IsolationForest
from sklearn.preprocessing import StandardScaler

class AnomalyDetector:
def __init__(self):
self.models = {
'isolation_forest': IsolationForest(contamination=0.1),
'statistical': StatisticalDetector(),
'rule_based': RuleBasedDetector()
}
self.scaler = StandardScaler()
self.feature_weights = {
'file_access_frequency': 0.3,
'unusual_time_access': 0.25,
'privilege_escalation': 0.4,
'suspicious_process': 0.35
}

def detect_anomaly(self, event_features):
"""多模型融合的异常检测"""
scores = {}

# 1. 基于隔离森林的检测
if hasattr(self.models['isolation_forest'], 'decision_function'):
isolation_score = self.models['isolation_forest'].decision_function([event_features])[0]
scores['isolation'] = self._normalize_score(isolation_score)

# 2. 统计学异常检测
statistical_score = self.models['statistical'].detect(event_features)
scores['statistical'] = statistical_score

# 3. 规则基检测
rule_score = self.models['rule_based'].detect(event_features)
scores['rule_based'] = rule_score

# 4. 融合多个模型的结果
final_score = self._weighted_ensemble(scores)

return {
'anomaly_score': final_score,
'individual_scores': scores,
'risk_level': self._get_risk_level(final_score),
'explanation': self._generate_explanation(scores, event_features)
}

3. 存储层架构详细设计

3.1 分层存储策略

#mermaid-svg-Z3u5a6mlpftkjygG {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .error-icon{fill:#552222;}#mermaid-svg-Z3u5a6mlpftkjygG .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-Z3u5a6mlpftkjygG .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-Z3u5a6mlpftkjygG .marker{fill:#333333;stroke:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG .marker.cross{stroke:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-Z3u5a6mlpftkjygG .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster-label text{fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster-label span{color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .label text,#mermaid-svg-Z3u5a6mlpftkjygG span{fill:#333;color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .node rect,#mermaid-svg-Z3u5a6mlpftkjygG .node circle,#mermaid-svg-Z3u5a6mlpftkjygG .node ellipse,#mermaid-svg-Z3u5a6mlpftkjygG .node polygon,#mermaid-svg-Z3u5a6mlpftkjygG .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-Z3u5a6mlpftkjygG .node .label{text-align:center;}#mermaid-svg-Z3u5a6mlpftkjygG .node.clickable{cursor:pointer;}#mermaid-svg-Z3u5a6mlpftkjygG .arrowheadPath{fill:#333333;}#mermaid-svg-Z3u5a6mlpftkjygG .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-Z3u5a6mlpftkjygG .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-Z3u5a6mlpftkjygG .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-Z3u5a6mlpftkjygG .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster text{fill:#333;}#mermaid-svg-Z3u5a6mlpftkjygG .cluster span{color:#333;}#mermaid-svg-Z3u5a6mlpftkjygG div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-Z3u5a6mlpftkjygG :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

对象存储 (MinIO/S3)

日志存储 (Elasticsearch)

关系数据库 (PostgreSQL)

时序数据库 (InfluxDB)

内存层 (Redis Cluster)

文件快照

备份数据

历史归档

原始日志数据

分析结果数据

审计跟踪数据

用户配置数据

告警规则数据

系统元数据

事件时序数据

性能指标数据

聚合统计数据

实时事件缓存

会话状态缓存

热点查询缓存

数据模型设计：

— PostgreSQL 数据模型
CREATE TABLE monitoring_rules (
id SERIAL PRIMARY KEY,
rule_name VARCHAR(255) NOT NULL,
rule_type VARCHAR(50) NOT NULL,
pattern JSONB NOT NULL,
severity INTEGER NOT NULL,
enabled BOOLEAN DEFAULT TRUE,
created_at TIMESTAMP DEFAULT NOW(),
updated_at TIMESTAMP DEFAULT NOW()
);

CREATE TABLE security_events (
id BIGSERIAL PRIMARY KEY,
event_id UUID UNIQUE NOT NULL,
timestamp TIMESTAMP NOT NULL,
event_type VARCHAR(50) NOT NULL,
source_ip INET,
user_id VARCHAR(100),
file_path TEXT,
risk_score DECIMAL(5,2),
raw_data JSONB,
processed_at TIMESTAMP DEFAULT NOW()
);

— 时序数据库schema (InfluxDB)
— measurement: file_events
— tags: event_type, user_id, file_extension, risk_level
— fields: file_size, operation_count, response_time, risk_score
— time: timestamp

3.2 数据生命周期管理

#mermaid-svg-c3V2OQ4mSPStIw0L {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .error-icon{fill:#552222;}#mermaid-svg-c3V2OQ4mSPStIw0L .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-c3V2OQ4mSPStIw0L .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-c3V2OQ4mSPStIw0L .marker{fill:#333333;stroke:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L .marker.cross{stroke:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-c3V2OQ4mSPStIw0L .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster-label text{fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster-label span{color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .label text,#mermaid-svg-c3V2OQ4mSPStIw0L span{fill:#333;color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .node rect,#mermaid-svg-c3V2OQ4mSPStIw0L .node circle,#mermaid-svg-c3V2OQ4mSPStIw0L .node ellipse,#mermaid-svg-c3V2OQ4mSPStIw0L .node polygon,#mermaid-svg-c3V2OQ4mSPStIw0L .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-c3V2OQ4mSPStIw0L .node .label{text-align:center;}#mermaid-svg-c3V2OQ4mSPStIw0L .node.clickable{cursor:pointer;}#mermaid-svg-c3V2OQ4mSPStIw0L .arrowheadPath{fill:#333333;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-c3V2OQ4mSPStIw0L .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-c3V2OQ4mSPStIw0L .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster text{fill:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L .cluster span{color:#333;}#mermaid-svg-c3V2OQ4mSPStIw0L div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-c3V2OQ4mSPStIw0L :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

实时

历史

配置

日志

新事件

数据分类

Redis – 1小时

InfluxDB – 90天

PostgreSQL – 永久

ES – 30天

自动过期

数据压缩

索引优化

冷存储迁移

历史数据归档

4. 应用层详细实现

4.1 实时告警系统

#mermaid-svg-KTwIHeCsa9nYj2kl {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .error-icon{fill:#552222;}#mermaid-svg-KTwIHeCsa9nYj2kl .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-KTwIHeCsa9nYj2kl .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-KTwIHeCsa9nYj2kl .marker{fill:#333333;stroke:#333333;}#mermaid-svg-KTwIHeCsa9nYj2kl .marker.cross{stroke:#333333;}#mermaid-svg-KTwIHeCsa9nYj2kl svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-line{stroke:grey;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .sequenceNumber{fill:white;}#mermaid-svg-KTwIHeCsa9nYj2kl #sequencenumber{fill:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .messageText{fill:#333;stroke:#333;}#mermaid-svg-KTwIHeCsa9nYj2kl .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl .labelText,#mermaid-svg-KTwIHeCsa9nYj2kl .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .loopText,#mermaid-svg-KTwIHeCsa9nYj2kl .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-KTwIHeCsa9nYj2kl .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-KTwIHeCsa9nYj2kl .noteText,#mermaid-svg-KTwIHeCsa9nYj2kl .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-KTwIHeCsa9nYj2kl .actorPopupMenu{position:absolute;}#mermaid-svg-KTwIHeCsa9nYj2kl .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-KTwIHeCsa9nYj2kl .actor-man circle,#mermaid-svg-KTwIHeCsa9nYj2kl line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-KTwIHeCsa9nYj2kl :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

检测引擎

告警管理器

规则引擎

通知服务

用户

异常事件

查询告警规则

返回匹配规则

计算告警级别

发送通知请求

多渠道通知

确认处理

更新事件状态

检测引擎

告警管理器

规则引擎

通知服务

用户

告警系统核心代码：

@Service
public class AlertManager {

@Autowired
private RuleEngine ruleEngine;

@Autowired
private NotificationService notificationService;

public void processAlert(SecurityEvent event) {
// 1. 匹配告警规则
List<AlertRule> matchedRules = ruleEngine.findMatchingRules(event);

if (matchedRules.isEmpty()) {
return; // 无匹配规则，不产生告警
}

// 2. 创建告警
Alert alert = createAlert(event, matchedRules);

// 3. 去重检查
if (isDuplicateAlert(alert)) {
updateAlertCount(alert);
return;
}

// 4. 发送通知
CompletableFuture.runAsync(() -> {
try {
notificationService.sendAlert(alert);
updateAlertStatus(alert, AlertStatus.SENT);
} catch (Exception e) {
updateAlertStatus(alert, AlertStatus.FAILED);
log.error("Failed to send alert: {}", alert.getId(), e);
}
});
}

private Alert createAlert(SecurityEvent event, List<AlertRule> rules) {
Alert alert = new Alert();
alert.setEventId(event.getId());
alert.setSeverity(calculateMaxSeverity(rules));
alert.setTitle(generateAlertTitle(event, rules));
alert.setDescription(generateAlertDescription(event, rules));
alert.setCreatedAt(Instant.now());
alert.setStatus(AlertStatus.PENDING);

// 添加建议的响应措施
alert.setRecommendedActions(generateRecommendedActions(event, rules));

return alertRepository.save(alert);
}
}

4.2 可视化监控大屏

#mermaid-svg-D9mk3WZBOHIuBv3I {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .error-icon{fill:#552222;}#mermaid-svg-D9mk3WZBOHIuBv3I .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-D9mk3WZBOHIuBv3I .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-D9mk3WZBOHIuBv3I .marker{fill:#333333;stroke:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I .marker.cross{stroke:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-D9mk3WZBOHIuBv3I .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster-label text{fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster-label span{color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .label text,#mermaid-svg-D9mk3WZBOHIuBv3I span{fill:#333;color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .node rect,#mermaid-svg-D9mk3WZBOHIuBv3I .node circle,#mermaid-svg-D9mk3WZBOHIuBv3I .node ellipse,#mermaid-svg-D9mk3WZBOHIuBv3I .node polygon,#mermaid-svg-D9mk3WZBOHIuBv3I .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-D9mk3WZBOHIuBv3I .node .label{text-align:center;}#mermaid-svg-D9mk3WZBOHIuBv3I .node.clickable{cursor:pointer;}#mermaid-svg-D9mk3WZBOHIuBv3I .arrowheadPath{fill:#333333;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-D9mk3WZBOHIuBv3I .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-D9mk3WZBOHIuBv3I .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster text{fill:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I .cluster span{color:#333;}#mermaid-svg-D9mk3WZBOHIuBv3I div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-D9mk3WZBOHIuBv3I :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

展示组件

数据处理

数据源

实时事件监控

安全态势图

威胁热力图

统计图表

告警列表

实时聚合

趋势分析

TOP排行

实时事件流

统计数据

告警数据

前端核心实现（Vue.js + ECharts）：

<template>
<div class="security-dashboard">
<!— 实时统计卡片 —>
<div class="stats-cards">
<StatCard title="今日事件" :value="todayEvents" trend="up" />
<StatCard title="活跃告警" :value="activeAlerts" trend="down" />
<StatCard title="风险评分" :value="riskScore" trend="stable" />
</div>

<!— 实时事件流 —>
<div class="event-stream">
<h3>实时事件流</h3>
<virtual–list :items="realtimeEvents" item–height="60">
<template #item="{ item }">
<EventItem :event="item" @click="showEventDetail" />
</template>
</virtual–list>
</div>

<!— 威胁态势图 —>
<div class="threat-map">
<threat–heatmap :data="threatData" />
</div>
</div>
</template>

<script>
export default {
data() {
return {
todayEvents: 0,
activeAlerts: 0,
riskScore: 0,
realtimeEvents: [],
threatData: []
}
},

mounted() {
this.initWebSocket();
this.loadInitialData();
},

methods: {
initWebSocket() {
this.ws = new WebSocket('ws://localhost:8080/realtime-events');
this.ws.onmessage = (event) => {
const data = JSON.parse(event.data);
this.handleRealtimeEvent(data);
};
},

handleRealtimeEvent(event) {
// 更新实时事件列表
this.realtimeEvents.unshift(event);
if (this.realtimeEvents.length > 100) {
this.realtimeEvents.pop();
}

// 更新统计数据
this.updateStats(event);
}
}
}
</script>

技术实现方案

5.1 消息队列与流处理架构

#mermaid-svg-QY8lBpYJIxNREEjd {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .error-icon{fill:#552222;}#mermaid-svg-QY8lBpYJIxNREEjd .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-QY8lBpYJIxNREEjd .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-QY8lBpYJIxNREEjd .marker{fill:#333333;stroke:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd .marker.cross{stroke:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-QY8lBpYJIxNREEjd .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster-label text{fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster-label span{color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .label text,#mermaid-svg-QY8lBpYJIxNREEjd span{fill:#333;color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .node rect,#mermaid-svg-QY8lBpYJIxNREEjd .node circle,#mermaid-svg-QY8lBpYJIxNREEjd .node ellipse,#mermaid-svg-QY8lBpYJIxNREEjd .node polygon,#mermaid-svg-QY8lBpYJIxNREEjd .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-QY8lBpYJIxNREEjd .node .label{text-align:center;}#mermaid-svg-QY8lBpYJIxNREEjd .node.clickable{cursor:pointer;}#mermaid-svg-QY8lBpYJIxNREEjd .arrowheadPath{fill:#333333;}#mermaid-svg-QY8lBpYJIxNREEjd .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-QY8lBpYJIxNREEjd .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-QY8lBpYJIxNREEjd .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-QY8lBpYJIxNREEjd .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster text{fill:#333;}#mermaid-svg-QY8lBpYJIxNREEjd .cluster span{color:#333;}#mermaid-svg-QY8lBpYJIxNREEjd div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-QY8lBpYJIxNREEjd :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

流处理层

消息队列层

事件处理流

Kafka Streams

复杂事件处理

Flink

实时聚合

Storm

Kafka Producer

Agent

Kafka Cluster

Topic: raw-events

Topic: processed-events

Topic: alerts

Kafka配置示例：

# server.properties
num.network.threads=8
num.io.threads=16
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600

# 针对高吞吐量优化
num.partitions=12
default.replication.factor=3
min.insync.replicas=2

# 数据保留策略
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000

流处理代码示例（Kafka Streams）：

@Component
public class EventStreamProcessor {

@Value("${kafka.bootstrap.servers}")
private String bootstrapServers;

public void startEventProcessing() {
Properties props = new Properties();
props.put(StreamsConfig.APPLICATION_ID_CONFIG, "security-event-processor");
props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);

StreamsBuilder builder = new StreamsBuilder();

// 1. 原始事件流
KStream<String, SecurityEvent> rawEvents = builder.stream("raw-events");

// 2. 事件过滤和清洗
KStream<String, SecurityEvent> filteredEvents = rawEvents
.filter((key, event) -> isValidEvent(event))
.mapValues(this::enrichEvent);

// 3. 异常检测
KStream<String, Alert> alerts = filteredEvents
.flatMapValues(this::detectAnomalies)
.filter((key, alert) -> alert != null);

// 4. 事件聚合 – 按用户ID分组
KTable<String, EventSummary> userEventSummary = filteredEvents
.groupBy((key, event) -> event.getUserId())
.windowedBy(TimeWindows.of(Duration.ofMinutes(5)))
.aggregate(
EventSummary::new,
(userId, event, summary) -> summary.addEvent(event),
Materialized.with(Serdes.String(), eventSummarySerde)
);

// 输出到下游topic
alerts.to("alerts", Produced.with(Serdes.String(), alertSerde));
filteredEvents.to("processed-events", Produced.with(Serdes.String(), eventSerde));

KafkaStreams streams = new KafkaStreams(builder.build(), props);
streams.start();
}
}

5.2 微服务架构设计

#mermaid-svg-rqHlGyTD4jTKv3Cg {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .error-icon{fill:#552222;}#mermaid-svg-rqHlGyTD4jTKv3Cg .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-rqHlGyTD4jTKv3Cg .marker{fill:#333333;stroke:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .marker.cross{stroke:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster-label text{fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster-label span{color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .label text,#mermaid-svg-rqHlGyTD4jTKv3Cg span{fill:#333;color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node rect,#mermaid-svg-rqHlGyTD4jTKv3Cg .node circle,#mermaid-svg-rqHlGyTD4jTKv3Cg .node ellipse,#mermaid-svg-rqHlGyTD4jTKv3Cg .node polygon,#mermaid-svg-rqHlGyTD4jTKv3Cg .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node .label{text-align:center;}#mermaid-svg-rqHlGyTD4jTKv3Cg .node.clickable{cursor:pointer;}#mermaid-svg-rqHlGyTD4jTKv3Cg .arrowheadPath{fill:#333333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-rqHlGyTD4jTKv3Cg .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster text{fill:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg .cluster span{color:#333;}#mermaid-svg-rqHlGyTD4jTKv3Cg div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-rqHlGyTD4jTKv3Cg :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

基础设施层

数据服务层

应用服务层

API网关层

服务注册中心

配置中心

监控中心

事件查询服务

统计分析服务

报表生成服务

事件收集服务

异常检测服务

告警管理服务

用户管理服务

配置管理服务

Kong/Zuul

Nginx/Envoy

Spring Cloud配置示例：

# application.yml
spring:
application:
name: security–event–service
cloud:
consul:
host: localhost
port: 8500
discovery:
instance-id: ${spring.application.name}:${random.value}
health-check-path: /actuator/health
health-check-interval: 15s

server:
port: 8080

management:
endpoints:
web:
exposure:
include: health,info,metrics,prometheus
endpoint:
health:
show-details: always

# 数据源配置
spring:
datasource:
primary:
url: jdbc:postgresql://localhost:5432/security_db
username: ${DB_USER}
password: ${DB_PASSWORD}
driver-class-name: org.postgresql.Driver
hikari:
maximum-pool-size: 20
minimum-idle: 5
connection-timeout: 20000

redis:
cluster:
nodes:
– redis–1:6379
– redis–2:6379
– redis–3:6379
max-redirects: 3
lettuce:
pool:
max-active: 16
max-idle: 8

5.3 容器化部署方案

Docker Compose配置：

version: '3.8'
services:
# 事件收集服务
event-collector:
build: ./event–collector
ports:
– "8080:8080"
environment:
– SPRING_PROFILES_ACTIVE=docker
– KAFKA_BOOTSTRAP_SERVERS=kafka:9092
– REDIS_HOST=redis
– POSTGRES_HOST=postgres
depends_on:
– kafka
– redis
– postgres
deploy:
replicas: 3
resources:
limits:
cpus: '1.0'
memory: 1G
reservations:
cpus: '0.5'
memory: 512M

# 异常检测服务
anomaly-detector:
build: ./anomaly–detector
environment:
– PYTHON_ENV=production
– KAFKA_BOOTSTRAP_SERVERS=kafka:9092
– ELASTICSEARCH_HOST=elasticsearch:9200
depends_on:
– kafka
– elasticsearch
deploy:
replicas: 2
resources:
limits:
cpus: '2.0'
memory: 2G

# 基础设施
kafka:
image: confluentinc/cp–kafka:latest
environment:
KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://kafka:9092
KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
ports:
– "9092:9092"
volumes:
– kafka–data:/var/lib/kafka/data

redis:
image: redis:7–alpine
command: redis–server ––appendonly yes ––cluster–enabled yes
ports:
– "6379:6379"
volumes:
– redis–data:/data

postgres:
image: postgres:14
environment:
POSTGRES_DB: security_db
POSTGRES_USER: security_user
POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
ports:
– "5432:5432"
volumes:
– postgres–data:/var/lib/postgresql/data
– ./init.sql:/docker–entrypoint–initdb.d/init.sql

volumes:
kafka-data:
redis-data:
postgres-data:

5.4 Kubernetes部署配置

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: security–monitor–deployment
labels:
app: security–monitor
spec:
replicas: 3
selector:
matchLabels:
app: security–monitor
template:
metadata:
labels:
app: security–monitor
spec:
containers:
– name: event–collector
image: security–monitor/event–collector:latest
ports:
– containerPort: 8080
env:
– name: KAFKA_BOOTSTRAP_SERVERS
valueFrom:
configMapKeyRef:
name: app–config
key: kafka.bootstrap.servers
resources:
requests:
memory: "512Mi"
cpu: "250m"
limits:
memory: "1Gi"
cpu: "500m"
livenessProbe:
httpGet:
path: /actuator/health
port: 8080
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /actuator/health/readiness
port: 8080
initialDelaySeconds: 5
periodSeconds: 5

—
apiVersion: v1
kind: Service
metadata:
name: security–monitor–service
spec:
selector:
app: security–monitor
ports:
– protocol: TCP
port: 80
targetPort: 8080
type: LoadBalancer

—
apiVersion: v1
kind: ConfigMap
metadata:
name: app–config
data:
kafka.bootstrap.servers: "kafka-cluster:9092"
redis.host: "redis-cluster"
postgres.host: "postgres-cluster"

5.5 监控与可观测性

#mermaid-svg-ftUx2IZz2ngAJye8 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .error-icon{fill:#552222;}#mermaid-svg-ftUx2IZz2ngAJye8 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-ftUx2IZz2ngAJye8 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-ftUx2IZz2ngAJye8 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 .marker.cross{stroke:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-ftUx2IZz2ngAJye8 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster-label text{fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster-label span{color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .label text,#mermaid-svg-ftUx2IZz2ngAJye8 span{fill:#333;color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .node rect,#mermaid-svg-ftUx2IZz2ngAJye8 .node circle,#mermaid-svg-ftUx2IZz2ngAJye8 .node ellipse,#mermaid-svg-ftUx2IZz2ngAJye8 .node polygon,#mermaid-svg-ftUx2IZz2ngAJye8 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-ftUx2IZz2ngAJye8 .node .label{text-align:center;}#mermaid-svg-ftUx2IZz2ngAJye8 .node.clickable{cursor:pointer;}#mermaid-svg-ftUx2IZz2ngAJye8 .arrowheadPath{fill:#333333;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-ftUx2IZz2ngAJye8 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-ftUx2IZz2ngAJye8 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster text{fill:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 .cluster span{color:#333;}#mermaid-svg-ftUx2IZz2ngAJye8 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-ftUx2IZz2ngAJye8 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

可视化

链路追踪

日志聚合

指标采集

监控大屏

Grafana

Kibana

链路分析

分布式追踪

Jaeger

Zipkin

Logstash

Filebeat

Elasticsearch

业务指标

Prometheus

系统指标

JVM指标

Prometheus配置示例：

# prometheus.yml
global:
scrape_interval: 15s
evaluation_interval: 15s

rule_files:
– "alert_rules.yml"

scrape_configs:
– job_name: 'security-monitor'
static_configs:
– targets: ['security-monitor:8080']
metrics_path: /actuator/prometheus
scrape_interval: 10s

– job_name: 'kafka'
static_configs:
– targets: ['kafka:9092']
metrics_path: /metrics

– job_name: 'redis'
static_configs:
– targets: ['redis:6379']

alerting:
alertmanagers:
– static_configs:
– targets:
– alertmanager:9093

5.6 性能优化核心策略

5.6.1 数据库优化

— 针对高频查询的索引优化
CREATE INDEX CONCURRENTLY idx_events_timestamp_user
ON security_events (timestamp DESC, user_id)
WHERE timestamp > NOW() – INTERVAL '7 days';

— 分区表策略
CREATE TABLE security_events_2024_01 PARTITION OF security_events
FOR VALUES FROM ('2024-01-01') TO ('2024-02-01');

— 实时查询优化
CREATE MATERIALIZED VIEW real_time_stats AS
SELECT
date_trunc('minute', timestamp) as time_bucket,
event_type,
COUNT(*) as event_count,
AVG(risk_score) as avg_risk_score
FROM security_events
WHERE timestamp > NOW() – INTERVAL '1 hour'
GROUP BY time_bucket, event_type;

5.6.2 缓存策略实现

@Configuration
@EnableCaching
public class CacheConfig {

@Bean
public CacheManager cacheManager() {
RedisCacheManager.Builder builder = RedisCacheManager
.RedisCacheManagerBuilder
.fromConnectionFactory(redisConnectionFactory())
.cacheDefaults(cacheConfiguration());

return builder.build();
}

private RedisCacheConfiguration cacheConfiguration() {
return RedisCacheConfiguration.defaultCacheConfig()
.entryTtl(Duration.ofMinutes(10))
.serializeKeysWith(RedisSerializationContext.SerializationPair
.fromSerializer(new StringRedisSerializer()))
.serializeValuesWith(RedisSerializationContext.SerializationPair
.fromSerializer(new GenericJackson2JsonRedisSerializer()));
}
}

@Service
public class EventQueryService {

@Cacheable(value = "event-stats", key = "#userId + ':' + #timeRange")
public EventStatistics getUserEventStats(String userId, String timeRange) {
// 复杂的统计查询逻辑
return eventRepository.calculateUserStats(userId, timeRange);
}

@CacheEvict(value = "event-stats", key = "#userId + ':*'")
public void clearUserStatsCache(String userId) {
// 用户相关缓存清理
}
}

部署与运维策略

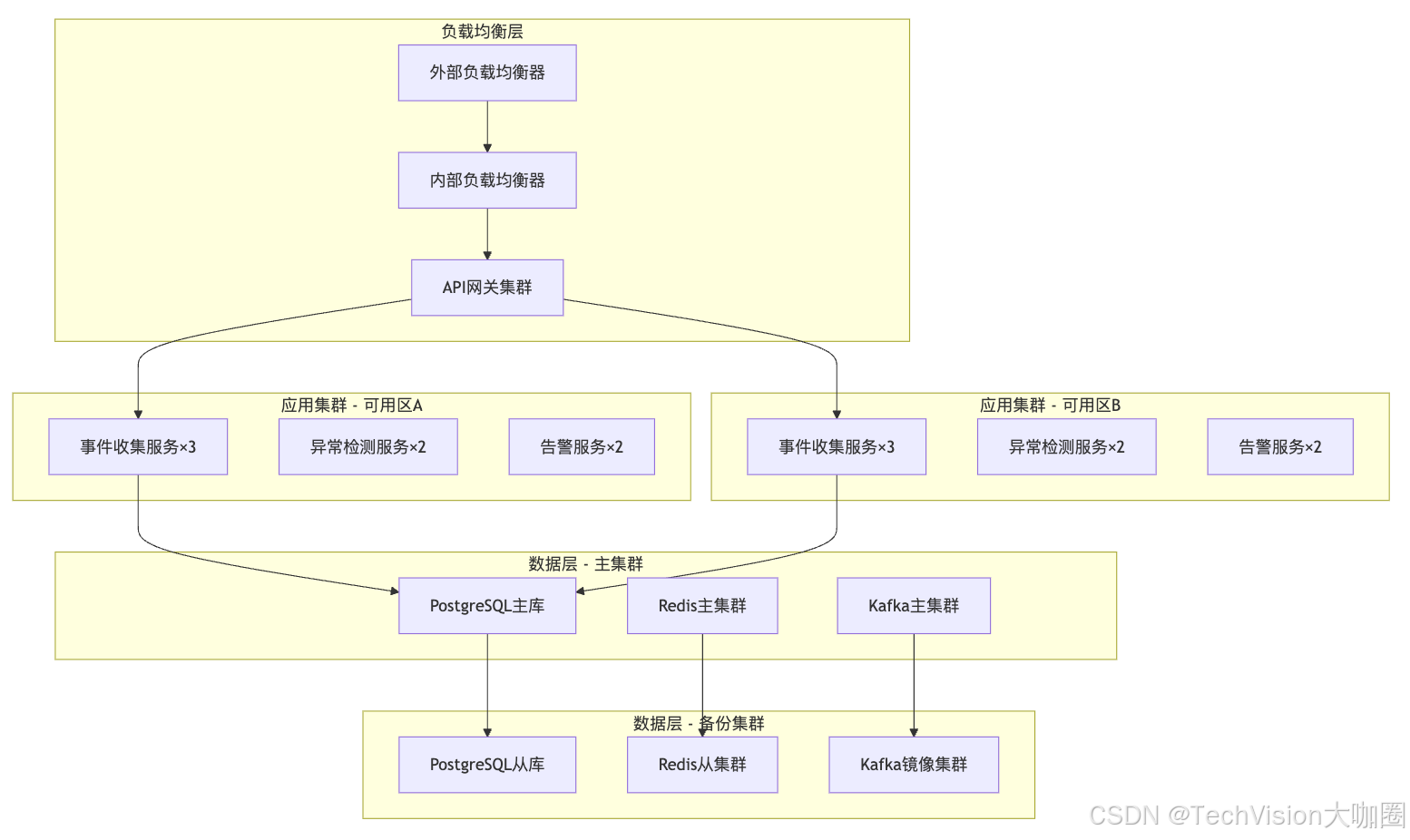

6.1 生产环境部署架构

6.1.1 高可用配置详解

PostgreSQL主从配置：

# 主库配置 (postgresql.conf)
listen_addresses = '*'
wal_level = replica
max_wal_senders = 3
wal_keep_segments = 64
synchronous_standby_names = 'standby1,standby2'

# 从库配置 (recovery.conf)
standby_mode = 'on'
primary_conninfo = 'host=master-ip port=5432 user=replicator'
trigger_file = '/tmp/postgresql.trigger'

Redis集群配置：

# redis.conf
cluster-enabled yes
cluster-config-file nodes.conf
cluster-node-timeout 5000
appendonly yes
appendfsync everysec

# 集群初始化
redis-cli –cluster create \\
192.168.1.10:6379 192.168.1.11:6379 192.168.1.12:6379 \\
192.168.1.13:6379 192.168.1.14:6379 192.168.1.15:6379 \\
–cluster-replicas 1

6.1.2 自动化部署脚本

#!/bin/bash
# deploy.sh – 自动化部署脚本

set -e

# 环境变量
ENVIRONMENT=${1:-production}
VERSION=${2:-latest}
NAMESPACE="security-monitor"

echo "开始部署 SecurityMonitor v${VERSION} 到 ${ENVIRONMENT} 环境"

# 1. 检查依赖
check_dependencies() {
command -v kubectl >/dev/null 2>&1 || { echo "kubectl 未安装"; exit 1; }
command -v helm >/dev/null 2>&1 || { echo "helm 未安装"; exit 1; }
command -v docker >/dev/null 2>&1 || { echo "docker 未安装"; exit 1; }
}

# 2. 构建镜像
build_images() {
echo "构建Docker镜像…"
docker build -t security-monitor/event-collector:${VERSION} ./event-collector/
docker build -t security-monitor/anomaly-detector:${VERSION} ./anomaly-detector/
docker build -t security-monitor/alert-manager:${VERSION} ./alert-manager/

# 推送到镜像仓库
docker push security-monitor/event-collector:${VERSION}
docker push security-monitor/anomaly-detector:${VERSION}
docker push security-monitor/alert-manager:${VERSION}
}

# 3. 部署基础设施
deploy_infrastructure() {
echo "部署基础设施组件…"

# 部署Kafka
helm upgrade –install kafka bitnami/kafka \\
–namespace ${NAMESPACE} \\
–set replicaCount=3 \\
–set zookeeper.replicaCount=3 \\
–set persistence.size=100Gi

# 部署Redis
helm upgrade –install redis bitnami/redis-cluster \\
–namespace ${NAMESPACE} \\
–set cluster.nodes=6 \\
–set persistence.size=20Gi

# 部署PostgreSQL
helm upgrade –install postgres bitnami/postgresql-ha \\
–namespace ${NAMESPACE} \\
–set postgresql.replicaCount=2 \\
–set persistence.size=200Gi
}

# 4. 部署应用服务
deploy_applications() {
echo "部署应用服务…"

# 更新Helm Chart
helm upgrade –install security-monitor ./helm/security-monitor \\
–namespace ${NAMESPACE} \\
–set image.tag=${VERSION} \\
–set environment=${ENVIRONMENT} \\
–values ./helm/values-${ENVIRONMENT}.yaml
}

# 5. 验证部署
verify_deployment() {
echo "验证部署状态…"

# 等待Pod就绪
kubectl wait –for=condition=ready pod \\
-l app=security-monitor \\
-n ${NAMESPACE} \\
–timeout=300s

# 健康检查
kubectl get pods -n ${NAMESPACE}
kubectl get services -n ${NAMESPACE}

# API健康检查
API_URL=$(kubectl get service security-monitor-api -n ${NAMESPACE} -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
curl -f http://${API_URL}/actuator/health || { echo "API健康检查失败"; exit 1; }
}

# 主流程
main() {
check_dependencies
build_images
deploy_infrastructure
deploy_applications
verify_deployment

echo "部署完成！"
echo "API地址: http://$(kubectl get service security-monitor-api -n ${NAMESPACE} -o jsonpath='{.status.loadBalancer.ingress[0].ip}')"
}

main "$@"

6.2 监控告警体系

6.2.1 系统监控指标

# prometheus-rules.yml
groups:
– name: security–monitor–alerts
rules:
# 系统可用性告警
– alert: ServiceDown
expr: up{job="security–monitor"} == 0
for: 1m
labels:
severity: critical
annotations:
summary: "Security Monitor服务不可用"
description: "{{ $labels.instance }} 已经下线超过1分钟"

# 事件处理延迟告警
– alert: HighEventProcessingLatency
expr: event_processing_duration_seconds{quantile="0.95"} > 5
for: 2m
labels:
severity: warning
annotations:
summary: "事件处理延迟过高"
description: "95%分位数的处理延迟超过5秒"

# 磁盘空间告警
– alert: DiskSpaceUsageHigh
expr: (node_filesystem_size_bytes – node_filesystem_free_bytes) / node_filesystem_size_bytes > 0.85
for: 5m
labels:
severity: warning
annotations:
summary: "磁盘空间使用率过高"
description: "磁盘 {{ $labels.device }} 使用率超过85%"

# 异常检测准确率告警
– alert: AnomalyDetectionAccuracyLow
expr: anomaly_detection_accuracy < 0.8
for: 10m
labels:
severity: warning
annotations:
summary: "异常检测准确率下降"
description: "当前异常检测准确率为 {{ $value }}，低于80%阈值"

6.2.2 业务监控大屏

// Grafana Dashboard配置
{
"dashboard": {
"title": "Security Monitor – 运维监控大屏",
"panels": [
{
"title": "系统健康状态",
"type": "stat",
"targets": [
{
"expr": "up{job=\\"security-monitor\\"}",
"legendFormat": "{{instance}}"
}
],
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"thresholds": {
"steps": [
{"color": "red", "value": 0},
{"color": "green", "value": 1}
]
}
}
}
},
{
"title": "每秒事件处理量",
"type": "graph",
"targets": [
{
"expr": "rate(events_processed_total[5m])",
"legendFormat": "处理速率"
}
]
},
{
"title": "异常检测结果分布",
"type": "piechart",
"targets": [
{
"expr": "sum by (risk_level) (events_by_risk_level)",
"legendFormat": "{{risk_level}}"
}
]
},
{
"title": "TOP 10 异常文件路径",
"type": "table",
"targets": [
{
"expr": "topk(10, sum by (file_path) (anomaly_events_total))",
"legendFormat": "{{file_path}}"
}
]
}
]
}
}

6.3 容灾与备份策略

6.3.1 数据备份自动化

#!/bin/bash
# backup.sh – 数据备份脚本

BACKUP_DATE=$(date +%Y%m%d_%H%M%S)
BACKUP_ROOT="/backup/security-monitor"
RETENTION_DAYS=30

# PostgreSQL备份
backup_postgresql() {
echo "开始PostgreSQL备份…"

pg_dump -h ${PG_HOST} -U ${PG_USER} -d security_db \\
–verbose –format=custom \\
–file="${BACKUP_ROOT}/postgresql/security_db_${BACKUP_DATE}.dump"

# 压缩备份文件
gzip "${BACKUP_ROOT}/postgresql/security_db_${BACKUP_DATE}.dump"

echo "PostgreSQL备份完成"
}

# Redis备份
backup_redis() {
echo "开始Redis备份…"

redis-cli –rdb "${BACKUP_ROOT}/redis/redis_${BACKUP_DATE}.rdb"
gzip "${BACKUP_ROOT}/redis/redis_${BACKUP_DATE}.rdb"

echo "Redis备份完成"
}

# 配置文件备份
backup_configs() {
echo "开始配置文件备份…"

tar -czf "${BACKUP_ROOT}/configs/configs_${BACKUP_DATE}.tar.gz" \\
/etc/security-monitor/ \\
/opt/security-monitor/config/

echo "配置文件备份完成"
}

# 清理旧备份
cleanup_old_backups() {
echo "清理${RETENTION_DAYS}天前的备份文件…"

find ${BACKUP_ROOT} -name "*.gz" -mtime +${RETENTION_DAYS} -delete
find ${BACKUP_ROOT} -name "*.dump" -mtime +${RETENTION_DAYS} -delete

echo "清理完成"
}

# 上传到云存储
upload_to_cloud() {
echo "上传备份到云存储…"

# 上传到AWS S3
aws s3 sync ${BACKUP_ROOT} s3://security-monitor-backups/$(date +%Y/%m/%d)/ \\
–exclude "*" –include "*.gz" –include "*.tar.gz"

echo "云存储上传完成"
}

# 主流程
main() {
mkdir -p ${BACKUP_ROOT}/{postgresql,redis,configs}

backup_postgresql
backup_redis
backup_configs
upload_to_cloud
cleanup_old_backups

echo "备份任务完成 – ${BACKUP_DATE}"
}

main "$@"

6.3.2 容灾切换流程

#mermaid-svg-WvSacokZ7kKtrrT7 {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .error-icon{fill:#552222;}#mermaid-svg-WvSacokZ7kKtrrT7 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-WvSacokZ7kKtrrT7 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-WvSacokZ7kKtrrT7 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 .marker.cross{stroke:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-WvSacokZ7kKtrrT7 .label{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster-label text{fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster-label span{color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .label text,#mermaid-svg-WvSacokZ7kKtrrT7 span{fill:#333;color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .node rect,#mermaid-svg-WvSacokZ7kKtrrT7 .node circle,#mermaid-svg-WvSacokZ7kKtrrT7 .node ellipse,#mermaid-svg-WvSacokZ7kKtrrT7 .node polygon,#mermaid-svg-WvSacokZ7kKtrrT7 .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-WvSacokZ7kKtrrT7 .node .label{text-align:center;}#mermaid-svg-WvSacokZ7kKtrrT7 .node.clickable{cursor:pointer;}#mermaid-svg-WvSacokZ7kKtrrT7 .arrowheadPath{fill:#333333;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-WvSacokZ7kKtrrT7 .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgeLabel{background-color:#e8e8e8;text-align:center;}#mermaid-svg-WvSacokZ7kKtrrT7 .edgeLabel rect{opacity:0.5;background-color:#e8e8e8;fill:#e8e8e8;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster text{fill:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 .cluster span{color:#333;}#mermaid-svg-WvSacokZ7kKtrrT7 div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-WvSacokZ7kKtrrT7 :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

网络故障

服务故障

硬件故障

超时

恢复

成功

失败

监控检测到主站故障

故障类型判断

等待网络恢复

尝试自动重启

执行容灾切换

超时检查

重启成功?

恢复正常

切换DNS指向备用站点

启动备用站点服务

数据同步检查

服务验证

通知运维团队

记录故障日志

自动切换脚本：

#!/usr/bin/env python3
# disaster_recovery.py

import asyncio
import aiohttp
import logging
from typing import Dict, List
import json
import subprocess

class DisasterRecoveryManager:
def __init__(self, config_file: str):
with open(config_file, 'r') as f:
self.config = json.load(f)

self.primary_endpoints = self.config['primary']['endpoints']
self.backup_endpoints = self.config['backup']['endpoints']
self.dns_config = self.config['dns']

logging.basicConfig(level=logging.INFO)
self.logger = logging.getLogger(__name__)

async def check_service_health(self, endpoint: str) –> bool:
"""检查服务健康状态"""
try:
async with aiohttp.ClientSession() as session:
async with session.get(f"{endpoint}/actuator/health",
timeout=aiohttp.ClientTimeout(total=10)) as response:
if response.status == 200:
data = await response.json()
return data.get('status') == 'UP'
except Exception as e:
self.logger.error(f"健康检查失败 {endpoint}: {e}")
return False

return False

async def check_all_services(self, endpoints: List[str]) –> Dict[str, bool]:
"""检查所有服务的健康状态"""
tasks = [self.check_service_health(endpoint) for endpoint in endpoints]
results = await asyncio.gather(*tasks)

return dict(zip(endpoints, results))

def switch_dns_to_backup(self):
"""切换DNS到备用站点"""
try:
# 使用Route53 API切换DNS
cmd = [
'aws', 'route53', 'change-resource-record-sets',
'–hosted-zone-id', self.dns_config['zone_id'],
'–change-batch', json.dumps({
'Changes': [{
'Action': 'UPSERT',
'ResourceRecordSet': {
'Name': self.dns_config['domain'],
'Type': 'A',
'TTL': 60,
'ResourceRecords': [{'Value': self.config['backup']['ip']}]
}
}]
})
]

result = subprocess.run(cmd, capture_output=True, text=True)
if result.returncode == 0:
self.logger.info("DNS切换成功")
return True
else:
self.logger.error(f"DNS切换失败: {result.stderr}")
return False

except Exception as e:
self.logger.error(f"DNS切换异常: {e}")
return False

async def start_backup_services(self):
"""启动备用站点服务"""
try:
# 使用Kubernetes API启动备用服务
cmd = [
'kubectl', 'scale', 'deployment', 'security-monitor',
'–replicas=3', '–namespace=backup'
]

result = subprocess.run(cmd, capture_output=True, text=True)
if result.returncode == 0:
self.logger.info("备用服务启动成功")

# 等待服务就绪
await asyncio.sleep(30)
return True
else:
self.logger.error(f"备用服务启动失败: {result.stderr}")
return False

except Exception as e:
self.logger.error(f"备用服务启动异常: {e}")
return False

async def execute_disaster_recovery(self):
"""执行容灾切换流程"""
self.logger.info("开始执行容灾切换…")

# 1. 最后一次检查主站点
primary_status = await self.check_all_services(self.primary_endpoints)
healthy_count = sum(primary_status.values())

if healthy_count >= len(self.primary_endpoints) * 0.5:
self.logger.info("主站点恢复正常，取消容灾切换")
return False

# 2. 启动备用服务
if await self.start_backup_services():
# 3. 检查备用服务状态
backup_status = await self.check_all_services(self.backup_endpoints)
backup_healthy = sum(backup_status.values())

if backup_healthy >= len(self.backup_endpoints) * 0.8:
# 4. 切换DNS
if self.switch_dns_to_backup():
self.logger.info("容灾切换完成")
self.send_notification("容灾切换完成，系统已切换到备用站点")
return True

self.logger.error("容灾切换失败")
self.send_notification("容灾切换失败，请人工介入")
return False

def send_notification(self, message: str):
"""发送通知"""
# 发送钉钉/企业微信通知
# 发送邮件通知
# 发送短信通知
self.logger.info(f"发送通知: {message}")

if __name__ == "__main__":
dr_manager = DisasterRecoveryManager("disaster_recovery_config.json")
asyncio.run(dr_manager.execute_disaster_recovery())

6.4 运维自动化

6.4.1 日志管理自动化

# filebeat.yml
filebeat.inputs:
– type: log
enabled: true
paths:
– /var/log/security–monitor/*.log
fields:
service: security–monitor
environment: production
multiline.pattern: '^\\d{4}-\\d{2}-\\d{2}'
multiline.negate: true
multiline.match: after

processors:
– add_host_metadata:
when.not.contains.tags: forwarded
– add_docker_metadata: ~
– add_kubernetes_metadata: ~

output.elasticsearch:
hosts: ["elasticsearch-1:9200", "elasticsearch-2:9200"]
index: "security-monitor-logs-%{+yyyy.MM.dd}"
template.settings:
index.number_of_shards: 2
index.number_of_replicas: 1

logging.level: info
logging.to_files: true
logging.files:
path: /var/log/filebeat
name: filebeat
keepfiles: 7
permissions: 0644

6.4.2 自动扩缩容策略

# hpa.yaml
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
name: security–monitor–hpa
namespace: security–monitor
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: security–monitor
minReplicas: 3
maxReplicas: 20
metrics:
– type: Resource
resource:
name: cpu
target:
type: Utilization
averageUtilization: 70
– type: Resource
resource:
name: memory
target:
type: Utilization
averageUtilization: 80
– type: Pods
pods:
metric:
name: events_processing_rate
target:
type: AverageValue
averageValue: "1000"
behavior:
scaleDown:
stabilizationWindowSeconds: 300
policies:
– type: Pods
value: 1
periodSeconds: 60
scaleUp:
stabilizationWindowSeconds: 60
policies:
– type: Pods
value: 2
periodSeconds: 30

总结与展望

通过本文的详细分析，我们完整地构建了一个服务器文件安全异常实时监测系统的设计方案。这套系统不仅仅是一个简单的文件监控工具，而是一个集成了现代化技术栈的智能安全防护平台。

📊 系统核心优势总结

🛡️ 多层防护体系

• 数据采集层：通过inotify、eBPF等技术实现毫秒级事件捕获
• 智能分析层：融合规则引擎、统计学分析、机器学习的多维度异常检测
• 响应处理层：自动化告警和响应机制，支持多渠道通知
• 可视化层：实时监控大屏和详细的分析报表

⚡ 高性能设计

• 并发处理：基于Kafka的分布式流处理，支持百万级事件/秒
• 存储优化：分层存储策略，热温冷数据分级管理
• 缓存策略：Redis集群缓存热点数据，毫秒级查询响应
• 自动扩容：基于HPA的弹性伸缩，根据负载自动调整资源

🔧 运维友好

• 容器化部署：Docker + Kubernetes，支持一键部署和滚动更新
• 监控告警：Prometheus + Grafana完整监控体系
• 日志管理：ELK栈统一日志收集和分析
• 备份容灾：多级备份策略和自动容灾切换

🎯 实际应用场景

企业级应用场景：

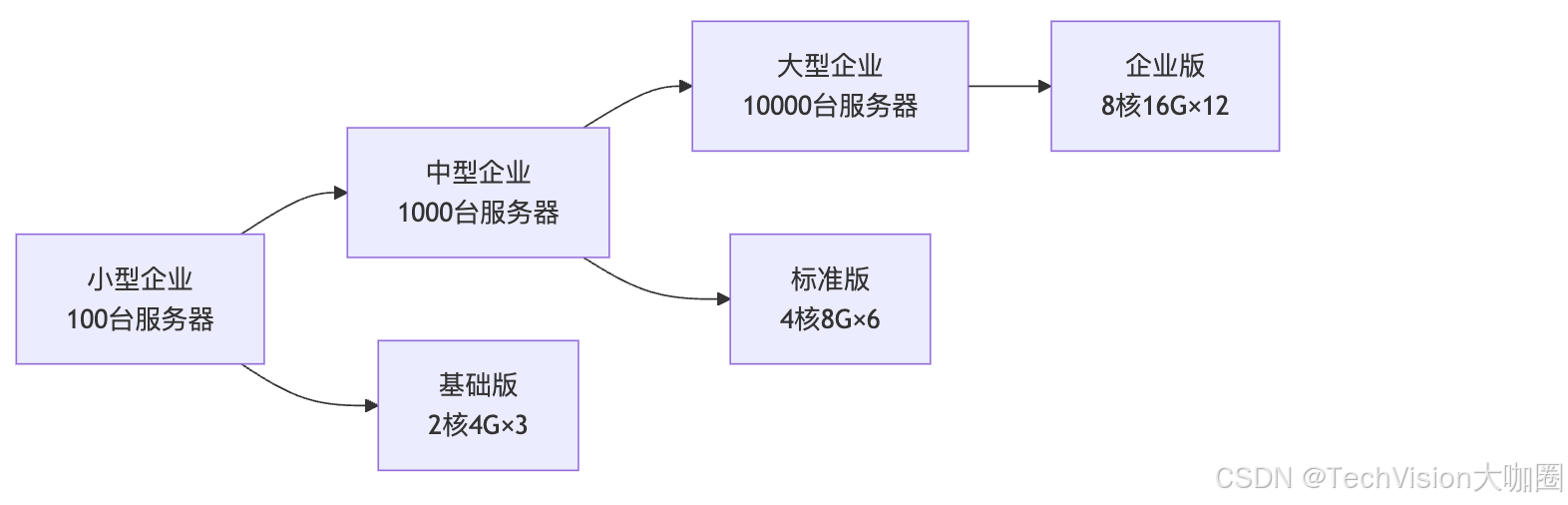

部署规模参考：

🚀 技术发展趋势

AI驱动的安全分析 随着人工智能技术的发展，未来的文件安全监测将更加智能：

• 深度学习模型：使用Transformer架构分析文件访问序列
• 联邦学习：多机构间共享威胁情报而不泄露敏感数据
• 零样本检测：无需训练即可识别全新类型的威胁

云原生安全 适应云计算和微服务架构的发展：

• Service Mesh集成：与Istio等服务网格深度集成
• Serverless监控：支持AWS Lambda、Azure Functions等无服务器环境
• 边缘计算：在边缘节点部署轻量级监控代理

隐私保护增强 在加强安全的同时保护用户隐私：

• 同态加密：在加密状态下进行异常检测分析
• 差分隐私：在统计分析中保护个体隐私
• 零知识证明：验证威胁检测结果而不暴露原始数据

💡 实施建议与最佳实践

阶段性部署策略：

#mermaid-svg-hzbkNjRNmjjuYGlK {font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .error-icon{fill:#552222;}#mermaid-svg-hzbkNjRNmjjuYGlK .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-thickness-normal{stroke-width:2px;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-hzbkNjRNmjjuYGlK .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .marker{fill:#333333;stroke:#333333;}#mermaid-svg-hzbkNjRNmjjuYGlK .marker.cross{stroke:#333333;}#mermaid-svg-hzbkNjRNmjjuYGlK svg{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-hzbkNjRNmjjuYGlK .mermaid-main-font{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .exclude-range{fill:#eeeeee;}#mermaid-svg-hzbkNjRNmjjuYGlK .section{stroke:none;opacity:0.2;}#mermaid-svg-hzbkNjRNmjjuYGlK .section0{fill:rgba(102, 102, 255, 0.49);}#mermaid-svg-hzbkNjRNmjjuYGlK .section2{fill:#fff400;}#mermaid-svg-hzbkNjRNmjjuYGlK .section1,#mermaid-svg-hzbkNjRNmjjuYGlK .section3{fill:white;opacity:0.2;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle0{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle1{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle2{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle3{fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .sectionTitle{text-anchor:start;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .grid .tick{stroke:lightgrey;opacity:0.8;shape-rendering:crispEdges;}#mermaid-svg-hzbkNjRNmjjuYGlK .grid .tick text{font-family:\”trebuchet ms\”,verdana,arial,sans-serif;fill:#333;}#mermaid-svg-hzbkNjRNmjjuYGlK .grid path{stroke-width:0;}#mermaid-svg-hzbkNjRNmjjuYGlK .today{fill:none;stroke:red;stroke-width:2px;}#mermaid-svg-hzbkNjRNmjjuYGlK .task{stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText{text-anchor:middle;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideRight{fill:black;text-anchor:start;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideLeft{fill:black;text-anchor:end;}#mermaid-svg-hzbkNjRNmjjuYGlK .task.clickable{cursor:pointer;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideLeft.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutsideRight.clickable{cursor:pointer;fill:#003163!important;font-weight:bold;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskText0,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText1,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText2,#mermaid-svg-hzbkNjRNmjjuYGlK .taskText3{fill:white;}#mermaid-svg-hzbkNjRNmjjuYGlK .task0,#mermaid-svg-hzbkNjRNmjjuYGlK .task1,#mermaid-svg-hzbkNjRNmjjuYGlK .task2,#mermaid-svg-hzbkNjRNmjjuYGlK .task3{fill:#8a90dd;stroke:#534fbc;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside0,#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside2{fill:black;}#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside1,#mermaid-svg-hzbkNjRNmjjuYGlK .taskTextOutside3{fill:black;}#mermaid-svg-hzbkNjRNmjjuYGlK .active0,#mermaid-svg-hzbkNjRNmjjuYGlK .active1,#mermaid-svg-hzbkNjRNmjjuYGlK .active2,#mermaid-svg-hzbkNjRNmjjuYGlK .active3{fill:#bfc7ff;stroke:#534fbc;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeText0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .done0,#mermaid-svg-hzbkNjRNmjjuYGlK .done1,#mermaid-svg-hzbkNjRNmjjuYGlK .done2,#mermaid-svg-hzbkNjRNmjjuYGlK .done3{stroke:grey;fill:lightgrey;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneText0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .crit0,#mermaid-svg-hzbkNjRNmjjuYGlK .crit1,#mermaid-svg-hzbkNjRNmjjuYGlK .crit2,#mermaid-svg-hzbkNjRNmjjuYGlK .crit3{stroke:#ff8888;fill:red;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCrit3{stroke:#ff8888;fill:#bfc7ff;stroke-width:2;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCrit3{stroke:#ff8888;fill:lightgrey;stroke-width:2;cursor:pointer;shape-rendering:crispEdges;}#mermaid-svg-hzbkNjRNmjjuYGlK .milestone{transform:rotate(45deg) scale(0.8,0.8);}#mermaid-svg-hzbkNjRNmjjuYGlK .milestoneText{font-style:italic;}#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText0,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText1,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText2,#mermaid-svg-hzbkNjRNmjjuYGlK .doneCritText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText0,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText1,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText2,#mermaid-svg-hzbkNjRNmjjuYGlK .activeCritText3{fill:black!important;}#mermaid-svg-hzbkNjRNmjjuYGlK .titleText{text-anchor:middle;font-size:18px;fill:#333;font-family:\’trebuchet ms\’,verdana,arial,sans-serif;font-family:var(–mermaid-font-family);}#mermaid-svg-hzbkNjRNmjjuYGlK :root{–mermaid-font-family:\”trebuchet ms\”,verdana,arial,sans-serif;}

2024-01-01

2024-02-01

2024-03-01

2024-04-01

2024-05-01

2024-06-01

需求分析

架构设计

核心开发

功能测试

性能调优

试点部署

全量部署

监控优化

运维培训

第一阶段

第二阶段

第三阶段

系统实施时间线

投资回报分析：

🔮 写在最后

构建一个优秀的服务器文件安全异常实时监测系统，就像是为企业的数字资产编织一张"安全之网"。这张网不仅要有足够的强度来抵御各种威胁，还要有足够的敏感度来感知最细微的异常。

关键成功要素：

• 技术选型要慎重：选择成熟稳定的技术栈，避免过度追求新技术
• 架构设计要合理：充分考虑扩展性和可维护性
• 运维体系要完善：自动化程度决定了系统的长期稳定性
• 团队能力要匹配：技术再好也需要合适的人来驾驭

持续改进方向：

记住，安全不是一次性的项目，而是一个持续演进的过程。随着威胁环境的不断变化，我们的防护体系也需要持续升级和完善。今天的最佳实践，可能就是明天需要改进的地方。

最后的提醒： 再完美的技术方案，如果缺乏合适的管理流程和人员培训，也很难发挥应有的作用。技术只是基础，管理才是关键，人员是核心。三者结合，才能构建出真正有效的安全防护体系。

希望这篇文章能够为您的文件安全监测系统建设提供一些有价值的参考！如果在实施过程中遇到任何问题，欢迎继续交流讨论。

🔥 技术交流群：加入我们的技术交流群，与更多安全专家探讨最新的防护技术和实践经验！
