云服务器分布式事务seata AT环境搭建

Seata 是什么？ | Apache SeataSeata 是一款开源的分布式事务解决方案，致力于提供高性能和简单易用的分布式事务服务。Seata 将为用户提供了 AT、TCC、SAGA 和 XA 事务模式，为用户打造一站式的分布式解决方案。https://seata.apache.org/zh-cn/docs/overview/what-is-seata/新人文档 | Apache SeataSeata分TC、TM和RM三个角色，TC（Server端）为单独服务端部署，TM和RM（Client端）由业务系统集成。https://seata.apache.org/zh-cn/docs/v2.0/ops/deploy-guide-beginner

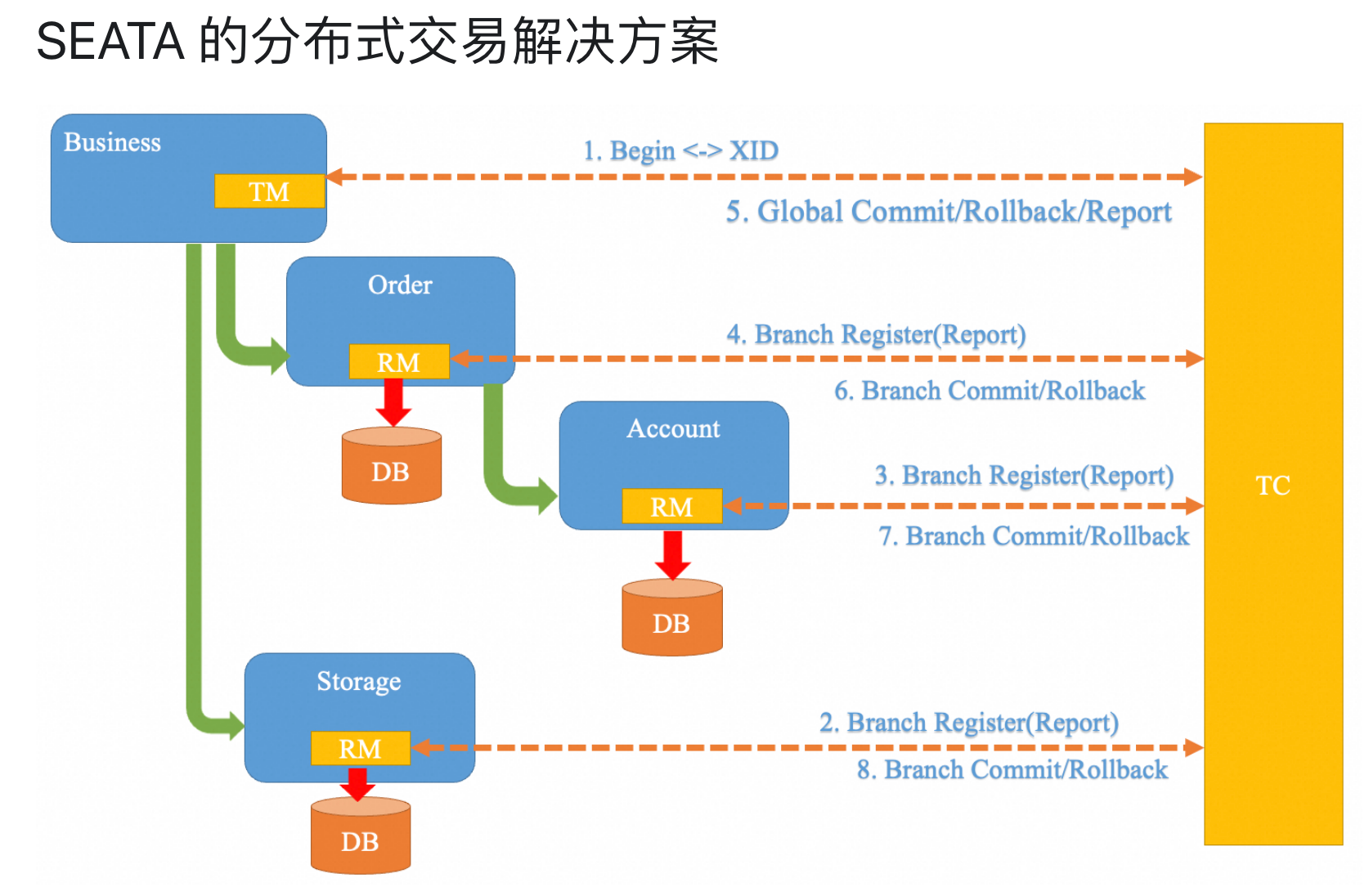

简单理解上面的流程：

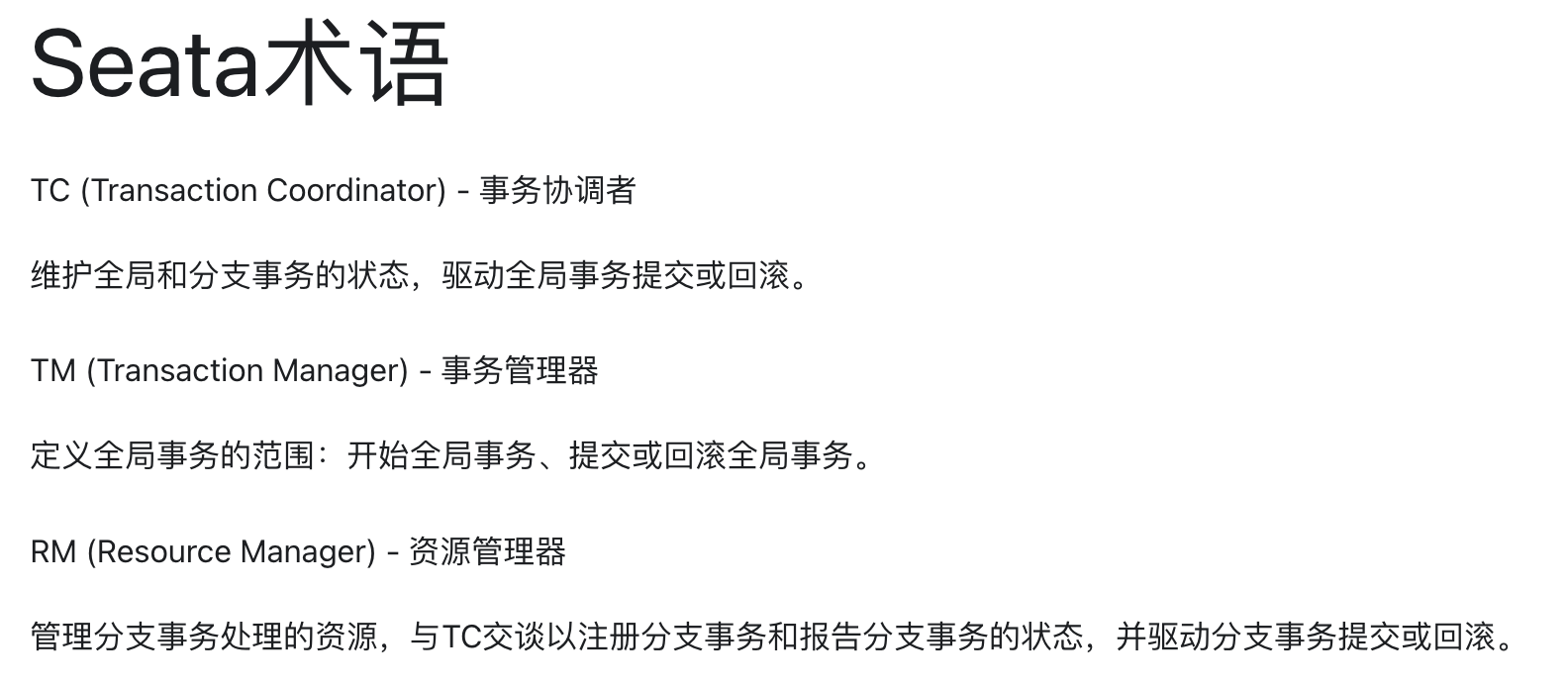

三个角色：TC、TM、RM

1、TM向TC申请全局事务，成功后生成XID

2、XID在微服务上下文中传递

3、RM向TC注册分支事务，和XID进行关联绑定管辖

4、TM向TC发起全局的提交或回滚

5、TC调度XID管辖范围内的全部分支事务进行提交或回滚

TC作为服务，需要seata数据库，及固定的表(4张表：branch_table、distributed_lock、global_table、local_table)

每个RM需要一张undo_log表

1 准备seata数据库

# 生成mysql容器 mysql-seata

docker run -d \\ -p 2306:3306 \\ -v /server/seata/conf:/etc/mysql/conf.d \\ -v /server/seata/data:/var/lib/mysql \\ -e MYSQL_ROOT_PASSWORD=123456 \\ –name mysql-seata \\ mysql:8.0.30

# 建库、建表

CREATE DATABASE seata;

USE seata;

建表sql

— ——————————– The script used when storeMode is 'db' ——————————–

— the table to store GlobalSession data

CREATE TABLE IF NOT EXISTS `global_table`

(

`xid` VARCHAR(128) NOT NULL,

`transaction_id` BIGINT,

`status` TINYINT NOT NULL,

`application_id` VARCHAR(32),

`transaction_service_group` VARCHAR(32),

`transaction_name` VARCHAR(128),

`timeout` INT,

`begin_time` BIGINT,

`application_data` VARCHAR(2000),

`gmt_create` DATETIME,

`gmt_modified` DATETIME,

PRIMARY KEY (`xid`),

KEY `idx_status_gmt_modified` (`status` , `gmt_modified`),

KEY `idx_transaction_id` (`transaction_id`)

) ENGINE = InnoDB

DEFAULT CHARSET = utf8mb4;

— the table to store BranchSession data

CREATE TABLE IF NOT EXISTS `branch_table`

(

`branch_id` BIGINT NOT NULL,

`xid` VARCHAR(128) NOT NULL,

`transaction_id` BIGINT,

`resource_group_id` VARCHAR(32),

`resource_id` VARCHAR(256),

`branch_type` VARCHAR(8),

`status` TINYINT,

`client_id` VARCHAR(64),

`application_data` VARCHAR(2000),

`gmt_create` DATETIME(6),

`gmt_modified` DATETIME(6),

PRIMARY KEY (`branch_id`),

KEY `idx_xid` (`xid`)

) ENGINE = InnoDB

DEFAULT CHARSET = utf8mb4;

— the table to store lock data

CREATE TABLE IF NOT EXISTS `lock_table`

(

`row_key` VARCHAR(128) NOT NULL,

`xid` VARCHAR(128),

`transaction_id` BIGINT,

`branch_id` BIGINT NOT NULL,

`resource_id` VARCHAR(256),

`table_name` VARCHAR(32),

`pk` VARCHAR(36),

`status` TINYINT NOT NULL DEFAULT '0' COMMENT '0:locked ,1:rollbacking',

`gmt_create` DATETIME,

`gmt_modified` DATETIME,

PRIMARY KEY (`row_key`),

KEY `idx_status` (`status`),

KEY `idx_branch_id` (`branch_id`),

KEY `idx_xid` (`xid`)

) ENGINE = InnoDB

DEFAULT CHARSET = utf8mb4;

CREATE TABLE IF NOT EXISTS `distributed_lock`

(

`lock_key` CHAR(20) NOT NULL,

`lock_value` VARCHAR(20) NOT NULL,

`expire` BIGINT,

primary key (`lock_key`)

) ENGINE = InnoDB

DEFAULT CHARSET = utf8mb4;

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('AsyncCommitting', ' ', 0);

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryCommitting', ' ', 0);

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('RetryRollbacking', ' ', 0);

INSERT INTO `distributed_lock` (lock_key, lock_value, expire) VALUES ('TxTimeoutCheck', ' ', 0);

2 准备业务数据库

# 生成mysql容器 mysql-seata-biz

docker run -d \\ -p 2307:3306 \\ -v /server/seataBiz/conf:/etc/mysql/conf.d \\ -v /server/seataBiz/data:/var/lib/mysql \\ -e MYSQL_ROOT_PASSWORD=123456 \\ –name mysql-seata-biz \\ mysql:8.0.30

准备seata_account、seata_order、seata_stroage业务数据库

# 建order库、表

CREATE DATABASE seata_order;

CREATE TABLE t_order(

`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,

`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',

`product_id` BIGINT(11)DEFAULT NULL COMMENT '产品id',

`count` INT(11) DEFAULT NULL COMMENT '数量',

`money` DECIMAL(11,0) DEFAULT NULL COMMENT '金额',

`status` INT(1) DEFAULT NULL COMMENT '订单状态: 0:创建中; 1:已完结'

)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

SELECT * FROM t_order;

# 建stroage库、表

CREATE DATABASE seata_storage;

CREATE TABLE t_storage(

`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY,

`product_id` BIGINT(11) DEFAULT NULL COMMENT '产品id',

`total` INT(11) DEFAULT NULL COMMENT '总库存',

`used` INT(11) DEFAULT NULL COMMENT '已用库存',

`residue` INT(11) DEFAULT NULL COMMENT '剩余库存'

)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

INSERT INTO t_storage(`id`,`product_id`,`total`,`used`,`residue`)VALUES('1','1','100','0','100');

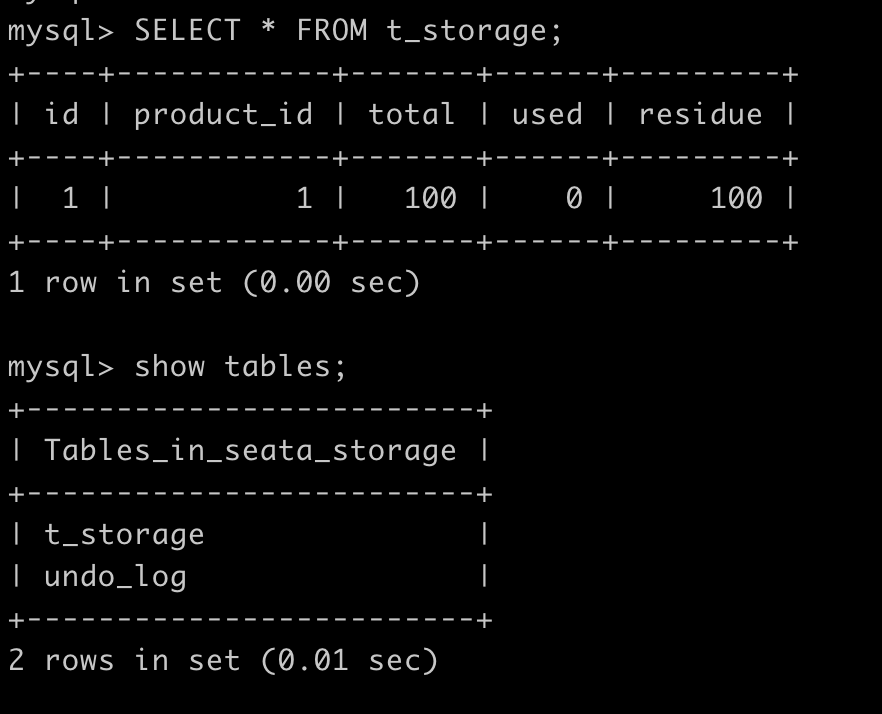

SELECT * FROM t_storage;

# 建account库、表

CREATE DATABASE seata_account;

CREATE TABLE t_account(

`id` BIGINT(11) NOT NULL AUTO_INCREMENT PRIMARY KEY COMMENT 'id',

`user_id` BIGINT(11) DEFAULT NULL COMMENT '用户id',

`total` DECIMAL(10,0) DEFAULT NULL COMMENT '总额度',

`used` DECIMAL(10,0) DEFAULT NULL COMMENT '已用账户余额',

`residue` DECIMAL(10,0) DEFAULT '0' COMMENT '剩余可用额度'

)ENGINE=INNODB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

INSERT INTO t_account(`id`,`user_id`,`total`,`used`,`residue`)VALUES('1','1','1000','0','1000');

SELECT * FROM t_account;

3个库分表建undo_log表

– for AT mode you must to init this sql for you business database. the seata server not need it.
CREATE TABLE IF NOT EXISTS `undo_log`
(
`branch_id` BIGINT NOT NULL COMMENT 'branch transaction id',
`xid` VARCHAR(128) NOT NULL COMMENT 'global transaction id',
`context` VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
`rollback_info` LONGBLOB NOT NULL COMMENT 'rollback info',
`log_status` INT(11) NOT NULL COMMENT '0:normal status,1:defense status',
`log_created` DATETIME(6) NOT NULL COMMENT 'create datetime',
`log_modified` DATETIME(6) NOT NULL COMMENT 'modify datetime',
UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB AUTO_INCREMENT = 1 DEFAULT CHARSET = utf8mb4 COMMENT ='AT transaction mode undo table';
ALTER TABLE `undo_log` ADD INDEX `ix_log_created` (`log_created`);

3 准备nacos（注册中心）

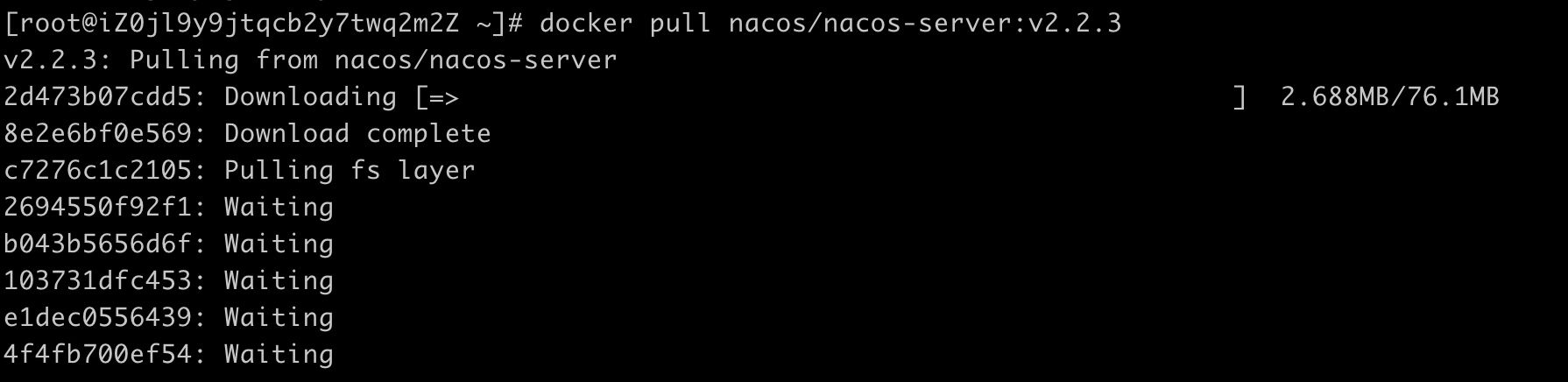

docker pull nacos/nacos-server:v2.2.3

# 创建nacos容器

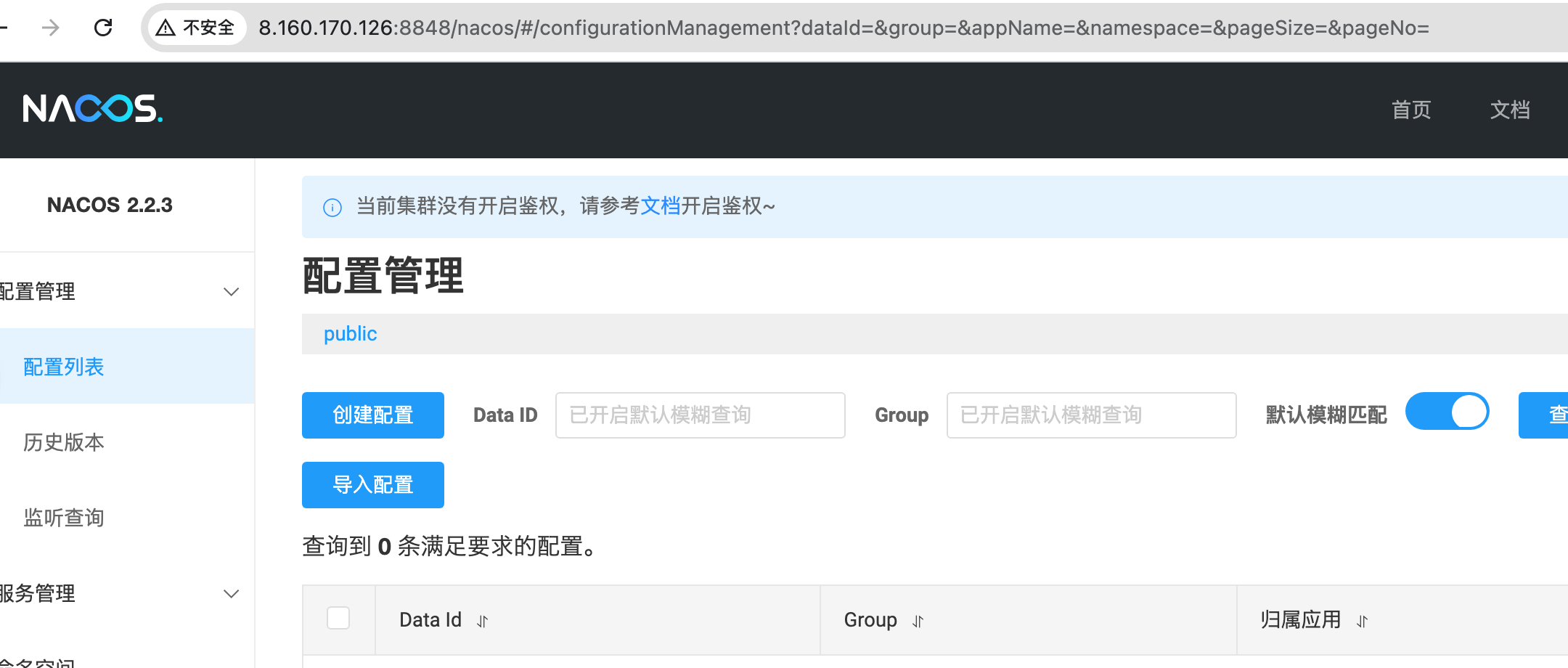

docker run –name nacos -e MODE=standalone -p 8848:8848 -p 9848:9848 -d nacos/nacos-server:v2.2.3

4 TC作为server单独部署

https://github.com/apache/incubator-seata/releases/tag/v2.0.0

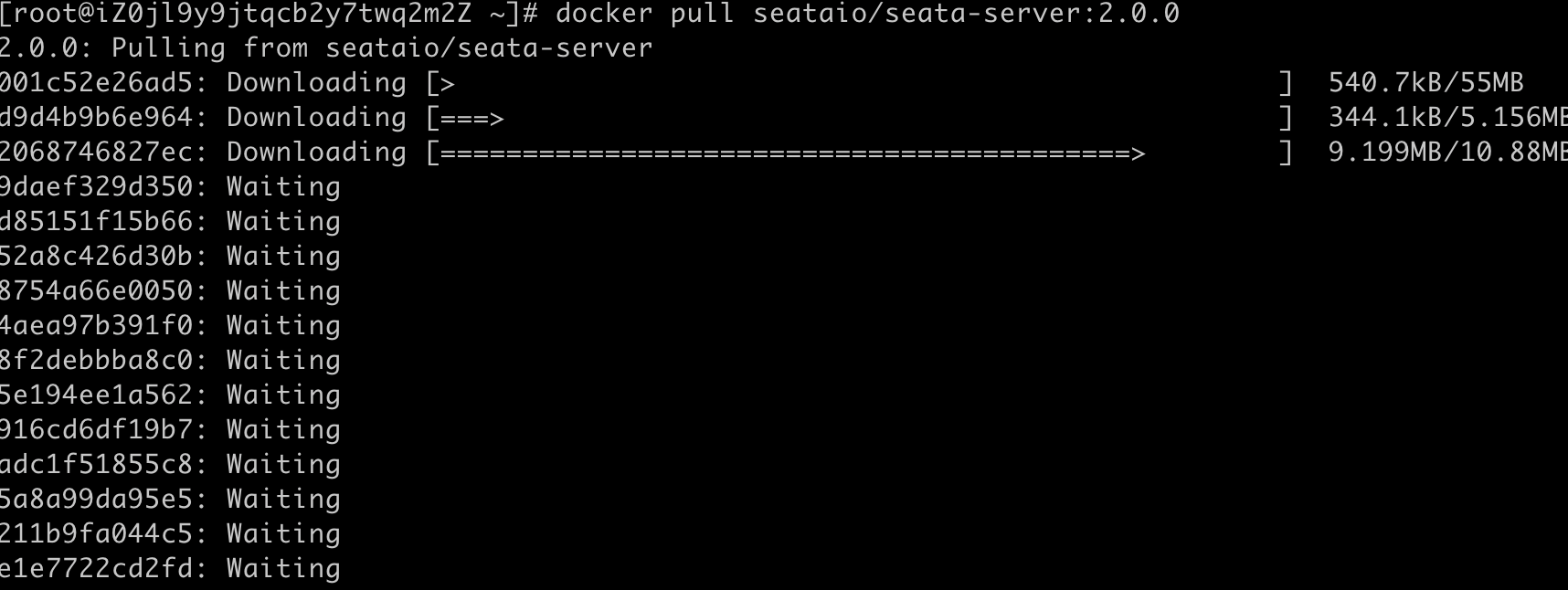

docker pull seataio/seata-server:2.0.0

启动（先确认已启动nacos）

docker run -d –name seata-server \\   -p 8091:8091 \\   -p 7091:7091 \\   -v /seata/config/resources:/seata-server/resources \\   seataio/seata-server:2.0.0

# 默认配置问题

1 先启动临时seata-server-temp,让容器自动生成默认的配置文件

docker run -d –name seata-server-temp \\   -p 8091:8091 \\   -p 7091:7091 \\   seataio/seata-server:2.0.0

2 再将配置文件拷贝到指定目录下

mkdir -p seata/config/resources

docker cp seata-server-temp:/seata-server/resources/. seata/config/resources/

3 删除临时容器，重新执行指定的创建容器命令

docker rm seata-server-temp

docker run -d –name seata-server \\   -p 8091:8091 \\   -p 7091:7091 \\   -v /seata/config/resources:/seata-server/resources \\   seataio/seata-server:2.0.0

到/seata/config/resources下修改配置文件 application.yml

启动后报错：

docker logs seata-server apm-skywalking not enabled JMX disabled Affected JVM parameters: -Dlog.home=/root/logs/seata -server -Dloader.path=/lib -Xmx2048m -Xms2048m -Xss640k -XX:SurvivorRatio=10 -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=256m -XX:MaxDirectMemorySize=1024m -XX:-OmitStackTraceInFastThrow -XX:-UseAdaptiveSizePolicy -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=/root/logs/seata/java_heapdump.hprof -XX:+DisableExplicitGC -Xloggc:/root/logs/seata/seata_gc.log -verbose:gc -XX:+PrintGCDetails  -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=100M -XX:+UnlockExperimentalVMOptions -XX:+UseG1GC -Dio.netty.leakDetectionLevel=advanced -Dapp.name=seata-server -Dapp.pid=1 -Dapp.home=/ -Dbasedir=/ OpenJDK 64-Bit Server VM warning: Cannot open file /root/logs/seata/seata_gc.log due to No such file or directory

OpenJDK 64-Bit Server VM warning: INFO: os::commit_memory(0x0000000080000000, 2147483648, 0) failed; error='Cannot allocate memory' (errno=12) # # There is insufficient memory for the Java Runtime Environment to continue. # Native memory allocation (mmap) failed to map 2147483648 bytes for committing reserved memory. # An error report file with more information is saved as: # /seata-server/hs_err_pid1.log

修复—- 启动参数加上内存限制：

docker run -d
–name seata-server -p 8091:8091 -p 7091:7091
-e JMX_OPTS="-Xmx512m -Xms512m"
-v /seata/config/resources:/seata-server/resources seataio/seata-server:2.0.0

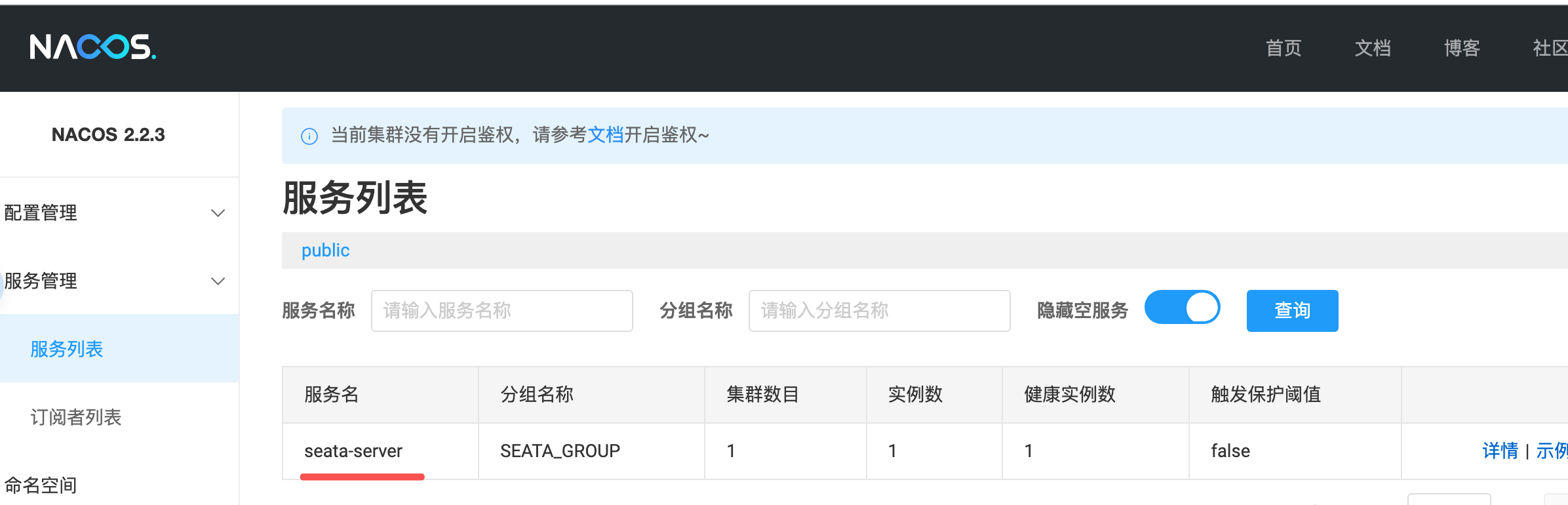

seata-server启动成功后注册到nacos中

至此环境搭建完成，后面可以结合@GlobalTransactional+配置文件试试效果
