SDL2高效画圆的算法（二）

文章目录

• 一、实心圆
• 二、实心半圆
• 三、空心圆

上一篇文章讲述了

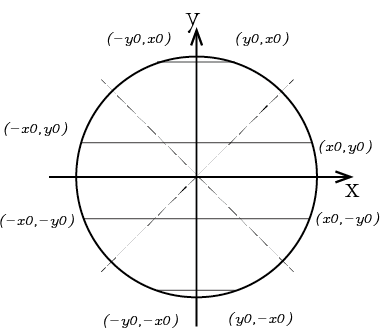

SDL2高效画实心圆的算法（一），本篇继续探讨，数学基础不变，更新一下画法，再探索一下画半实心圆和画空心圆。

一、实心圆

void SDL_RenderFillCircle( SDL_Renderer* render, int x0, int y0, int radius, Uint8 r, Uint8 g, Uint8 b, Uint8 a) {
SDL_SetRenderDrawColor(render, r, g, b, a);
int x = radius;
int y = 0;
int err = 0;
while (x >= y)
{
SDL_RenderDrawLine(render, x0 + x, y0 + y, x0 – x, y0 + y);
SDL_RenderDrawLine(render, x0 + y, y0 + x, x0 – y, y0 + x);
SDL_RenderDrawLine(render, x0 + x, y0 – y, x0 – x, y0 – y);
SDL_RenderDrawLine(render, x0 + y, y0 – x, x0 – y, y0 – x);
y += 1;
err += (y << 1) + 1;
if (err > 0)
{
x -= 1;
err -= (x << 1) + 1;
}
}
}

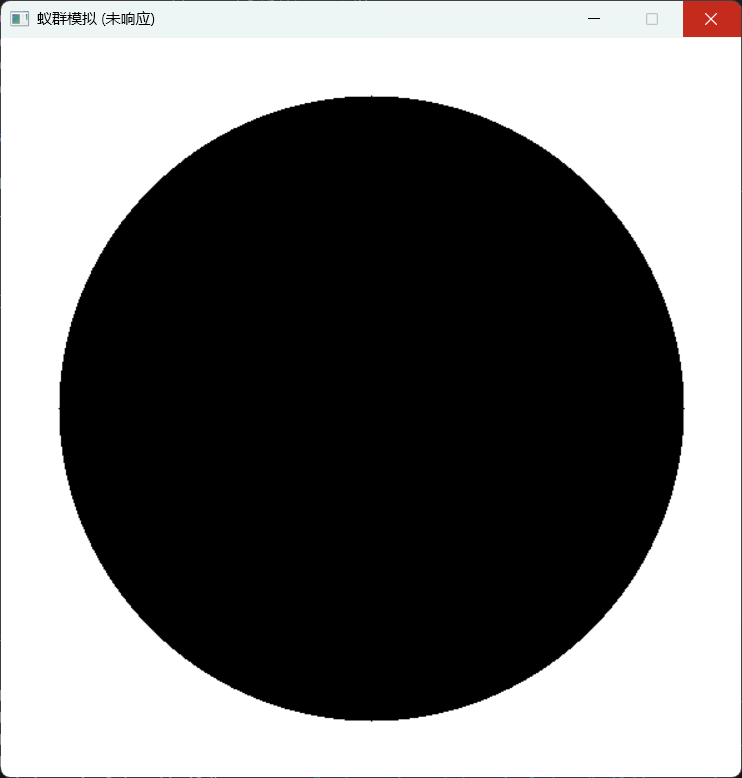

结果如图：

二、实心半圆

void SDL_RenderFillHalfCircle( SDL_Renderer* render, int x0, int y0, int radius, Uint8 r, Uint8 g, Uint8 b, Uint8 a) {
SDL_SetRenderDrawColor(render, r, g, b, a);
int x = radius;
int y = 0;
int err = 0;
while (x >= y)
{
SDL_RenderDrawLine(render, x0 + x, y0 + y, x0 + x, y0 – y);
SDL_RenderDrawLine(render, x0 + y, y0 + x, x0 + y, y0 – x);
SDL_RenderDrawLine(render, x0 + x, y0 – y, x0 + x, y0 + y);
SDL_RenderDrawLine(render, x0 + y, y0 – x, x0 + y, y0 + x);
y += 1;
err += (y << 1) + 1;
if (err > 0)
{
x -= 1;
err -= (x << 1) + 1;
}
}
}

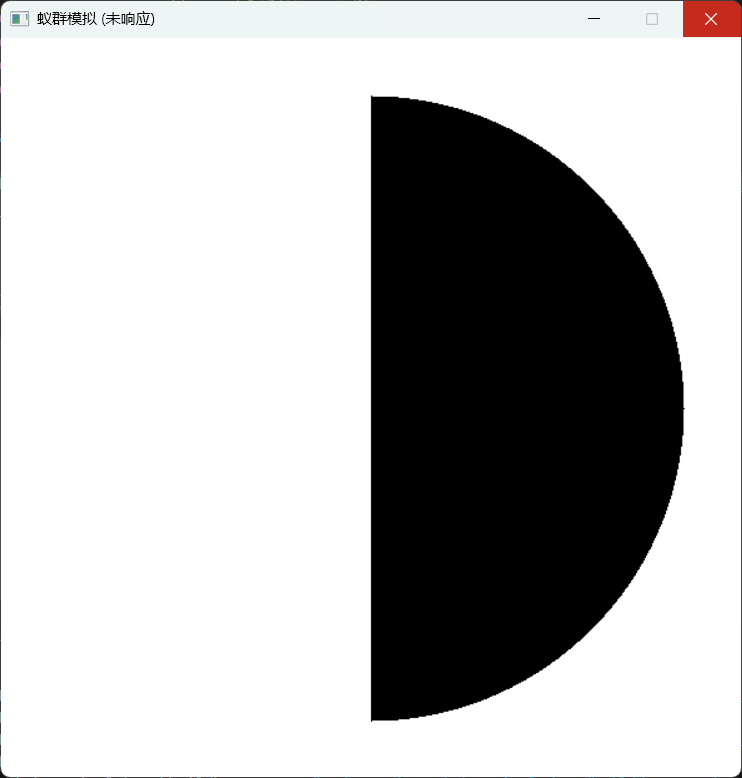

结果如图：

三、空心圆

void SDL_RenderDrawCircle( SDL_Renderer* render, int x0, int y0, int radius, Uint8 r, Uint8 g, Uint8 b, Uint8 a) {
SDL_SetRenderDrawColor(render, r, g, b, a);
int x = radius;
int y = 0;
int err = 0;
while (x >= y)
{
SDL_RenderDrawLine(render, x0 + x, y0 + y, x0 + x, y0 + (y + 1));
SDL_RenderDrawLine(render, x0 + x, y0 – y, x0 + x, y0 – (y + 1));
SDL_RenderDrawLine(render, x0 + y, y0 + x, x0 + (y + 1), y0 + x);
SDL_RenderDrawLine(render, x0 + y, y0 – x, x0 + (y + 1), y0 – x);
SDL_RenderDrawLine(render, x0 – y, y0 + x, x0 – (y + 1), y0 + x);
SDL_RenderDrawLine(render, x0 – x, y0 + y, x0 – x, y0 + (y + 1));
SDL_RenderDrawLine(render, x0 – x, y0 – y, x0 – x, y0 – (y + 1));
SDL_RenderDrawLine(render, x0 – y, y0 – x, x0 – (y + 1), y0 – x);
y += 1;
err += (y << 1) + 1;
if (err > 0)
{
x -= 1;
err -= (x << 1) + 1;
}
}
}

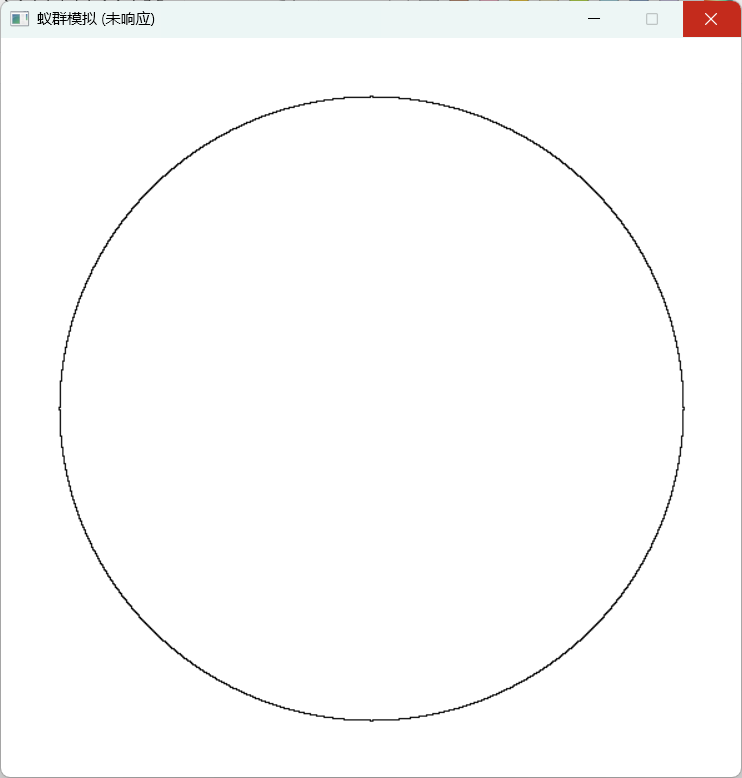

效果如图：
